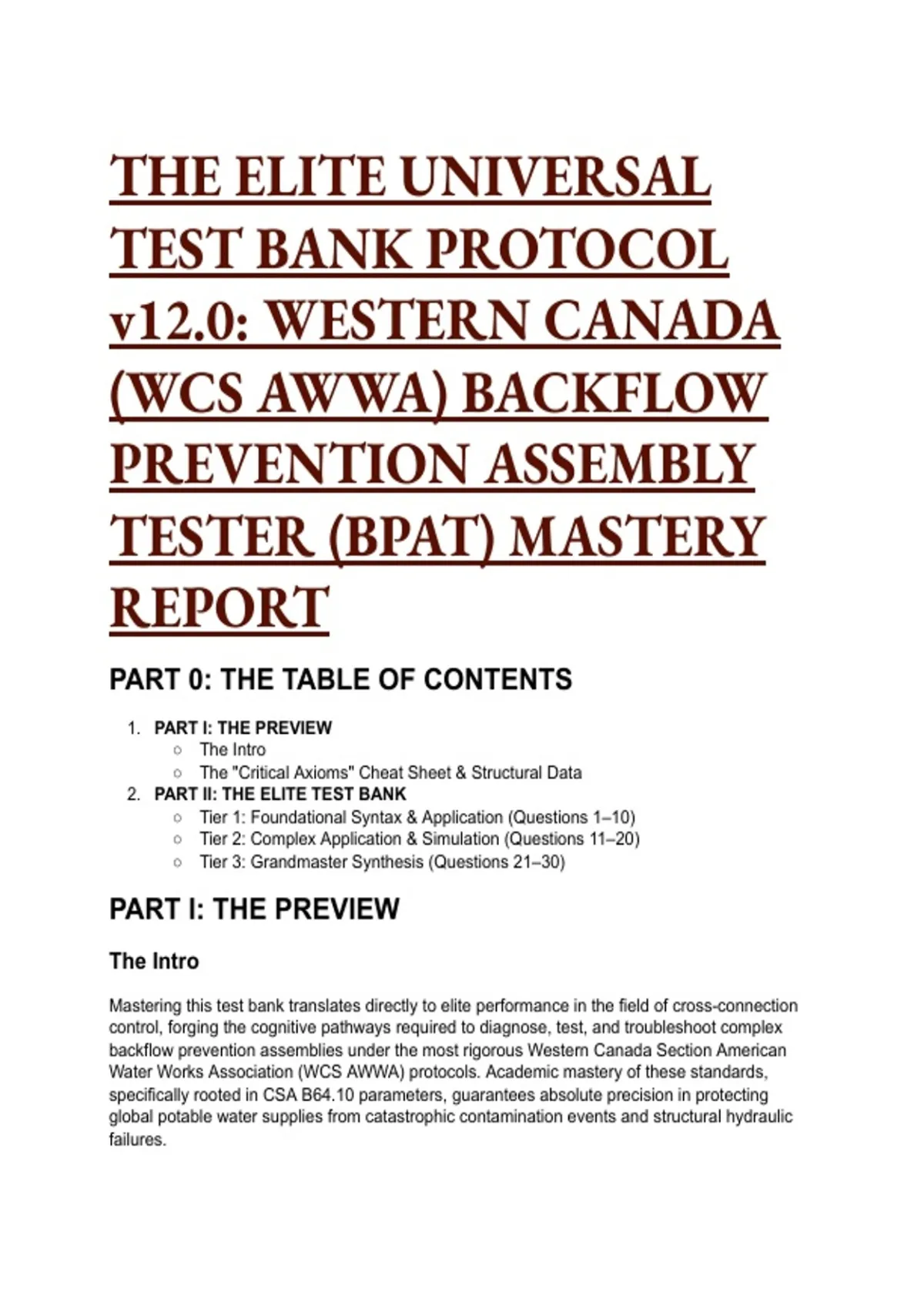

THE ELITE UNIVERSAL
TEST BANK PROTOCOL
v12.0: WESTERN CANADA
(WCS AWWA) BACKFLOW
PREVENTION ASSEMBLY
TESTER (BPAT) MASTERY
REPORT
PART 0: THE TABLE OF CONTENTS
1. PART I: THE PREVIEW
○ The Intro
○ The "Critical Axioms" Cheat Sheet & Structural Data
2. PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–10)
○ Tier 2: Complex Application & Simulation (Questions 11–20)
○ Tier 3: Grandmaster Synthesis (Questions 21–30)
PART I: THE PREVIEW
The Intro
Mastering this test bank translates directly to elite performance in the field of cross-connection
control, forging the cognitive pathways required to diagnose, test, and troubleshoot complex
backflow prevention assemblies under the most rigorous Western Canada Section American
Water Works Association (WCS AWWA) protocols. Academic mastery of these standards,
specifically rooted in CSA B64.10 parameters, guarantees absolute precision in protecting
global potable water supplies from catastrophic contamination events and structural hydraulic
failures.
,The "Critical Axioms" Cheat Sheet & Structural Data
To operate at the highest level of this discipline, you must bypass rote memorization and
internalize the physical laws governing hydraulics and backflow prevention. The following tables
and axioms represent the unyielding parameters of the WCS AWWA and CSA B64.10
standards.
Hazard Level CSA B64.10 Definition Minimum Premise Example Application
Isolation Required
Minor Low probability of Dual Check Valve Standard residential
becoming a severe (DuC) property.
hazard.
Moderate Potential to become a Double Check Valve Multi-tenant
severe hazard, but no Assembly (DCVA) commercial, low-risk
immediate toxic threat industrial.
to health.
Severe Involves substances Reduced Pressure Medical labs, chemical
that create an actual or Principle Backflow plants, wastewater.
potential danger to Assembly (RPBA)
human health.
Assembly Component WCS AWWA Passing Core Function
Threshold
RPBA Relief Valve \ge 2.0 psid Ensures the reduced pressure
zone remains lower than supply
pressure.
DCVA Check Valves (1 & 2) \ge 1.0 psid Closes drip-tight against
backpressure in moderate
hazard conditions.
PVB Air Inlet Valve \ge 1.0 psid Opens to atmosphere to break
a vacuum and prevent
back-siphonage.
● The Atmospheric Axiom: Atmospheric Vacuum Breakers (AVB) must NEVER be
subjected to continuous pressure for more than 12 hours and must NEVER have a
shut-off valve installed downstream, as the device relies purely on gravity to drop the air
inlet float.
● The Rule of Air Gaps: The physical separation (air gap) must be a minimum of one inch
(25 mm) or twice the effective opening diameter of the supply pipe. This increases to
three times the diameter if the pipe is mounted close to an intersecting wall to prevent
splash-bridging.
● The Certification Hard Deck: To achieve BCWWA certification as a backflow assembly
tester, the candidate must pass both the written and practical components with a
minimum score of 75%.
PART II: THE ELITE TEST BANK
, Tier 1: Foundational Syntax & Application
Q1: A municipal water inspector is evaluating a commercial facility utilizing toxic chemicals in its
manufacturing process. The cross-connection control survey identifies an actual connection
involving a substance that could create a danger to health. Based on the principles of CSA
B64.10 hazard classification, which action/conclusion is the MOST ACCURATE for establishing
premise isolation? A) A Double Check Valve Assembly (DCVA) is sufficient if tested bi-annually.
B) A Dual Check Valve (DuC) is acceptable if point-of-use protection is established internally. C)
A Reduced Pressure Principle Backflow Assembly (RPBA) must be installed at the property line.
D) A Pressure Vacuum Breaker (PVB) is the ideal assembly to prevent chemical backpressure.
● Answer: C (A Reduced Pressure Principle Backflow Assembly (RPBA) must be installed
at the property line.)
● Distractor Analysis:
○ A is incorrect: A DCVA is restricted exclusively to moderate hazard applications.
Testing frequency does not mitigate the mechanical inability of a DCVA to discharge
contaminated water during a catastrophic backpressure event involving toxic
substances.
○ B is incorrect: A DuC is strictly for minor hazard classifications, such as standard
residential premise isolation, and offers zero testability to verify its operational
status against a severe hazard.
○ D is incorrect: A PVB protects against back-siphonage only. In a manufacturing
facility where pumps or elevated tanks could generate backpressure, a PVB offers
zero protection and is an illegal installation.
The Mentor's Analysis: When a facility introduces toxic chemicals into a process, the hazard
classification immediately escalates to "Severe" under CSA B64.10. When facing severe
premise hazards, the immediate priority is mechanical redundancy coupled with atmospheric
discharge. By utilizing an RPBA, you bypass the common novice error of under-protecting the
municipal supply from deadly backpressure conditions. Professional/Academic Intuition:
Severe hazards mandate an RPBA for premise isolation without exception, regardless of
internal point-of-use protection.
Q2: During the standard field testing of a Reduced Pressure Principle Backflow Assembly
(RPBA), the technician begins bleeding water through the low control needle valve on the
differential pressure gauge. Based on AWWA M14 testing procedures, which action/conclusion
is the MOST ACCURATE regarding the relief valve opening point? A) The relief valve must
open precisely at 5.0 psid to pass the test. B) The test is invalidated if the relief valve opens at
2.5 psid because it is too high. C) The relief valve must open and discharge water before the
differential pressure drops below 2.0 psid. D) The relief valve should only discharge if Check
Valve #2 is simultaneously leaking.
● Answer: C (The relief valve must open and discharge water before the differential
pressure drops below 2.0 psid.)
● Distractor Analysis:
○ A is incorrect: While 5.0 psid is often used as a baseline holding requirement for
Check Valve #1 in certain jurisdictional methodologies, it is not the mandatory
opening point for the relief valve.
○ B is incorrect: A relief valve opening at 2.5 psid is perfectly acceptable and
indicates a strong spring. The requirement is a minimum of 2.0 psid, meaning
anything 2.0 or above is a pass.
