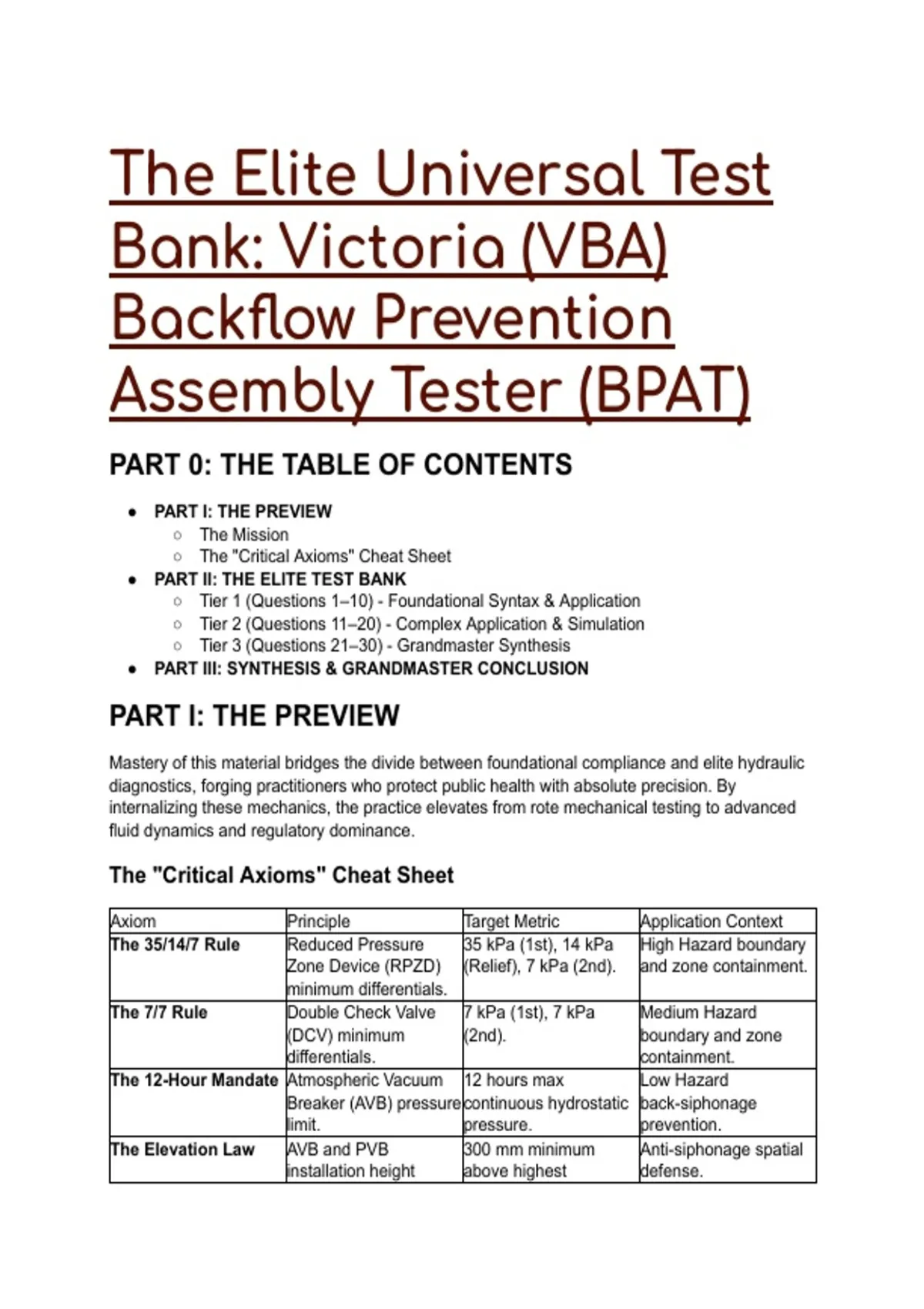

The Elite Universal Test
Bank: Victoria (VBA)
Backflow Prevention
Assembly Tester (BPAT)
PART 0: THE TABLE OF CONTENTS
● PART I: THE PREVIEW
○ The Mission
○ The "Critical Axioms" Cheat Sheet
● PART II: THE ELITE TEST BANK
○ Tier 1 (Questions 1–10) - Foundational Syntax & Application
○ Tier 2 (Questions 11–20) - Complex Application & Simulation
○ Tier 3 (Questions 21–30) - Grandmaster Synthesis
● PART III: SYNTHESIS & GRANDMASTER CONCLUSION
PART I: THE PREVIEW
Mastery of this material bridges the divide between foundational compliance and elite hydraulic
diagnostics, forging practitioners who protect public health with absolute precision. By
internalizing these mechanics, the practice elevates from rote mechanical testing to advanced
fluid dynamics and regulatory dominance.
The "Critical Axioms" Cheat Sheet
Axiom Principle Target Metric Application Context
The 35/14/7 Rule Reduced Pressure 35 kPa (1st), 14 kPa High Hazard boundary
Zone Device (RPZD) (Relief), 7 kPa (2nd). and zone containment.
minimum differentials.
The 7/7 Rule Double Check Valve 7 kPa (1st), 7 kPa Medium Hazard
(DCV) minimum (2nd). boundary and zone
differentials. containment.
The 12-Hour Mandate Atmospheric Vacuum 12 hours max Low Hazard
Breaker (AVB) pressure continuous hydrostatic back-siphonage
limit. pressure. prevention.
The Elevation Law AVB and PVB 300 mm minimum Anti-siphonage spatial
installation height above highest defense.
,Axiom Principle Target Metric Application Context
geometry. downstream outlet.
The Regulatory Victorian BPC $750+ total value Legal certification of
Threshold Compliance Certificate triggers 5-day hydraulic works.
mandate. lodgment.
PART II: THE ELITE TEST BANK
Tier 1 - Foundational Syntax & Application
Q1: During the field testing of a Reduced Pressure Zone Device (RPZD) in accordance with the
AS/NZS 2845.3 standard, an evaluation of the relief valve is performed. At what minimum
pressure differential must the relief valve open to vent the zone to atmosphere? A) 7 kPa B) 20
kPa C) 14 kPa D) 35 kPa
● Answer: C (14 kPa)
● Distractor Analysis:
○ A is incorrect: The 7 kPa metric represents the minimum opening pressure for the
second check valve assembly, not the atmospheric relief valve.
○ B is incorrect: The 20 kPa metric defines the required holding pressure differential
above the bypass valve for a Double Check Detector Assembly (DCDA), which is
entirely unrelated to RPZD relief venting.
○ D is incorrect: The 35 kPa metric is the minimum required pressure differential to
open the first check valve assembly under normal dynamic flow conditions.
The Mentor's Analysis: The primary fail-safe of an RPZD is its relief valve, which is precisely
engineered to vent to atmosphere when the differential pressure across the upstream non-return
valve drops to 14 kPa. By utilizing the pressure-energized diaphragm mechanics, practitioners
bypass the common trap of confusing the check valve opening pressures with the relief sensor's
activation threshold. Professional/Academic Intuition: An RPZD relief valve is mechanically
tethered to the 14 kPa differential; any premature or delayed venting indicates a
compromised first check valve or failing spring memory.
Q2: A licensed plumber in Victoria is installing a backflow prevention device on a property
designated as a High Hazard under AS/NZS 3500.1. Which of the following mechanical devices
is the MOST APPROPRIATE selection for boundary containment? A) Double Check Valve
(DCV) B) Dual Check Valve with Atmospheric Port (DCAP) C) Reduced Pressure Zone Device
(RPZD) D) Non-testable Single Check Valve (SCV)
● Answer: C (Reduced Pressure Zone Device (RPZD))
● Distractor Analysis:
○ A is incorrect: A Double Check Valve is strictly rated for Medium Hazard
applications where a cross-connection could endanger health but lacks the extreme
toxicity associated with High Hazard designations.
○ B is incorrect: A DCAP is generally suited for highly specific, low-hazard
applications (such as beverage dispensers) and lacks the robust architecture to
defend against High Hazard back-pressure.
○ D is incorrect: Non-testable devices are relegated entirely to Very Low Hazard
applications and are legally forbidden for boundary containment on a High Hazard
site.
The Mentor's Analysis: High Hazard sites contain potential cross-connections that introduce
lethal biological or chemical contaminants into the potable water grid. When facing this level of
, toxicity, the immediate priority is mechanical redundancy coupled with absolute physical
atmospheric venting. By utilizing a Reduced Pressure Zone Device (RPZD) or a Registered
Break Tank, the practitioner bypasses the common trap of under-protecting the municipal
supply. Professional/Academic Intuition: High Hazard dictates visual, physical venting
(RPZD or Break Tank); closed systems like the DCV are strictly forbidden for lethal
containment.
Q3: According to AS/NZS 3500.1, an Atmospheric Vacuum Breaker (AVB) must be installed to
protect against back-siphonage. Which installation parameter represents an absolute
VIOLATION of the standard? A) Installing the AVB exactly 300 mm above the highest
downstream outlet. B) Leaving the AVB under continuous hydrostatic pressure for 18 hours. C)
Installing a resilient seated isolating valve immediately upstream of the AVB. D) Using the AVB
in a low-hazard irrigation line strictly subject to back-siphonage without back-pressure.
● Answer: B (Leaving the AVB under continuous hydrostatic pressure for 18 hours.)
● Distractor Analysis:
○ A is incorrect: The metric of 300 mm above the highest downstream outlet is the
exact minimum required height for an AVB installation.
○ C is incorrect: The regulatory code explicitly requires a resilient seated isolating
valve to be located immediately upstream of the AVB to facilitate maintenance and
testing.
○ D is incorrect: AVBs are structurally designed for back-siphonage mitigation in
low-hazard applications where downstream back-pressure cannot occur.
The Mentor's Analysis: The atmospheric air port of an AVB utilizes a float or diaphragm that
can physically adhere to its seat if subjected to uninterrupted hydraulic pressure. When facing
back-siphonage risks, the immediate priority is ensuring the device depressurizes to allow
mechanical reset. By adhering to the 12-hour continuous pressure limitation, practitioners
bypass the common trap of mechanical fusion within the air inlet. Professional/Academic
Intuition: An AVB is a cyclical pressure device; exceeding 12 hours of continuous
hydrostatic load compromises the air vent's mechanical freedom.
Q4: When utilizing a differential pressure gauge (e.g., Mid-West Instrument 845-5) to field test a
backflow assembly, what is the strict regulatory requirement for the instrument's calibration in
Australia? A) It must be field-calibrated prior to every test using an atmospheric zeroing
protocol. B) It must be calibrated every 24 months by the original manufacturer. C) It must
possess a valid calibration certificate traceable to NATA, renewed every 12 months. D) It must
be calibrated strictly when the differential needle fails to return to absolute zero.
● Answer: C (It must possess a valid calibration certificate traceable to NATA, renewed
every 12 months.)
● Distractor Analysis:
○ A is incorrect: While field-zeroing and bleeding hoses are procedural steps before
testing, they do not substitute for official laboratory calibration and validation.
○ B is incorrect: A 24-month interval explicitly violates Australian testing standards,
which demand annual certification.
○ D is incorrect: Waiting for mechanical failure or visible calibration drift to manifest is
a gross violation of preventative maintenance protocols and regulatory law.
The Mentor's Analysis: Precision test kits dictate the legal validity of the field test, functioning
as the sole arbiter between a safe municipal grid and a contaminated one. When facing
municipal compliance, the immediate priority is indisputable data integrity. By utilizing
NATA-accredited annual calibration, the practitioner bypasses the common trap of lodging
invalid compliance certificates based on drifted gauge telemetry. Professional/Academic
