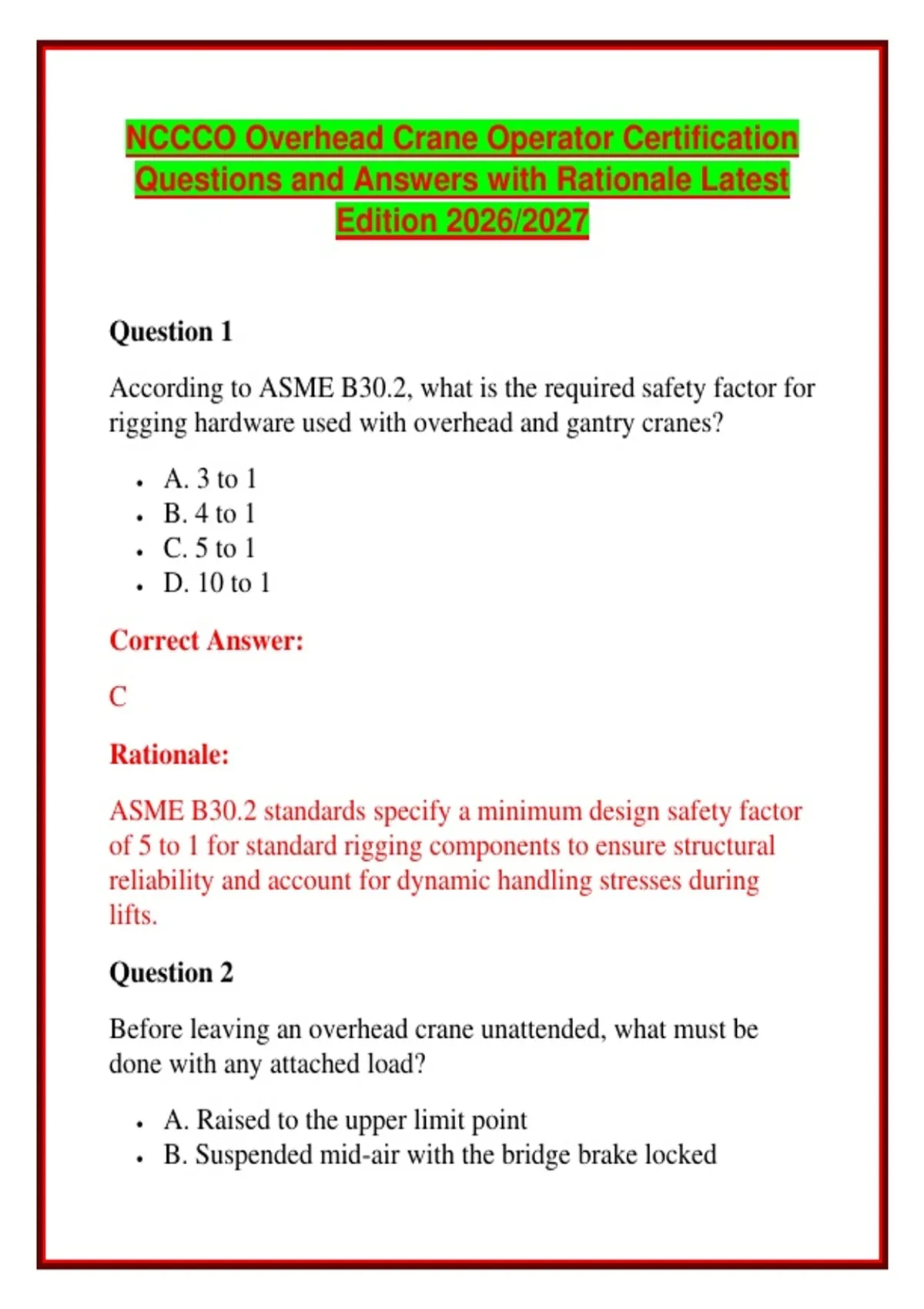

NCCCO Overhead Crane Operator Certification
Questions and Answers with Rationale Latest
Edition 2026/2027
Question 1
According to ASME B30.2, what is the required safety factor for
rigging hardware used with overhead and gantry cranes?
A. 3 to 1
B. 4 to 1
C. 5 to 1
D. 10 to 1
Correct Answer:
C
Rationale:
ASME B30.2 standards specify a minimum design safety factor
of 5 to 1 for standard rigging components to ensure structural
reliability and account for dynamic handling stresses during
lifts.
Question 2
Before leaving an overhead crane unattended, what must be
done with any attached load?
A. Raised to the upper limit point
B. Suspended mid-air with the bridge brake locked
, C. Lowered completely to the floor
D. Secured with a secondary backup chain only
Correct Answer:
C
Rationale:
Leaving a load suspended unattended creates an uncontrolled
hazard zone. Safety protocols require all loads to be fully landed
and unhooked or safely stored on the ground before the operator
steps away.
Question 3
What is the primary purpose of the upper limit switch on an
overhead crane hoist?
A. To limit the downward travel of the hook block
B. To automatically stop the upward motion of the hoist
before the block makes contact with the drum or bridge
structure (two-blocking)
C. To measure the exact weight of the lifted payload
D. To control bridge travel speed along the runway rails
Correct Answer:
B
Rationale:
,The upper limit switch is a critical safety device designed to cut
power to the hoist-up motion, preventing a two-block condition
that can snap wire ropes and drop loads.
Question 4
According to ASME B30.2, what type of fire extinguisher must
be kept in the crane cab or on the bridge walkway?
A. Water-type extinguisher (Class A)
B. Carbon dioxide or dry chemical (Class 10-BC or higher)
C. Foam extinguisher (Class B)
D. Wet chemical system (Class K)
Correct Answer:
B
Rationale:
Overhead cranes involve electrical components and mechanical
grease/oil hazards, requiring a Class BC or multi-class ABC fire
extinguisher immediately accessible to the operator.
Question 5
When making a lift, where must the hoist hook block be
positioned relative to the load to prevent load swing or "side-
pulling"?
A. Horizontally offset to the edge of the load
B. Positioned diagonally across opposite corners
C. Vertically centered directly over the load's center of
gravity
, D. Anywhere along the longest side of the object
Correct Answer:
C
Rationale:
Side-pulling introduces severe lateral stresses to the hoist,
trolley, and bridge structure. The hook must always be plumb
directly over the center of gravity before lifting.
Question 6
In the event of an emergency or an unsafe condition during an
overhead crane lift, who is authorized to give the "stop" signal?
A. The crane operator or project manager only
B. The designated signal person exclusively
C. Anyone on the job site who spots a hazard
D. The lift supervisor or safety officer
Correct Answer:
C
Rationale:
Safety rules dictate that an emergency stop signal can—and
must—be obeyed immediately regardless of who gives it, as
anyone can spot an unforeseen hazard.
Question 7
