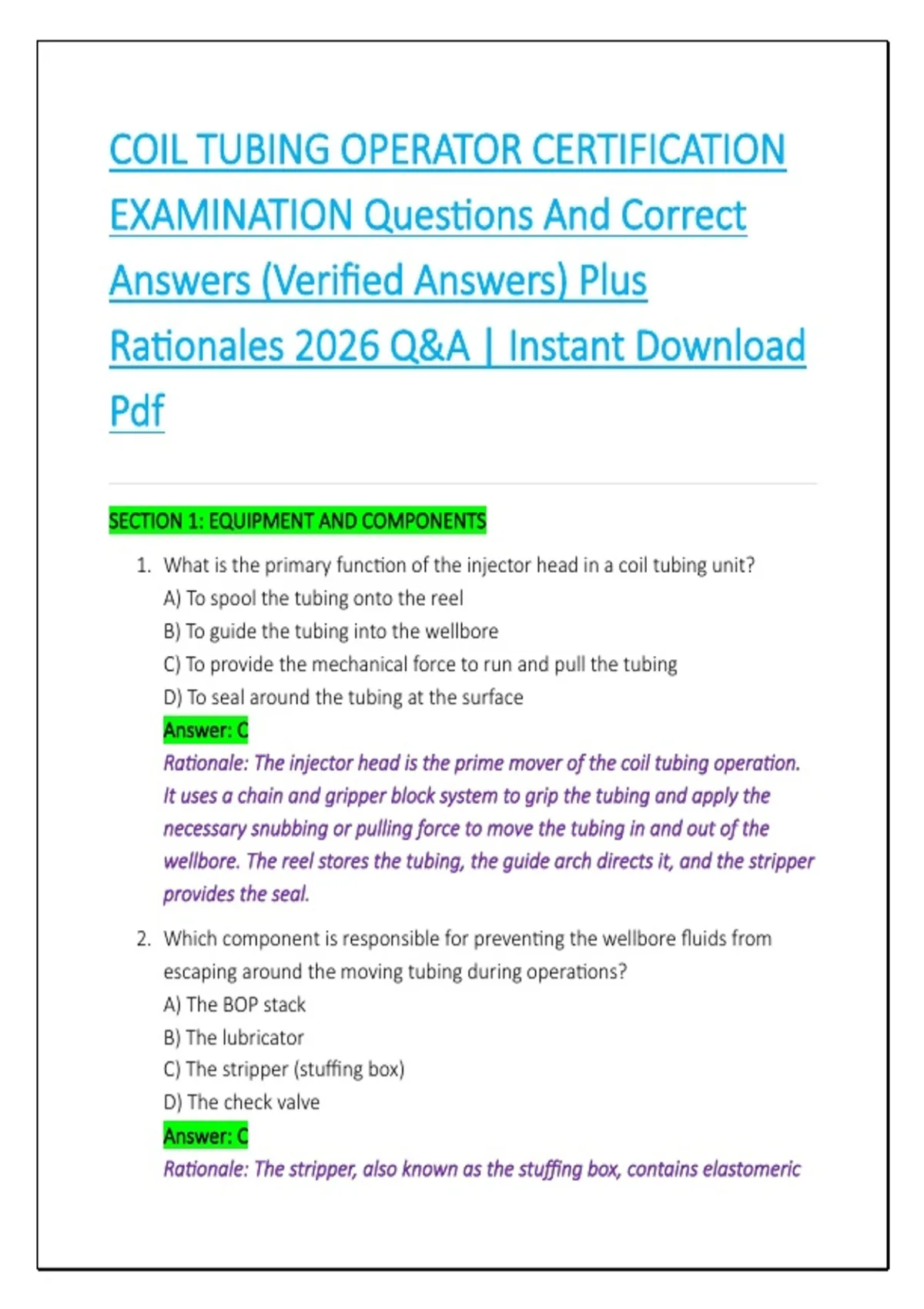

COIL TUBING OPERATOR CERTIFICATION
EXAMINATION Questions And Correct
Answers (Verified Answers) Plus
Rationales 2026 Q&A | Instant Download
Pdf
SECTION 1: EQUIPMENT AND COMPONENTS
1. What is the primary function of the injector head in a coil tubing unit?
A) To spool the tubing onto the reel
B) To guide the tubing into the wellbore
C) To provide the mechanical force to run and pull the tubing
D) To seal around the tubing at the surface
Answer: C
Rationale: The injector head is the prime mover of the coil tubing operation.
It uses a chain and gripper block system to grip the tubing and apply the
necessary snubbing or pulling force to move the tubing in and out of the
wellbore. The reel stores the tubing, the guide arch directs it, and the stripper
provides the seal.
2. Which component is responsible for preventing the wellbore fluids from
escaping around the moving tubing during operations?
A) The BOP stack
B) The lubricator
C) The stripper (stuffing box)
D) The check valve
Answer: C
Rationale: The stripper, also known as the stuffing box, contains elastomeric
, elements that seal around the outside diameter of the moving coil tubing.
While the BOP stack provides emergency shut-in, the stripper provides the
primary dynamic seal during normal running and pulling operations.
3. What is the purpose of the guide arch on a coil tubing unit?
A) To measure the tubing weight
B) To support the reel
C) To control the radius of curvature of the tubing as it leaves the reel
D) To act as a secondary pressure barrier
Answer: C
Rationale: The guide arch, which typically has a radius of 72 inches, is
designed to support the tubing and control the bending radius as it
transitions from the reel to the injector head. This prevents the tubing from
kinking or exceeding its yield strength due to bending stresses.
4. The reel on a coil tubing unit is primarily responsible for:
A) Applying snubbing force
B) Storing and transporting the continuous length of tubing
C) Providing a secondary seal
D) Metering the fluid injection rate
Answer: B
Rationale: The primary function of the reel is to store the continuous string of
coil tubing for transportation and deployment. It also serves as the mounting
point for the tubing, allowing it to be spooled and unspooled during
operations.
5. What is the typical maximum working pressure rating for a standard 2-inch
coil tubing string?
A) 5,000 psi
B) 10,000 psi
C) 15,000 psi
D) 20,000 psi
Answer: C
Rationale: Standard 2-inch coil tubing, with a wall thickness of approximately
, 0.156 inches, typically has a working pressure rating of around 15,000 psi.
This rating is derived from the material yield strength and the tubing's
geometry. Higher strength materials can achieve 20,000 psi or more.
6. A coil tubing BOP stack commonly consists of which components in
sequence from bottom to top?
A) Blind shear, pipe rams, annular
B) Annular, pipe rams, blind shear
C) Pipe rams, blind shear, annular
D) Slip rams, pipe rams, annular
Answer: B
Rationale: The standard BOP stack for coil tubing operations, from bottom to
top, consists of the annular BOP (to seal around any pipe and kill the well),
followed by pipe rams (to seal around the tubing), and finally the blind shear
rams (to seal the open hole and shear the tubing if necessary). This
arrangement allows for progressive sealing and emergency closure.
7. What is the function of the coiled tubing pipe rams in the BOP stack?
A) To seal around the tubing and hold pressure
B) To cut the tubing string
C) To seal the wellbore with no pipe in the hole
D) To grip the tubing for pulling
Answer: A
Rationale: Pipe rams are designed with elastomeric seals that close around
the specific outer diameter of the coil tubing. Their function is to seal the
annular space between the tubing and the wellbore, providing a pressure-
tight seal when the tubing is stationary.
8. The gooseneck (guide arch) on a coil tubing unit must have a radius that is:
A) At least 6 times the tubing diameter
B) At least 24 times the tubing diameter
C) Exactly 36 inches
D) At least 48 inches
Answer: B
, Rationale: Industry standards recommend that the gooseneck radius be at
least 24 times the tubing diameter to prevent fatigue damage and plastic
deformation. For a typical 1.5-inch tubing, this would be a 36-inch radius, but
the rule of 24 times diameter is the governing criterion.
9. The "crows nest" or operator cabin on a coil tubing unit typically contains:
A) The hydraulic pump and power pack
B) The control panels for the injector, reel, and BOP
C) The tubing storage reel
D) The mixing tank for fluids
Answer: B
Rationale: The operator's cabin, often referred to as the "crows nest," is the
command center where the operator controls all surface equipment. It
contains the control panels, gauges, and monitoring systems for the injector
head speed and force, reel rotation, BOP operation, and other critical
functions.
10.The tubing guide or "tubing straightener" is used to:
A) Remove bends from the tubing before it enters the injector
B) Increase the tubing's yield strength
C) Measure the tubing's depth
D) Lubricate the tubing
Answer: A
Rationale: The tubing straightener is designed to remove the residual bend
that the tubing has from being spooled on the reel. This straightening
process reduces the tubing's curvature and minimizes the stress on the
tubing as it is pulled through the injector head and into the well.
SECTION 2: OPERATIONAL PROCEDURES AND PLANNING
11.What is the primary purpose of a wellsite risk assessment before a coil
tubing job?
A) To determine the cost of the job
