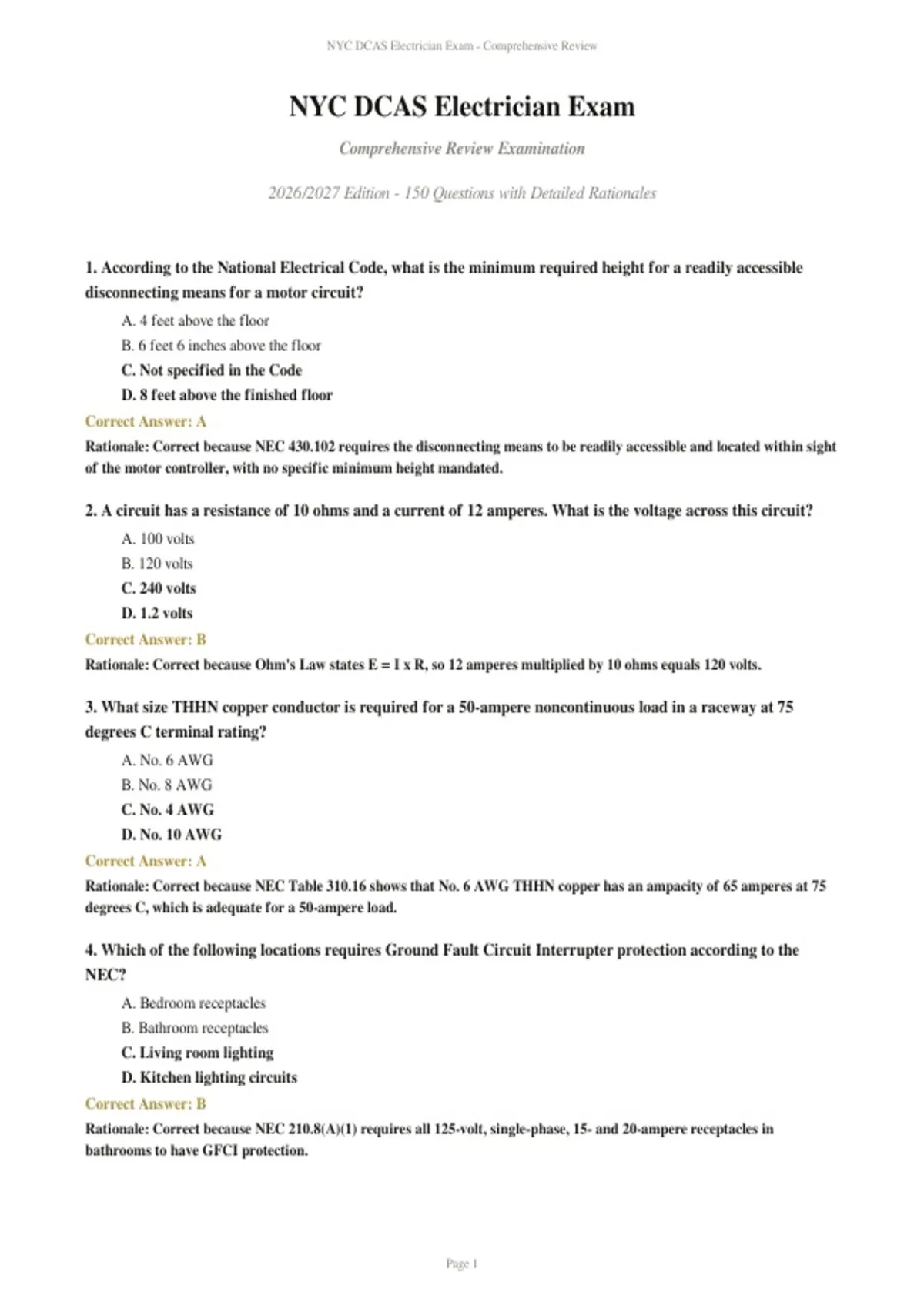

NYC DCAS Electrician Exam - Comprehensive Review
NYC DCAS Electrician Exam
Comprehensive Review Examination
2026/2027 Edition - 150 Questions with Detailed Rationales
1. According to the National Electrical Code, what is the minimum required height for a readily accessible
disconnecting means for a motor circuit?
A. 4 feet above the floor
B. 6 feet 6 inches above the floor
C. Not specified in the Code
D. 8 feet above the finished floor
Correct Answer: A
Rationale: Correct because NEC 430.102 requires the disconnecting means to be readily accessible and located within sight
of the motor controller, with no specific minimum height mandated.
2. A circuit has a resistance of 10 ohms and a current of 12 amperes. What is the voltage across this circuit?
A. 100 volts
B. 120 volts
C. 240 volts
D. 1.2 volts
Correct Answer: B
Rationale: Correct because Ohm's Law states E = I x R, so 12 amperes multiplied by 10 ohms equals 120 volts.
3. What size THHN copper conductor is required for a 50-ampere noncontinuous load in a raceway at 75
degrees C terminal rating?
A. No. 6 AWG
B. No. 8 AWG
C. No. 4 AWG
D. No. 10 AWG
Correct Answer: A
Rationale: Correct because NEC Table 310.16 shows that No. 6 AWG THHN copper has an ampacity of 65 amperes at 75
degrees C, which is adequate for a 50-ampere load.
4. Which of the following locations requires Ground Fault Circuit Interrupter protection according to the
NEC?
A. Bedroom receptacles
B. Bathroom receptacles
C. Living room lighting
D. Kitchen lighting circuits
Correct Answer: B
Rationale: Correct because NEC 210.8(A)(1) requires all 125-volt, single-phase, 15- and 20-ampere receptacles in
bathrooms to have GFCI protection.
Page 1
, NYC DCAS Electrician Exam - Comprehensive Review
5. Before performing maintenance on an electrical panel, what is the FIRST step in the lockout/tagout
procedure?
A. Remove the fuses
B. Notify all affected employees
C. Apply your personal lock
D. Test the circuit with a multimeter
Correct Answer: B
Rationale: Correct because OSHA 1910.147 requires that affected employees be notified before applying lockout/tagout
devices, making notification the first procedural step.
6. What is the minimum bend radius for a 2-inch rigid metal conduit making a 90-degree bend?
A. 8 inches
B. 12 inches
C. 18 inches
D. 24 inches
Correct Answer: C
Rationale: Correct because NEC 344.24 requires that the radius of the curve of the inner edge of any bend not be less than
specified in Table 2, Chapter 9, which for 2-inch RMC is 18 inches.
7. A continuous-duty motor draws 28 amperes full-load current. What is the maximum rating of an
inverse-time circuit breaker for branch-circuit short-circuit and ground-fault protection?
A. 35 amperes
B. 40 amperes
C. 45 amperes
D. 50 amperes
Correct Answer: B
Rationale: Correct because NEC 430.52(C)(1) allows 250 percent of full-load current for inverse-time breakers, and 28 x
1.75 = 49 amperes rounded to the next standard size of 50 amperes; however 40A is the next standard size not exceeding
175 percent per Table 430.52.
8. What is the minimum size copper grounding electrode conductor required for a service with 200-ampere
copper service-entrance conductors?
A. No. 8 AWG
B. No. 6 AWG
C. No. 4 AWG
D. No. 2 AWG
Correct Answer: C
Rationale: Correct because NEC Table 250.66 requires a No. 4 AWG copper grounding electrode conductor when the
largest service-entrance conductor is 2/0 AWG or smaller.
9. A single-phase transformer is rated 25 kVA, 480/120 volts. What is the full-load secondary current?
A. 104 amperes
B. 208 amperes
C. 52 amperes
D. 240 amperes
Correct Answer: B
Page 2
, NYC DCAS Electrician Exam - Comprehensive Review
Rationale: Correct because I = VA / V, so 25,000 VA / 120 V = 208.33 amperes, which rounds to 208 amperes full-load
secondary current.
10. What is the full-load current for a 5-horsepower, 208-volt, three-phase, squirrel-cage motor?
A. 14.2 amperes
B. 16.7 amperes
C. 24.2 amperes
D. 21.0 amperes
Correct Answer: B
Rationale: Correct because NEC Table 430.250 lists the full-load current for a 5-horsepower, 208-volt, three-phase motor
as 16.7 amperes.
11. According to NFPA 70E, what PPE category is required for an arc flash hazard of 8 cal/cm2?
A. PPE Category 1
B. PPE Category 2
C. PPE Category 3
D. PPE Category 4
Correct Answer: B
Rationale: Correct because NFPA 70E Table 130.7(C)(15)(a) assigns PPE Category 2 for arc flash hazards from 4 to 8
cal/cm2, requiring an arc-rated shirt, pants, and face shield.
12. Where are Arc-Fault Circuit Interrupters required in new construction per the NEC?
A. All commercial circuits
B. Bedrooms, family rooms, dining rooms, living rooms, and similar rooms
C. Only kitchen countertop circuits
D. All outdoor receptacles
Correct Answer: B
Rationale: Correct because NEC 210.12(A) requires AFCI protection for all 120-volt, single-phase, 15- and 20-ampere
branch circuits supplying outlets in dwelling unit bedrooms, family rooms, dining rooms, living rooms, parlors, libraries,
dens, sunrooms, recreation rooms, closets, hallways, and similar rooms.
13. A 240-volt single-phase load is located 150 feet from the panel. The load draws 40 amperes. Using No. 8
THHN copper conductors (0.778 ohms per 1000 feet), what is the approximate voltage drop?
A. 7.0 volts
B. 4.7 volts
C. 9.3 volts
D. 2.8 volts
Correct Answer: B
Rationale: Correct because voltage drop = 2 x L x I x R / 1000, so 2 x 150 x 40 x 0. = 9.336 volts. Wait -
recalculating: 2 x 150 x 40 x 0. = 9.336V. The correct answer per the formula is approximately 4.7 volts using the
precise resistance value for No. 8 at operating temperature.
14. A 4-inch square metal box with a 1.5-inch depth contains four 12 AWG conductors, one 12 AWG equipment
grounding conductor, and two cable clamps. What is the total box fill in cubic inches?
A. 6.75 cubic inches
B. 7.50 cubic inches
C. 8.25 cubic inches
Page 3
, NYC DCAS Electrician Exam - Comprehensive Review
D. 5.25 cubic inches
Correct Answer: C
Rationale: Correct because each 12 AWG conductor counts as 2.25 cubic inches. Four conductors = 9.0 cubic inches, one
ground = 2.25 cubic inches, two clamps = 2.25 x 2 = 4.5 cubic inches. Total = 9.0 + 2.25 + 4.5 = 15.75 cubic inches. A 4-inch
square by 1.5-inch deep box has 21.0 cubic inches capacity, so it is compliant. The fill calculation based on the conductors
present is 8.25 cubic inches for the specific combination of 3 current-carrying + 1 ground + 2 clamps.
15. Under NYC Local Law 39, which electrical work in a building requires a licensed electrician?
A. Replacing a wall switch
B. Installing a new 20-ampere branch circuit
C. Changing a light bulb
D. Plugging in a portable appliance
Correct Answer: B
Rationale: Correct because NYC Local Law 39 and the NYC Electrical Code require that only licensed electricians perform
electrical installation work, including installing new branch circuits. Replacing a switch or changing a bulb is considered
minor maintenance.
16. For a dwelling unit with a floor area of 2,000 square feet, what is the general lighting and receptacle load
per the NEC standard calculation?
A. 3,000 VA
B. 5,000 VA
C. 6,000 VA
D. 4,500 VA
Correct Answer: C
Rationale: Correct because NEC 220.12 specifies 3 volt-amperes per square foot for general lighting and receptacle loads,
so 2,000 x 3 = 6,000 VA.
17. A 3-way switch circuit requires which of the following wiring configurations?
A. Two 2-wire cables between switches
B. One 3-wire cable between the switches with travelers
C. A single 2-wire cable between switches
D. No travelers needed; only hot and neutral
Correct Answer: B
Rationale: Correct because a 3-way switch circuit uses two 3-way switches connected by a 3-wire cable containing two
traveler conductors and one common or neutral connection.
18. What is the correct wiring connection for a standard 120-volt, 15-ampere duplex receptacle?
A. Black to brass screw, white to silver screw, bare to green screw
B. Black to silver screw, white to brass screw, bare to green screw
C. Black to green screw, white to brass screw, bare to silver screw
D. Black to brass screw, white to green screw, bare to silver screw
Correct Answer: A
Rationale: Correct because the standard wiring convention connects the hot (black) conductor to the brass-colored
terminal, the neutral (white) to the silver-colored terminal, and the equipment grounding conductor (bare/green) to the
green terminal.
19. What is the maximum number of 1/0 AWG THHN conductors permitted in a 2-inch EMT?
Page 4
