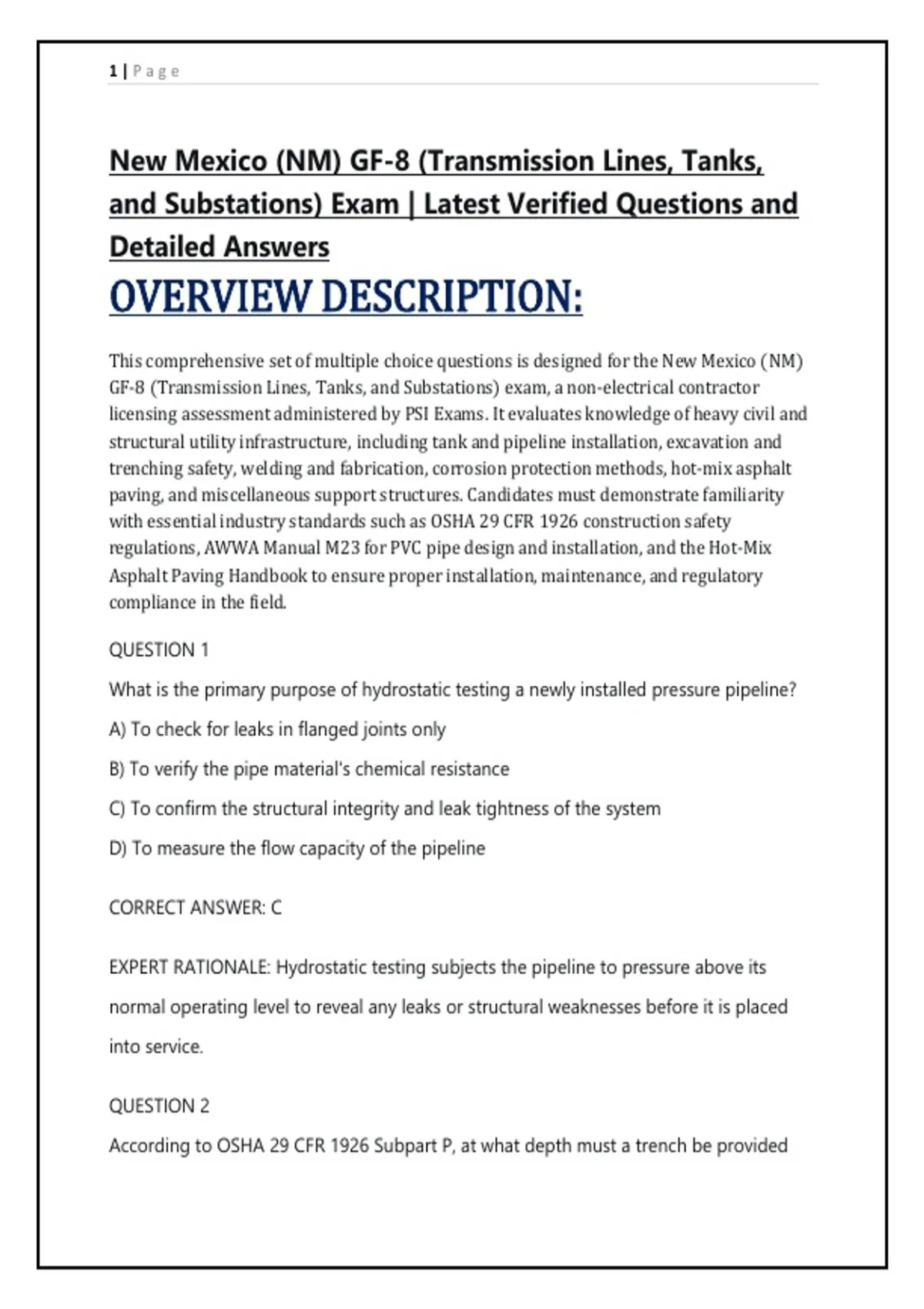

1|Page
New Mexico (NM) GF-8 (Transmission Lines, Tanks,
and Substations) Exam | Latest Verified Questions and
Detailed Answers
OVERVIEW DESCRIPTION:
This comprehensive set of multiple choice questions is designed for the New Mexico (NM)
GF-8 (Transmission Lines, Tanks, and Substations) exam, a non-electrical contractor
licensing assessment administered by PSI Exams. It evaluates knowledge of heavy civil and
structural utility infrastructure, including tank and pipeline installation, excavation and
trenching safety, welding and fabrication, corrosion protection methods, hot-mix asphalt
paving, and miscellaneous support structures. Candidates must demonstrate familiarity
with essential industry standards such as OSHA 29 CFR 1926 construction safety
regulations, AWWA Manual M23 for PVC pipe design and installation, and the Hot-Mix
Asphalt Paving Handbook to ensure proper installation, maintenance, and regulatory
compliance in the field.
QUESTION 1
What is the primary purpose of hydrostatic testing a newly installed pressure pipeline?
A) To check for leaks in flanged joints only
B) To verify the pipe material's chemical resistance
C) To confirm the structural integrity and leak tightness of the system
D) To measure the flow capacity of the pipeline
CORRECT ANSWER: C
EXPERT RATIONALE: Hydrostatic testing subjects the pipeline to pressure above its
normal operating level to reveal any leaks or structural weaknesses before it is placed
into service.
QUESTION 2
According to OSHA 29 CFR 1926 Subpart P, at what depth must a trench be provided
,2|Page
with a means of egress such as a ladder or ramp?
A) 2 feet
B) 4 feet
C) 5 feet
D) 6 feet
CORRECT ANSWER: B
EXPERT RATIONALE: OSHA 1926.651(c)(2) requires that when excavations are 4 feet or
deeper, ladders, ramps, or other safe means of egress must be provided so workers do
not travel more than 25 feet laterally to reach one.
QUESTION 3
In the AWWA M23 manual for PVC pipe installation, what is the recommended
minimum trench width for a pipe with an outside diameter of 12 inches?
A) Pipe diameter plus 6 inches
B) Pipe diameter plus 12 inches
C) Pipe diameter plus 16 inches
D) Pipe diameter plus 24 inches
CORRECT ANSWER: C
EXPERT RATIONALE: AWWA M23 recommends that trench width be the pipe outside
diameter plus 16 inches (or wider in unstable soils) to provide adequate room for proper
bedding compaction and joint assembly.
QUESTION 4
Which of the following heavy equipment operations is most directly governed by OSHA
1926.1400 (Cranes and Derricks in Construction)?
A) Operating a skid-steer loader in a trench
,3|Page
B) Assembling a tower crane on a substation site
C) Using a backhoe for pavement breaking
D) Compacting backfill with a vibratory roller
CORRECT ANSWER: B
EXPERT RATIONALE: Subpart CC of 29 CFR 1926 specifically covers cranes and derricks,
including tower crane assembly and disassembly, whereas backhoes used for lifting may
also be covered when they exceed certain capacities.
QUESTION 5
What is the function of a thrust block in a water main pipeline?
A) To anchor the pipe against thermal expansion
B) To resist unbalanced forces at bends, tees, and dead ends
C) To support vertical risers above grade
D) To prevent corrosion at mechanical joints
CORRECT ANSWER: B
EXPERT RATIONALE: Thrust blocks are concrete masses poured against undisturbed soil
to transfer hydraulic thrust forces from changes in direction or cross-section to the
surrounding ground, preventing joint separation.
QUESTION 6
In Hot-Mix Asphalt (HMA) paving, what is the purpose of a tack coat?
A) To seal the surface against water infiltration
B) To provide a bond between an existing pavement surface and a new overlay
C) To act as a wearing course for low-traffic roads
D) To fill cracks in the base course before paving
, 4|Page
CORRECT ANSWER: B
EXPERT RATIONALE: A tack coat is a light application of asphalt emulsion applied to an
existing surface to promote adhesion between layers, preventing slippage and
delamination of the new HMA lift.
QUESTION 7
Which electrode classification in shielded metal arc welding (SMAW) indicates a low-
hydrogen electrode suitable for structural steel?
A) E6010
B) E6011
C) E7018
D) E7024
CORRECT ANSWER: C
EXPERT RATIONALE: E7018 is a low-hydrogen, iron-powder electrode commonly used
for welding structural carbon steel, providing good toughness and reduced risk of
hydrogen-induced cracking.
QUESTION 8
Cathodic protection is most effective when the structure being protected acts as which
component of a corrosion cell?
A) Anode
B) Cathode
C) Electrolyte
D) Conductor
CORRECT ANSWER: B
