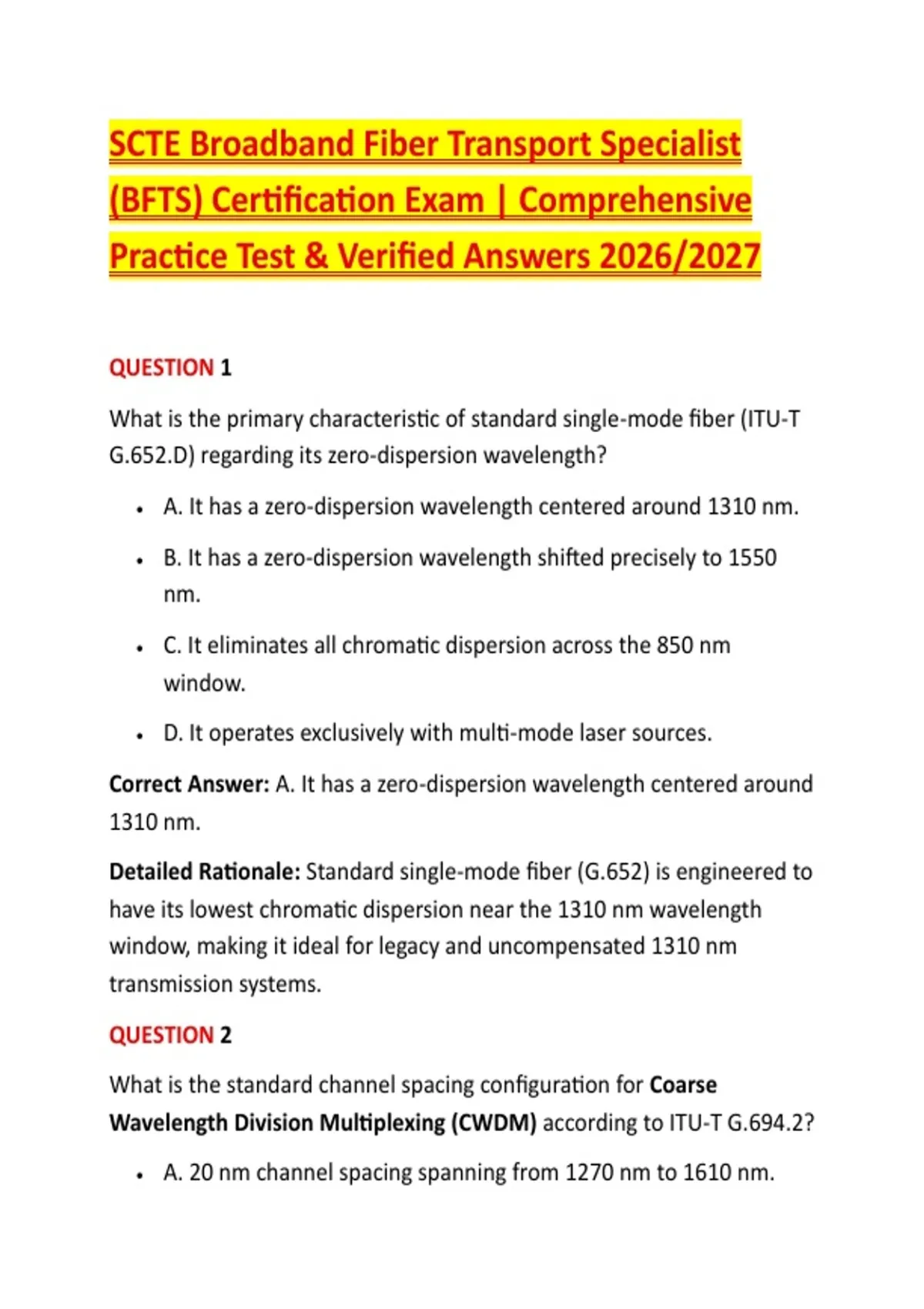

SCTE Broadband Fiber Transport Specialist
(BFTS) Certification Exam | Comprehensive
Practice Test & Verified Answers 2026/2027
QUESTION 1
What is the primary characteristic of standard single-mode fiber (ITU-T
G.652.D) regarding its zero-dispersion wavelength?
• A. It has a zero-dispersion wavelength centered around 1310 nm.
• B. It has a zero-dispersion wavelength shifted precisely to 1550
nm.
• C. It eliminates all chromatic dispersion across the 850 nm
window.
• D. It operates exclusively with multi-mode laser sources.
Correct Answer: A. It has a zero-dispersion wavelength centered around
1310 nm.
Detailed Rationale: Standard single-mode fiber (G.652) is engineered to
have its lowest chromatic dispersion near the 1310 nm wavelength
window, making it ideal for legacy and uncompensated 1310 nm
transmission systems.
QUESTION 2
What is the standard channel spacing configuration for Coarse
Wavelength Division Multiplexing (CWDM) according to ITU-T G.694.2?
• A. 20 nm channel spacing spanning from 1270 nm to 1610 nm.
, • B. 0.8 nm (100 GHz) or 0.4 nm (50 GHz) spacing across the C-band.
• C. Exactly 5 nm spacing across the 850 nm window.
• D. 100 nm spacing limited to the 1310 nm region only.
Correct Answer: A. 20 nm channel spacing spanning from 1270 nm to
1610 nm.
Detailed Rationale: CWDM utilizes a wide 20 nm channel spacing,
allowing for cost-effective uncooled lasers across 18 defined
wavelengths from 1270 nm to 1610 nm.
QUESTION 3
How does an Erbium-Doped Fiber Amplifier (EDFA) amplify optical
signals in fiber transport networks?
• A. By optically pumping an erbium-doped fiber section with a
pump laser (typically 980 nm or 1480 nm), which stimulates
emission to amplify incoming signals in the C-band (and/or L-
band) directly in the optical domain.
• B. By converting optical signals into electrical signals, boosting
voltage, and converting them back to optical signals.
• C. By utilizing high-voltage electrical coils to physically stretch the
glass fiber core.
• D. By reflecting light backward using high-reflectivity Bragg
gratings.
Correct Answer: A. By optically pumping an erbium-doped fiber section
with a pump laser (typically 980 nm or 1480 nm), which stimulates
,emission to amplify incoming signals in the C-band (and/or L-band)
directly in the optical domain.
Detailed Rationale: EDFAs provide all-optical amplification without
optical-to-electrical-to-optical (OEO) conversion, making them essential
for long-haul WDM transmission.
QUESTION 4
What physical phenomenon enables an Optical Time Domain
Reflectometer (OTDR) to measure fiber attenuation, splice loss, and
distance without accessing the far end of the cable?
• A. Rayleigh backscattering and Fresnel reflections.
• B. Raman scattering and chromatic dispersion.
• C. Polarization mode coupling and modal dispersion.
• D. Four-wave mixing and stimulated Brillouin scattering.
Correct Answer: A. Rayleigh backscattering and Fresnel reflections.
Detailed Rationale: An OTDR injects high-intensity laser pulses;
microscopic impurities in the glass cause Rayleigh backscattering
(returning a continuous signature trace), while changes in refractive
index at connectors/breaks cause discrete Fresnel reflections.
QUESTION 5
What is the primary advantage of an Angle Polished Connector (APC)
over an Ultra Physical Contact (UPC) connector in high-performance
fiber transport systems?
• A. APC connectors feature an 8-degree angled end-face that
reflects returning light back into the cladding rather than straight
, back toward the transmitter, resulting in superior Optical Return
Loss (ORL).
• B. APC connectors have lower insertion loss at 850 nm multi-mode
wavelengths.
• C. APC connectors can be mated directly to bare copper wires.
• D. APC connectors do not require cleaning before mating.
Correct Answer: A. APC connectors feature an 8-degree angled end-
face that reflects returning light back into the cladding rather than
straight back toward the transmitter, resulting in superior Optical
Return Loss (ORL).
Detailed Rationale: High return loss (low reflection) is critical in high-
speed and analog optical transport networks to prevent laser instability
caused by reflected light re-entering the transmitter.
QUESTION 6
What causes chromatic dispersion in single-mode fiber optic
transmission links?
• A. Different wavelengths (colors) of light travel at slightly different
propagation speeds through the glass fiber, causing pulse
broadening over distance.
• B. Physical bending of the cable around tight corners.
• C. Core-to-cladding diameter misalignment at fusion splices.
• D. Variations in ambient outdoor air temperature.
