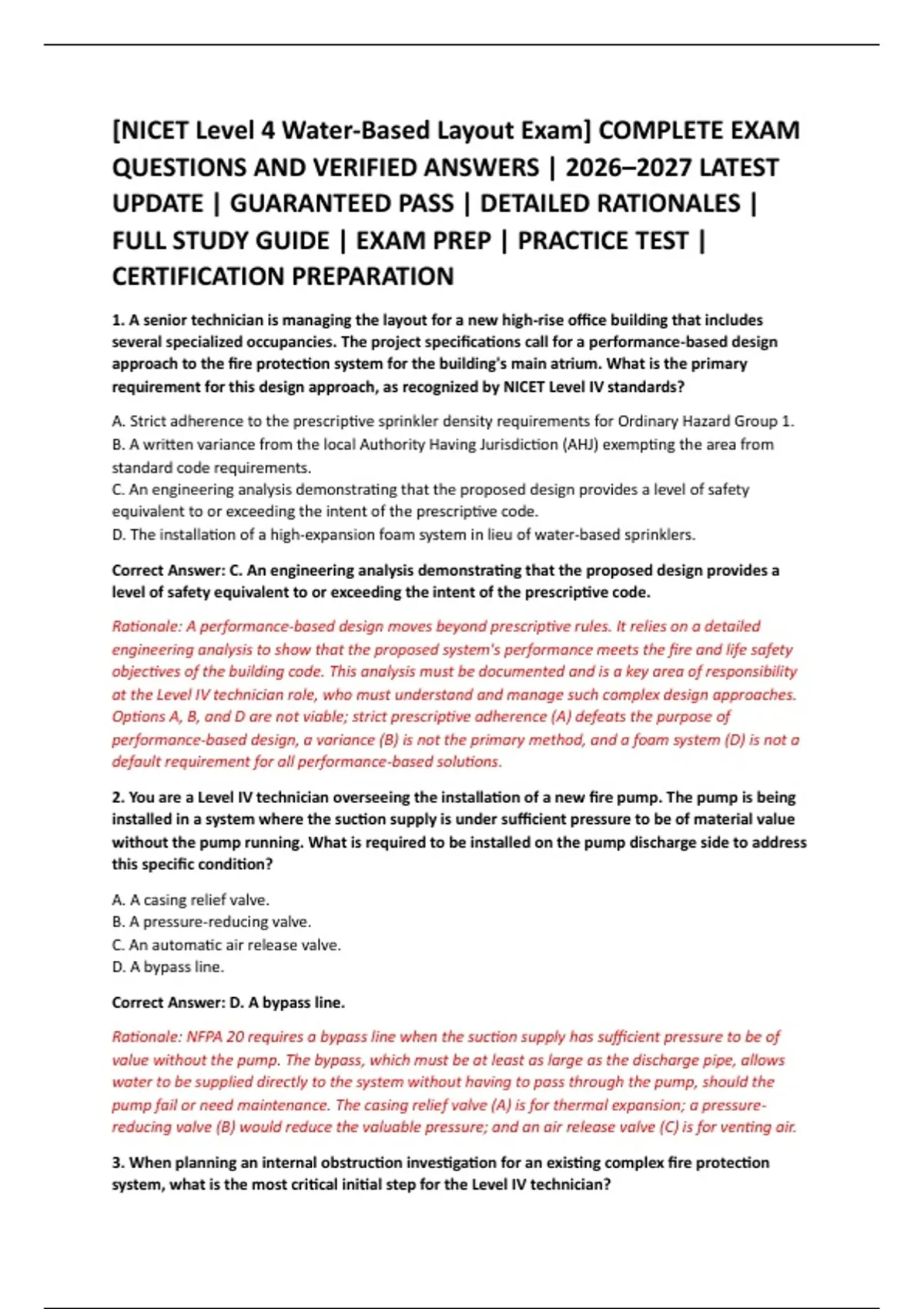

[NICET Level 4 Water-Based Layout Exam] COMPLETE EXAM
QUESTIONS AND VERIFIED ANSWERS | 2026–2027 LATEST
UPDATE | GUARANTEED PASS | DETAILED RATIONALES |
FULL STUDY GUIDE | EXAM PREP | PRACTICE TEST |
CERTIFICATION PREPARATION
1. A senior technician is managing the layout for a new high-rise office building that includes
several specialized occupancies. The project specifications call for a performance-based design
approach to the fire protection system for the building's main atrium. What is the primary
requirement for this design approach, as recognized by NICET Level IV standards?
A. Strict adherence to the prescriptive sprinkler density requirements for Ordinary Hazard Group 1.
B. A written variance from the local Authority Having Jurisdiction (AHJ) exempting the area from
standard code requirements.
C. An engineering analysis demonstrating that the proposed design provides a level of safety
equivalent to or exceeding the intent of the prescriptive code.
D. The installation of a high-expansion foam system in lieu of water-based sprinklers.
Correct Answer: C. An engineering analysis demonstrating that the proposed design provides a
level of safety equivalent to or exceeding the intent of the prescriptive code.
Rationale: A performance-based design moves beyond prescriptive rules. It relies on a detailed
engineering analysis to show that the proposed system's performance meets the fire and life safety
objectives of the building code. This analysis must be documented and is a key area of responsibility
at the Level IV technician role, who must understand and manage such complex design approaches.
Options A, B, and D are not viable; strict prescriptive adherence (A) defeats the purpose of
performance-based design, a variance (B) is not the primary method, and a foam system (D) is not a
default requirement for all performance-based solutions.
2. You are a Level IV technician overseeing the installation of a new fire pump. The pump is being
installed in a system where the suction supply is under sufficient pressure to be of material value
without the pump running. What is required to be installed on the pump discharge side to address
this specific condition?
A. A casing relief valve.
B. A pressure-reducing valve.
C. An automatic air release valve.
D. A bypass line.
Correct Answer: D. A bypass line.
Rationale: NFPA 20 requires a bypass line when the suction supply has sufficient pressure to be of
value without the pump. The bypass, which must be at least as large as the discharge pipe, allows
water to be supplied directly to the system without having to pass through the pump, should the
pump fail or need maintenance. The casing relief valve (A) is for thermal expansion; a pressure-
reducing valve (B) would reduce the valuable pressure; and an air release valve (C) is for venting air.
3. When planning an internal obstruction investigation for an existing complex fire protection
system, what is the most critical initial step for the Level IV technician?
,A. Identifying the age of the system and the original contractor.
B. Reviewing the building's historical inspection, testing, and maintenance (ITM) records as per NFPA
25.
C. Calculating the system's C-factor based on its original design.
D. Obtaining a material safety data sheet (MSDS) for all potential combustible contents in the area.
Correct Answer: B. Reviewing the building's historical inspection, testing, and maintenance (ITM)
records as per NFPA 25.
Rationale: Before any physical investigation, a Level IV technician must review the ITM history to
identify potential issues like frequent obstructions, corrosion, or non-functioning valves. This is a key
step in planning an investigation under the "Survey Existing Conditions" domain. Options A, C, and D
are less critical as the initial step; the ITM records provide direct insight into the system's current
condition and past problems.
4. A new warehouse is classified as Extra Hazard Group 2. The ceiling is 45 feet high, and the design
calls for in-rack sprinklers. Which of the following standards and sections would be the primary
resource for laying out the in-rack sprinkler system?
A. NFPA 14, Chapter 7.
B. NFPA 20, Chapter 6.
C. NFPA 13, Chapter 16.
D. NFPA 25, Chapter 5.
Correct Answer: C. NFPA 13, Chapter 16.
Rationale: In-rack sprinklers are a specialized layout requirement for storage occupancies. NFPA 13 is
the standard for the installation of sprinkler systems. Chapter 16 in the 2022 edition specifically
addresses the requirements for the design and installation of sprinklers in racks. NFPA 14 covers
standpipes, NFPA 20 covers fire pumps, and NFPA 25 covers inspection, testing, and maintenance.
5. A contractor on your project has submitted a major change order request. The design has been
partially installed. As the Level IV technician, what is your primary responsibility regarding this
change order?
A. To accept the change order immediately to avoid project delays.
B. To review and approve the change order, ensuring it accounts for the impact on hydraulic
calculations and code compliance.
C. To reject the change order outright to maintain the original budget.
D. To forward the change order to the building owner without any analysis.
Correct Answer: B. To review and approve the change order, ensuring it accounts for the impact on
hydraulic calculations and code compliance.
Rationale: The Level IV role involves managing complex issues, including the impact of design
changes. It is critical to assess how a change order affects all aspects of the system, including
hydraulic performance and adherence to codes. This aligns with the "System Layout" and "Project
Management" responsibilities where the technician must resolve issues with multiple considerations.
6. During a final inspection, you notice that a series of horizontal sidewall sprinklers have been
installed 10 feet apart, but the deflectors are only 2 inches below a structural beam. According to
NFPA 13 requirements for obstruction to water distribution, what is the most accurate assessment
of this installation?
, A. This is acceptable as sidewall sprinklers are not subject to obstruction rules.
B. This is acceptable because the beam is less than 2 feet wide.
C. This is an obstruction that likely requires correction and justification due to the proximity of the
beam to the deflector.
D. The only concern is that the distance between sprinklers exceeds the standard 8-foot maximum.
Correct Answer: C. This is an obstruction that likely requires correction and justification due to the
proximity of the beam to the deflector.
Rationale: NFPA 13 has stringent rules regarding obstructions to sprinkler discharge, including beams
near the deflector. Sidewall sprinklers are particularly susceptible to obstructions that can block their
unique spray pattern. Option C correctly identifies the need for evaluation and correction. Option A is
incorrect; sidewall sprinklers are subject to obstruction rules. Option B is not a standard exception;
clearance distances are required from any obstruction. Option D is incorrect as 10 feet is a standard
maximum spacing for many sidewall sprinklers.
7. When developing a project budget for a complex layout project, the Level IV technician must
account for significant unforeseen costs. What is the most appropriate source to review for
guidance on establishing a contingency reserve?
A. Historical cost data from similar projects, market conditions, and known site-specific risks.
B. The recommended percentage from the manufacturer's list price.
C. The lowest bid received from a subcontractor.
D. The original architect's estimate.
Correct Answer: A. Historical cost data from similar projects, market conditions, and known site-
specific risks.
Rationale: A Level IV technician, responsible for project management, must develop realistic budgets.
A contingency is based on a professional assessment of risk, using experience, historical data, and
current market conditions, not a set percentage or a single low bid. This demonstrates the "Project
Management" and "Contract Documents" task mastery required.
8. Which of the following is a primary difference between a supervisory signal and an alarm signal
in a fire protection system?
A. Supervisory signals are monitored for off-normal conditions, while alarm signals indicate activation
of fire protection devices.
B. Supervisory signals are only for water flow, while alarm signals are only for fire pumps.
C. There is no difference; they are interchangeable terms.
D. Supervisory signals are sent to the fire department, while alarm signals are only local.
Correct Answer: A. Supervisory signals are monitored for off-normal conditions, while alarm
signals indicate activation of fire protection devices.
Rationale: Supervisory signals are important indicators of a potential problem, such as a closed valve
or low air pressure, that could impair the fire protection system, while alarm signals indicate a fire or
water flow event. This is a key concept in fire protection signaling and is part of coordinating complex
interfaces with other fire protection systems.
9. A building has an existing fire pump that has been in service for 10 years. During a routine
annual test, it is found that the pump is not meeting its rated capacity. As the responsible
technician, what is the most appropriate initial course of action?
