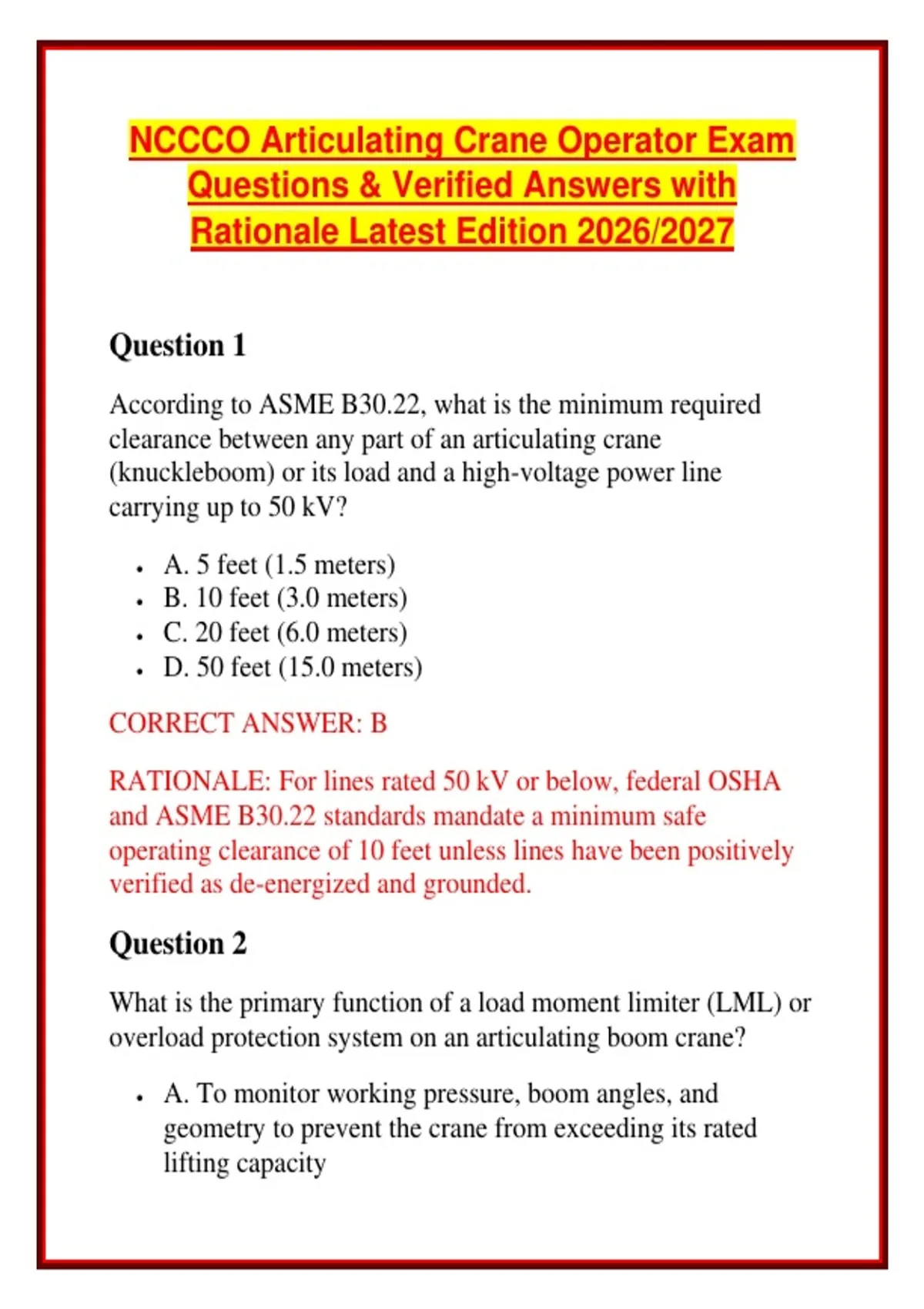

NCCCO Articulating Crane Operator Exam
Questions & Verified Answers with
Rationale Latest Edition 2026/2027
Question 1
According to ASME B30.22, what is the minimum required
clearance between any part of an articulating crane
(knuckleboom) or its load and a high-voltage power line
carrying up to 50 kV?
A. 5 feet (1.5 meters)
B. 10 feet (3.0 meters)
C. 20 feet (6.0 meters)
D. 50 feet (15.0 meters)
CORRECT ANSWER: B
RATIONALE: For lines rated 50 kV or below, federal OSHA
and ASME B30.22 standards mandate a minimum safe
operating clearance of 10 feet unless lines have been positively
verified as de-energized and grounded.
Question 2
What is the primary function of a load moment limiter (LML) or
overload protection system on an articulating boom crane?
A. To monitor working pressure, boom angles, and
geometry to prevent the crane from exceeding its rated
lifting capacity
, B. To control the automatic transmission shifting of the
carrier vehicle
C. To measure the temperature of the hydraulic oil
reservoir
D. To record total engine operating hours
CORRECT ANSWER: A
RATIONALE: The LML continuously calculates hydraulic
pressures and boom geometry, automatically locking out
functions that would cause an structural overload or tip-over.
Question 3
When operating an articulating crane equipped with hydraulic
stabilizers (outriggers), what is the correct setup procedure on
soft or uncompacted ground?
A. Extend outriggers halfway to save space on site
B. Fully extend outrigger beams and place adequate wood
blocking or steel outrigger pads beneath the vertical jacks
to distribute ground-bearing pressure
C. Rest the jacks directly on bare soil or asphalt without
support
D. Leave the vehicle suspension fully inflated and carry the
load on the tires
CORRECT ANSWER: B
RATIONALE: Full outrigger extension combined with proper
matting maximizes the crane's footprint, preventing the
stabilizers from sinking or shifting under heavy loads.
,Question 4
What is the main danger of side-loading the second boom or
extension booms of an articulating crane?
A. Lateral twisting forces can cause structural buckling,
wear out slider pads prematurely, and damage hydraulic
cylinders
B. Faster tire wear on the transport truck
C. Rapid cooling of the hydraulic fluid cooler
D. Slipping of the rotation gear box
CORRECT ANSWER: A
RATIONALE: Articulating crane booms are designed to handle
vertical gravity loads; lateral side-loading creates high torsional
stress that can warp or fracture the boom structures.
Question 5
What is the primary purpose of an anti-two-block or hydraulic
dump system on a winch-equipped articulating crane?
A. To automatically stop winch-up and boom-extension
functions before the hook block collides with the boom tip
sheave
B. To shut down the main diesel engine completely
C. To lock the slewing mechanism in place
D. To prevent the operator from folding the crane too fast
CORRECT ANSWER: A
, RATIONALE: Anti-two-block devices protect against physical
collisions between the load block and boom nose, preventing
instant hoist line failure and dropped loads.
Question 6
When inspecting high-pressure hydraulic hoses on an
articulating crane, what defect requires immediate removal from
service?
A. Minor exterior dust accumulation
B. Blistering, bulging, cracking, deep cuts exposing wire
reinforcement, or kinking
C. Fading of the manufacturer pressure rating text
D. Standard rubber flexibility
CORRECT ANSWER: B
RATIONALE: Structural damage to hose walls compromises
their burst strength, creating an extreme hazard of high-pressure
fluid injection or sudden line rupture.
Question 7
What is the correct procedure if an operator detects hydraulic
system chatter or spongy control responses when operating the
knuckle joint?
A. Increase engine throttle to maximum speed immediately
B. Check hydraulic fluid levels, inspect for air aeration in
the system, and verify pump performance
C. Continue lifting heavy loads until the air works its way
out naturally
