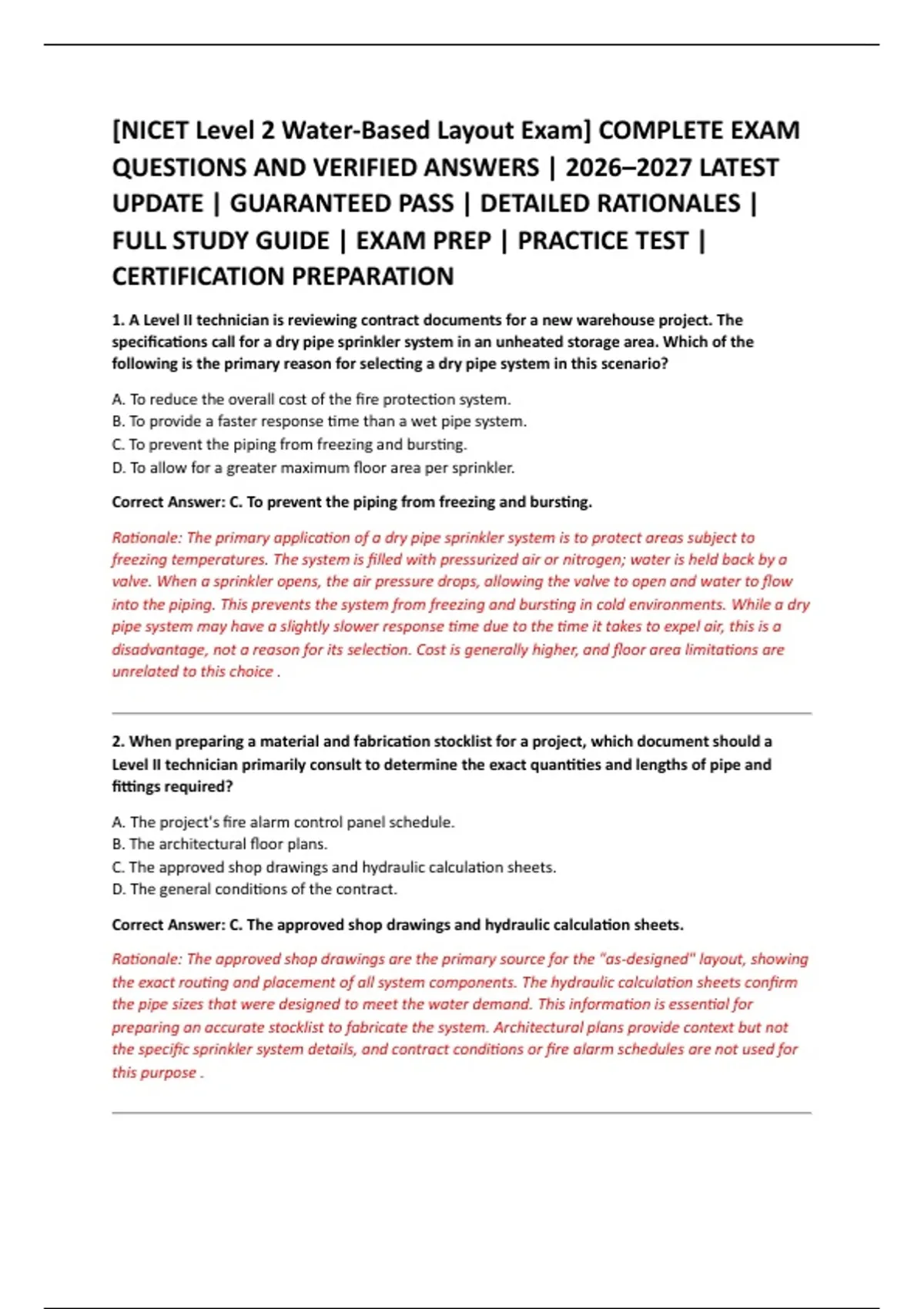

[NICET Level 2 Water-Based Layout Exam] COMPLETE EXAM
QUESTIONS AND VERIFIED ANSWERS | 2026–2027 LATEST
UPDATE | GUARANTEED PASS | DETAILED RATIONALES |
FULL STUDY GUIDE | EXAM PREP | PRACTICE TEST |
CERTIFICATION PREPARATION
1. A Level II technician is reviewing contract documents for a new warehouse project. The
specifications call for a dry pipe sprinkler system in an unheated storage area. Which of the
following is the primary reason for selecting a dry pipe system in this scenario?
A. To reduce the overall cost of the fire protection system.
B. To provide a faster response time than a wet pipe system.
C. To prevent the piping from freezing and bursting.
D. To allow for a greater maximum floor area per sprinkler.
Correct Answer: C. To prevent the piping from freezing and bursting.
Rationale: The primary application of a dry pipe sprinkler system is to protect areas subject to
freezing temperatures. The system is filled with pressurized air or nitrogen; water is held back by a
valve. When a sprinkler opens, the air pressure drops, allowing the valve to open and water to flow
into the piping. This prevents the system from freezing and bursting in cold environments. While a dry
pipe system may have a slightly slower response time due to the time it takes to expel air, this is a
disadvantage, not a reason for its selection. Cost is generally higher, and floor area limitations are
unrelated to this choice .
2. When preparing a material and fabrication stocklist for a project, which document should a
Level II technician primarily consult to determine the exact quantities and lengths of pipe and
fittings required?
A. The project's fire alarm control panel schedule.
B. The architectural floor plans.
C. The approved shop drawings and hydraulic calculation sheets.
D. The general conditions of the contract.
Correct Answer: C. The approved shop drawings and hydraulic calculation sheets.
Rationale: The approved shop drawings are the primary source for the "as-designed" layout, showing
the exact routing and placement of all system components. The hydraulic calculation sheets confirm
the pipe sizes that were designed to meet the water demand. This information is essential for
preparing an accurate stocklist to fabricate the system. Architectural plans provide context but not
the specific sprinkler system details, and contract conditions or fire alarm schedules are not used for
this purpose .
,3. A technician is in the field verifying existing conditions before beginning a layout for a tenant fit-
out in an existing building. The original plans show a concrete column at a certain location, but the
technician finds a steel column. What is the most appropriate immediate action?
A. Proceed with the layout as planned, as columns are not a critical component for sprinkler layout.
B. Notify the project manager and architect to resolve the discrepancy.
C. Modify the sprinkler system layout to account for the steel column without notifying anyone.
D. Ignore the change, as the original plans are always correct.
Correct Answer: B. Notify the project manager and architect to resolve the discrepancy.
Rationale: Identifying conflicts between plans and existing conditions is a key task for Level II
technicians . The correct action is to document the discrepancy and inform the relevant parties
(project manager, architect, or engineer). This ensures the design change is approved and
coordinated with other trades. Proceeding without addressing it could lead to installation errors and
non-compliance. While columns are critical for sprinkler placement, the immediate priority is to
resolve the discrepancy through proper channels .
4. A technician is performing a field survey and needs to gather water supply information for a new
fire sprinkler system in a retail store. The most direct and reliable method to determine the
available water pressure and flow at the street main is to:
A. Contact the local water authority and request the historical system average pressure.
B. Look up the information on a municipal website.
C. Use a formula based on the building's height and occupancy classification.
D. Conduct a flow test at a nearby hydrant.
Correct Answer: D. Conduct a flow test at a nearby hydrant.
Rationale: A flow test, conducted in accordance with NFPA 291, is the industry standard for obtaining
actual, site-specific water supply information. It measures both static and residual pressure, as well
as flow rate, providing the data necessary for hydraulic calculations. While contacting the water
authority is a good secondary step for general information, it may not provide the specific test data
needed for a reliable design. The building height is not a factor in determining the public main's
supply .
5. A Level II layout technician is evaluating design options for a new office building. The project
specifications allow for either a wet or dry pipe system. What is the most critical factor that will
determine the system type?
A. The fire department's preference in the jurisdiction.
B. The owner's budget for the fire protection system.
C. The availability of a reliable water supply.
D. The potential for freezing temperatures in the building.
Correct Answer: D. The potential for freezing temperatures in the building.
Rationale: While budget and water supply are important, the fundamental deciding factor between a
wet and dry pipe system is the ambient temperature of the protected space. Wet systems are used in
,heated areas, while dry systems are specifically designed for unheated areas to prevent freezing. This
is a foundational concept in system layout .
6. For a new warehouse storing palletized goods, which classification would be used to describe
the level of fire hazard presented by the commodities, as per NFPA 13?
A. Ordinary Hazard Group 1
B. Light Hazard
C. Extra Hazard
D. Commodity Classification (e.g., Class I, II, III, IV)
Correct Answer: D. Commodity Classification (e.g., Class I, II, III, IV).
Rationale: NFPA 13 distinguishes between "hazard classifications" for non-storage occupancies (Light,
Ordinary, Extra) and "commodity classifications" for storage occupancies. Storage facilities use
commodity classifications (Class I through IV, plus plastics, rubber, etc.) to define the fire hazard
based on the type and packaging of stored goods .
7. A technician is laying out a tree system for a small warehouse. What is a defining characteristic
of this system configuration compared to a loop or grid system?
A. It provides a greater number of hydraulic paths for water to reach a sprinkler head.
B. It is typically the most hydraulically efficient for large, open areas.
C. It is a single-feed main that branches out in a series of pipes, resembling a tree.
D. It is designed to supply water to standpipe hose connections exclusively.
Correct Answer: C. It is a single-feed main that branches out in a series of pipes, resembling a tree.
Rationale: A tree system is the most basic and common system configuration . It consists of a single
main supply pipe that feeds a network of smaller branch lines. This is in contrast to loop or grid
systems, which have multiple feeds and provide alternate water paths. While less hydraulically
efficient than a grid, a tree system is simpler and less expensive to design and install .
8. During the submittal and approval process, what is the primary purpose of compiling a complete
and accurate submittal package?
A. To provide the fire marshal with a project cost breakdown.
B. To ensure that the system, as designed, is acceptable to the Authority Having Jurisdiction (AHJ)
and other stakeholders.
C. To document the experience of the installation contractor.
D. To finalize the construction schedule for the project.
Correct Answer: B. To ensure that the system, as designed, is acceptable to the Authority Having
Jurisdiction (AHJ) and other stakeholders.
Rationale: The submittal package is a formal request for approval of the proposed system design . It
typically includes shop drawings, hydraulic calculations, and product data sheets. The goal is for the
, AHJ, engineer, and other stakeholders to review and approve these documents before fabrication and
installation begin, ensuring compliance with codes and standards.
9. A technician is preparing closeout documents for a completed sprinkler system installation.
Which of the following is a key document that must be included in the closeout package?
A. The original bid proposal for the project.
B. The approved shop drawings.
C. The record drawings ("as-builts").
D. The architect's site plan.
Correct Answer: C. The record drawings ("as-builts").
Rationale: Record drawings, or "as-builts," are a critical component of the closeout package. They are
the final set of drawings that reflect all changes made during installation, showing the system exactly
as it was installed . This is essential for future maintenance, modifications, and emergency response.
The original bid proposal and architect's site plan are preliminary documents, and while the approved
shop drawings are a starting point, the record drawings reflect the final installed conditions.
10. When determining the hydraulically remote area for a light hazard occupancy, what principle
does the technician use to establish the design area?
A. The area is defined as the farthest point from the water source in terms of physical distance.
B. The area is set at 1,500 sq. ft. regardless of building size, as per NFPA 13.
C. The area is defined as the location where the hydraulic demand is the highest, accounting for flow
and pressure requirements.
D. The area is simply the largest room in the building.
Correct Answer: C. The area is defined as the location where the hydraulic demand is the highest,
accounting for flow and pressure requirements.
Rationale: The "hydraulically remote area" is a term of art in fire protection engineering. It is not
simply the farthest physical distance but is determined by analyzing the piping network to find the
area with the most demanding combination of flow and pressure requirements . In light hazard, the
design area is often defined by the density/area method of NFPA 13, and the remote area is selected
as the most demanding of the design areas, which is the one that requires the highest system
pressure at a given flow rate.
11. A contractor installing a fire pump notices that the discharge check valve is installed backward.
What is the most likely consequence of this error?
A. Reduced pump suction pressure.
B. Water hammer in the suction piping.
C. Failure of the pump to prime.
D. Backflow into the suction piping and a drop in system pressure when the pump stops.
Correct Answer: D. Backflow into the suction piping and a drop in system pressure when the pump
stops.
