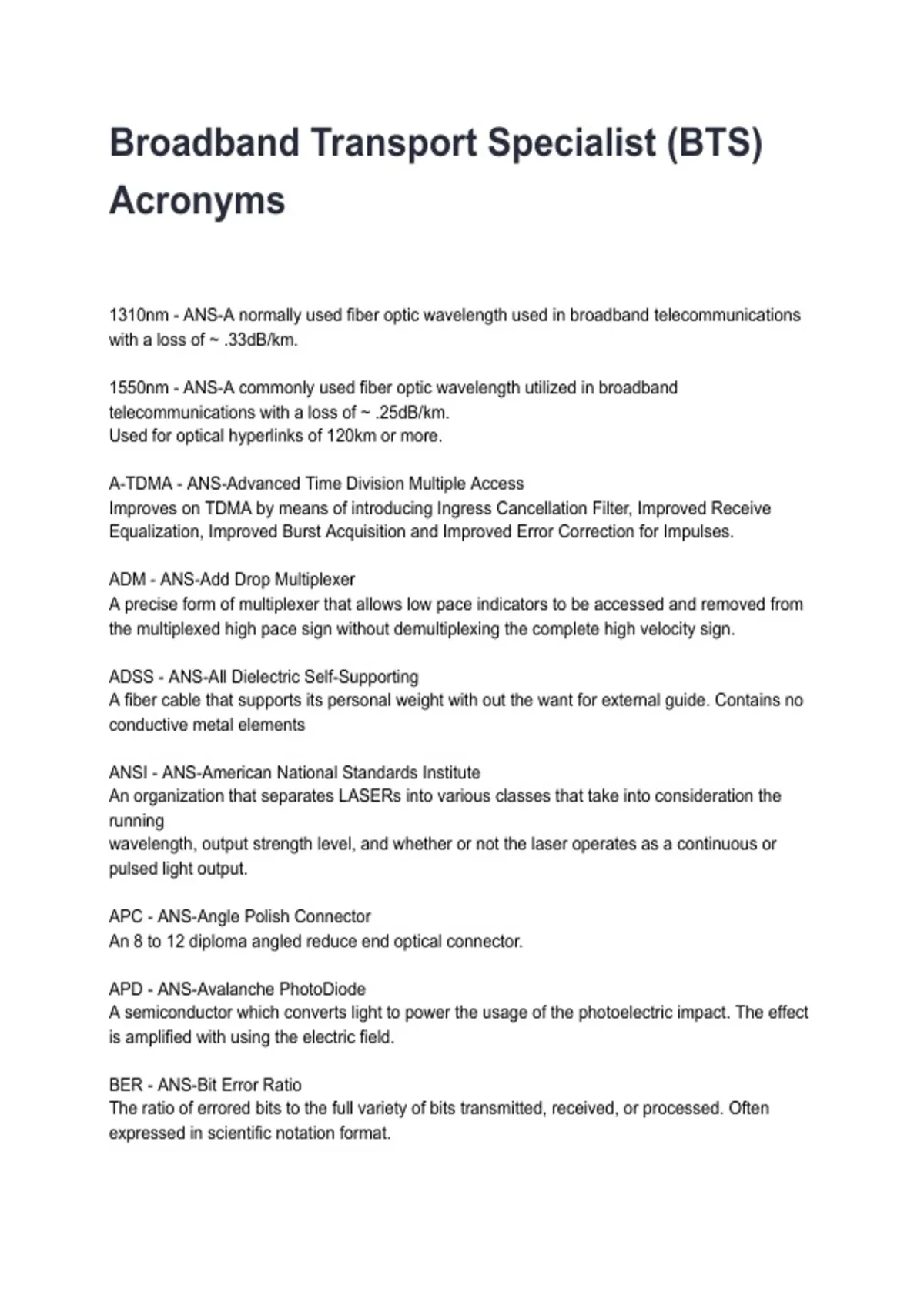

Broadband Transport Specialist (BTS)
Acronyms
1310nm - ANS-A normally used fiber optic wavelength used in broadband telecommunications
with a loss of ~ .33dB/km.
1550nm - ANS-A commonly used fiber optic wavelength utilized in broadband
telecommunications with a loss of ~ .25dB/km.
Used for optical hyperlinks of 120km or more.
A-TDMA - ANS-Advanced Time Division Multiple Access
Improves on TDMA by means of introducing Ingress Cancellation Filter, Improved Receive
Equalization, Improved Burst Acquisition and Improved Error Correction for Impulses.
ADM - ANS-Add Drop Multiplexer
A precise form of multiplexer that allows low pace indicators to be accessed and removed from
the multiplexed high pace sign without demultiplexing the complete high velocity sign.
ADSS - ANS-All Dielectric Self-Supporting
A fiber cable that supports its personal weight with out the want for external guide. Contains no
conductive metal elements
ANSI - ANS-American National Standards Institute
An organization that separates LASERs into various classes that take into consideration the
running
wavelength, output strength level, and whether or not the laser operates as a continuous or
pulsed light output.
APC - ANS-Angle Polish Connector
An 8 to 12 diploma angled reduce end optical connector.
APD - ANS-Avalanche PhotoDiode
A semiconductor which converts light to power the usage of the photoelectric impact. The effect
is amplified with using the electric field.
BER - ANS-Bit Error Ratio
The ratio of errored bits to the full variety of bits transmitted, received, or processed. Often
expressed in scientific notation format.
, CATV - ANS-Community Antenna Television
Antenna receiver installed at the highest factor near the valley.
CD - ANS-Chromatic Dispersion
takes place in SMF, small variations in velocities of mild wavelengths thru the fiber
CFR - ANS-Code of Federal Regulations
Cable system rules published by using the FCC and federal authorities.
CLT - ANS-Central Loose Tube
A fiber cable in which the covered fiber is positioned interior of an outsized protecting tube that's
packed with optical gel.
CT - ANS-Central Tube
The principle defensive tube placed internal of a fiber cable
CWDM - ANS-Course Wavelength Division Multiplexing
A method in which an elevated variety of various light alerts are simultaneously transmitted
(e.G., typically eight to sixteen) increasing facts costs on fiber optics. CWDM offers a decrease
records rate than DWDM. Ratio of two power ranges, P1 and P2, expressed mathematically as
dB =
10log10(P1/P2). Commonly used as an expression of gain or loss.
DB - ANS-decibels
Ratio of two energy stages, P1 and P2, expressed mathematically as dB = 10log10(P1/P2).
Commonly used as an expression of benefit or loss.
DBm - ANS-decibels milliwatt
Unit of energy expressed in phrases of wattage, defined as decibels relative to 1 mW.
Mathematically, dBm = 10log10(Px /1 mW), where Px is the strength in milliwatts that is to be
transformed to dBm. Commonly used as a metric for signal power measurements in optical
networks, microwave and other radio packages.
DFB - ANS-Distributive Feedback Laser
A sort of optical fiber laser where the active vicinity of the tool is periodically dependent as a
diffraction grating.
DGD - ANS-Differential Group Delay
Measured in percent seconds, the distinction in propagation time among the two principal states
of polarization (PSP).
DoSS - ANS-Director of Safety and Health
Person in charge of dealing with and overseeing Safety procedures with regards to fiber cable
manipulation, set up and maintenance
