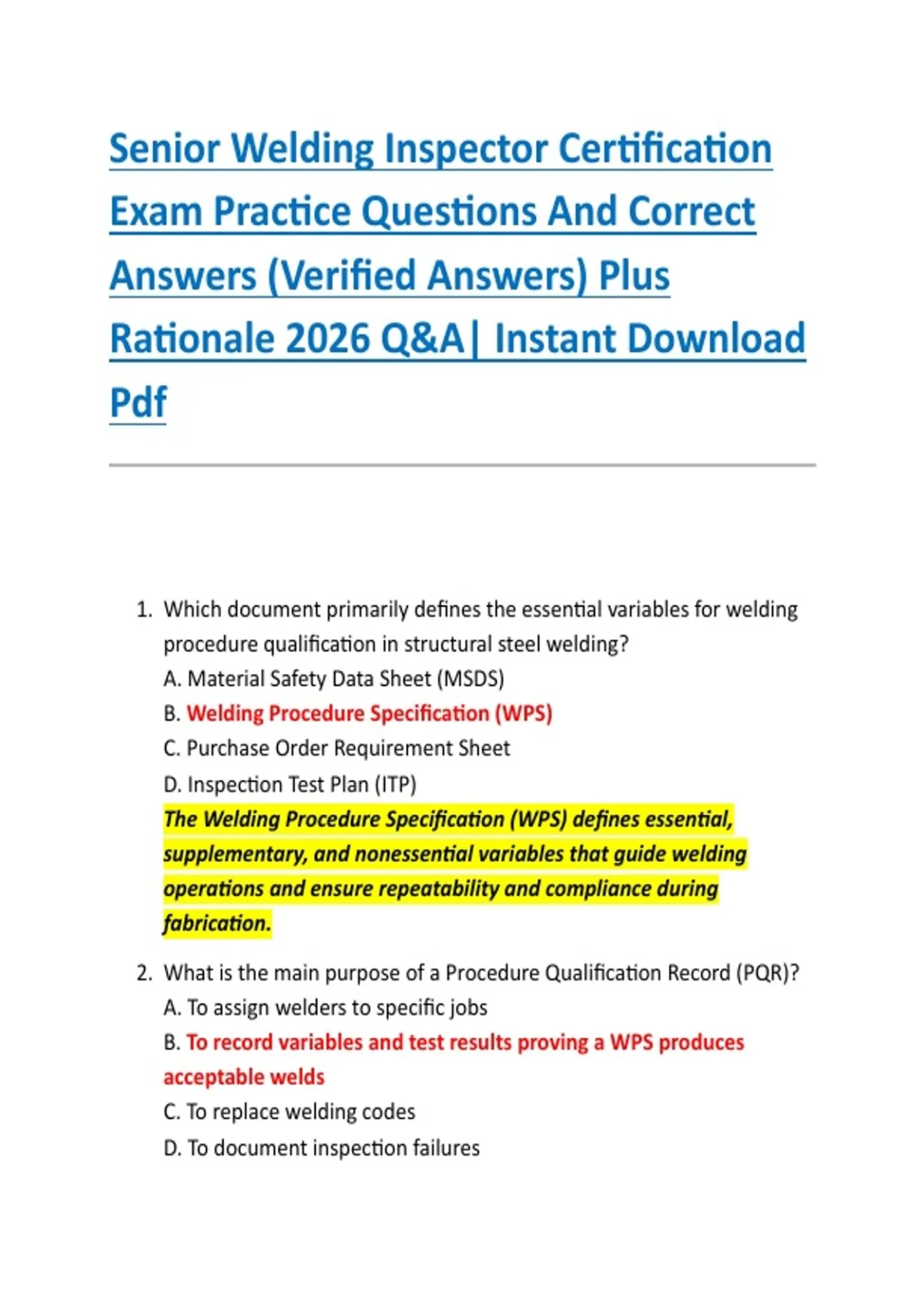

Senior Welding Inspector Certification
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
Pdf
1. Which document primarily defines the essential variables for welding
procedure qualification in structural steel welding?
A. Material Safety Data Sheet (MSDS)
B. Welding Procedure Specification (WPS)
C. Purchase Order Requirement Sheet
D. Inspection Test Plan (ITP)
The Welding Procedure Specification (WPS) defines essential,
supplementary, and nonessential variables that guide welding
operations and ensure repeatability and compliance during
fabrication.
2. What is the main purpose of a Procedure Qualification Record (PQR)?
A. To assign welders to specific jobs
B. To record variables and test results proving a WPS produces
acceptable welds
C. To replace welding codes
D. To document inspection failures
, A PQR documents the actual welding parameters and mechanical
test results used to demonstrate that a WPS can produce welds
meeting required mechanical properties.
3. Which non-destructive testing method is most effective for detecting
subsurface volumetric defects in thick ferromagnetic materials?
A. Visual Testing (VT)
B. Dye Penetrant Testing (PT)
C. Ultrasonic Testing (UT)
D. Magnetic Particle Testing (MT)
Ultrasonic Testing uses high-frequency sound waves capable of
detecting internal discontinuities such as voids and inclusions in thick
materials.
4. What defect is characterized by a groove melted into the base metal
adjacent to the weld toe without filler metal deposition?
A. Porosity
B. Slag inclusion
C. Undercut
D. Lack of fusion
Undercut occurs when the base metal is melted away at the weld toe
and not adequately filled, creating a notch-like defect.
5. Which factor most directly influences hydrogen-induced cracking in
steel welds?
A. High welding speed
B. Low current setting
C. Presence of diffusible hydrogen and high restraint
D. Excessive preheating
Hydrogen-induced cracking is primarily driven by diffusible hydrogen,
high residual stress, and susceptible microstructures such as
hardened zones.
, 6. In welding inspection, what is the primary purpose of preheat?
A. Increase weld bead size
B. Improve arc stability
C. Reduce cooling rate and minimize cracking risk
D. Increase deposition rate
Preheating reduces thermal gradients and cooling rates, lowering the
risk of hydrogen cracking and improving weld integrity.
7. Which type of weld discontinuity is most associated with improper
electrode manipulation in SMAW?
A. Lamellar tearing
B. Overlap
C. Tungsten inclusion
D. Hot cracking
Overlap occurs when molten metal flows over the base material
without proper fusion, often caused by poor electrode handling.
8. What is the primary function of a welding inspector during fabrication?
A. Operate welding equipment
B. Design weld joints
C. Verify compliance with codes, specifications, and quality
requirements
D. Perform mechanical testing only
A welding inspector ensures that welding activities conform to
applicable standards, procedures, and contractual requirements.
9. Which welding defect is most likely caused by insufficient shielding gas
coverage in GMAW?
A. Lack of penetration
B. Porosity
C. Slag inclusion
D. Undercut
Exam Practice Questions And Correct
Answers (Verified Answers) Plus
Rationale 2026 Q&A| Instant Download
1. Which document primarily defines the essential variables for welding
procedure qualification in structural steel welding?
A. Material Safety Data Sheet (MSDS)
B. Welding Procedure Specification (WPS)
C. Purchase Order Requirement Sheet
D. Inspection Test Plan (ITP)
The Welding Procedure Specification (WPS) defines essential,
supplementary, and nonessential variables that guide welding
operations and ensure repeatability and compliance during
fabrication.
2. What is the main purpose of a Procedure Qualification Record (PQR)?
A. To assign welders to specific jobs
B. To record variables and test results proving a WPS produces
acceptable welds
C. To replace welding codes
D. To document inspection failures
, A PQR documents the actual welding parameters and mechanical
test results used to demonstrate that a WPS can produce welds
meeting required mechanical properties.
3. Which non-destructive testing method is most effective for detecting
subsurface volumetric defects in thick ferromagnetic materials?
A. Visual Testing (VT)
B. Dye Penetrant Testing (PT)
C. Ultrasonic Testing (UT)
D. Magnetic Particle Testing (MT)
Ultrasonic Testing uses high-frequency sound waves capable of
detecting internal discontinuities such as voids and inclusions in thick
materials.
4. What defect is characterized by a groove melted into the base metal
adjacent to the weld toe without filler metal deposition?
A. Porosity
B. Slag inclusion
C. Undercut
D. Lack of fusion
Undercut occurs when the base metal is melted away at the weld toe
and not adequately filled, creating a notch-like defect.
5. Which factor most directly influences hydrogen-induced cracking in
steel welds?
A. High welding speed
B. Low current setting
C. Presence of diffusible hydrogen and high restraint
D. Excessive preheating
Hydrogen-induced cracking is primarily driven by diffusible hydrogen,
high residual stress, and susceptible microstructures such as
hardened zones.
, 6. In welding inspection, what is the primary purpose of preheat?
A. Increase weld bead size
B. Improve arc stability
C. Reduce cooling rate and minimize cracking risk
D. Increase deposition rate
Preheating reduces thermal gradients and cooling rates, lowering the
risk of hydrogen cracking and improving weld integrity.
7. Which type of weld discontinuity is most associated with improper
electrode manipulation in SMAW?
A. Lamellar tearing
B. Overlap
C. Tungsten inclusion
D. Hot cracking
Overlap occurs when molten metal flows over the base material
without proper fusion, often caused by poor electrode handling.
8. What is the primary function of a welding inspector during fabrication?
A. Operate welding equipment
B. Design weld joints
C. Verify compliance with codes, specifications, and quality
requirements
D. Perform mechanical testing only
A welding inspector ensures that welding activities conform to
applicable standards, procedures, and contractual requirements.
9. Which welding defect is most likely caused by insufficient shielding gas
coverage in GMAW?
A. Lack of penetration
B. Porosity
C. Slag inclusion
D. Undercut
