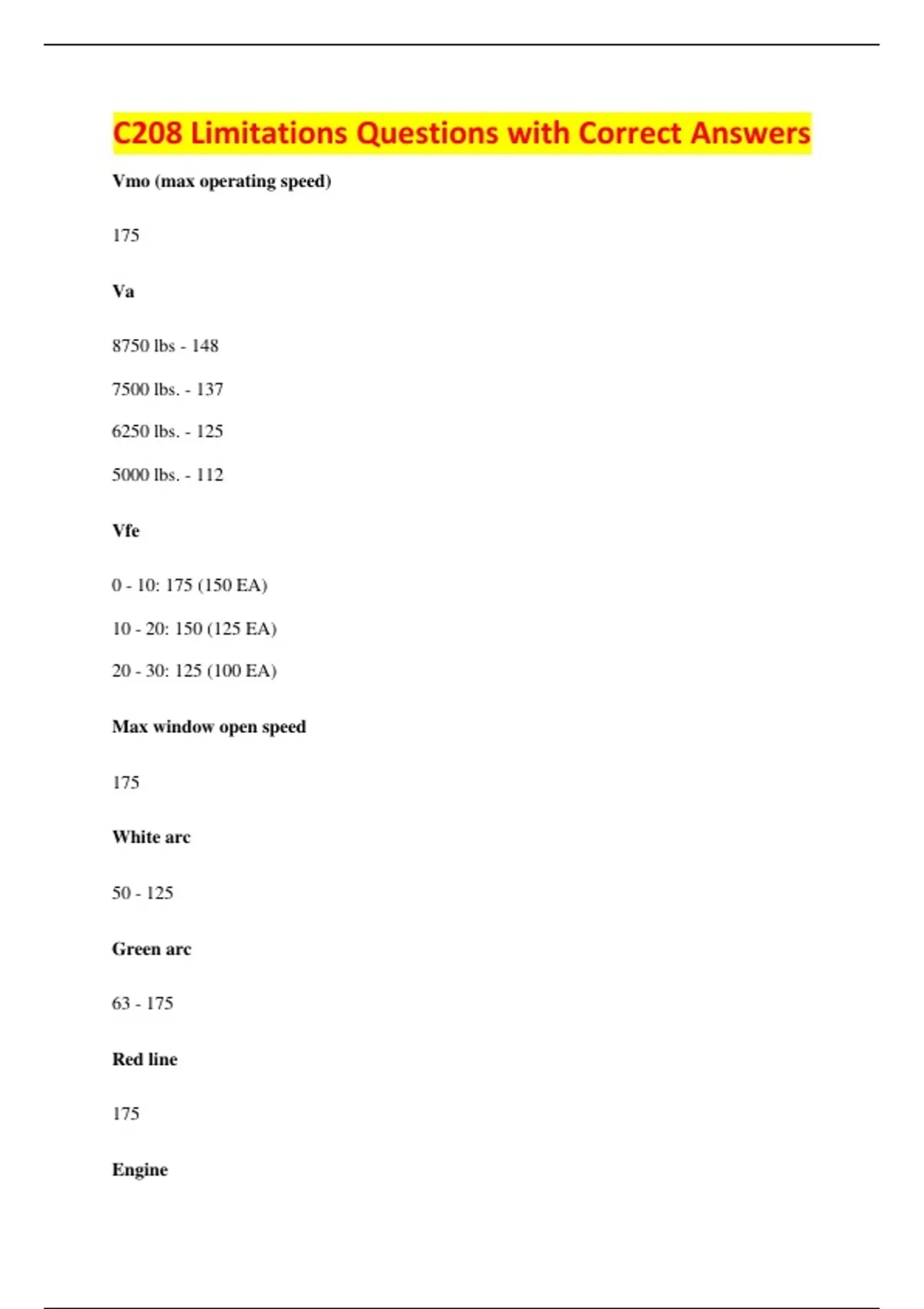

C208 Limitations Questions with Correct Answers
Vmo (max operating speed)
175
Va
8750 lbs - 148
7500 lbs. - 137
6250 lbs. - 125
5000 lbs. - 112
Vfe
0 - 10: 175 (150 EA)
10 - 20: 150 (125 EA)
20 - 30: 125 (100 EA)
Max window open speed
175
White arc
50 - 125
Green arc
63 - 175
Red line
175
Engine
, Pratt & Whitney PT6A - 114A
Oil
BP Turbo
Propeller
McCauley 104 - 106 "
Feathered - 88 degreees
Low pitch - 15.6 degrees
Max reverse - -14 degrees
Starting Cycle Limits - Battery
30 seconds ON - 60 seconds OFF
30 seconds ON - 60 seconds OFF
30 seconds ON - 30 minutes OFF
Repeat the above as required
Starting Cycle Limits - External Power
20 seconds ON - 120 seconds OFF
20 seconds ON - 120 seconds OFF
20 seconds ON - 60 minutes OFF
Repeat the above as required
Takeoff Power Setting
Torque - per max for t/o, not to exceed 67 SHP with toque avoe 1865 ft. lbs.
Max ITT - 805 C
RPM % Ng - 101.6
