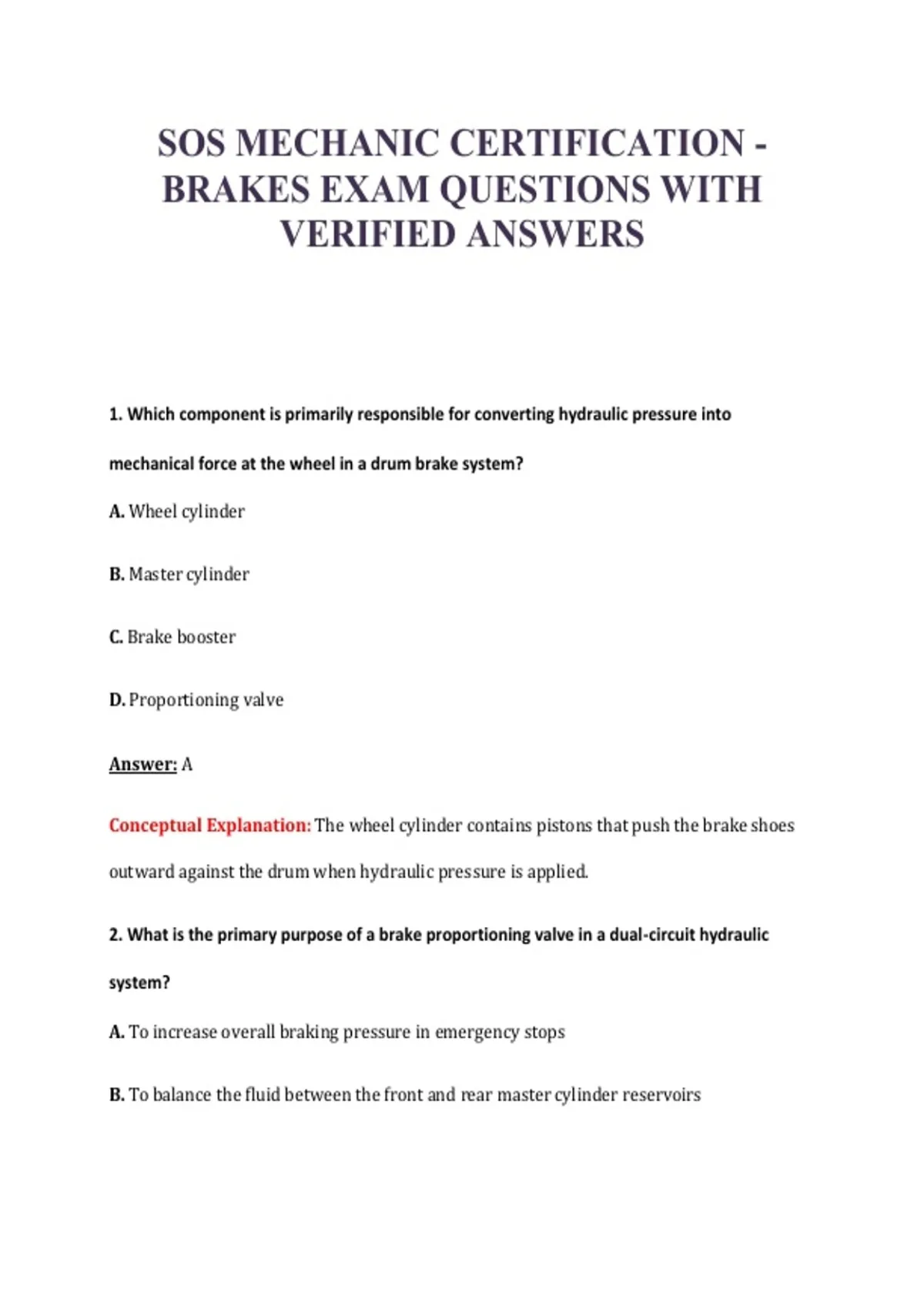

SOS MECHANIC CERTIFICATION -
BRAKES EXAM QUESTIONS WITH
VERIFIED ANSWERS
1. Which component is primarily responsible for converting hydraulic pressure into
mechanical force at the wheel in a drum brake system?
A. Wheel cylinder
B. Master cylinder
C. Brake booster
D. Proportioning valve
Answer: A
Conceptual Explanation: The wheel cylinder contains pistons that push the brake shoes
outward against the drum when hydraulic pressure is applied.
2. What is the primary purpose of a brake proportioning valve in a dual-circuit hydraulic
system?
A. To increase overall braking pressure in emergency stops
B. To balance the fluid between the front and rear master cylinder reservoirs
,C. To prevent rear wheel lock-up by limiting pressure to the rear brakes under heavy
braking
D. To bleed air automatically from the system
Answer: C
Conceptual Explanation: As a vehicle brakes hard, weight transfers forward, unloading
the rear tires. The proportioning valve restricts rear brake pressure to prevent premature
skidding.
3. When inspecting a floating brake caliper, which condition most commonly causes uneven
inner and outer pad wear?
A. Warped brake rotor
B. Seized or sticking caliper slide pins
C. Air in the brake lines
D. Worn master cylinder seals
Answer: B
Conceptual Explanation: Floating calipers rely on clean, lubricated slide pins to move
sideways so both pads clamp equally. If they stick, one pad wears much faster.
4. Which type of brake fluid is NOT compatible with DOT 3, DOT 4, and DOT 5.1 fluids?
A. Borate ester fluid
B. Glycol-ether based fluid
, C. Polyalkylene glycol fluid
D. DOT 5 silicone-based fluid
Answer: D
Conceptual Explanation: DOT 5 is silicone-based and hydrophobic, whereas DOT 3, 4, and
5.1 are glycol-based and hygroscopic. Mixing them causes system failure.
5. What is the primary indicator of a failing vacuum brake booster?
A. Hard brake pedal requiring excessive physical effort to stop
B. Spongy brake pedal that goes to the floor
C. Continuous leaking of brake fluid near the firewall
D. Car pulling strongly to one side when braking
Answer: A
Conceptual Explanation: A failed vacuum booster loses its engine vacuum assistance,
resulting in a very hard pedal that makes braking difficult.
6. During a brake rotor resurfacing (machining) procedure, what critical measurement must
not fall below specification?
A. Rotor outer diameter
B. Hub bore diameter
C. Minimum discard thickness
