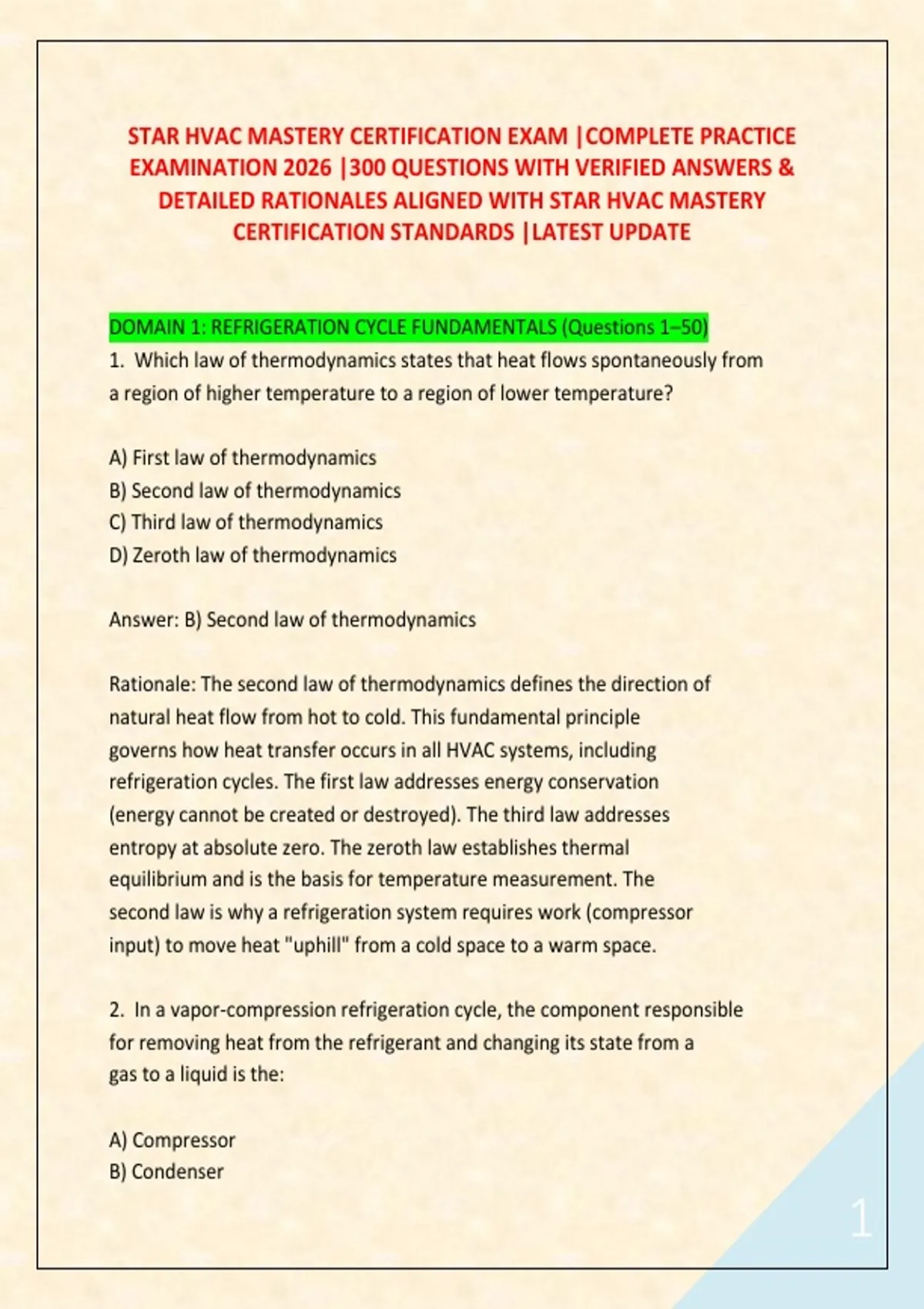

STAR HVAC MASTERY CERTIFICATION EXAM |COMPLETE PRACTICE EXAMINATION 2026 |300 QUESTIONS WITH VERIFIED ANSWERS & DETAILED RATIONALES ALIGNED WITH STAR HVAC MASTERY CERTIFICATION STANDARDS |LATEST UPDATE

STAR HVAC MASTERY CERTIFICATION EXAM |COMPLETE PRACTICE
EXAMINATION 2026 |300 QUESTIONS WITH VERIFIED ANSWERS &
DETAILED RATIONALES ALIGNED WITH STAR HVAC MASTERY
CERTIFICATION STANDARDS |LATEST UPDATE


DOMAIN 1: REFRIGERATION CYCLE FUNDAMENTALS (Questions 1–50)
1. Which law of thermodynamics states that heat flows spontaneously from
a region of higher temperature to a region of lower temperature?

A) First law of thermodynamics
B) Second law of thermodynamics
C) Third law of thermodynamics
D) Zeroth law of thermodynamics

Answer: B) Second law of thermodynamics

Rationale: The second law of thermodynamics defines the direction of
natural heat flow from hot to cold. This fundamental principle
governs how heat transfer occurs in all HVAC systems, including
refrigeration cycles. The first law addresses energy conservation
(energy cannot be created or destroyed). The third law addresses
entropy at absolute zero. The zeroth law establishes thermal
equilibrium and is the basis for temperature measurement. The
second law is why a refrigeration system requires work (compressor
input) to move heat "uphill" from a cold space to a warm space.

2. In a vapor-compression refrigeration cycle, the component responsible
for removing heat from the refrigerant and changing its state from a
gas to a liquid is the:

A) Compressor
B) Condenser

1

,C) Expansion valve
D) Evaporator

Answer: B) Condenser

Rationale: The condenser removes heat from the superheated refrigerant
gas, causing it to condense into a liquid. This is where the
refrigerant rejects heat to the outdoor air (air-cooled condenser) or
water (water-cooled condenser). The compressor adds energy to the
refrigerant by compressing it, raising its temperature and pressure.
The expansion valve reduces pressure and temperature. The evaporator
absorbs heat from the conditioned space, changing liquid refrigerant
into a gas. In the condenser, both latent heat (phase change) and
sensible heat (temperature drop) are removed.

3. The process of superheating occurs in which part of the
vapor-compression refrigeration cycle?

A) Between the expansion valve and the evaporator inlet
B) Between the evaporator outlet and the compressor inlet
C) Between the compressor outlet and the condenser inlet
D) Between the condenser outlet and the expansion valve inlet

Answer: B) Between the evaporator outlet and the compressor inlet

Rationale: Superheat is the temperature of the refrigerant vapor
above its saturation temperature at a given pressure. It occurs
after the refrigerant has completely vaporized in the evaporator
and continues to absorb additional heat as it travels to the
compressor. Superheat ensures that liquid refrigerant does not
enter the compressor, which would cause compressor slugging and
damage. The ideal superheat is typically between 10°F–20°F for
most systems, ensuring the compressor is protected while

2

,maximizing evaporator efficiency.

4. The process of subcooling occurs in which part of the
vapor-compression refrigeration cycle?

A) Between the evaporator outlet and the compressor inlet
B) Between the compressor outlet and the condenser inlet
C) Between the condenser outlet and the expansion valve inlet
D) Between the expansion valve and the evaporator inlet

Answer: C) Between the condenser outlet and the expansion valve
inlet

Rationale: Subcooling is the temperature of the liquid refrigerant
below its saturation temperature at a given pressure. It occurs
after the refrigerant has completely condensed in the condenser
and continues to lose heat as it travels to the expansion valve.
Subcooling ensures that only liquid refrigerant enters the
expansion valve, which is necessary for proper metering and
efficient evaporator performance. Typical subcooling is between
10°F–15°F. High subcooling can indicate an overcharged system or
a dirty/blocked condenser. Low subcooling can indicate an
undercharged system or inefficient condenser performance.

5. The primary function of the expansion valve (metering device) in
a vapor-compression refrigeration cycle is to:

A) Increase the pressure of the refrigerant
B) Reduce the pressure and temperature of the refrigerant
C) Remove heat from the refrigerant
D) Increase the temperature of the refrigerant

Answer: B) Reduce the pressure and temperature of the refrigerant

3

, Rationale: The expansion valve (metering device) reduces the
pressure and temperature of the liquid refrigerant, causing a
rapid drop in temperature (Joule-Thomson effect). This allows the
cold, low-pressure liquid to absorb heat in the evaporator. The
expansion valve also controls the flow rate of refrigerant into
the evaporator, ensuring proper superheat and efficient operation.
Types of metering devices include thermal expansion valves (TXVs),
fixed orifice (piston), and electronic expansion valves (EEVs).
Each type has specific advantages and applications depending on
the system design.

6. In a vapor-compression refrigeration cycle, the component that
increases the pressure and temperature of the refrigerant vapor
is the:

A) Condenser
B) Evaporator
C) Compressor
D) Expansion valve

Answer: C) Compressor

Rationale: The compressor is the heart of the refrigeration cycle,
performing the mechanical work required to circulate refrigerant
and raise its pressure and temperature. By compressing the low-
pressure vapor from the evaporator, the compressor creates the
high-pressure, high-temperature gas needed for the condenser to
reject heat to the outdoors. Common compressor types include
reciprocating, scroll, rotary, and centrifugal. The compressor's
efficiency and reliability are critical to overall system
performance. Compressor failure is one of the most common and
costly failures in HVAC systems.

4
