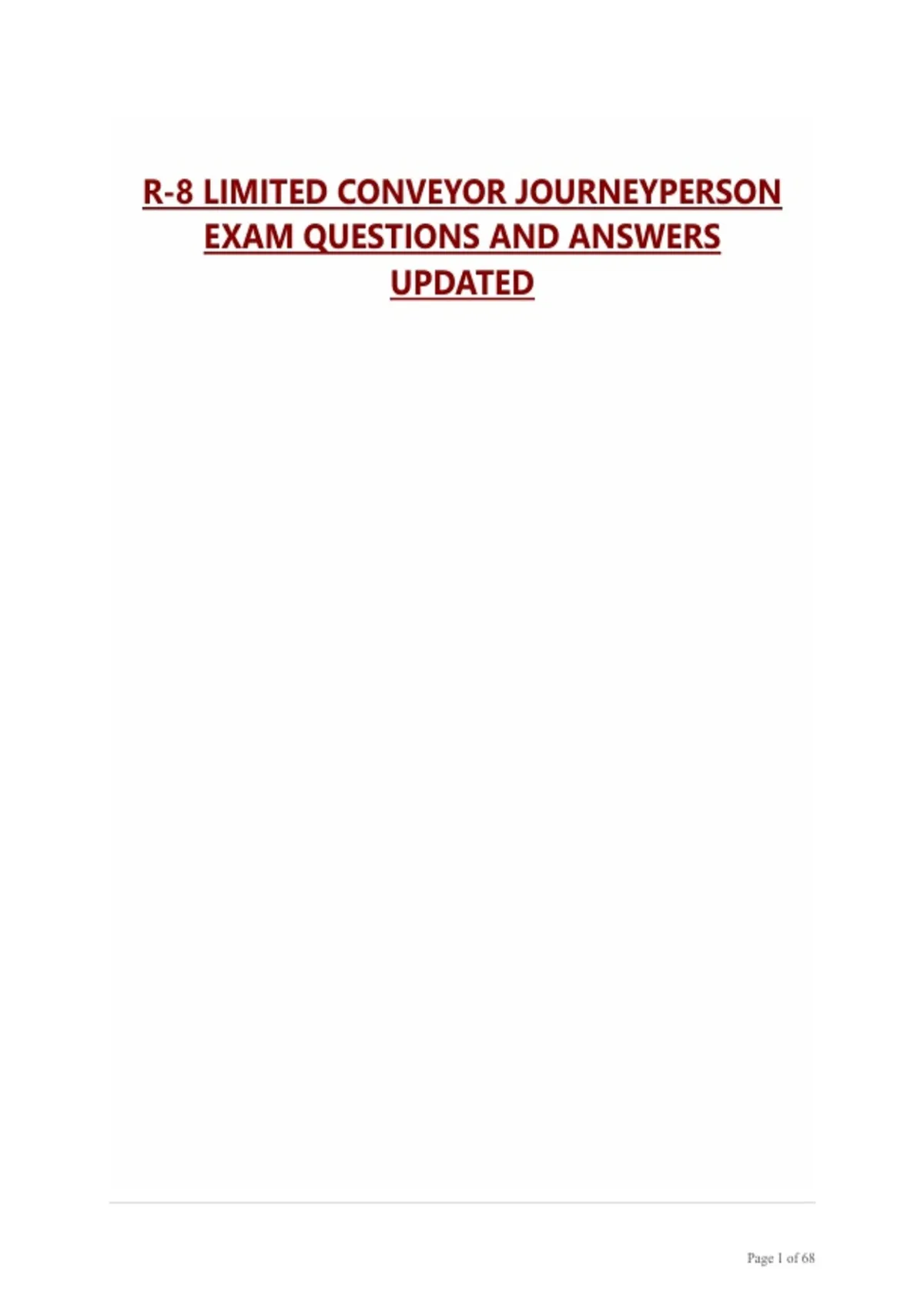

R-8 LIMITED CONVEYOR JOURNEYPERSON
EXAM QUESTIONS AND ANSWERS
UPDATED
Page 1 of 68
,Question 1: In accordance with standard industrial practices for limited
conveyor systems, what is the primary purpose of a pull-cord emergency stop
device installed along the length of a conveyor?
A. To automatically adjust belt tension during operation
B. To provide a continuous means for personnel to immediately halt conveyor
motion from any point along the route
C. To monitor motor temperature and prevent overheating
D. To synchronize multiple conveyor sections for sequential starting
CORRECT ANSWER: B. To provide a continuous means for personnel to
immediately halt conveyor motion from any point along the route
Rationale: Pull-cord emergency stop devices are required safety features on many
conveyor systems. They allow any worker along the conveyor path to quickly stop
the equipment in an emergency by pulling the cord, activating a switch that de-
energizes the drive and brings the conveyor to a controlled halt, thereby reducing
the risk of injury.
Question 2: When calculating the effective belt tension for a horizontal belt
conveyor under steady-state conditions, which factor is typically the largest
contributor to total tension requirements?
A. The weight of the empty belt itself
B. The frictional resistance of the idlers and the weight of the material being
conveyed
C. The centrifugal force at the head pulley
D. Ambient temperature variations
CORRECT ANSWER: B. The frictional resistance of the idlers and the weight of
the material being conveyed
Rationale: Effective belt tension is determined primarily by the resistance created as
the loaded belt moves over idlers and the energy needed to overcome the weight
and friction of the conveyed material. Other factors such as belt weight and pulley
effects are secondary in most horizontal applications.
Question 3: According to accepted conveyor safety standards, what is the
maximum allowable gap between a rotating shaft and its fixed guard when
the guard is designed to prevent accidental contact?
A. 1/4 inch
B. 1/2 inch
C. 1 inch
D. 2 inches
Page 2 of 68
,CORRECT ANSWER: A. 1/4 inch
Rationale: Safety standards limit openings in guards protecting rotating
components to 1/4 inch or less in many applications to prevent fingers or clothing
from entering the hazard zone. Larger gaps would allow potential contact with
moving parts and increase injury risk.
Question 4: For a limited conveyor system powered by a three-phase induction
motor, what is the most common method used to provide overload protection
for the motor?
A. A simple fuse on the control circuit only
B. Thermal overload relays or electronic overload devices sized to the motor full-
load current
C. A mechanical shear pin on the drive pulley
D. Manual reset only after visual inspection
CORRECT ANSWER: B. Thermal overload relays or electronic overload devices
sized to the motor full-load current
Rationale: Thermal or electronic overload protection devices are standard for three-
phase motors. They are selected according to the motor’s full-load amperage and
trip when sustained overcurrent occurs, protecting the motor windings from
thermal damage while allowing brief starting currents.
Question 5: When installing a new belt on a troughing idler conveyor, what is
the recommended initial procedure to ensure proper tracking?
A. Tension the belt to maximum manufacturer rating immediately
B. Center the belt on the pulleys and idlers, then run the conveyor empty while
making gradual adjustments to training idlers
C. Load the belt with product before any tracking adjustments
D. Weld the belt ends permanently before any operation
CORRECT ANSWER: B. Center the belt on the pulleys and idlers, then run the
conveyor empty while making gradual adjustments to training idlers
Rationale: Proper belt tracking begins with centering the belt and operating the
system empty. Training idlers are then adjusted incrementally so the belt runs true.
Loading the belt before tracking or over-tensioning can cause permanent
misalignment or damage.
Question 6: In a limited conveyor application, what is the primary function of a
gravity take-up system?
A. To increase belt speed during peak loads
B. To automatically maintain proper belt tension as the belt stretches or contracts
Page 3 of 68
, with load and temperature changes
C. To reverse the direction of belt travel
D. To provide emergency braking
CORRECT ANSWER: B. To automatically maintain proper belt tension as the
belt stretches or contracts with load and temperature changes
Rationale: A gravity take-up uses a weighted carriage to apply constant tension. As
the belt elongates under load or temperature variation, the weight moves to keep
tension within design limits without manual intervention.
Question 7: Which type of conveyor is most suitable for transporting bulk
materials at an incline greater than 20 degrees while minimizing material
rollback?
A. Flat belt conveyor without cleats
B. Cleated belt conveyor or corrugated sidewall belt conveyor
C. Roller conveyor with free-spinning rollers
D. Slider-bed belt conveyor
CORRECT ANSWER: B. Cleated belt conveyor or corrugated sidewall belt
conveyor
Rationale: Cleats or corrugated sidewalls create pockets that hold material and
prevent rollback on steeper inclines. Flat belts and roller conveyors lack this
retention capability and are limited to lower angles.
Question 8: When performing lockout/tagout on a limited conveyor system
before maintenance, what is the minimum number of energy isolation points
that must be secured if the conveyor has both electrical and residual
mechanical energy?
A. Only the main electrical disconnect
B. All electrical sources plus any stored mechanical energy devices such as gravity
take-ups or charged accumulators
C. Only the local control station
D. The motor only
CORRECT ANSWER: B. All electrical sources plus any stored mechanical energy
devices such as gravity take-ups or charged accumulators
Rationale: Comprehensive lockout/tagout requires isolation of every energy source
capable of causing unexpected movement. Residual energy in take-up weights,
springs, or hydraulic systems must be relieved or blocked in addition to electrical
isolation.
Page 4 of 68
