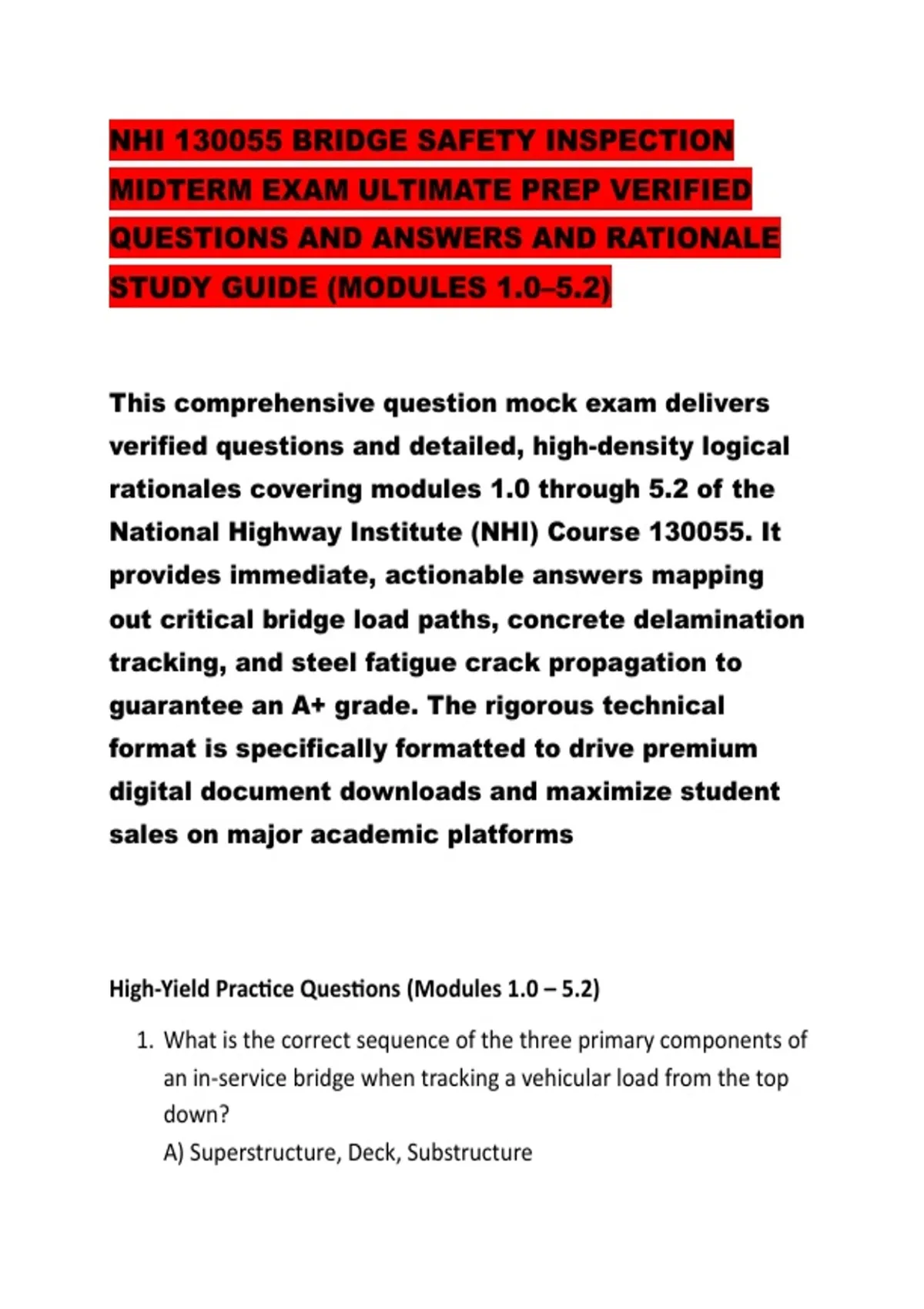

NHI 130055 BRIDGE SAFETY INSPECTION
MIDTERM EXAM ULTIMATE PREP VERIFIED
QUESTIONS AND ANSWERS AND RATIONALE
STUDY GUIDE (MODULES 1.0–5.2)
This comprehensive question mock exam delivers
verified questions and detailed, high-density logical
rationales covering modules 1.0 through 5.2 of the
National Highway Institute (NHI) Course 130055. It
provides immediate, actionable answers mapping
out critical bridge load paths, concrete delamination
tracking, and steel fatigue crack propagation to
guarantee an A+ grade. The rigorous technical
format is specifically formatted to drive premium
digital document downloads and maximize student
sales on major academic platforms
High-Yield Practice Questions (Modules 1.0 – 5.2)
1. What is the correct sequence of the three primary components of
an in-service bridge when tracking a vehicular load from the top
down?
A) Superstructure, Deck, Substructure
, B) Deck, Substructure, Superstructure
C) Deck, Superstructure, Substructure
D) Substructure, Superstructure, Deck
Answer: C
**Rationale: Structural loads originating from traffic are first received
by the deck surface. The deck transfers these forces to the major load-
carrying members of the superstructure (such as girders or trusses). The
superstructure then passes the forces down through the bearings into
the substructure (piers and abutments), which ultimately dissipates the
load into the earth.
2. Which of the following elements is classified as part of the bridge
deck rather than the superstructure?
A) Floorbeam
B) Pin and hanger assembly
C) Parapet/Bridge railing
D) Diaphragm
Answer: C
**Rationale: Parapets, curbs, sidewalks, wearing surfaces, and
expansion joints are considered components of the deck system.
Floorbeams, diaphragms, and pin-and-hanger assemblies are structural
elements that make up the superstructure load-distribution network.
3. What concrete deficiency describes a subsurface separation of
concrete layers, typically caused by the expansion of corroding
reinforcing steel, which cannot be visually identified?
A) Scaling
B) Spalling
, C) Honeycombing
D) Delamination
Answer: D
**Rationale: Delamination is an internal fracture plane that forms
parallel to the concrete surface, frequently at the level of the reinforcing
steel. Because it remains hidden beneath the surface, it cannot be
detected visually and requires acoustic methods like hammer sounding
or chain dragging to locate.
4. A concrete deck panel exhibits an actual loss of surface concrete,
resulting in a distinct, crater-like depression with rough edges. This
visual deficiency is known as:
A) Efflorescence
B) Spalling
C) Honeycombing
D) Exudation
Answer: B
**Rationale: Unlike delamination, a spall is a highly visible surface
defect where a piece of concrete has detached and broken away from
the main mass, often exposing the underlying rusted reinforcing steel.
5. Which primary physical inspection tool or method is most
appropriate for locating and mapping subsurface concrete
delaminations on a bridge deck?
A) Ultrasonic thickness gauge
B) Dye penetrant testing
C) Chain dragging or hammer sounding
D) Visual inspection with a magnifying loupe
, Answer: C
**Rationale: Chain dragging and hammer sounding rely on acoustics.
When dragged or struck over sound concrete, a clear ringing sound is
produced. When passing over a delaminated area, the sound changes to
a distinct, hollow thud, allowing the inspector to map the hidden
boundaries.
6. What type of expansion joint is constructed using backing
material, joint filler, and a poured liquid sealant, and is strictly
limited to a total movement capacity of 1/4 inch?
A) Strip seal
B) Compression joint seal
C) Pourable joint seal
D) Finger joint
Answer: C
**Rationale: Pourable joint seals are liquid-applied sealants poured over
a backing material. They have very limited elasticity and are only
suitable for joints experiencing minimal thermal movement, typically
capped at 1/4 inch or less.
7. Which expansion joint type is characterized by a preformed
rectangular neoprene gland featuring an internal honeycomb or
multi-cell cross-section design?
A) Sliding plate joint
B) Compression joint seal
C) Modular joint
D) Plank joint
Answer: B
**Rationale: Compression joint seals are preformed elastomeric
