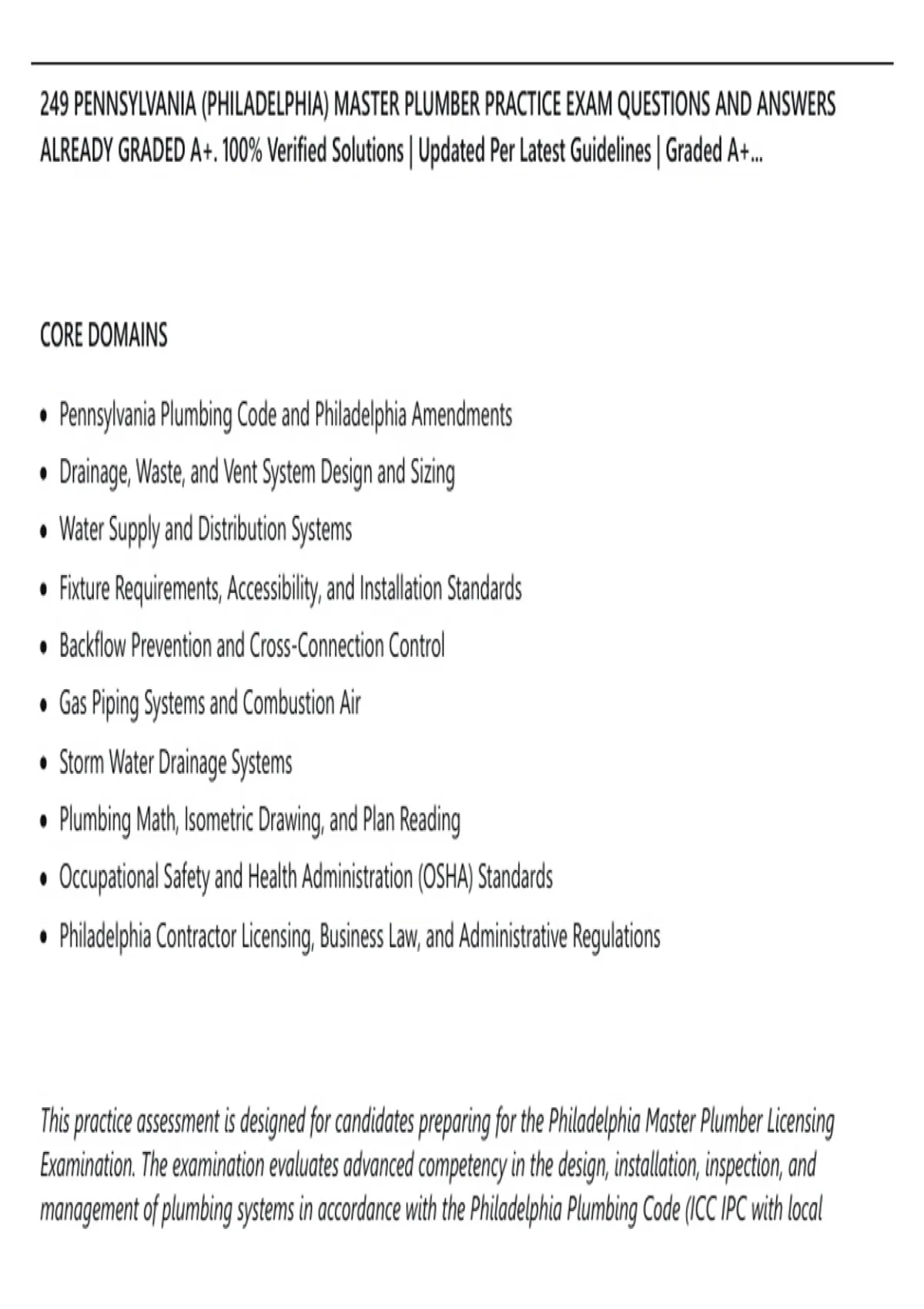

249 PENNSYLVANIA (PHILADELPHIA) MASTER PLUMBER PRACTICE EXAM QUESTIONS AND ANSWERS
ALREADY GRADED A+. 100% Verified Solutions | Updated Per Latest Guidelines | Graded A+...
CORE DOMAINS
Pennsylvania Plumbing Code and Philadelphia Amendments
Drainage, Waste, and Vent System Design and Sizing
Water Supply and Distribution Systems
Fixture Requirements, Accessibility, and Installation Standards
Backflow Prevention and Cross-Connection Control
Gas Piping Systems and Combustion Air
Storm Water Drainage Systems
Plumbing Math, Isometric Drawing, and Plan Reading
Occupational Safety and Health Administration (OSHA) Standards
Philadelphia Contractor Licensing, Business Law, and Administrative Regulations
This practice assessment is designed for candidates preparing for the Philadelphia Master Plumber Licensing
Examination. The examination evaluates advanced competency in the design, installation, inspection, and
management of plumbing systems in accordance with the Philadelphia Plumbing Code (ICC IPC with local
,amendments), the Pennsylvania Uniform Construction Code, and relevant NFPA standards for gas systems. Key
skills assessed include performing complex pipe sizing calculations, interpreting detailed isometric drawings and
floor plans, applying venting and trap arm rules to multi-story scenarios, ensuring cross-connection control, and
navigating the business and legal frameworks governing plumbing contracting in Philadelphia. Questions simulate
real-world field scenarios to test critical thinking, code application, and professional judgment. The format consists
of 100 original multiple-choice questions ranging from fundamental code knowledge to complex scenario-based
problem-solving, mirroring the cognitive demands and difficulty distribution of the live proctored examination.
SECTION ONE
Question 1
In accordance with the Philadelphia Plumbing Code, what is the minimum required diameter for a building
sewer serving a single-family dwelling with three water closets?
A. 3 inches
B. 4 inches
C. 5 inches
D. 6 inches
🟢 Correct Answer: B
🔴 RATIONALE: The plumbing code requires a minimum building sewer diameter of 4 inches for any building
with two or more water closets. The main building drain and sewer must be sized to handle the total connected
drainage fixture units, but a 4-inch minimum is standard for typical residential applications.
,Question 2
A plumber is installing a horizontal drain line with a slope of 1/8 inch per foot. This is the minimum slope for
pipes up to what diameter?
A. 2-inch pipe
B. 3-inch pipe
C. 4-inch pipe
D. 6-inch pipe
🟢 Correct Answer: C
🔴 RATIONALE: For pipes 4 inches in diameter and larger, the minimum slope is 1/8 inch per foot. For pipes 3
inches and smaller, the minimum slope is 1/4 inch per foot. These slopes ensure a self-scouring velocity of at
least 2 feet per second.
Question 3
What is the primary purpose of the vent system in a plumbing drainage system?
A. To provide a cleanout access point
B. To equalize air pressure and protect trap seals from siphoning
C. To direct sewer gas into the building
D. To increase the flow rate of the drainage
, 🟢 Correct Answer: B
🔴 RATIONALE: The vent system maintains atmospheric pressure throughout the drainage piping. Without
vents, the slug of water flowing down a drain creates a vacuum behind it (siphoning traps) and pressure ahead
of it (blowing traps). Ventilation protects the water seal.
Question 4
According to the Philadelphia Code, a Master Plumber license is required for which of the following scopes of
work?
A. Replacing a faucet washer in a single-family home
B. Installing new drainage, waste, and vent piping in a commercial building
C. Clearing a clogged sink trap with a plunger
D. Painting a PVC pipe
🟢 Correct Answer: B
🔴 RATIONALE: A Master Plumber license is required for the installation, alteration, or renovation of plumbing
systems, including DWV piping. Minor repairs and maintenance, such as replacing a washer or clearing a clog,
are typically exempt. New installations are not minor repairs.
Question 5
