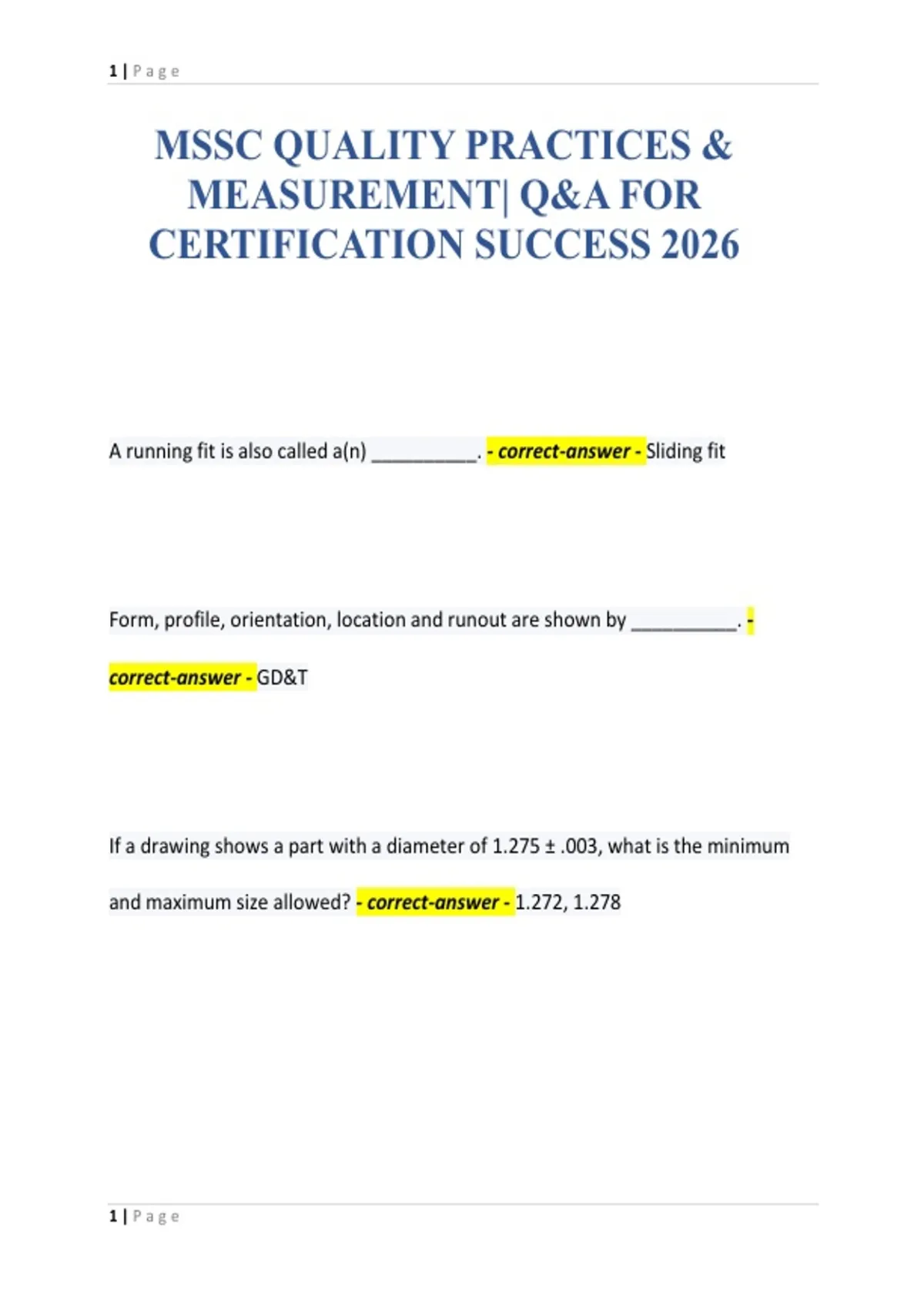

MSSC QUALITY PRACTICES &
MEASUREMENT| Q&A FOR
CERTIFICATION SUCCESS 2026
A running fit is also called a(n) __________. - correct-answer - Sliding fit
Form, profile, orientation, location and runout are shown by __________. -
correct-answer - GD&T
If a drawing shows a part with a diameter of 1.275 ± .003, what is the minimum
and maximum size allowed? - correct-answer - 1.272, 1.278
1|Page
,2|Page
The equipment at a workstation is supposed to produce parts at 2.593, per the
part drawing, and has a spec limit of ± 0.004. Is a part that has been produced at
2.590 out of spec? - correct-answer - No, it is within spec
A part measuring 44.85 mm in a process with a tolerance of 45mm ± .28 is
considered __________. - correct-answer - Out of Spec, above the upper
tolerance limit
Datums are a point of reference to establish __________.
- Job tasks - correct-answer - Datum features
The maximum material condition for the part shown is __________. - correct-
answer - 15.75
2|Page
,3|Page
The least material condition for the part shown is __________. - correct-answer -
0.75
Geometric Dimensioning and Tolerancing uses __________ to represent features
and tolerances. - correct-answer - Symbols
Examples of __________ tolerance describe the form and orientation of a part. -
correct-answer - Profile
Which of the following part lengths is out of spec if the specification calls for a
part length of 3.202 (± 0.003)? - correct-answer - 3.197
Length, width, height, diameter, and hole diameter are all examples of
__________. - correct-answer - Features of size
3|Page
, 4|Page
The tolerance for a geometric feature can be easily identified by reading the
__________. - correct-answer - Feature control frame
The term __________ refers to a physical portion of a part. - correct-answer -
Feature
A letter with a box around it is a standard notation symbol used to indicate a(n)
__________. - correct-answer - Datum feature
GD&T __________. - correct-answer - Allows certain tolerances on part features
to be increased
Which of the following is a feature control frame typically used to identify? -
correct-answer - Extension lines
4|Page
