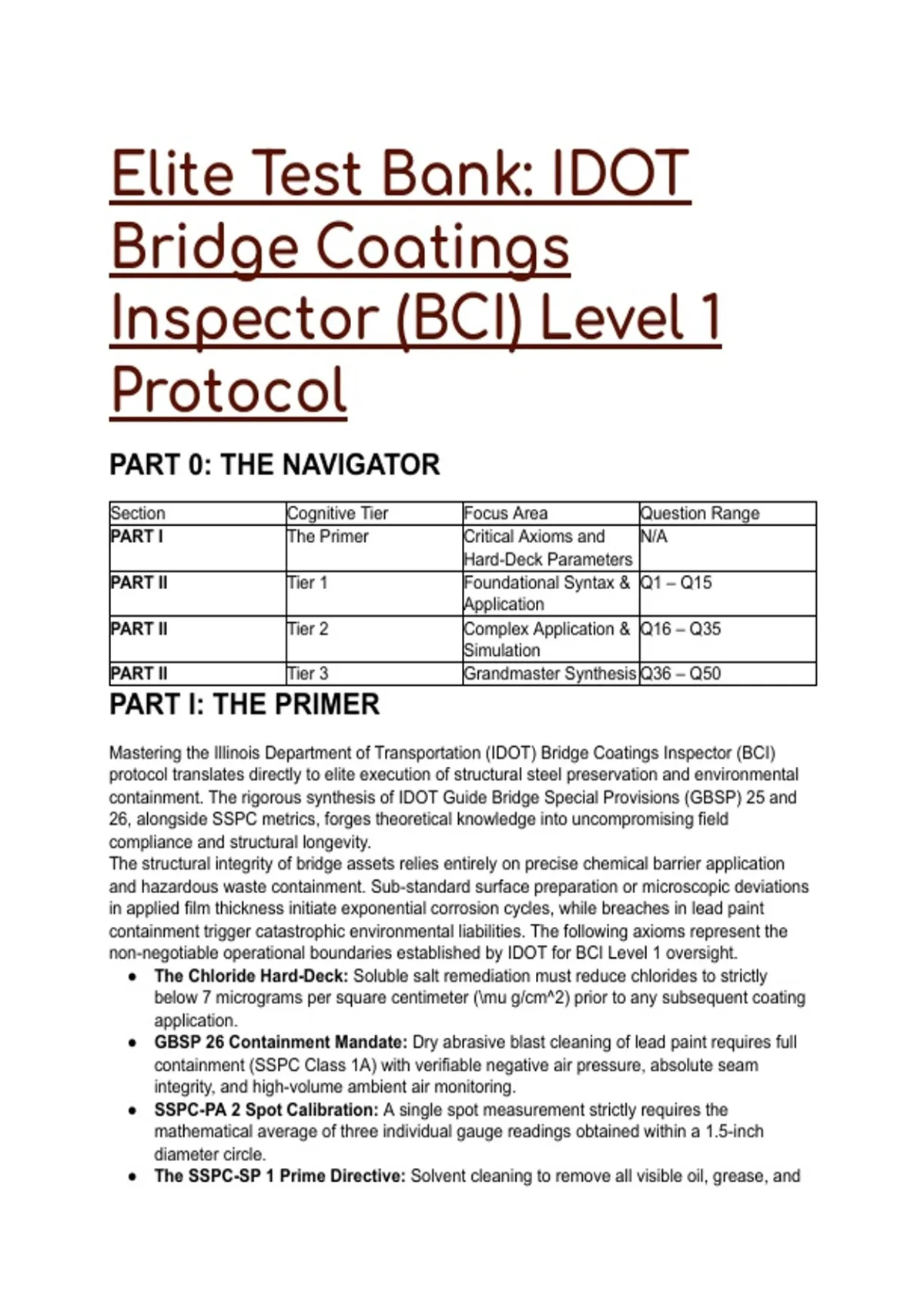

Elite Test Bank: IDOT
Bridge Coatings
Inspector (BCI) Level 1
Protocol
PART 0: THE NAVIGATOR
Section Cognitive Tier Focus Area Question Range
PART I The Primer Critical Axioms and N/A
Hard-Deck Parameters
PART II Tier 1 Foundational Syntax & Q1 – Q15
Application
PART II Tier 2 Complex Application & Q16 – Q35
Simulation
PART II Tier 3 Grandmaster Synthesis Q36 – Q50
PART I: THE PRIMER
Mastering the Illinois Department of Transportation (IDOT) Bridge Coatings Inspector (BCI)
protocol translates directly to elite execution of structural steel preservation and environmental
containment. The rigorous synthesis of IDOT Guide Bridge Special Provisions (GBSP) 25 and
26, alongside SSPC metrics, forges theoretical knowledge into uncompromising field
compliance and structural longevity.
The structural integrity of bridge assets relies entirely on precise chemical barrier application
and hazardous waste containment. Sub-standard surface preparation or microscopic deviations
in applied film thickness initiate exponential corrosion cycles, while breaches in lead paint
containment trigger catastrophic environmental liabilities. The following axioms represent the
non-negotiable operational boundaries established by IDOT for BCI Level 1 oversight.
● The Chloride Hard-Deck: Soluble salt remediation must reduce chlorides to strictly
below 7 micrograms per square centimeter (\mu g/cm^2) prior to any subsequent coating
application.
● GBSP 26 Containment Mandate: Dry abrasive blast cleaning of lead paint requires full
containment (SSPC Class 1A) with verifiable negative air pressure, absolute seam
integrity, and high-volume ambient air monitoring.
● SSPC-PA 2 Spot Calibration: A single spot measurement strictly requires the
mathematical average of three individual gauge readings obtained within a 1.5-inch
diameter circle.
● The SSPC-SP 1 Prime Directive: Solvent cleaning to remove all visible oil, grease, and
, soluble contaminants is a non-negotiable prerequisite that must precede all mechanical
surface preparation.
IDOT GBSP 25 Paint System Architecture
System Application Profile Primer / SealerIntermediate Finish Target
Target Target
System 1 Bare Steel Organic Zinc: 3.5 -
Epoxy: 3.0 - 6.0 Aliphatic Urethane:
5.0 mils mils 2.5 - 4.0 mils
System 2 Overcoating Epoxy Sealer: 1.0
Aluminum Epoxy Aliphatic Urethane:
- 2.0 mils Mastic: 5.0 - 7.0 2.5 - 4.0 mils
mils
System 4 Overcoating Epoxy Sealer: 1.0 Aluminum Epoxy Waterborne
- 2.0 mils Mastic: 5.0 - 7.0 Acrylic: 2.0 - 4.0
mils mils
System 5 Bare Steel (MCU) MCU Zinc: 3.0 - MCU Intermediate: MCU Finish: 2.0 -
5.0 mils 3.0 - 4.0 mils 4.0 mils
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: Under IDOT GBSP 25 requirements, a contractor submits their designated Quality Control
(QC) personnel for an upcoming bridge painting project. Based on the certification and
experience mandates, which candidate profile is the MOST ACCURATE representation of a
fully compliant QC inspector? A) An inspector holding an active SSPC BCI Level 1 certification
with documented experience on two complex bridge projects within the last three years. B) An
inspector holding a NACE Coating Inspector Level 2 certification with documented experience
on three bridge projects of similar complexity completed within the last two years. C) An
inspector with an engineering degree and five years of general construction QC experience,
verified by state bridge owners. D) An inspector holding a NACE Level 1 certification who will
concurrently perform hands-on abrasive blasting and surface profile measurements.
● The Answer: B (An inspector holding a NACE Coating Inspector Level 2 certification with
documented experience on three bridge projects of similar complexity completed within
the last two years.)
● Distractor Analysis:
○ A is incorrect: The specification mandates experience on three projects within the
last two years, rendering this candidate non-compliant due to insufficient recent
project volume.
○ C is incorrect: General engineering degrees do not bypass the strict requirement for
specialized BCI or NACE Level 2 certification in protective coatings.
○ D is incorrect: The specification explicitly prohibits QC personnel from performing
hands-on surface preparation or painting activities to maintain objective oversight.
The Mentor's Analysis: Quality Control in high-stakes coating applications cannot be
delegated to entry-level or inherently conflicted personnel. When verifying QC credentials, the
immediate priority is confirming advanced technical certification coupled with immediate,
relevant field experience. By utilizing dedicated, non-production NACE Level 2 or BCI certified
inspectors, the project bypasses the common trap of compromised quality oversight.
, Professional/Academic Intuition: QC inspectors must strictly observe and verify; they are
fundamentally prohibited from acting as production labor.
Q2: Following abrasive blast cleaning, an inspector utilizes field chloride extraction cell methods
to verify substrate cleanliness before authorizing primer application. Based on IDOT GBSP 25,
which chemical threshold represents the ABSOLUTE MAXIMUM allowable concentration for
chloride ions? A) 10 micrograms per square centimeter. B) 15 micrograms per square
centimeter. C) 7 micrograms per square centimeter. D) 3 micrograms per square centimeter.
● The Answer: C (7 micrograms per square centimeter.)
● Distractor Analysis:
○ A is incorrect: While 10 \mu g/cm^2 is a common threshold for sulfates and nitrates
in some SSPC guidelines, it explicitly violates the IDOT requirement for chlorides.
○ B is incorrect: 15 \mu g/cm^2 is a legacy threshold associated with non-bridge
industrial environments, which permits too much residual salt for bridge longevity.
○ D is incorrect: While technically cleaner, demanding 3 \mu g/cm^2 exceeds the
contract specification and imposes unauthorized operational delays and costs upon
the contractor.
The Mentor's Analysis: Invisible soluble salts act as osmotic pumps, drawing moisture through
the coating film and triggering catastrophic premature blistering. When evaluating blast-cleaned
steel, the immediate priority is verifying the absolute elimination of chemical contaminants. By
utilizing the strict 7 \mu g/cm^2 threshold, the inspector bypasses the common trap of clearing
visually clean but chemically compromised substrates. Professional/Academic Intuition:
Visual cleanliness is irrelevant if the substrate fails the chemical threshold; chloride
contamination guarantees subsequent coating failure.
Q3: A production crew arrives to prepare a heavily corroded expansion joint bearing. The steel
is coated in road dirt, deteriorated lead paint, and thick diesel grease. According to the
sequential requirements of surface preparation, which action must be performed FIRST? A)
Power tool cleaning to SSPC-SP 15 to establish an anchor profile. B) Low-pressure water
washing at 3000 psi to remove all loose debris. C) Solvent cleaning according to SSPC-SP 1.
D) Abrasive blast cleaning to SSPC-SP 10 Near-White Metal.
● The Answer: C (Solvent cleaning according to SSPC-SP 1.)
● Distractor Analysis:
○ A is incorrect: Utilizing power tools directly over grease forces the hydrocarbons
deep into the steel pores, permanently contaminating the substrate. * B is incorrect:
While water washing is used for general debris, SSPC-SP 1 solvent cleaning is
explicitly mandated to dissolve and extract heavy oil and diesel grease prior to any
mechanical action.
○ D is incorrect: Abrasive blasting over grease will atomize the hydrocarbons and
contaminate the recycled abrasive mix, ruining the entire containment zone.
The Mentor's Analysis: Mechanical energy cannot destroy chemical contamination; it only
relocates it. When facing hydrocarbon-fouled steel, the immediate priority is chemical
emulsification. By utilizing SSPC-SP 1 solvent protocols first, the crew bypasses the common
trap of hammering grease into the microscopic anchor profile. Professional/Academic
Intuition: Never blast, grind, or scrape a greasy substrate; extract the oils chemically before
applying mechanical force.
Q4: A bridge is scheduled for full lead paint removal via dry abrasive blasting. According to
IDOT GBSP 26, which containment specification is MOST ACCURATE for this operation? A)
SSPC Class 2A with positive air flow. B) SSPC Class 1A with negative air pressure. C) SSPC
Class 3P with impermeable tarpaulins. D) SSPC Class 4W with permeable debris netting.
