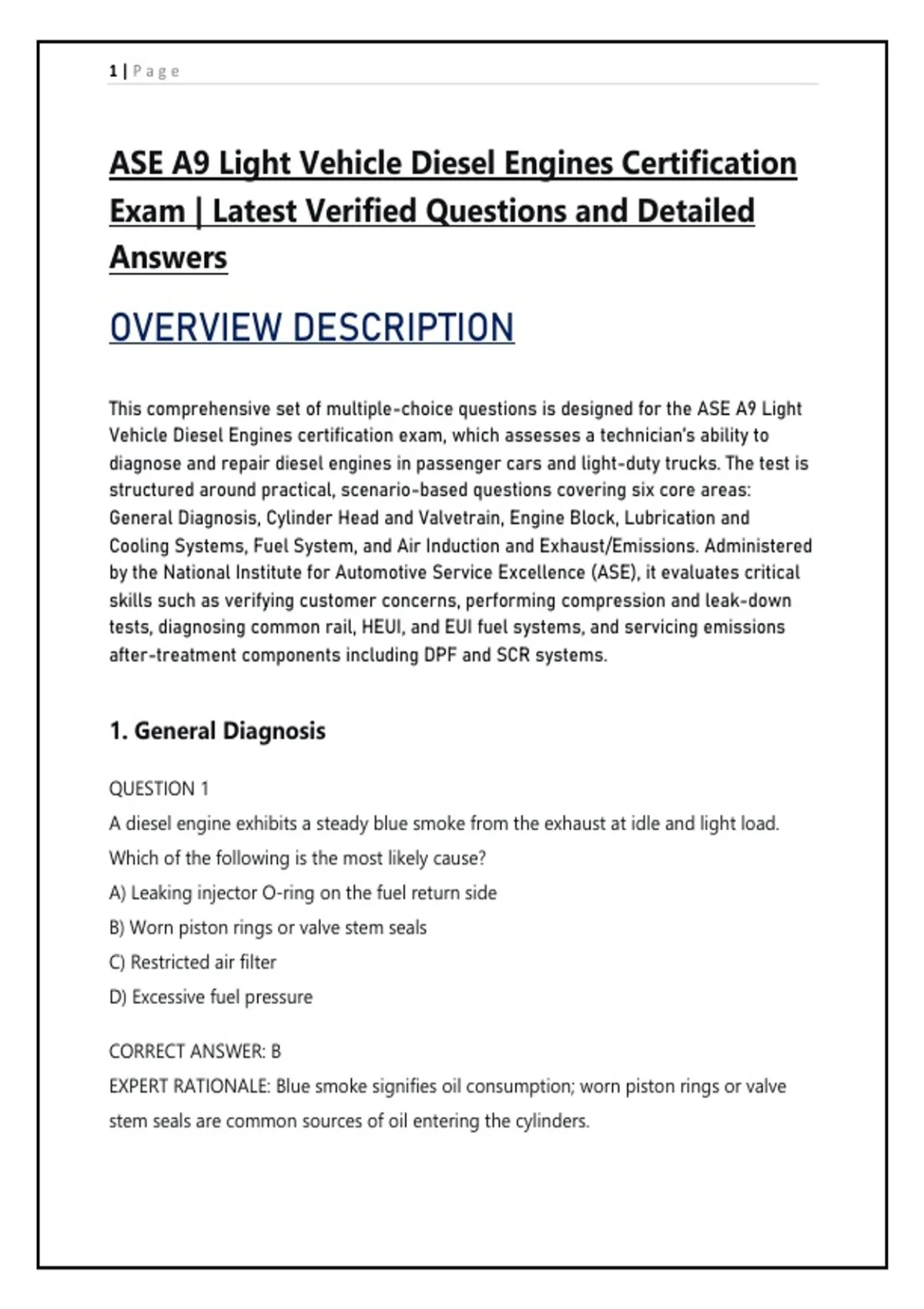

1|Page
ASE A9 Light Vehicle Diesel Engines Certification
Exam | Latest Verified Questions and Detailed
Answers
OVERVIEW DESCRIPTION
This comprehensive set of multiple-choice questions is designed for the ASE A9 Light
Vehicle Diesel Engines certification exam, which assesses a technician’s ability to
diagnose and repair diesel engines in passenger cars and light-duty trucks. The test is
structured around practical, scenario-based questions covering six core areas:
General Diagnosis, Cylinder Head and Valvetrain, Engine Block, Lubrication and
Cooling Systems, Fuel System, and Air Induction and Exhaust/Emissions. Administered
by the National Institute for Automotive Service Excellence (ASE), it evaluates critical
skills such as verifying customer concerns, performing compression and leak-down
tests, diagnosing common rail, HEUI, and EUI fuel systems, and servicing emissions
after-treatment components including DPF and SCR systems.
1. General Diagnosis
QUESTION 1
A diesel engine exhibits a steady blue smoke from the exhaust at idle and light load.
Which of the following is the most likely cause?
A) Leaking injector O-ring on the fuel return side
B) Worn piston rings or valve stem seals
C) Restricted air filter
D) Excessive fuel pressure
CORRECT ANSWER: B
EXPERT RATIONALE: Blue smoke signifies oil consumption; worn piston rings or valve
stem seals are common sources of oil entering the cylinders.
,2|Page
QUESTION 2
A technician performs a cylinder power balance test on a diesel engine by momentarily
cutting fuel to each cylinder while monitoring engine RPM drop. Cylinder #3 shows
significantly less RPM drop than the others. What does this indicate?
A) Cylinder #3 is producing more power
B) Cylinder #3 has a mechanical problem causing weak contribution
C) The fuel injector for #3 is over-fueling
D) The compression is higher in #3
CORRECT ANSWER: B
EXPERT RATIONALE: In a power balance test, a cylinder with minimal RPM drop is not
contributing normally, pointing to a fault in that cylinder (low compression, injector
issue).
QUESTION 3
A vehicle with a diesel engine has a hard start condition only when the engine is cold.
After warming up, it starts easily. Which of the following is the most probable cause?
A) Faulty glow plug system
B) Leaking high-pressure fuel pump
C) Restricted diesel particulate filter
D) Stuck open EGR valve
CORRECT ANSWER: A
EXPERT RATIONALE: Glow plugs provide heat for ignition when cold; a malfunction
causes poor cold starting that improves with engine warmth.
QUESTION 4
A technician uses a scan tool to check engine data while cranking a no-start diesel. He
notices that the desired fuel rail pressure is 5000 psi but actual rail pressure only reaches
500 psi. What should be checked next?
A) EGR valve position
B) Fuel inlet restriction and low-pressure supply
,3|Page
C) Turbocharger wastegate actuator
D) Intake air temperature sensor
CORRECT ANSWER: B
EXPERT RATIONALE: Insufficient actual rail pressure during cranking suggests a supply
problem; low-side fuel restriction or failed lift pump can starve the high-pressure pump.
QUESTION 5
During a test drive, a diesel truck lacks power and produces black smoke under
acceleration. Which of the following could be the cause?
A) Leaking exhaust manifold gasket
B) Overcharged air conditioning system
C) Boost leak in the intercooler piping
D) Faulty thermostat stuck open
CORRECT ANSWER: C
EXPERT RATIONALE: A boost leak allows metered air to escape, resulting in a rich fuel
mixture, black smoke, and power loss under load.
QUESTION 6
A compression test on a 6-cylinder diesel engine yields the following: Cylinder #1: 320
psi, Cylinders #2–6: 400–410 psi. Specification is 350 psi minimum with a maximum
variation of 25 psi. What does this indicate?
A) Injector calibration required
B) Cylinder #1 has low compression, possibly due to worn rings or valves
C) The turbocharger is overboosting
D) The test was performed incorrectly
CORRECT ANSWER: B
EXPERT RATIONALE: Cylinder #1 compression is below specification and beyond the
allowed variation, indicating a mechanical fault such as worn rings or leaking valves.
, 4|Page
QUESTION 7
While diagnosing a diesel engine that cranks but will not start, the technician observes
that the tachometer does not move during cranking. What is the most likely cause?
A) Faulty crankshaft position sensor
B) Bad glow plug relay
C) Clogged fuel filter
D) Open EGR valve
CORRECT ANSWER: A
EXPERT RATIONALE: The tachometer reading during cranking relies on the crankshaft
position sensor signal; a lack of RPM signal points to a faulty CKP sensor, inhibiting
injector firing.
QUESTION 8
A diesel engine has a rough idle and a knocking noise that is most pronounced at idle
but disappears above 1500 rpm. The noise is traced to one cylinder. What is a likely
cause?
A) Worn turbocharger bearings
B) Stuck injector causing advanced injection timing or excessive fuel in that cylinder
C) Loose flywheel bolts
D) Worn accessory drive belt
CORRECT ANSWER: B
EXPERT RATIONALE: A single-cylinder knock that fades with rpm often results from a
faulty fuel injector delivering improper fuel quantity or timing, known as “nailing.”
QUESTION 9
A turbocharged diesel engine with a MAF sensor exhibits low power. The technician
suspects a boost leak downstream of the MAF. Which diagnostic method would best
identify the leak?
A) Monitor fuel rail pressure
B) Compare actual MAF reading to expected at full load; if lower, leak likely
