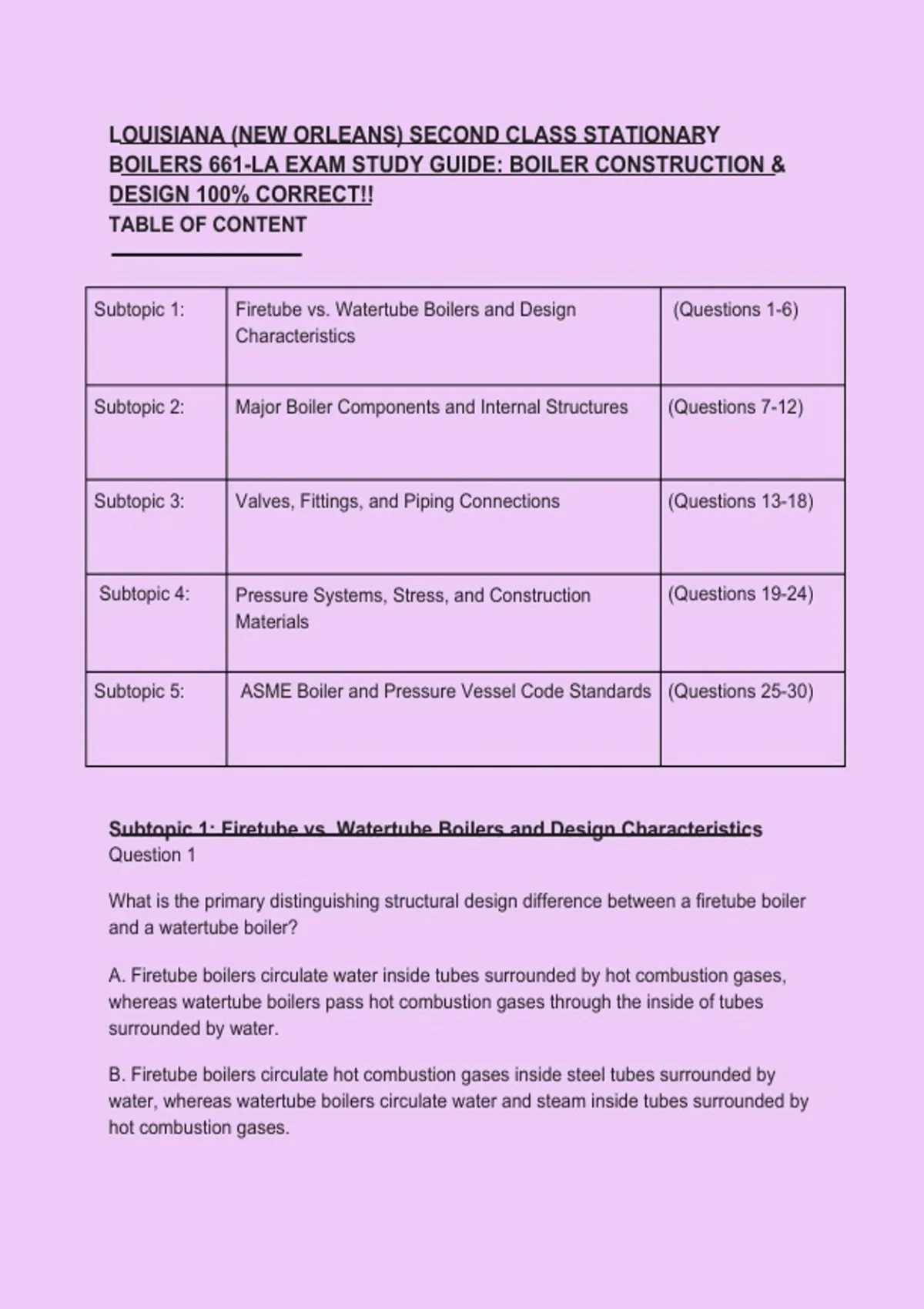

LOUISIANA (NEW ORLEANS) SECOND CLASS STATIONARY
BOILERS 661-LA EXAM STUDY GUIDE: BOILER CONSTRUCTION &
DESIGN 100% CORRECT!!
TABLE OF CONTENT
Subtopic 1: Firetube vs. Watertube Boilers and Design (Questions 1-6)
Characteristics
Subtopic 2: Major Boiler Components and Internal Structures (Questions 7-12)
Subtopic 3: Valves, Fittings, and Piping Connections (Questions 13-18)
Subtopic 4: Pressure Systems, Stress, and Construction (Questions 19-24)
Materials
Subtopic 5: ASME Boiler and Pressure Vessel Code Standards (Questions 25-30)
Subtopic 1: Firetube vs. Watertube Boilers and Design Characteristics
Question 1
What is the primary distinguishing structural design difference between a firetube boiler
and a watertube boiler?
A. Firetube boilers circulate water inside tubes surrounded by hot combustion gases,
whereas watertube boilers pass hot combustion gases through the inside of tubes
surrounded by water.
B. Firetube boilers circulate hot combustion gases inside steel tubes surrounded by
water, whereas watertube boilers circulate water and steam inside tubes surrounded by
hot combustion gases.
,C. Firetube boilers operate exclusively at ultra-high pressures exceeding 3,000 psi,
while watertube boilers are restricted to low-pressure heating.
D. Firetube boilers utilize cast-iron sections exclusively, while watertube boilers use
welded steel shells.
Correct Answer: B. Firetube boilers circulate hot combustion gases inside steel tubes
surrounded by water, whereas watertube boilers circulate water and steam inside tubes
surrounded by hot combustion gases.
Rationale: The fundamental design differentiation is the fluid placement: firetube boilers
route hot combustion products through tubes immersed within a larger shell body of
water, while watertube boilers circulate water and steam through the tubes directly
exposed to external furnace heat.
Question 2
Why are firetube boilers generally limited in operating pressure and steam capacity
compared to industrial watertube boilers?
A. Because firetube boilers have a large shell diameter containing a vast volume of
water under pressure, making high-pressure containment structurally prohibitive and
hazardous.
B. Because firetube boilers cannot burn natural gas fuel efficiently.
C. Because watertube boilers use cast iron which withstands higher stress than steel.
D. Because firetube boilers lack any safety relief valves.
Correct Answer: A. Because firetube boilers have a large shell diameter containing a
vast volume of water under pressure, making high-pressure containment structurally
prohibitive and hazardous.
Rationale: According to the shell stress formula, large-diameter cylindrical vessels
subjected to high internal pressures experience immense hoop stress. As a result,
firetube boilers are typically restricted to lower or medium pressures (generally under
250 psi) and smaller capacities compared to modular watertube designs.
Question 3
Which major operational advantage do watertube boilers possess over traditional
firetube boilers during rapid load fluctuations?
, A. Watertube boilers contain a much smaller water volume per pound of steam
generated and possess flexible tubing, allowing them to start up rapidly and respond
quickly to sudden steam demand changes.
B. Watertube boilers require zero water treatment chemicals.
C. Watertube boilers can be operated indefinitely without any water in the drum during
dry-firing conditions.
D. Watertube boilers never require safety relief valves due to natural circulation loops.
Correct Answer: A. Watertube boilers contain a much smaller water volume per pound
of steam generated and possess flexible tubing, allowing them to start up rapidly and
respond quickly to sudden steam demand changes.
Rationale: Because water is contained within smaller diameter tubes exposed to high
radiant heat, watertube boilers store less total water mass, permitting fast steam
generation, rapid response to load swings, and higher pressure ratings.
Question 4
In a horizontal return tubular (HRT) firetube boiler, where are the hot combustion gases
routed during their second pass or return path?
A. Through the tubes running from the rear combustion chamber back to the front
smokebox.
B. Directly through the external brickwork setting into the plant room.
C. Through the bottom mud ring only.
D. Upward through the electrical control panel casing.
Correct Answer: A. Through the tubes running from the rear combustion chamber back
to the front smokebox.
Rationale: In classic firetube designs (like HRT or scotch marine units), hot gases travel
from the burner through the main furnace tube (first pass), reverse at the rear
turnaround, and return through the convective firetubes (second or subsequent passes)
