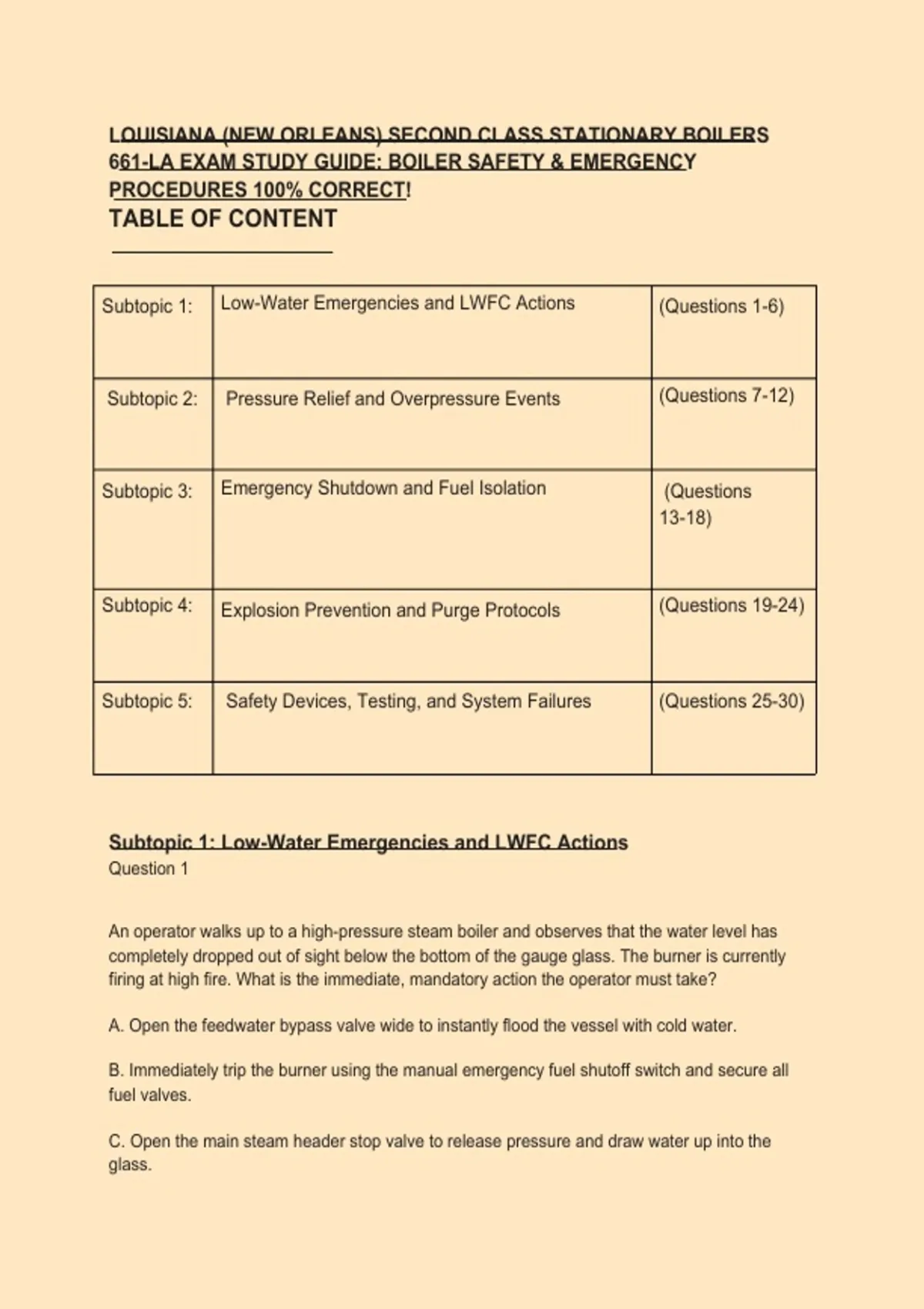

LOUISIANA (NEW ORLEANS) SECOND CLASS STATIONARY BOILERS
661-LA EXAM STUDY GUIDE: BOILER SAFETY & EMERGENCY
PROCEDURES 100% CORRECT!
TABLE OF CONTENT
Subtopic 1: Low-Water Emergencies and LWFC Actions (Questions 1-6)
Subtopic 2: Pressure Relief and Overpressure Events (Questions 7-12)
Subtopic 3: Emergency Shutdown and Fuel Isolation (Questions
13-18)
Subtopic 4: Explosion Prevention and Purge Protocols (Questions 19-24)
Subtopic 5: Safety Devices, Testing, and System Failures (Questions 25-30)
Subtopic 1: Low-Water Emergencies and LWFC Actions
Question 1
An operator walks up to a high-pressure steam boiler and observes that the water level has
completely dropped out of sight below the bottom of the gauge glass. The burner is currently
firing at high fire. What is the immediate, mandatory action the operator must take?
A. Open the feedwater bypass valve wide to instantly flood the vessel with cold water.
B. Immediately trip the burner using the manual emergency fuel shutoff switch and secure all
fuel valves.
C. Open the main steam header stop valve to release pressure and draw water up into the
glass.
, D. Perform a bottom blowdown to flush out any potential sediment blocking the water column.
Correct Answer: B. Immediately trip the burner using the manual emergency fuel shutoff switch
and secure all fuel valves.
Rationale: When water drops out of sight, the boiler is in extreme danger of a low-water fuel
dry-firing condition. Adding water to an overheated vessel can cause catastrophic thermal shock
and explosion. Cutting off the fuel source immediately stops heat input.
Question 2
Following an emergency shutdown due to a low-water condition, an operator is tempted to
quickly pump water back into the boiler to restore normal levels. Why is this action strictly
prohibited by boiler safety standards?
A. It will cause the safety valves to lift prematurely due to overpressure.
B. Introducing water onto overheated, exposed boiler metal causes severe thermal shock, metal
warping, and potential vessel rupture.
C. The electric feedwater pump will burn out instantly due to high backpressure.
D. It will permanently damage the automatic pressure control switch.
Correct Answer: B. Introducing water onto overheated, exposed boiler metal causes severe
thermal shock, metal warping, and potential vessel rupture.
Rationale: Exposed metal surfaces reach temperatures far above the boiling point. Introducing
subcooled water onto hot steel creates violent stresses, metal distortion, or steam explosions.
The boiler must be allowed to cool completely before any water level is restored.
Question 3
During a routine shift check, an operator tests the low-water fuel cutoff (LWFC) using the
slow-drain method. When the water is drained from the float chamber, the burner continues to
fire normally without shutting down. What action must the operator take?
A. Continue monitoring the boiler for the remainder of the shift and write a note in the logbook.
B. Immediately shut down the boiler, lock out and tag out the unit, and repair or replace the
defective LWFC before returning it to service.
C. Add an extra chemical treatment dose to the feedwater tank to clear the float switch contacts.
D. Lower the operating steam pressure setpoint by 10 psi to compensate for the switch failure.
661-LA EXAM STUDY GUIDE: BOILER SAFETY & EMERGENCY
PROCEDURES 100% CORRECT!
TABLE OF CONTENT
Subtopic 1: Low-Water Emergencies and LWFC Actions (Questions 1-6)
Subtopic 2: Pressure Relief and Overpressure Events (Questions 7-12)
Subtopic 3: Emergency Shutdown and Fuel Isolation (Questions
13-18)
Subtopic 4: Explosion Prevention and Purge Protocols (Questions 19-24)
Subtopic 5: Safety Devices, Testing, and System Failures (Questions 25-30)
Subtopic 1: Low-Water Emergencies and LWFC Actions
Question 1
An operator walks up to a high-pressure steam boiler and observes that the water level has
completely dropped out of sight below the bottom of the gauge glass. The burner is currently
firing at high fire. What is the immediate, mandatory action the operator must take?
A. Open the feedwater bypass valve wide to instantly flood the vessel with cold water.
B. Immediately trip the burner using the manual emergency fuel shutoff switch and secure all
fuel valves.
C. Open the main steam header stop valve to release pressure and draw water up into the
glass.
, D. Perform a bottom blowdown to flush out any potential sediment blocking the water column.
Correct Answer: B. Immediately trip the burner using the manual emergency fuel shutoff switch
and secure all fuel valves.
Rationale: When water drops out of sight, the boiler is in extreme danger of a low-water fuel
dry-firing condition. Adding water to an overheated vessel can cause catastrophic thermal shock
and explosion. Cutting off the fuel source immediately stops heat input.
Question 2
Following an emergency shutdown due to a low-water condition, an operator is tempted to
quickly pump water back into the boiler to restore normal levels. Why is this action strictly
prohibited by boiler safety standards?
A. It will cause the safety valves to lift prematurely due to overpressure.
B. Introducing water onto overheated, exposed boiler metal causes severe thermal shock, metal
warping, and potential vessel rupture.
C. The electric feedwater pump will burn out instantly due to high backpressure.
D. It will permanently damage the automatic pressure control switch.
Correct Answer: B. Introducing water onto overheated, exposed boiler metal causes severe
thermal shock, metal warping, and potential vessel rupture.
Rationale: Exposed metal surfaces reach temperatures far above the boiling point. Introducing
subcooled water onto hot steel creates violent stresses, metal distortion, or steam explosions.
The boiler must be allowed to cool completely before any water level is restored.
Question 3
During a routine shift check, an operator tests the low-water fuel cutoff (LWFC) using the
slow-drain method. When the water is drained from the float chamber, the burner continues to
fire normally without shutting down. What action must the operator take?
A. Continue monitoring the boiler for the remainder of the shift and write a note in the logbook.
B. Immediately shut down the boiler, lock out and tag out the unit, and repair or replace the
defective LWFC before returning it to service.
C. Add an extra chemical treatment dose to the feedwater tank to clear the float switch contacts.
D. Lower the operating steam pressure setpoint by 10 psi to compensate for the switch failure.
