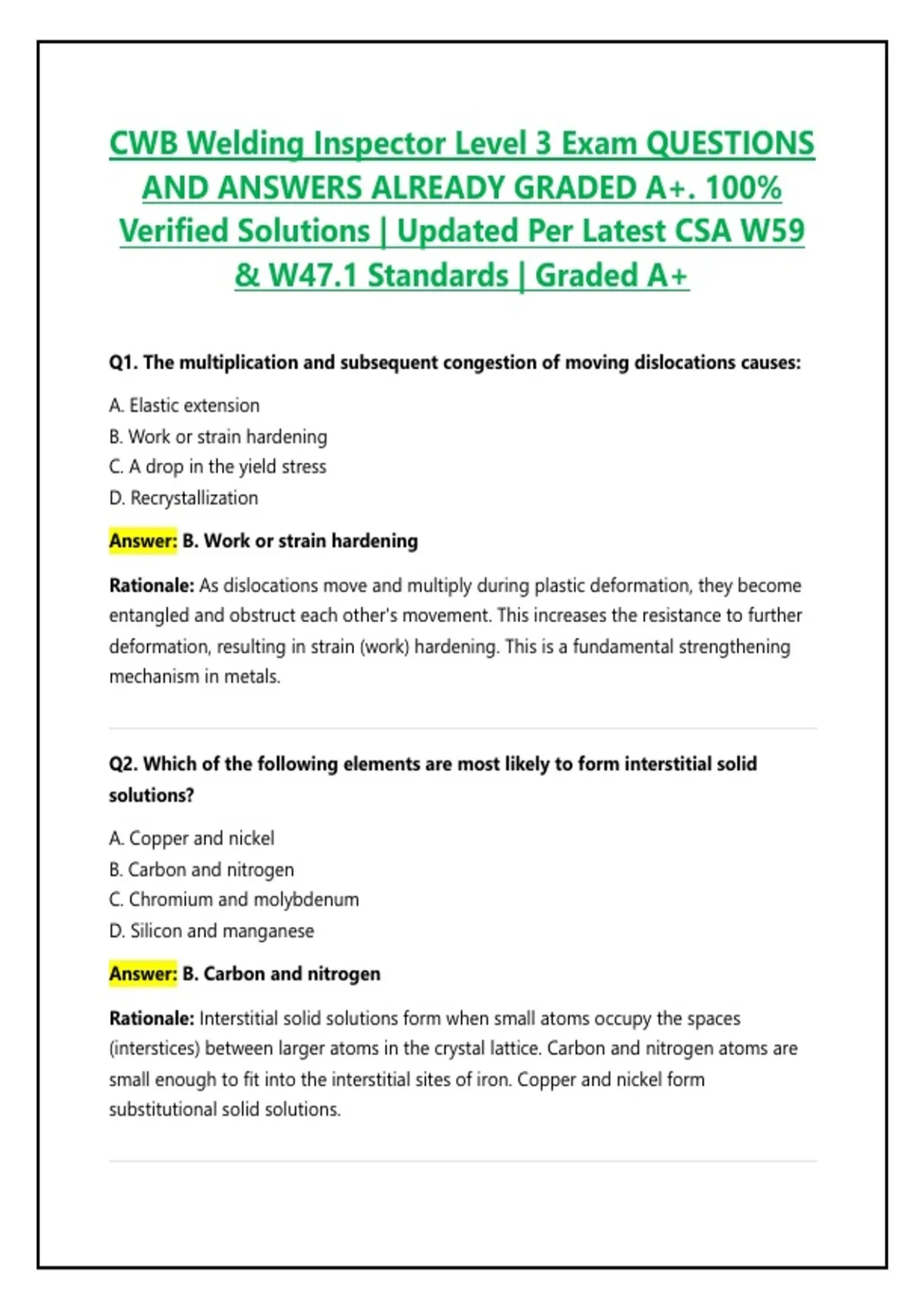

CWB Welding Inspector Level 3 Exam QUESTIONS
AND ANSWERS ALREADY GRADED A+. 100%
Verified Solutions | Updated Per Latest CSA W59
& W47.1 Standards | Graded A+
Q1. The multiplication and subsequent congestion of moving dislocations causes:
A. Elastic extension
B. Work or strain hardening
C. A drop in the yield stress
D. Recrystallization
Answer: B. Work or strain hardening
Rationale: As dislocations move and multiply during plastic deformation, they become
entangled and obstruct each other's movement. This increases the resistance to further
deformation, resulting in strain (work) hardening. This is a fundamental strengthening
mechanism in metals.
Q2. Which of the following elements are most likely to form interstitial solid
solutions?
A. Copper and nickel
B. Carbon and nitrogen
C. Chromium and molybdenum
D. Silicon and manganese
Answer: B. Carbon and nitrogen
Rationale: Interstitial solid solutions form when small atoms occupy the spaces
(interstices) between larger atoms in the crystal lattice. Carbon and nitrogen atoms are
small enough to fit into the interstitial sites of iron. Copper and nickel form
substitutional solid solutions.
,Q3. Which metal has the highest thermal conductivity among the following?
A. Carbon steel
B. Stainless steel
C. Aluminum
D. Copper
Answer: C. Aluminum
Rationale: Aluminum has very high thermal conductivity, approximately 237 W/(m·K),
which is significantly higher than carbon steel (~50 W/(m·K)) and stainless steel (~16
W/(m·K)). High thermal conductivity affects heat dissipation during welding and requires
higher heat inputs for fusion.
Q4. The Ellingham diagram:
A. Is a plot of thermal conductivity against temperature
B. Shows the free energy of oxide formation against temperature
C. Shows the rate of oxidation of metals against temperature
D. Plots electrical conductivity versus temperature
Answer: B. Shows the free energy of oxide formation against temperature
Rationale: The Ellingham diagram plots the standard free energy of formation of oxides
as a function of temperature. Metals with a high negative free energy of oxide formation
are more reactive and require greater shielding during welding to prevent oxidation.
Q5. True or False: A metal with a high negative free energy of oxide formation will
generally require greater shielding during welding.
A. True
B. False
Answer: A. True
Rationale: Metals with high negative free energy of oxide formation (such as aluminum,
titanium, and magnesium) form stable oxides readily at elevated temperatures. These
,tenacious oxide films can prevent fusion and must be removed or prevented through
proper shielding techniques.
Q6. Which of the following is the primary strengthening mechanism in carbon
steel?
A. Solid solution strengthening
B. Precipitation hardening
C. Work hardening
D. All of the above
Answer: D. All of the above
Rationale: Carbon steel can be strengthened through solid solution strengthening
(interstitial carbon atoms distort the lattice), work hardening (dislocation interactions
from plastic deformation), and precipitation hardening (carbide formation) depending
on the specific steel grade and heat treatment.
Q7. The heat-affected zone (HAZ) in a weld is the region where:
A. The base metal has melted and resolidified
B. The base metal has not melted but its microstructure has been altered by heat
C. The filler metal has been deposited
D. No microstructural changes have occurred
Answer: B. The base metal has not melted but its microstructure has been altered
by heat
Rationale: The HAZ is the area of the base metal adjacent to the weld fusion zone. It
has not melted but has undergone microstructural changes due to the welding thermal
cycle. The severity of these changes depends on peak temperature and cooling rate .
Q8. In carbon and low-alloy steels, the HAZ microstructure is primarily determined
by:
, A. The welding position
B. The cooling rate from the peak temperature
C. The filler metal composition only
D. The electrode coating
Answer: B. The cooling rate from the peak temperature
Rationale: The cooling rate from the peak temperature determines the transformation
products in the HAZ. Rapid cooling promotes martensitic structures (hard and brittle),
while slow cooling promotes ferrite and pearlite (ductile). This is why preheat and
interpass temperature control are essential .
Q9. Hydrogen-induced cold cracking in carbon steel welds occurs because:
A. Hydrogen atoms diffuse to stress concentration sites and cause embrittlement
B. Hydrogen reacts with carbon to form methane gas
C. Hydrogen increases the melting point of the steel
D. Hydrogen causes porosity
Answer: A. Hydrogen atoms diffuse to stress concentration sites and cause
embrittlement
Rationale: Hydrogen-induced cold cracking (also called delayed cracking) occurs when
atomic hydrogen diffuses into the weld metal and HAZ. Hydrogen atoms migrate to
stress concentration sites (like notches or inclusions), leading to embrittlement and
cracking under residual or applied stress. Prevention strategies include preheating,
proper electrode drying, and controlled cooling .
Q10. Which of the following factors contributes most significantly to hydrogen-
induced cold cracking? (Select all that apply)
A. High hydrogen content in the weld
B. Martensitic (hard) microstructure
C. Restraint-induced residual stress
D. Low carbon equivalent (CE)
Answer: A, B, & C
