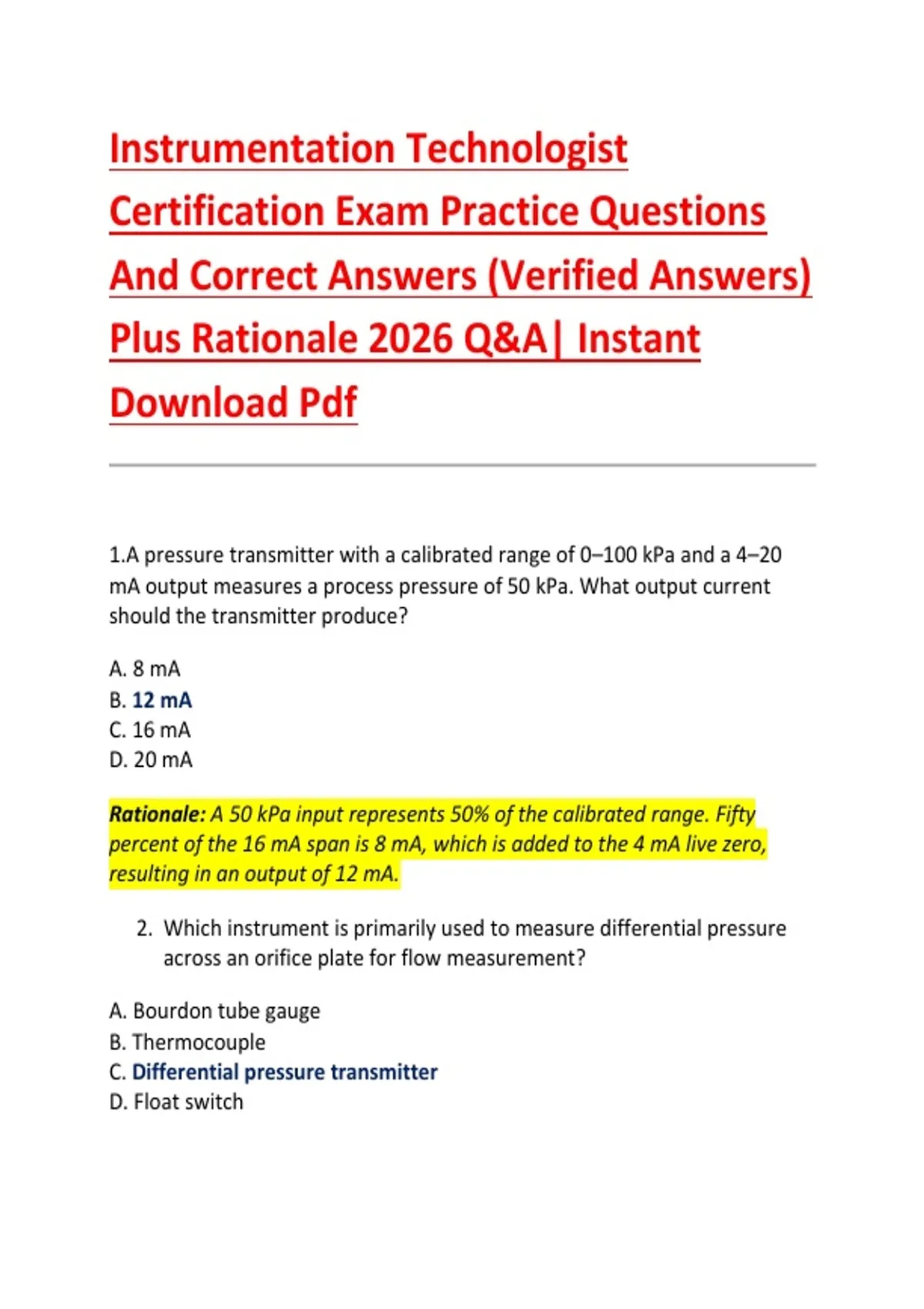

Instrumentation Technologist
Certification Exam Practice Questions
And Correct Answers (Verified Answers)
Plus Rationale 2026 Q&A| Instant
Download Pdf
1.A pressure transmitter with a calibrated range of 0–100 kPa and a 4–20
mA output measures a process pressure of 50 kPa. What output current
should the transmitter produce?
A. 8 mA
B. 12 mA
C. 16 mA
D. 20 mA
Rationale: A 50 kPa input represents 50% of the calibrated range. Fifty
percent of the 16 mA span is 8 mA, which is added to the 4 mA live zero,
resulting in an output of 12 mA.
2. Which instrument is primarily used to measure differential pressure
across an orifice plate for flow measurement?
A. Bourdon tube gauge
B. Thermocouple
C. Differential pressure transmitter
D. Float switch
,Rationale: Differential pressure transmitters measure the pressure drop
across primary flow elements such as orifice plates, allowing flow to be
calculated according to established flow equations.
3. Which sensor operates based on the Seebeck effect?
A. RTD
B. Thermistor
C. Thermocouple
D. Strain gauge
Rationale: A thermocouple produces a voltage due to the Seebeck effect
when two dissimilar metals are joined and exposed to different
temperatures.
4. What is the primary advantage of a four-wire RTD over a two-wire
RTD?
A. Lower cost
B. Faster response time
C. Lower operating temperature
D. Eliminates lead wire resistance errors
Rationale: Four-wire RTD circuits compensate for lead resistance, providing
the highest measurement accuracy, particularly over long cable distances.
5. In a standard 4–20 mA loop, an output of 4 mA generally indicates:
A. Full-scale measurement
B. Sensor failure
C. Zero percent of the measured range
D. Over-range condition
Rationale: Four milliamperes represents the live zero of the instrument,
corresponding to the lower range value while still allowing detection of
faults below 4 mA.
, 6. Which calibration standard has the highest accuracy?
A. Working standard
B. Field standard
C. Transfer standard
D. Primary standard
Rationale: Primary standards possess the highest metrological accuracy and
are directly traceable to national or international measurement standards.
7. Which device converts a pneumatic signal into an electrical signal?
A. I/P converter
B. P/I converter
C. Solenoid valve
D. Positioner
Rationale: A pressure-to-current (P/I) converter transforms pneumatic
pressure into a proportional electrical current signal.
8. What is the standard pneumatic instrument signal?
A. 0–5 psi
B. 3–15 psi
C. 10–50 psi
D. 20–100 psi
Rationale: The 3–15 psi signal is the long-established standard for
pneumatic process instrumentation and control.
9. Which controller mode eliminates steady-state offset?
A. Proportional only
B. Derivative only
C. Integral
D. Manual
