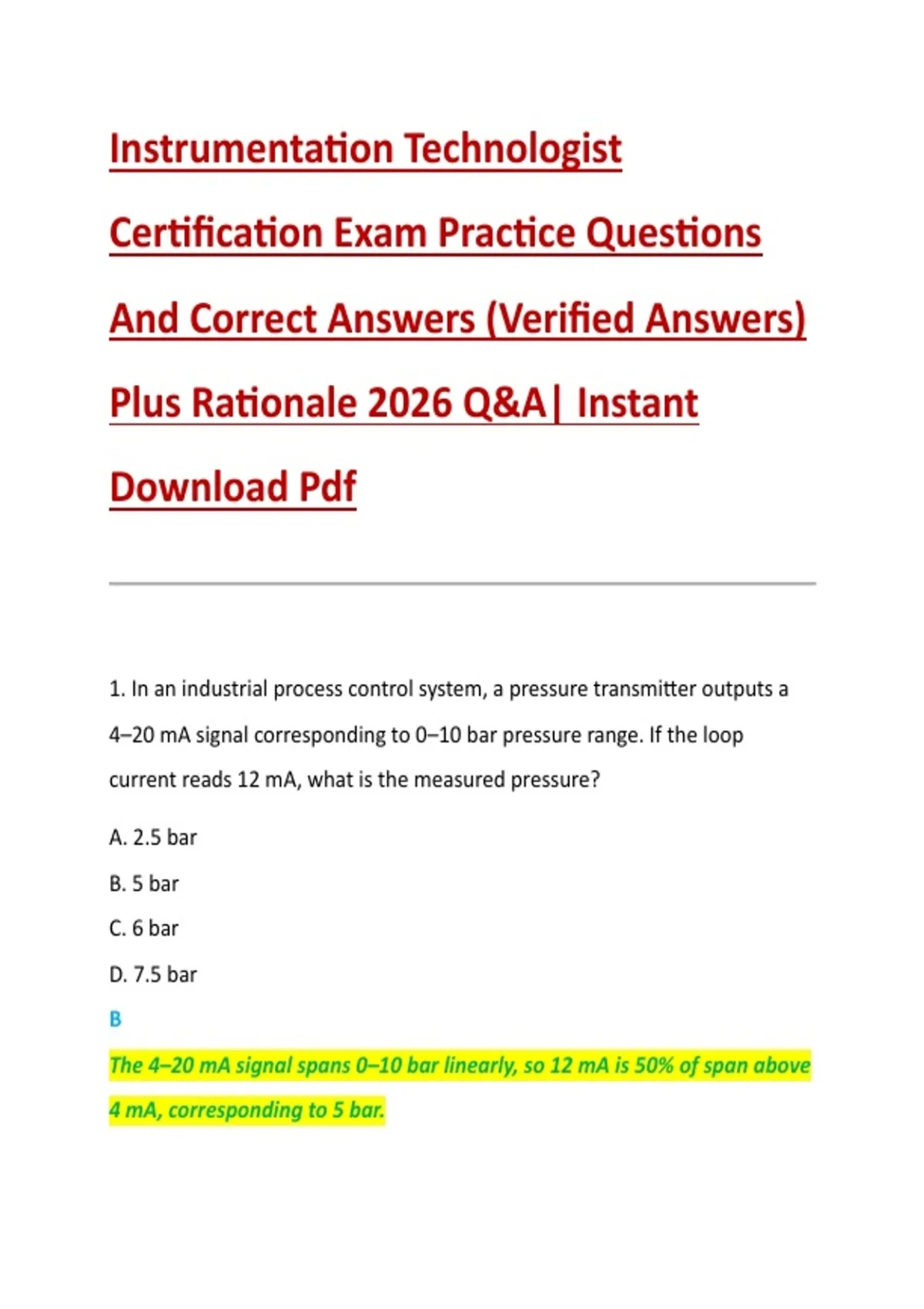

Instrumentation Technologist
Certification Exam Practice Questions
And Correct Answers (Verified Answers)
Plus Rationale 2026 Q&A| Instant
Download Pdf
1. In an industrial process control system, a pressure transmitter outputs a
4–20 mA signal corresponding to 0–10 bar pressure range. If the loop
current reads 12 mA, what is the measured pressure?
A. 2.5 bar
B. 5 bar
C. 6 bar
D. 7.5 bar
B
The 4–20 mA signal spans 0–10 bar linearly, so 12 mA is 50% of span above
4 mA, corresponding to 5 bar.
, 2. Which device is primarily used to convert a physical process variable
into an electrical signal in industrial instrumentation?
A. Actuator
B. Transducer
C. Relay
D. Contactor
B
A transducer converts physical quantities such as pressure, temperature, or
flow into measurable electrical signals for control and monitoring systems.
3. What is the main purpose of a PID controller in a process control
system?
A. To amplify weak signals
B. To convert analog signals to digital
C. To reduce steady-state error and improve system stability
D. To isolate electrical noise
C
A PID controller continuously adjusts system output using proportional,
integral, and derivative actions to minimize error and maintain stability.
4. Which thermocouple type is most suitable for high-temperature
applications exceeding 1200°C?
A. Type J
B. Type K
,C. Type T
D. Type S
D
Type S thermocouples are made of platinum-rhodium and are designed for
extremely high-temperature industrial and laboratory applications.
5. In a control loop, what component typically receives the final control
signal and directly manipulates the process?
A. Sensor
B. Controller
C. Final control element
D. Transmitter
C
The final control element, such as a valve or actuator, physically adjusts the
process based on the controller’s output signal.
6. What is the primary function of a differential pressure transmitter in
flow measurement?
A. Measure temperature difference
B. Measure voltage drop
C. Measure pressure difference across a restriction
D. Measure fluid density directly
C
, Differential pressure transmitters measure pressure drop across elements
like orifice plates to infer flow rate.
7. Which signal standard is most commonly used in industrial analog
instrumentation loops?
A. 0–5 V DC
B. 0–10 V DC
C. 4–20 mA
D. 1–5 V AC
C
The 4–20 mA standard is widely used due to its noise immunity and ability
to detect open circuit conditions.
8. What is the purpose of a thermowell in temperature measurement
systems?
A. Increase sensor sensitivity
B. Protect temperature sensors from process conditions
C. Convert temperature to voltage
D. Amplify thermal signals
B
A thermowell protects temperature sensors from corrosion, pressure, and
flow damage while allowing measurement continuity.
9. Which instrument is best suited for measuring extremely low
pressures or vacuum conditions?
