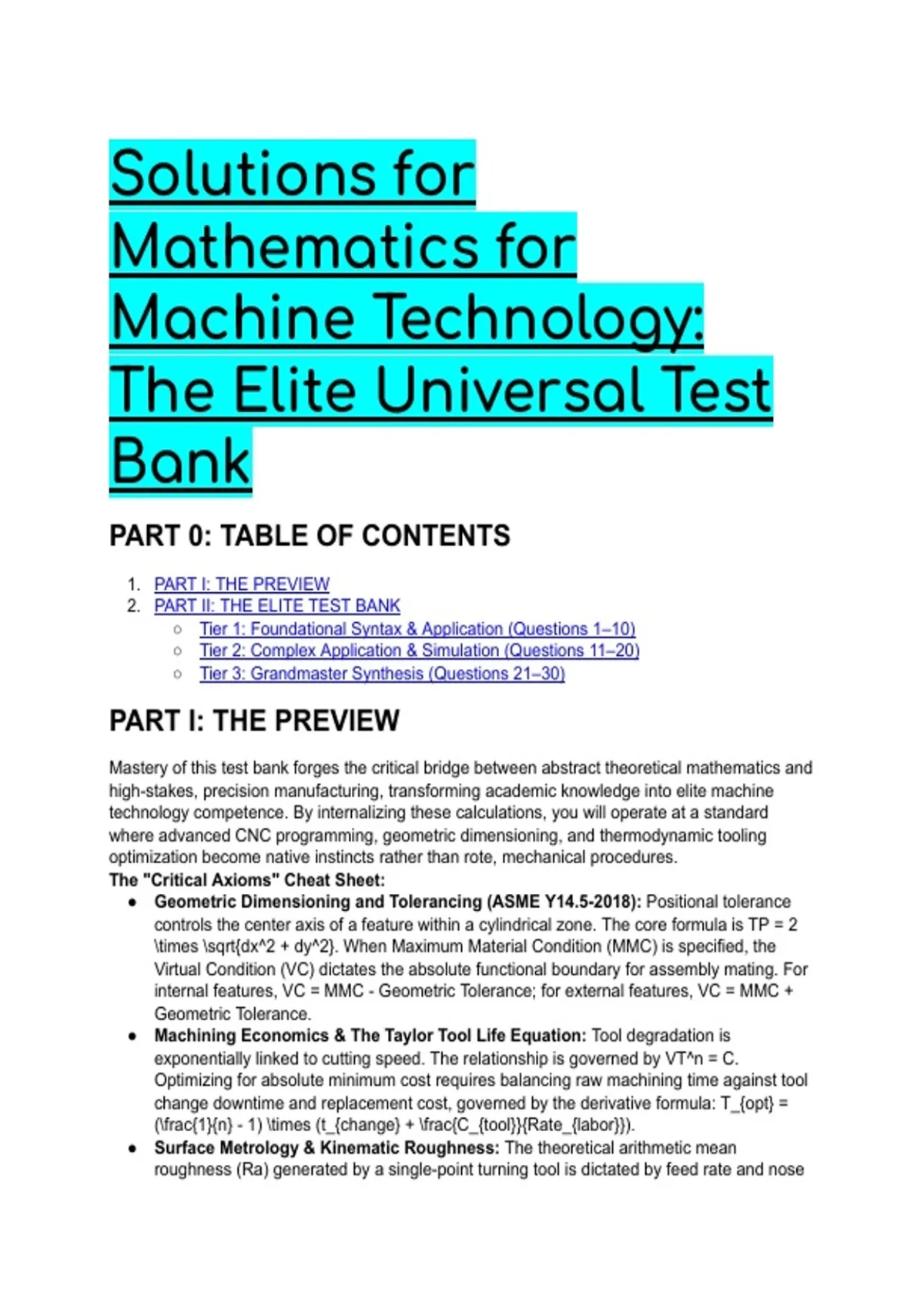

Solutions for
Mathematics for
Machine Technology:
The Elite Universal Test
Bank
PART 0: TABLE OF CONTENTS
1. PART I: THE PREVIEW
2. PART II: THE ELITE TEST BANK
○ Tier 1: Foundational Syntax & Application (Questions 1–10)
○ Tier 2: Complex Application & Simulation (Questions 11–20)
○ Tier 3: Grandmaster Synthesis (Questions 21–30)
PART I: THE PREVIEW
Mastery of this test bank forges the critical bridge between abstract theoretical mathematics and
high-stakes, precision manufacturing, transforming academic knowledge into elite machine
technology competence. By internalizing these calculations, you will operate at a standard
where advanced CNC programming, geometric dimensioning, and thermodynamic tooling
optimization become native instincts rather than rote, mechanical procedures.
The "Critical Axioms" Cheat Sheet:
● Geometric Dimensioning and Tolerancing (ASME Y14.5-2018): Positional tolerance
controls the center axis of a feature within a cylindrical zone. The core formula is TP = 2
\times \sqrt{dx^2 + dy^2}. When Maximum Material Condition (MMC) is specified, the
Virtual Condition (VC) dictates the absolute functional boundary for assembly mating. For
internal features, VC = MMC - Geometric Tolerance; for external features, VC = MMC +
Geometric Tolerance.
● Machining Economics & The Taylor Tool Life Equation: Tool degradation is
exponentially linked to cutting speed. The relationship is governed by VT^n = C.
Optimizing for absolute minimum cost requires balancing raw machining time against tool
change downtime and replacement cost, governed by the derivative formula: T_{opt} =
(\frac{1}{n} - 1) \times (t_{change} + \frac{C_{tool}}{Rate_{labor}}).
● Surface Metrology & Kinematic Roughness: The theoretical arithmetic mean
roughness (Ra) generated by a single-point turning tool is dictated by feed rate and nose
, radius: Ra = \frac{f^2}{32r}. Doubling the feed rate quadruples the surface roughness,
demanding strict geometric buffering to account for real-world built-up edge (BUE).
● CNC Spindle Kinematics (G96/G97): Constant Surface Speed (G96) maintains a
uniform cutting velocity across a changing diameter. Because RPM = \frac{SFM \times
12}{\pi \times D}, RPM approaches infinity as the tool approaches the centerline (X0.0). A
G50 maximum spindle speed clamp is absolutely mandatory to avert catastrophic
centrifugal chuck failure.
● Limits, Fits, and Clearances (ISO 286 & ANSI B4.1): In the predominant Hole Basis
system, the minimum hole diameter is locked at the exact nominal size (e.g., an H7 bore
has a lower deviation of zero). To achieve Clearance, Transition, or Interference fits, the
shaft dimensions are systematically altered against this fixed standard.
Standard System Fit Classification Functional Application Typical Symbol / Class
ANSI B4.1 Running/Sliding (RC) Dynamic motion, RC 1 to RC 9
hydrodynamic
lubrication allowed.
ANSI B4.1 Force/Shrink (FN) Interference torque FN 1 to FN 5
transmission; high
stress.
ISO 286 Hole Basis Clearance Easy assembly, free H7/g6, H8/f7
rotational movement.
ISO 286 Hole Basis Interference Permanent assembly, H7/s6, H7/u6
heavy torque load
capacity.
PART II: THE ELITE TEST BANK
Tier 1: Foundational Syntax & Application
Q1: A machinist is configuring a CNC lathe to face a 150 mm diameter 4140 steel billet. The
program utilizes a G96 command for Constant Surface Speed (CSS). As the cutting tool
approaches the absolute center (X0.0) of the workpiece, which parameter MUST be
programmed IMMEDIATELY prior to the G96 block to prevent catastrophic machine failure? A)
G97 to establish a baseline Constant RPM before the facing pass begins B) A G50 block
establishing the maximum allowable spindle RPM clamp C) An M42 code to engage high gear
for optimal torque at the centerline D) A tool nose radius compensation vector (G41/G42) to
offset the diminishing diameter
● Answer: B (A G50 block establishing the maximum allowable spindle RPM clamp)
● Distractor Analysis:
○ A is incorrect: While G97 sets constant RPM, it inherently cancels G96. Using it
defeats the purpose of maintaining constant surface speed across the facing cut.
○ C is incorrect: Gear selection does not prevent the spindle from mathematically
accelerating to infinity as the diameter physically approaches zero.
○ D is incorrect: Tool nose radius compensation corrects part geometry profiles, not
spindle kinematics or centrifugal thresholds.
The Mentor's Analysis: The formula for RPM in CSS mode is RPM = \frac{Constant Surface
Speed \times 1000}{\pi \times Diameter}. As the diameter approaches zero at the centerline, the
required RPM approaches infinity. By utilizing a G50 Speed Clamp, you bypass the common
trap of allowing the machine to spin beyond the chuck's safe centrifugal limits, which could
, result in thrown workpieces. Professional/Academic Intuition: Never invoke G96 without a
preceding G50. The machine's mathematical logic has no inherent physical boundaries.
Q2: When analyzing the geometric specifications of a manufactured part under ASME
Y14.5-2018, an inspector must calculate the True Position of a bored hole. The nominal basic
coordinates are X=50.000 mm, Y=50.000 mm. The measured coordinates are X=50.030 mm,
Y=49.960 mm. Which equation represents the MOST ACCURATE calculation of the feature's
positional deviation? A) TP = \sqrt{(0.030)^2 + (-0.040)^2} B) TP = 2 \times \sqrt{(50.030)^2 +
(49.960)^2} C) TP = 2 \times \sqrt{(0.030)^2 + (-0.040)^2} D) TP = (0.030) + (0.040)
● Answer: C (TP = 2 \times \sqrt{(0.030)^2 + (-0.040)^2})
● Distractor Analysis:
○ A is incorrect: This strictly calculates the radial deviation, not the diametric tolerance
zone required by standard True Position definitions.
○ B is incorrect: This incorrectly uses absolute coordinate positions rather than the
measured deviations (dx and dy) from the basic nominal location.
○ D is incorrect: This is a direct linear addition of deviations, which ignores the
Pythagorean geometric relationship of a 2D coordinate plane.
The Mentor's Analysis: True Position defines a cylindrical tolerance zone surrounding the
exact theoretical center. The distance from the theoretical center to the actual center is the
hypotenuse of the X and Y deviations. By utilizing the multiplier of 2, you bypass the common
trap of reporting a radial error against a diametric tolerance specification.
Professional/Academic Intuition: Positional tolerance is always a diameter. Deviations
give you the radius; multiply by two to map the required zone.
Q3: According to the Taylor Tool Life Equation (VT^n = C), a turning operation uses a cutting
speed (V) of 120 m/min resulting in a tool life (T) of 40 minutes. If the exponent (n) is 0.5, what
represents the MOST LOGICAL outcome if the cutting speed is increased to 150 m/min? A)
The tool life will increase proportionally due to the exponential machining constant. B) The tool
life will decrease because cutting speed and tool life share an inverse exponential relationship.
C) The material removal rate will decrease as the tool wears at an accelerated exponential rate.
D) The depth of cut must be reduced by 50% to maintain the original tool life.
● Answer: B (The tool life will decrease because cutting speed and tool life share an
inverse exponential relationship.)
● Distractor Analysis:
○ A is incorrect: The relationship is inverse; higher speeds always result in shorter
tool lifespans due to extreme thermal loads and accelerated flank wear at the
cutting edge.
○ C is incorrect: The material removal rate physically increases initially with higher
speed, even though the tool degrades much faster overall.
○ D is incorrect: While depth of cut affects tool life in the extended Taylor equation,
the primary Taylor equation dictates that altering velocity directly and inversely
affects time independently of depth.
The Mentor's Analysis: Frederick Taylor's axiom established that cutting speed is the single
most dominant thermodynamic factor in tool wear. By utilizing the inverse relationship defined
by VT^n = C, you bypass the common trap of assuming a linear trade-off between spindle
speed and tooling durability. Professional/Academic Intuition: Speed kills the tool. A
fractional increase in velocity results in an exponential decay of tool life due to localized
heat concentration.
Q4: An engineer is selecting a fit for a steel shaft in a bronze bushing. The assembly requires a
continuous, precision sliding action with suitable allowance for hydrodynamic lubrication and
