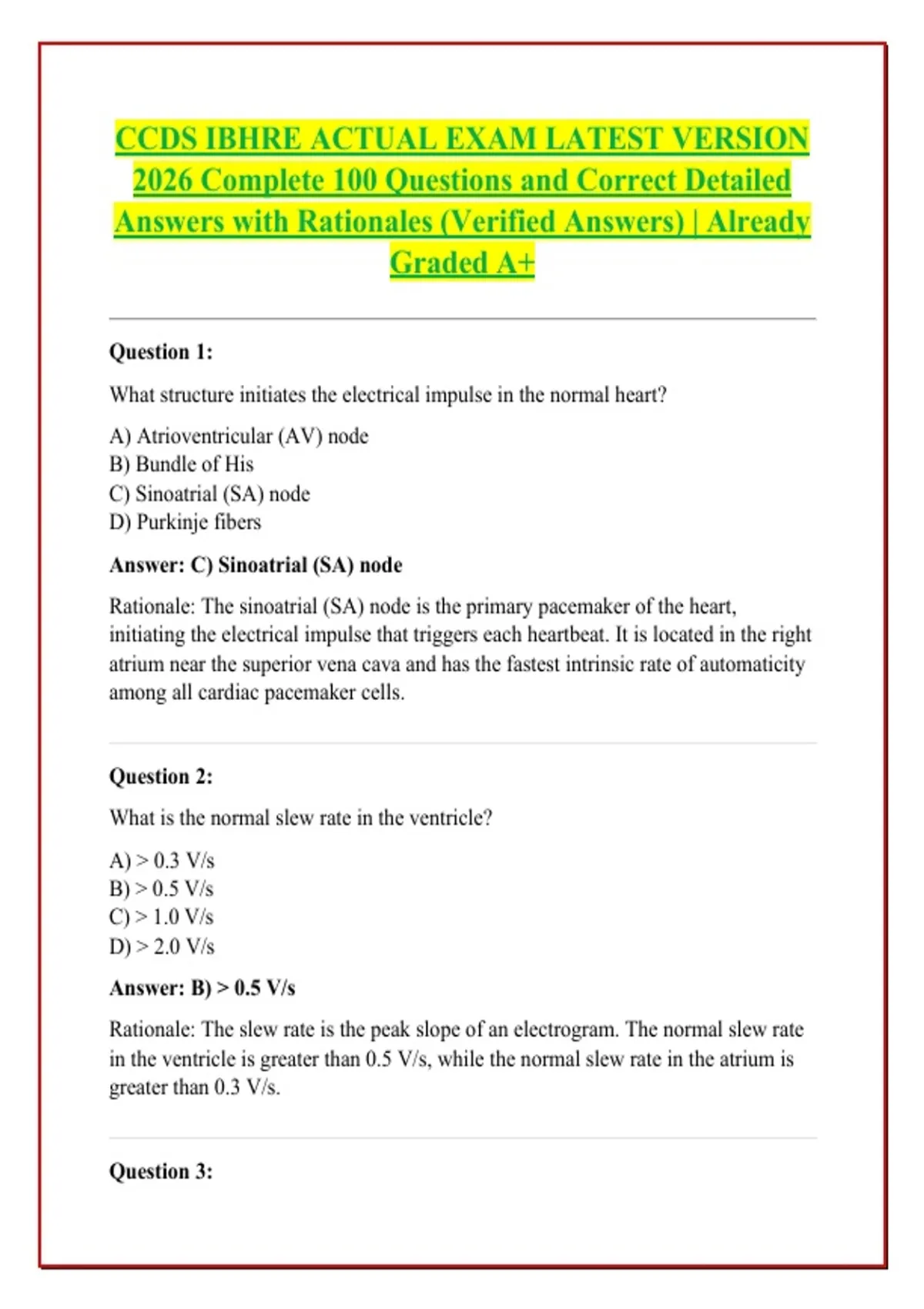

CCDS IBHRE ACTUAL EXAM LATEST VERSION
2026 Complete 100 Questions and Correct Detailed
Answers with Rationales (Verified Answers) | Already
Graded A+
Question 1:
What structure initiates the electrical impulse in the normal heart?
A) Atrioventricular (AV) node
B) Bundle of His
C) Sinoatrial (SA) node
D) Purkinje fibers
Answer: C) Sinoatrial (SA) node
Rationale: The sinoatrial (SA) node is the primary pacemaker of the heart,
initiating the electrical impulse that triggers each heartbeat. It is located in the right
atrium near the superior vena cava and has the fastest intrinsic rate of automaticity
among all cardiac pacemaker cells.
Question 2:
What is the normal slew rate in the ventricle?
A) > 0.3 V/s
B) > 0.5 V/s
C) > 1.0 V/s
D) > 2.0 V/s
Answer: B) > 0.5 V/s
Rationale: The slew rate is the peak slope of an electrogram. The normal slew rate
in the ventricle is greater than 0.5 V/s, while the normal slew rate in the atrium is
greater than 0.3 V/s.
Question 3:
,Rheobase is defined as:
A) The pulse width at twice the threshold voltage
B) The lowest point on a strength-duration curve at an infinitely long pulse
duration
C) The maximum voltage output of a pacemaker
D) The minimum current required to capture the heart
Answer: B) The lowest point on a strength-duration curve at an infinitely long
pulse duration
Rationale: Rheobase is the lowest point on a strength-duration curve at an
infinitely long pulse duration. For cardiac pacing, rheobase is usually reached
between 1 and 2 milliseconds; at shorter durations, the threshold rises.
Question 4:
Chronaxie time is defined as:
A) The pulse width at twice the rheobase value
B) The time required for complete cardiac repolarization
C) The duration of the absolute refractory period
D) The time between two consecutive pacemaker spikes
Answer: A) The pulse width at twice the rheobase value
Rationale: Chronaxie time is the pulse width at twice the rheobase value. It
approximates the most efficient stimulation pulse duration, representing the
optimal pulse width for cardiac pacing.
Question 5:
According to Ohm's law, voltage (V) is equal to:
A) Current (I) × Resistance (R)
B) Current (I) / Resistance (R)
C) Resistance (R) / Current (I)
D) Power (P) × Current (I)
Answer: A) Current (I) × Resistance (R)
,Rationale: Ohm's law states that Voltage (electromotive force) equals Current
(flow of electrons) multiplied by Resistance (resistance to current flow in the
circuit), expressed as V = I × R.
Question 6:
What is the formula for calculating charge in a pacing circuit?
A) Charge = Voltage × Resistance
B) Charge = Current × Time
C) Charge = Power × Time
D) Charge = Voltage × Current
Answer: B) Charge = Current × Time
Rationale: Charge (Q) is calculated as Current (I) multiplied by Time (T),
expressed as Q = I × T. Charge is measured in coulombs.
Question 7:
Furman's formula for calculating pacing energy is:
A) Energy = Current × Voltage × Pulse Width
B) Energy = Current² × Resistance × Time
C) Energy = Voltage × Resistance × Time
D) Energy = Current × Time × Resistance
Answer: A) Energy = Current × Voltage × Pulse Width
Rationale: Furman's formula calculates pacing energy in microjoules as Energy =
Current (I) × Voltage (V) × Pulse Width (T).
Question 8:
The Functional Refractory Period (FRP) is defined as:
A) The longest coupling interval that results in no conduction
B) The coupling interval that results in a measurable degree of delay in impulse
conduction
, C) The period during which no stimulus can elicit a response
D) The time required for complete recovery of excitability
Answer: B) The coupling interval that results in a measurable degree of delay
in impulse conduction
Rationale: The Functional Refractory Period is the coupling interval that results in
a measurable degree of delay in impulse conduction. It represents the refractory
period of the tissue as a whole.
Question 9:
The Effective Refractory Period (ERP) is defined as:
A) The longest coupling interval that results in no conduction
B) The coupling interval that results in a measurable degree of delay
C) The shortest coupling interval that conducts
D) The period of supernormal excitability
Answer: A) The longest coupling interval that results in no conduction
Rationale: The Effective Refractory Period is the longest coupling interval that
results in no conduction. It represents the period during which a stimulus fails to
elicit a propagated response.
Question 10:
All permanent pacemakers are:
A) Constant current devices
B) Constant voltage devices
C) Variable impedance devices
D) Current-dependent devices
Answer: B) Constant voltage devices
Rationale: All permanent pacemakers are constant voltage devices. Some
temporary pacemakers are constant voltage, but most are constant current devices.
Question 11:
