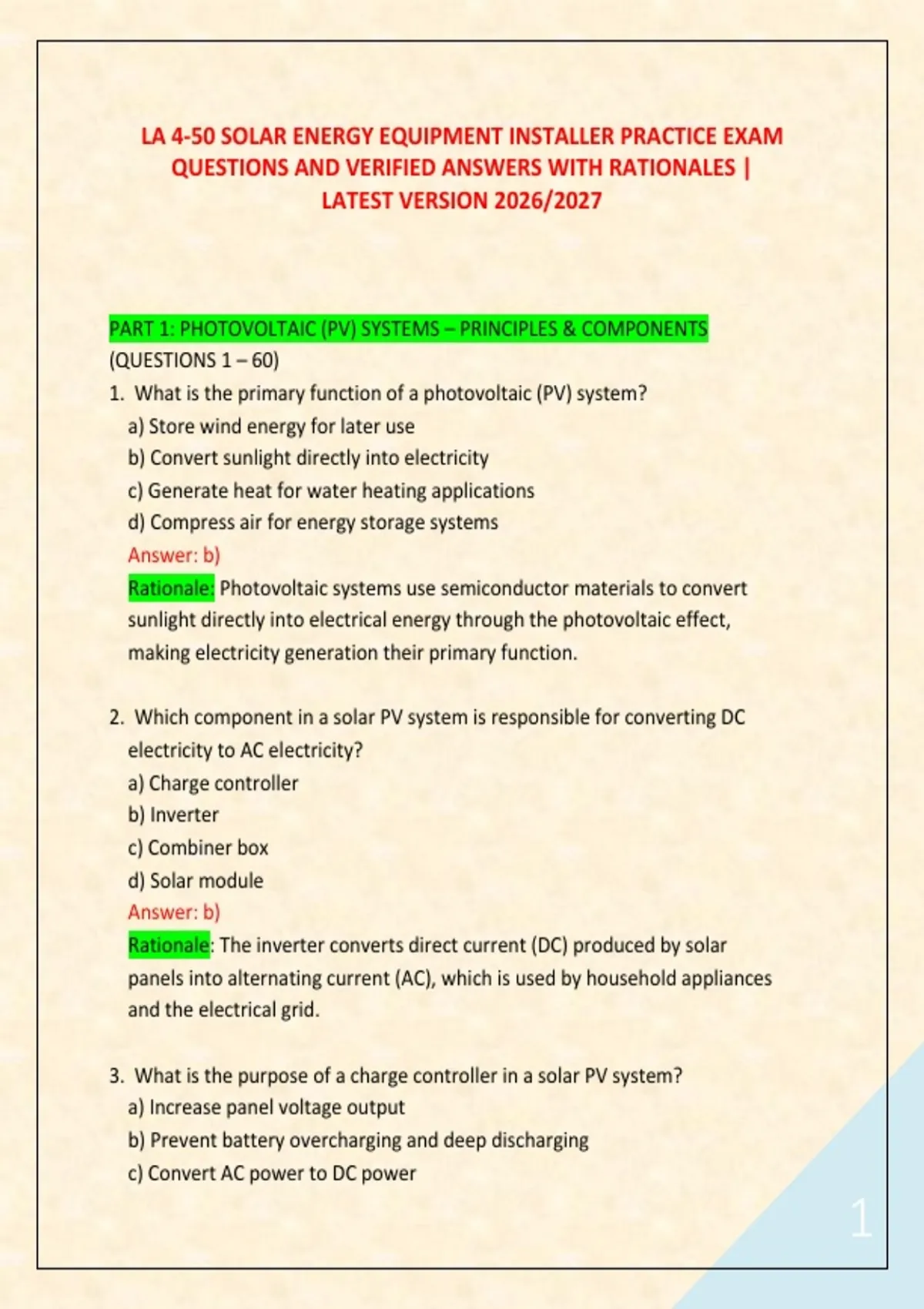

LA 4-50 SOLAR ENERGY EQUIPMENT INSTALLER PRACTICE EXAM
QUESTIONS AND VERIFIED ANSWERS WITH RATIONALES |
LATEST VERSION 2026/2027
PART 1: PHOTOVOLTAIC (PV) SYSTEMS – PRINCIPLES & COMPONENTS
(QUESTIONS 1 – 60)
1. What is the primary function of a photovoltaic (PV) system?
a) Store wind energy for later use
b) Convert sunlight directly into electricity
c) Generate heat for water heating applications
d) Compress air for energy storage systems
Answer: b)
Rationale: Photovoltaic systems use semiconductor materials to convert
sunlight directly into electrical energy through the photovoltaic effect,
making electricity generation their primary function.
2. Which component in a solar PV system is responsible for converting DC
electricity to AC electricity?
a) Charge controller
b) Inverter
c) Combiner box
d) Solar module
Answer: b)
Rationale: The inverter converts direct current (DC) produced by solar
panels into alternating current (AC), which is used by household appliances
and the electrical grid.
3. What is the purpose of a charge controller in a solar PV system?
a) Increase panel voltage output
b) Prevent battery overcharging and deep discharging
c) Convert AC power to DC power
1
, d) Automatically clean solar panels
Answer: b)
Rationale: A charge controller regulates voltage and current going to
batteries to prevent overcharging, deep discharging, and damage, thereby
extending battery life and improving system safety.
4. Which factor most significantly affects solar panel electrical output?
a) Color of the roofing material
b) Sunlight intensity (irradiance)
c) Thickness of system wiring
d) Brand of batteries used
Answer: b)
Rationale: Solar panel output depends primarily on irradiance (sunlight
intensity). Higher sunlight exposure results in greater electrical
production from photovoltaic cells.
5. What is the standard unit of power used to measure solar energy output?
a) Ohm
b) Watt
c) Ampere-hour
d) Newton
Answer: b)
Rationale: The watt is the standard unit of power used to measure
electrical energy output or consumption in solar systems.
6. Which type of solar panel is most efficient for installations with limited
roof space?
a) Monocrystalline silicon
b) Polycrystalline silicon
c) Thin-film amorphous
d) Cadmium telluride
Answer: a)
Rationale: Monocrystalline panels have higher efficiency and therefore
2
, require less space compared to other types for the same power output.
7. What is the purpose of a combiner box in a PV system?
a) Increase the efficiency of solar panels
b) Combine multiple PV string outputs into one circuit
c) Store excess battery power
d) Convert AC power back to DC power
Answer: b)
Rationale: A combiner box consolidates multiple PV string circuits into one
output circuit, simplifying wiring and providing overcurrent protection for
each string.
8. What device prevents a PV system from backfeeding electricity into the
utility grid during a power outage?
a) Charge controller
b) AC disconnect switch
c) Anti-islanding inverter
d) DC disconnect switch
Answer: c)
Rationale: Anti-islanding protection is a feature of grid-tied inverters
that automatically shuts down the inverter during a utility outage,
preventing backfeeding and protecting utility workers.
9. A microinverter is typically installed:
a) At the main service panel
b) On each individual solar panel
c) Inside the battery bank enclosure
d) Underground near the utility meter
Answer: b)
Rationale: Microinverters are small inverters installed on each individual
solar panel, converting DC to AC at the panel level. This allows for
panel-level monitoring and mitigates the impact of shading.
3
, 10. Which electrical hazard is most commonly associated with PV installations?
a) Chemical burns from battery acid
b) Electrical shock from DC voltage
c) Radiation poisoning from panels
d) Noise exposure from inverters
Answer: b)
Rationale: PV systems pose significant electrical shock risks due to the
presence of DC voltage, which can be present even when the system is not
producing AC power.
11. What are the Standard Test Conditions (STC) used for rating solar panels?
a) 1000 W/m² irradiance, 25°C cell temperature, AM 1.5 spectrum
b) 800 W/m² irradiance, 20°C cell temperature, AM 1.5 spectrum
c) 1200 W/m² irradiance, 30°C cell temperature, AM 1.0 spectrum
d) 1000 W/m² irradiance, 25°C cell temperature, AM 1.0 spectrum
Answer: a)
Rationale: STC provides a standardized condition for comparing solar panel
performance across manufacturers: 1000 W/m² irradiance, 25°C cell
temperature, and air mass 1.5 spectrum.
12. Which component prevents reverse current flow from batteries to solar
panels during nighttime?
a) Circuit breaker
b) Blocking diode
c) Transformer
d) Relay
Answer: b)
Rationale: A blocking diode allows current to flow in one direction only,
preventing reverse current from batteries to solar panels when there is no
sunlight, protecting the panels from damage.
13. What is the primary advantage of solar tracking systems?
a) Lower initial installation cost
4
