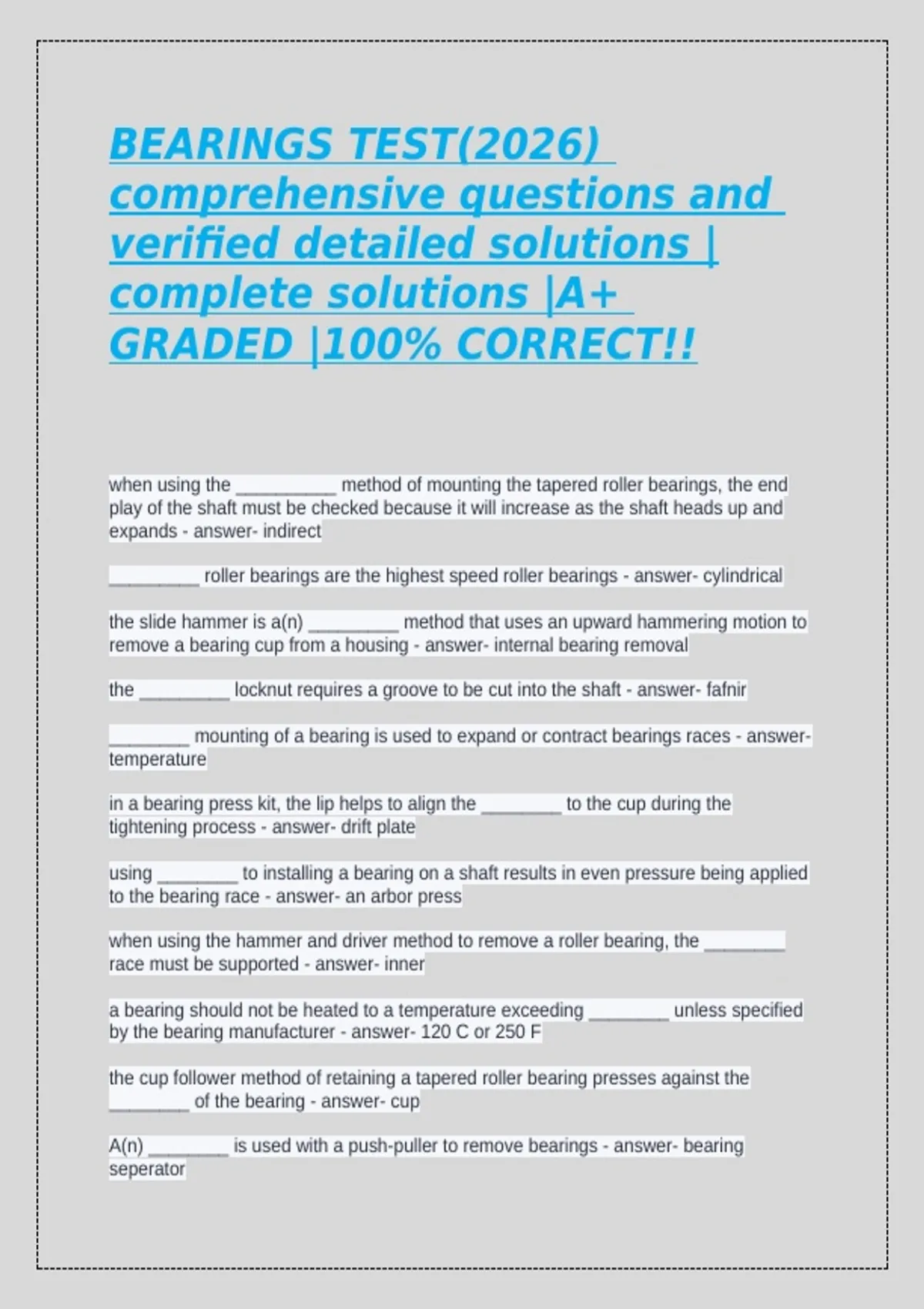

BEARINGS TEST(2026)
comprehensive questions and
verified detailed solutions |
complete solutions |A+
GRADED |100% CORRECT!!
when using the __________ method of mounting the tapered roller bearings, the end
play of the shaft must be checked because it will increase as the shaft heads up and
expands - answer- indirect
_________ roller bearings are the highest speed roller bearings - answer- cylindrical
the slide hammer is a(n) _________ method that uses an upward hammering motion to
remove a bearing cup from a housing - answer- internal bearing removal
the _________ locknut requires a groove to be cut into the shaft - answer- fafnir
________ mounting of a bearing is used to expand or contract bearings races - answer-
temperature
in a bearing press kit, the lip helps to align the ________ to the cup during the
tightening process - answer- drift plate
using ________ to installing a bearing on a shaft results in even pressure being applied
to the bearing race - answer- an arbor press
when using the hammer and driver method to remove a roller bearing, the ________
race must be supported - answer- inner
a bearing should not be heated to a temperature exceeding ________ unless specified
by the bearing manufacturer - answer- 120 C or 250 F
the cup follower method of retaining a tapered roller bearing presses against the
________ of the bearing - answer- cup
A(n) ________ is used with a push-puller to remove bearings - answer- bearing
seperator
, ________ is a method of temperature mounting that is used to install a bearing into a
housing - answer- freezing
a tapered roller bearing must be adjusted because ________ - answer- the adjusting
determines the play between the two parts of the bearing
the ________ method of mounting tapered roller bearings places the backs of the
bearing cups together - answer- indirect
a bearing press kit includes a ________ which provides space for the bearing to come
out of the housing during removal - answer- sleeve
the three widths used to specify a tapered roller bearing are: overall width, cone width,
and ________ width - answer- cup
the ________ seperates the rollers in a antifriction bearing and allows them to turn
freely - answer- cage
the bore of a replacement bearing must be measured to make sure that it will fit
________ - answer- on the shaft
two methods used to pack a bearing with grease are using a bearing packer and
________ - answer- hand packing
rusty appearance that results when two metals in contact are vibrated rubbing minute
metal particles that become oxidized. becomes harmful when the oxidation breaks down
supporting wall surfaces creating looseness also harmful when oxidation mixes with and
breaks down lubricant - answer- fretting corrosion
flaking away of metal pieces due to metal fatigueq - answer- spalling
eleongated and rounded grooves or tracks left by the etching of each roller on the ring
of an improperly grounded roller bearing caused by improperly grounded electrical
devices such as welding and motor ground connections - answer- fluring
groove or notch on the inside wall of each bearing ring to allow insertion of balls -
answer- loading slot
the fit in which the internal member is larger than the external member - answer-
reference fit
a single-row ball bearing without a loading slot that has deeper-than-normal races
allowing for axial and radial loads - answer- conrad bearing
