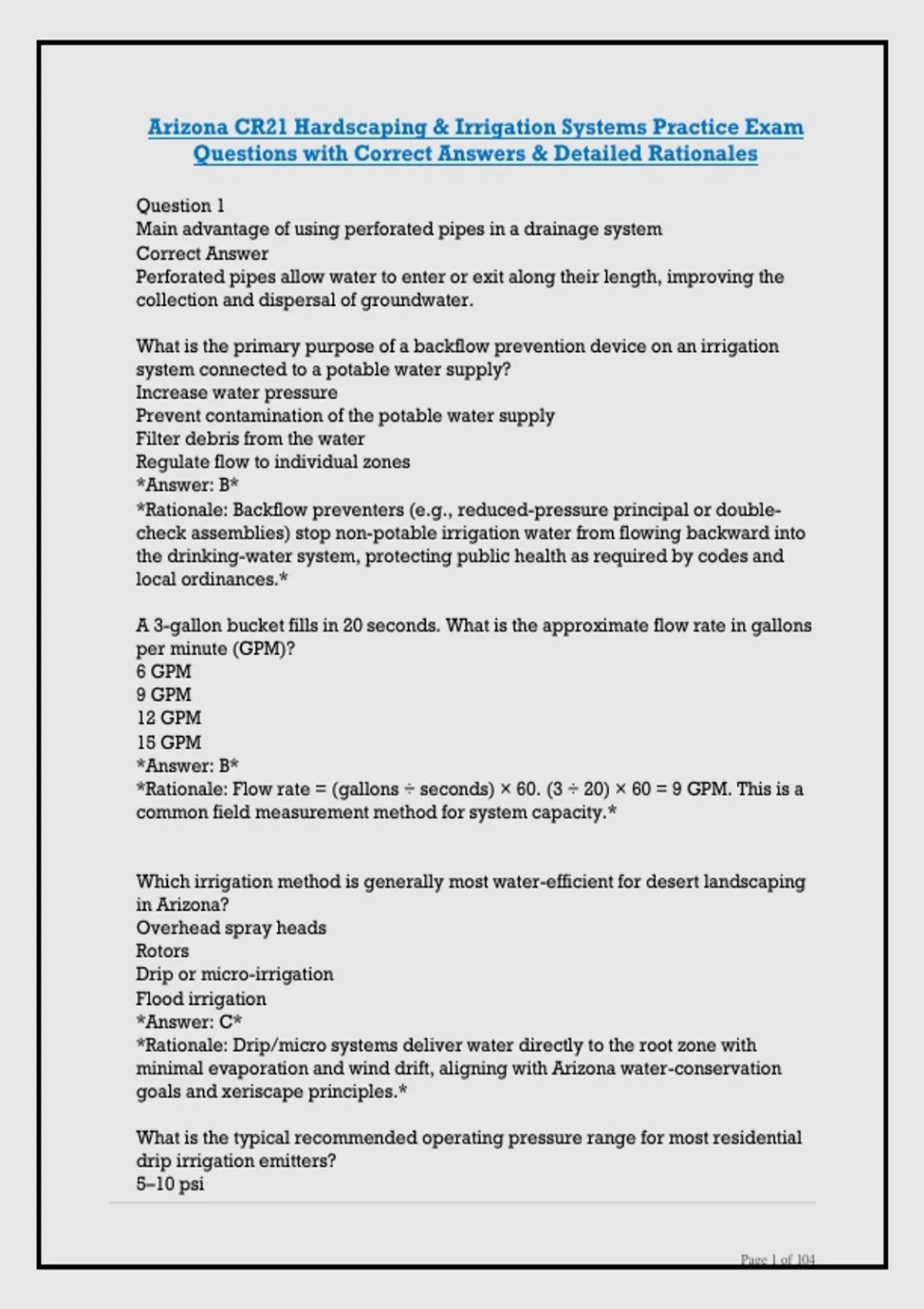

Arizona CR21 Hardscaping & Irrigation Systems Practice Exam
Questions with Correct Answers & Detailed Rationales
Question 1
Main advantage of using perforated pipes in a drainage system
Correct Answer
Perforated pipes allow water to enter or exit along their length, improving the
collection and dispersal of groundwater.
What is the primary purpose of a backflow prevention device on an irrigation
system connected to a potable water supply?
Increase water pressure
Prevent contamination of the potable water supply
Filter debris from the water
Regulate flow to individual zones
*Answer: B*
*Rationale: Backflow preventers (e.g., reduced-pressure principal or double-
check assemblies) stop non-potable irrigation water from flowing backward into
the drinking-water system, protecting public health as required by codes and
local ordinances.*
A 3-gallon bucket fills in 20 seconds. What is the approximate flow rate in gallons
per minute (GPM)?
6 GPM
9 GPM
12 GPM
15 GPM
*Answer: B*
*Rationale: Flow rate = (gallons ÷ seconds) × 60. (3 ÷ 20) × 60 = 9 GPM. This is a
common field measurement method for system capacity.*
Which irrigation method is generally most water-efficient for desert landscaping
in Arizona?
Overhead spray heads
Rotors
Drip or micro-irrigation
Flood irrigation
*Answer: C*
*Rationale: Drip/micro systems deliver water directly to the root zone with
minimal evaporation and wind drift, aligning with Arizona water-conservation
goals and xeriscape principles.*
What is the typical recommended operating pressure range for most residential
drip irrigation emitters?
5–10 psi
Page 1 of 104
,15–30 psi
40–60 psi
70–90 psi
*Answer: B*
*Rationale: Most drip emitters are designed for 15–30 psi. Higher pressure
requires a pressure regulator to avoid emitter damage or uneven distribution.*
When calculating precipitation rate for spray heads, which formula is commonly
used?
(GPM × 96.3) ÷ area (sq ft)
Area ÷ GPM
GPM × pressure
Head spacing × throw distance
*Answer: A*
*Rationale: Precipitation rate (in/hr) ≈ (total GPM × 96.3) ÷ area in square feet.
This converts volume to depth of water applied.*
A zone has 8 heads, each rated 2.5 GPM. What is the total zone demand?
10 GPM
15 GPM
20 GPM
25 GPM
*Answer: C*
*Rationale: Simply multiply number of heads by individual GPM (8 × 2.5 = 20
GPM). The main line and valve must be sized for this demand plus a safety
factor.*
What device is commonly installed after the backflow preventer to protect
downstream components from high pressure?
Filter
Pressure regulator
Air-relief valve
Check valve
*Answer: B*
*Rationale: Pressure regulators reduce and stabilize supply pressure to the
design range of valves, pipes, and emitters/heads.*
In Arizona, irrigation systems connected to potable water typically require which
type of backflow protection at minimum (depending on hazard classification)?
Atmospheric vacuum breaker only
Reduced-pressure principle assembly or double-check for higher hazards
No protection if pressure is low
Simple check valve
*Answer: B*
*Rationale: Hazard level determines the required assembly. Irrigation is often
classified such that RP or DC assemblies are required; local codes and the water
purveyor dictate exact requirements.*
Page 2 of 104
,What is the main advantage of a smart irrigation controller with weather or soil-
moisture sensors?
Higher water pressure
Automatic adjustment of run times based on actual conditions
Ability to run more zones simultaneously
Elimination of the need for valves
*Answer: B*
*Rationale: Smart controllers reduce overwatering by responding to ET, rainfall,
or soil moisture, supporting water conservation.*
Lateral lines in a drip system are typically sized based on:
Maximum number of emitters and friction loss
Color of the tubing
Type of backflow preventer only
Controller brand
*Answer: A*
*Rationale: Proper sizing prevents excessive pressure loss so that the last emitter
still receives adequate pressure and flow.*
### Grading and Drainage
Positive drainage away from a structure should generally provide a minimum
slope of:
1% (1/8" per foot)
2% (1/4" per foot) for the first 10 feet
5%
Flat grade is acceptable
*Answer: B*
*Rationale: Building codes and good practice commonly require a minimum 2%
slope away from foundations for the first 10 feet to direct surface water away and
prevent moisture problems.*
What is the primary purpose of a French drain in hardscaping?
Increase soil fertility
Collect and convey subsurface water
Support retaining walls
Filter irrigation water
*Answer: B*
*Rationale: A perforated pipe in gravel collects groundwater or surface water
and directs it to a suitable outlet, protecting hardscape and foundations.*
Caliche layers in Arizona soils often require special attention because they:
Are highly fertile
Page 3 of 104
, Are impermeable and can impede drainage and root growth
Dissolve easily with water
Provide excellent bearing capacity without treatment
*Answer: B*
*Rationale: Caliche is a cemented calcium-carbonate layer common in arid soils.
It must often be broken up or penetrated for proper drainage and planting.*
When rough grading a site, the goal is typically to:
Achieve final finish elevations immediately
Establish approximate elevations and drainage patterns before fine grading
Compact to 100% relative density
Remove all topsoil
*Answer: B*
*Rationale: Rough grading shapes the land for drainage and sets approximate
grades; fine grading and compaction follow for final surfaces.*
A swale is best described as:
A raised berm
A shallow, vegetated or lined channel that conveys surface runoff
An underground pipe
A type of retaining wall
*Answer: B*
*Rationale: Swales are surface drainage features that move water while allowing
some infiltration, useful in landscape and hardscape design.*
### Low Voltage Electricity
Landscape lighting systems under the CR-21 scope are limited to:
Any voltage
120 volts or less
Only 12-volt systems
High-voltage only
*Answer: B*
*Rationale: The classification explicitly allows electrical wiring of 120 volts or less
for low-voltage landscape lighting and related work.*
What is the typical voltage for most residential landscape lighting transformers?
120 V primary / 12 V secondary
240 V
24 V primary
Page 4 of 104
