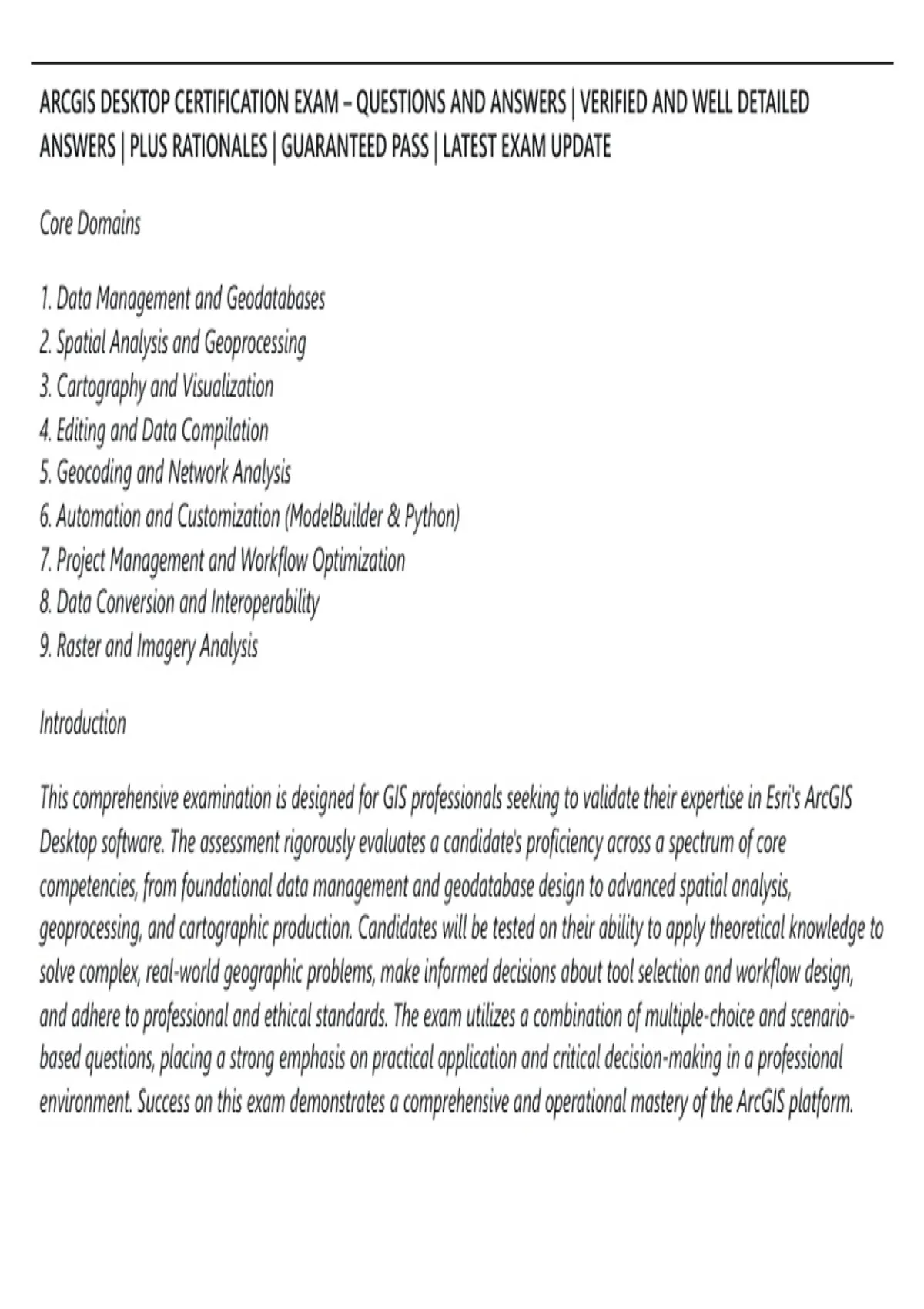

ARCGIS DESKTOP CERTIFICATION EXAM – QUESTIONS AND ANSWERS | VERIFIED AND WELL DETAILED
ANSWERS | PLUS RATIONALES | GUARANTEED PASS | LATEST EXAM UPDATE
Core Domains
1. Data Management and Geodatabases
2. Spatial Analysis and Geoprocessing
3. Cartography and Visualization
4. Editing and Data Compilation
5. Geocoding and Network Analysis
6. Automation and Customization (ModelBuilder & Python)
7. Project Management and Workflow Optimization
8. Data Conversion and Interoperability
9. Raster and Imagery Analysis
Introduction
This comprehensive examination is designed for GIS professionals seeking to validate their expertise in Esri's ArcGIS
Desktop software. The assessment rigorously evaluates a candidate's proficiency across a spectrum of core
competencies, from foundational data management and geodatabase design to advanced spatial analysis,
geoprocessing, and cartographic production. Candidates will be tested on their ability to apply theoretical knowledge to
solve complex, real-world geographic problems, make informed decisions about tool selection and workflow design,
and adhere to professional and ethical standards. The exam utilizes a combination of multiple-choice and scenario-
based questions, placing a strong emphasis on practical application and critical decision-making in a professional
environment. Success on this exam demonstrates a comprehensive and operational mastery of the ArcGIS platform.
,Section One: Questions 1 – 100
1. What is the primary advantage of using a File Geodatabase over a Personal Geodatabase for large-scale data
storage?
A. File Geodatabases support raster datasets, while Personal Geodatabases do not.
B. File Geodatabases have a higher storage capacity and better performance with large datasets.
C. File Geodatabases can be accessed by multiple users concurrently for editing.
D. File Geodatabases are compatible with all versions of ArcGIS Desktop.
🟢B
🔴 Explanation: File Geodatabases store data in a folder structure, overcoming the 2 GB size limit of a Personal
Geodatabase (which is based on Microsoft Access). This results in better performance, scalability, and support for
very large datasets. Concurrent editing (C) is not a primary feature; that is handled by Enterprise Geodatabases.
2. Which geoprocessing tool is specifically designed to merge multiple input feature classes or shapefiles into a
single, new output feature class?
A. Append
B. Merge
C. Dissolve
D. Union
🟢B
🔴 Explanation: The Merge tool combines multiple input datasets of the same data type (e.g., point, line, or
polygon) into a single, new output dataset. Append (A) adds data to an existing dataset, Dissolve (C) aggregates
,features based on attributes, and Union (D) combines the geometry and attributes of overlapping polygons.
3. In ArcMap, which component controls the coordinate system and map projection for the entire data frame?
A. The first layer added to the map
B. The Data Frame Properties
C. The Geoprocessing Environment
D. The output coordinate system in the Export Map dialog box
🟢B
🔴 Explanation: The coordinate system for a data frame is set in the Data Frame Properties dialog box under the
"Coordinate System" tab. While the first layer added can set the default, the map's projection is ultimately controlled
here. The geoprocessing environment (C) sets the output coordinate system for tools, not the data frame.
4. A GIS analyst needs to symbolize a polygon layer of counties by a categorical attribute (e.g., 'County_Type')
using a unique color for each category. What is the most appropriate symbology method?
A. Graduated colors
B. Unique values
C. Graduated symbols
D. Dot density
🟢B
🔴 Explanation: Unique values symbology is used to display categorical data, assigning a unique color or symbol to
each distinct value in a chosen field. Graduated colors (A) and symbols (C) are for quantitative data, and dot density
(D) represents totals.
, 5. Which of the following best describes a 'topology' in a geodatabase?
A. A set of rules that define the spatial relationships between features.
B. A spatial index that speeds up data retrieval.
C. A method for compressing raster data.
D. A tool for geocoding addresses.
🟢A
🔴 Explanation: A topology is a collection of rules that define how features in one or more feature classes share
geometry. It's used to enforce data integrity by preventing errors like overlapping polygons or dangling lines. It is
not a spatial index (B), compression method (C), or geocoding tool (D).
6. A user is creating a map and wants to ensure that all layers are displayed on the screen at a specific scale.
Which tool or setting is used for this?
A. Scale bar
B. Reference scale
C. Data Frame Properties > Extent
D. The Zoom tool
🟢B
🔴 Explanation: Setting a Reference Scale locks the size of symbols and text to a specific map scale. When you zoom
in or out, the symbols will remain the same relative size on the screen, which is crucial for maintaining visual
hierarchy and readability at a specific intended scale.
7. What is the function of the 'Near' tool in the Analysis toolbox?
