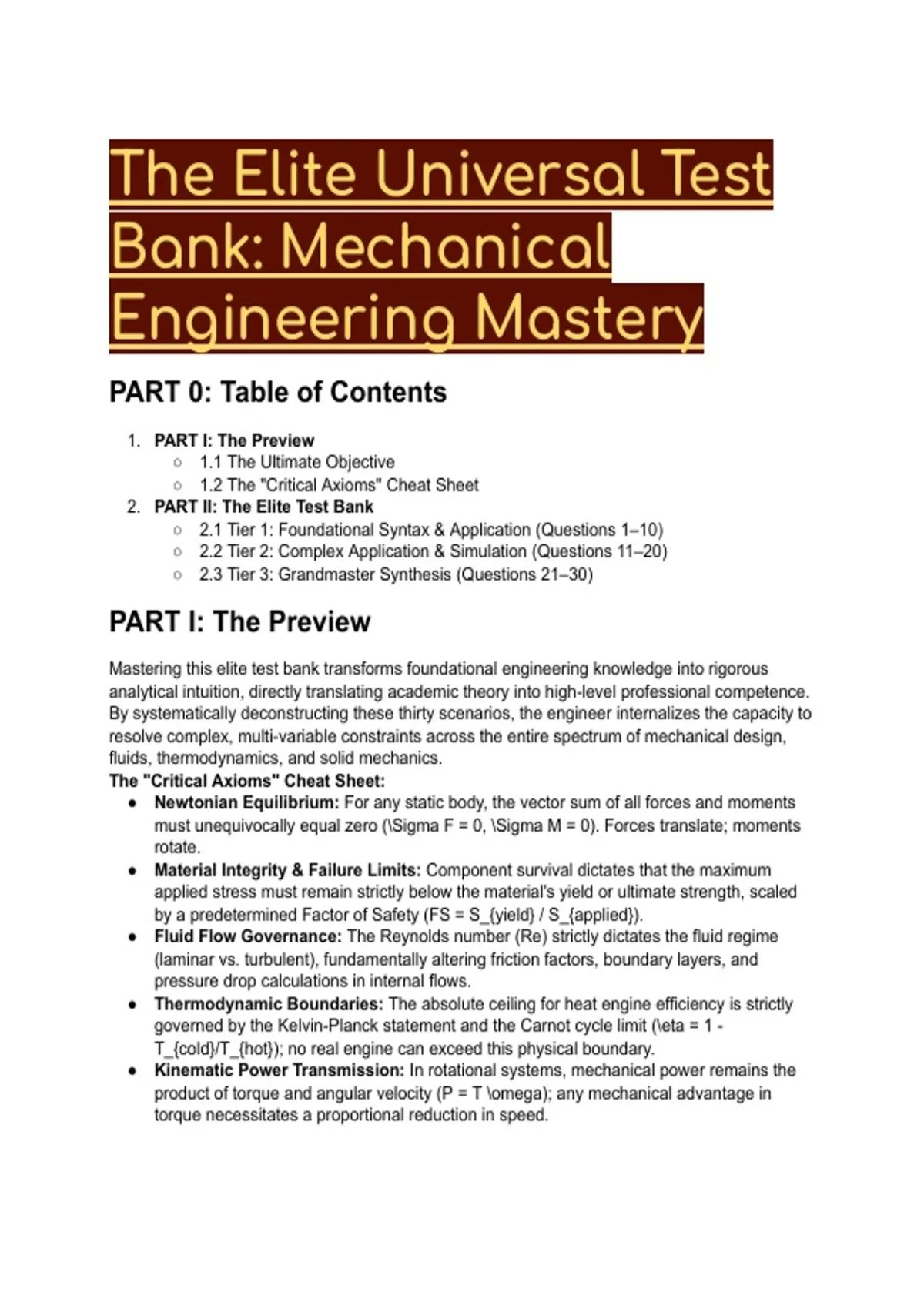

The Elite Universal Test
Bank: Mechanical
Engineering Mastery
PART 0: Table of Contents
1. PART I: The Preview
○ 1.1 The Ultimate Objective
○ 1.2 The "Critical Axioms" Cheat Sheet
2. PART II: The Elite Test Bank
○ 2.1 Tier 1: Foundational Syntax & Application (Questions 1–10)
○ 2.2 Tier 2: Complex Application & Simulation (Questions 11–20)
○ 2.3 Tier 3: Grandmaster Synthesis (Questions 21–30)
PART I: The Preview
Mastering this elite test bank transforms foundational engineering knowledge into rigorous
analytical intuition, directly translating academic theory into high-level professional competence.
By systematically deconstructing these thirty scenarios, the engineer internalizes the capacity to
resolve complex, multi-variable constraints across the entire spectrum of mechanical design,
fluids, thermodynamics, and solid mechanics.
The "Critical Axioms" Cheat Sheet:
● Newtonian Equilibrium: For any static body, the vector sum of all forces and moments
must unequivocally equal zero (\Sigma F = 0, \Sigma M = 0). Forces translate; moments
rotate.
● Material Integrity & Failure Limits: Component survival dictates that the maximum
applied stress must remain strictly below the material's yield or ultimate strength, scaled
by a predetermined Factor of Safety (FS = S_{yield} / S_{applied}).
● Fluid Flow Governance: The Reynolds number (Re) strictly dictates the fluid regime
(laminar vs. turbulent), fundamentally altering friction factors, boundary layers, and
pressure drop calculations in internal flows.
● Thermodynamic Boundaries: The absolute ceiling for heat engine efficiency is strictly
governed by the Kelvin-Planck statement and the Carnot cycle limit (\eta = 1 -
T_{cold}/T_{hot}); no real engine can exceed this physical boundary.
● Kinematic Power Transmission: In rotational systems, mechanical power remains the
product of torque and angular velocity (P = T \omega); any mechanical advantage in
torque necessitates a proportional reduction in speed.
,PART II: The Elite Test Bank
Tier 1: Foundational Syntax & Application
Q1: An engineering team is tasked with designing a next-generation urban power infrastructure
utilizing renewable energy storage. Based on the principles of the Mechanical Design Process,
which action is the FIRST and MOST CRITICAL step before generating conceptual designs? A)
Utilizing computer-aided design (CAD) to model the geometric constraints of the storage
flywheel. B) Selecting the appropriate manufacturing processes, such as casting or forming, to
minimize production costs. C) Establishing a rigorous Requirements Development phase to
define exactly what the system must achieve without dictating how it functions. D) Evaluating
the Factor of Safety for the primary rotor shaft to prevent catastrophic fatigue failure.
● Answer: C (Establishing a rigorous Requirements Development phase to define exactly
what the system must achieve without dictating how it functions.)
● Distractor Analysis:
○ A is incorrect: Modeling geometric constraints occurs during the Detailed Design
phase, which is premature before establishing core requirements.
○ B is incorrect: Selecting manufacturing processes is a downstream activity that
relies on established material and geometric parameters.
○ D is incorrect: Evaluating the Factor of Safety requires a defined concept and load
profile, which do not exist prior to requirements gathering.
The Mentor's Analysis: The fundamental bedrock of any successful engineering endeavor is
accurately defining the problem parameters before attempting to solve it. When facing a new
design challenge, the immediate priority is Requirements Development. By utilizing
Requirements Definition, the engineer bypasses the common trap of designing a brilliant
solution for the wrong problem. Professional/Academic Intuition: Form strictly follows
function; never engineer a physical solution before mathematically defining the required
performance criteria.
Q2: An engineer is converting a fluid flow calculation from United States Customary System
(USCS) units to the International System of Units (SI). The dynamic viscosity is given in lb \cdot
s / ft^2. Based on the principles of Dimensional Consistency, which action is the MOST
APPROPRIATE method to ensure equation validity? A) Multiply the numerical value by the
gravitational constant (32.2 ft/s^2) before converting to SI units. B) Substitute kg directly for lb,
and m directly for ft, keeping the numerical value identical. C) Apply specific conversion factors
to each base unit algebraically, ensuring that the final derived SI unit is strictly in Pa \cdot s (N
\cdot s / m^2). D) Disregard the units during intermediate steps and append the desired SI unit
to the final numerical result.
● Answer: C (Apply specific conversion factors to each base unit algebraically, ensuring
that the final derived SI unit is strictly in Pa \cdot s (N \cdot s / m^2).)
● Distractor Analysis:
○ A is incorrect: Multiplying by g converts mass (slugs) to force (lbf) or vice versa,
which is mathematically invalid for direct unit conversion of viscosity.
○ B is incorrect: USCS and SI units have vastly different magnitudes; a direct 1:1
numerical substitution will yield catastrophic dimensional errors.
○ D is incorrect: This is a classic novice error known as "naked numbers," which
destroys dimensional traceability and guarantees calculation failure.
, The Mentor's Analysis: Equations must be dimensionally homogeneous across all boundaries.
When facing unit system conversions, the immediate priority is tracking base dimensions
algebraically through every step. By utilizing Dimensional Analysis, you bypass the common
trap of mismatched variable magnitudes.
System Force Mass Length Time
SI Newton (N) Kilogram (kg) Meter (m) Second (s)
USCS Pound-force (lbf) Slug Foot (ft) Second (s)
Professional/Academic Intuition: Treat units as algebraic variables; if the units do not
cancel correctly, the numerical answer is unequivocally wrong.
Q3: A rigid bracket is subjected to three concurrent, coplanar forces. The system is entirely
stationary. Based on the principles of Static Equilibrium, which conclusion is the MOST
ACCURATE? A) The sum of the moments about the concurrent point is maximized to
counteract the forces. B) The resultant of the three forces must be a non-zero vector pointing in
the direction of the greatest force. C) The vector polygon formed by placing the three force
vectors head-to-tail must perfectly close. D) The horizontal components of the forces must
cancel out, but the vertical components may yield a net downward force equivalent to gravity.
● Answer: C (The vector polygon formed by placing the three force vectors head-to-tail
must perfectly close.)
● Distractor Analysis:
○ A is incorrect: By definition, concurrent forces do not produce moments about their
point of concurrency because their perpendicular moment arms are zero.
○ B is incorrect: If the system is stationary (in equilibrium), the resultant force vector
must be precisely zero, not a non-zero vector.
○ D is incorrect: For absolute equilibrium, the sum of forces in all orthogonal
directions (both horizontal and vertical) must independently equal zero.
The Mentor's Analysis: Newton's First Law mandates that a body at rest experiences zero net
external force. When facing concurrent force systems, the immediate priority is vector
resolution. By utilizing a Closed Vector Polygon, the engineer bypasses the common trap of
miscalculating individual rectangular components. Professional/Academic Intuition: In a state
of static equilibrium, the graphical representation of all acting force vectors must always
form a closed, continuous loop.
Q4: A machinist is utilizing a heavy lathe to perform a turning operation on a steel shaft. The
cutting tool applies a localized tangential force to the surface of the shaft. Based on the
principles of Mechanical Moments, which action is the MOST LOGICAL outcome of this force?
A) The shaft experiences a pure axial compressive stress along its centerline. B) The cutting
force multiplied by the radius of the shaft generates a torque that must be overcome by the
lathe's motor. C) The force acts directly through the centroid of the shaft, resulting in zero
rotational tendency. D) The tangential force creates a bending moment that exactly cancels the
torsional shear stress.
● Answer: B (The cutting force multiplied by the radius of the shaft generates a torque that
must be overcome by the lathe's motor.)
● Distractor Analysis:
○ A is incorrect: A tangential force on the surface creates torsion and bending, not
pure axial compression.
○ C is incorrect: Because the force is tangential at the surface, it has a perpendicular
lever arm equal to the radius, creating a significant turning moment.
○ D is incorrect: Bending moments and torsional moments are orthogonal
