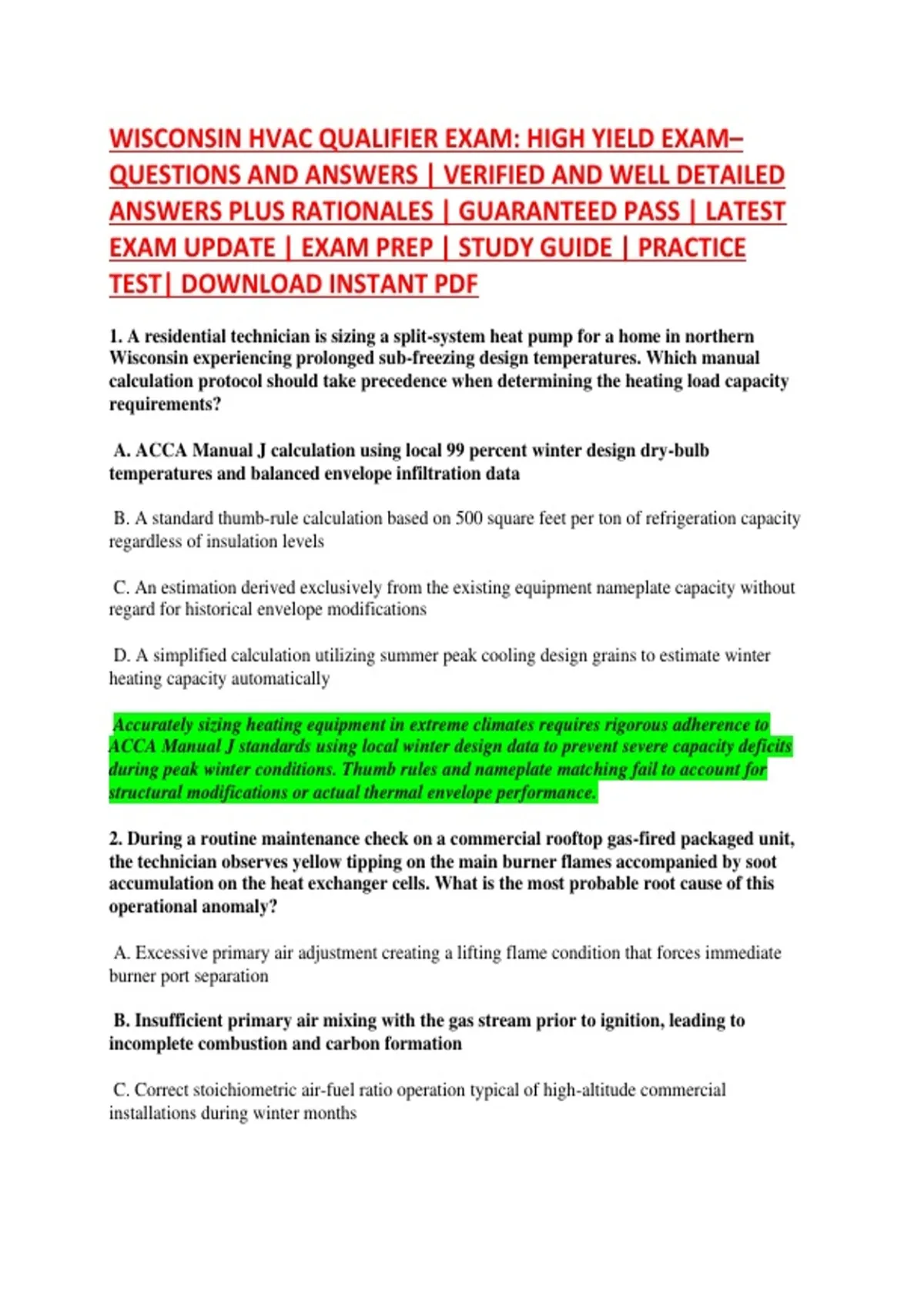

WISCONSIN HVAC QUALIFIER EXAM: HIGH YIELD EXAM–
QUESTIONS AND ANSWERS | VERIFIED AND WELL DETAILED
ANSWERS PLUS RATIONALES | GUARANTEED PASS | LATEST
EXAM UPDATE | EXAM PREP | STUDY GUIDE | PRACTICE
TEST| DOWNLOAD INSTANT PDF
1. A residential technician is sizing a split-system heat pump for a home in northern
Wisconsin experiencing prolonged sub-freezing design temperatures. Which manual
calculation protocol should take precedence when determining the heating load capacity
requirements?
A. ACCA Manual J calculation using local 99 percent winter design dry-bulb
temperatures and balanced envelope infiltration data
B. A standard thumb-rule calculation based on 500 square feet per ton of refrigeration capacity
regardless of insulation levels
C. An estimation derived exclusively from the existing equipment nameplate capacity without
regard for historical envelope modifications
D. A simplified calculation utilizing summer peak cooling design grains to estimate winter
heating capacity automatically
Accurately sizing heating equipment in extreme climates requires rigorous adherence to
ACCA Manual J standards using local winter design data to prevent severe capacity deficits
during peak winter conditions. Thumb rules and nameplate matching fail to account for
structural modifications or actual thermal envelope performance.
2. During a routine maintenance check on a commercial rooftop gas-fired packaged unit,
the technician observes yellow tipping on the main burner flames accompanied by soot
accumulation on the heat exchanger cells. What is the most probable root cause of this
operational anomaly?
A. Excessive primary air adjustment creating a lifting flame condition that forces immediate
burner port separation
B. Insufficient primary air mixing with the gas stream prior to ignition, leading to
incomplete combustion and carbon formation
C. Correct stoichiometric air-fuel ratio operation typical of high-altitude commercial
installations during winter months
, D. Excessively high manifold gas pressure causing complete flame stabilization far beyond the
burner port face
Yellow tips and soot indicate incomplete combustion directly caused by a lack of primary air
or restricted burner ports. Adjusting the air shutter to introduce more primary air corrects the
mixture, changing the flame to a clean blue appearance.
3. A service technician uses a digital manifold gauge set to evaluate a residential R-410A air
conditioning system operating in high ambient conditions. The subcooling is measured at
14 degrees Fahrenheit, and the superheat is measured at 4 degrees Fahrenheit with an
indoor wet-bulb temperature of 67 degrees Fahrenheit. What immediate corrective action
is required?
A. Recover a portion of the refrigerant charge immediately because the low superheat
indicates liquid floodback risk at the compressor inlet
B. Add liquid refrigerant to the high side until the superheat rises to the manufacturer's target of
12 degrees Fahrenheit
C. Clean the outdoor condenser coil thoroughly to lower the high-side head pressure and
recheck system subcooling
D. Verify proper indoor airflow across the evaporator coil before altering the system charge, as
low airflow depresses both superheat and subcooling
Superheat below 5 degrees Fahrenheit combined with high subcooling strongly indicates an
overcharged system or an expansion device feeding too much liquid, creating an immediate
risk of liquid slugging and compressor damage.
4. When evaluating a commercial building's variable air volume (VAV) system, the
balancing technician notes that several perimeter zones remain uncomfortably cold even
though the supply air temperature from the central air handler satisfies design criteria.
Which system component should be inspected first for mechanical failure?
A. The outdoor air economizer damper actuator stuck in the fully closed position
B. The terminal unit reheat coil control valve or local electric heating element linkage and
thermostat communication
C. The main supply fan variable frequency drive set to maximum design rotational frequency
D. The barometric relief damper assembly located in the mechanical room exhaust ductwork
In a VAV system, individual zone temperature control during cooling or partial load
conditions relies heavily on terminal unit dampers and localized reheat. Failure of a reheat
valve or controller leaves perimeter zones vulnerable to over-cooling from cold primary air.
,5. An HVAC contractor is installing a high-efficiency condensing gas furnace in a
basement. According to Wisconsin mechanical codes, what is the mandatory requirement
regarding the termination point of plastic intake and exhaust vent piping passing through
an exterior sidewall?
A. Vent terminals must terminate at least 12 inches above anticipated snow accumulation
levels and maintain required clearance distances from building openings and operable
windows
B. Vent piping may terminate directly beneath a wooden deck provided the horizontal distance
to the property line exceeds 3 feet
C. Exhaust termination fittings must be pointed downward directly against grade level to
suppress combustion noise propagation
D. Intake and exhaust pipes can share a single common wall penetration without any physical
separation distance between the pipe centers
Wisconsin winters bring significant snow accumulation. Category IV gas vent terminals must
clear historical snow lines to prevent blockage and safety shut-downs, while maintaining
regulatory clearances from windows, doors, and air intakes.
6. A technician measures a 24-volt control circuit transformer output voltage and discovers
18 volts AC across terminals R and C when the cooling contactor is energized. The
transformer rating is 40VA. What is the most appropriate diagnostic conclusion?
A. The transformer is operating normally within acceptable electrical tolerance ranges for
inductive loads
B. The control circuit is experiencing an excessive electrical load or partial short circuit,
causing voltage sag due to transformer capacity overload
C. The primary line voltage supplied to the building is precisely balanced across all three phases
D. The indoor blower motor capacitor has failed open, causing an artificial rise in secondary
transformer impedance
A significant voltage drop on a 24V control circuit from 24-28V down to 18V under load
indicates that current draw exceeds the transformer rating, often caused by a failing contactor
coil, thermostat wiring short, or added accessory loads.
7. When servicing a commercial refrigeration walk-in freezer utilizing a thermostatic
expansion valve (TXV), the technician notes the evaporator coil is starved of refrigerant,
and the TXV power element bulb is mounted improperly at the 12 o'clock position on a
vertical suction riser. What is the correct corrective procedure for the sensing bulb?
, A. Relocate the bulb to a clean, horizontal section of the suction line downstream of the
evaporator, secure it firmly with metal straps, and insulate it thoroughly from ambient air
B. Submerge the sensing bulb directly into a bucket of warm water to force the valve fully open
permanently
C. Wrap electrical tape around the bulb while mounted on the vertical riser to increase thermal
isolation from ambient air currents
D. Relocate the bulb to the liquid line just upstream of the filter-drier assembly to sense
subcooled liquid temperature
TXV sensing bulbs must be mounted on horizontal suction lines (typically between the 4 and
8 o'clock positions, avoiding the bottom sediment trap) to accurately sense vapor temperature
without interference from liquid oil pooling or ambient air temperatures.
8. A customer complains of intermittent lockouts on a multi-stage gas furnace. During
diagnostic testing, the technician notices intermittent flame rollout safety switch tripping.
Which component inspection should take highest priority to resolve this hazardous
condition?
A. Checking the indoor blower motor capacitor microfarad rating against nameplate
specifications
B. Inspecting the primary heat exchanger cells for internal cracking, corrosion separation,
or severe secondary heat exchanger soot blockage
C. Verifying the outdoor ambient temperature sensor calibration on the heat pump outdoor unit
D. Replacing the programmable digital thermostat sub-base terminal block
Flame rollout switches trip when combustion products escape the burner compartment due to
blocked heat exchangers, restricted venting, or cracked cells. This is a severe safety hazard
requiring immediate inspection and remediation.
9. In a commercial chilled water system, a differential pressure control valve is installed
across the supply and return headers. What is the primary operational function of this
valve in a variable-flow pumping system?
A. To maintain a constant pressure differential across the system by modulating bypass
flow as two-way control valves at individual air handling units open and close
B. To increase chilled water loop operating pressure automatically when outdoor ambient
humidity levels exceed 70 percent
