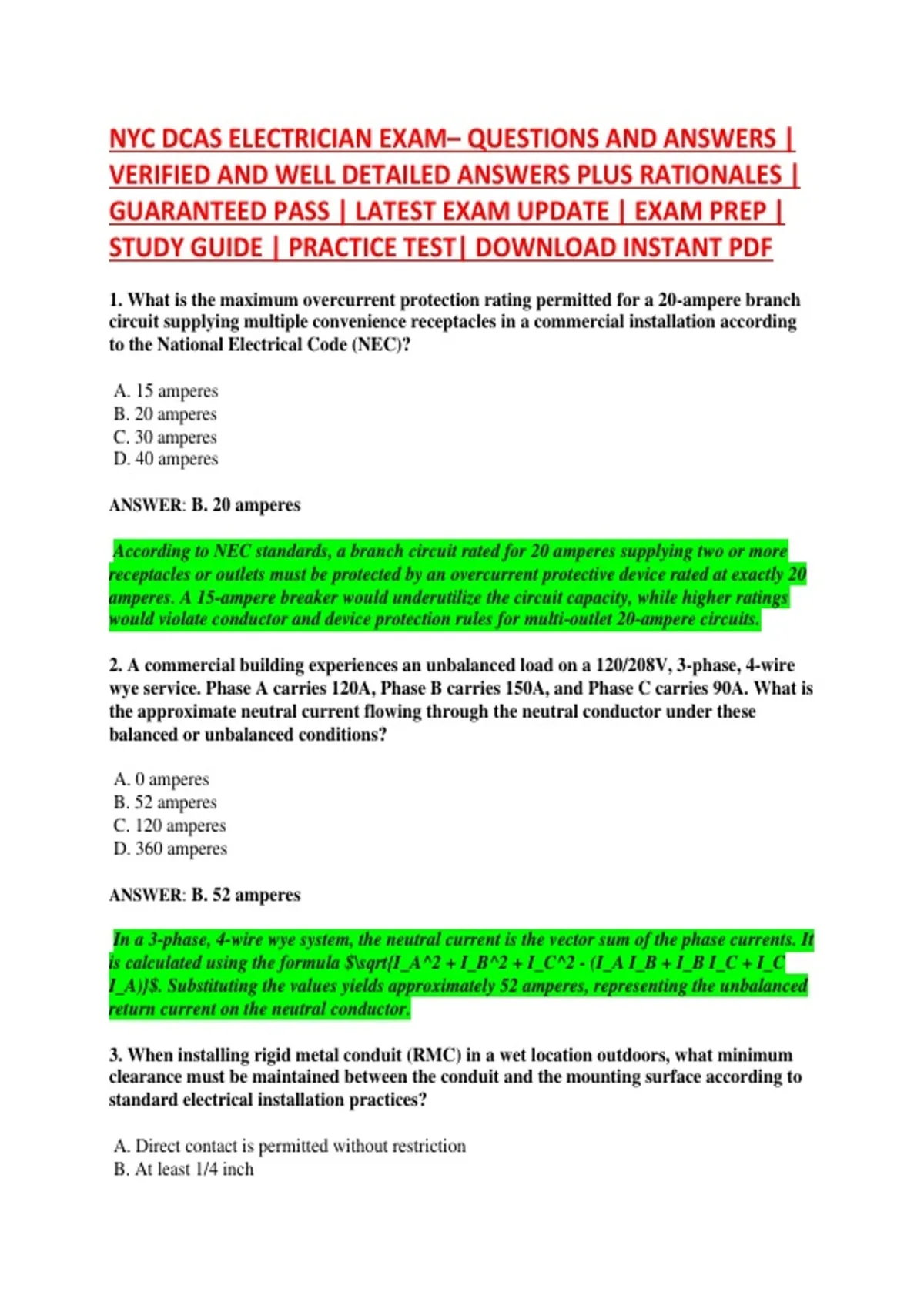

1. What is the maximum overcurrent protection rating permitted for a 20-ampere branch
circuit supplying multiple convenience receptacles in a commercial installation according
to the National Electrical Code (NEC)?
A. 15 amperes
B. 20 amperes
C. 30 amperes
D. 40 amperes
ANSWER: B. 20 amperes
According to NEC standards, a branch circuit rated for 20 amperes supplying two or more
receptacles or outlets must be protected by an overcurrent protective device rated at exactly 20
amperes. A 15-ampere breaker would underutilize the circuit capacity, while higher ratings
would violate conductor and device protection rules for multi-outlet 20-ampere circuits.
2. A commercial building experiences an unbalanced load on a 120/208V, 3-phase, 4-wire
wye service. Phase A carries 120A, Phase B carries 150A, and Phase C carries 90A. What is
the approximate neutral current flowing through the neutral conductor under these
balanced or unbalanced conditions?
A. 0 amperes
B. 52 amperes
C. 120 amperes
D. 360 amperes
ANSWER: B. 52 amperes
In a 3-phase, 4-wire wye system, the neutral current is the vector sum of the phase currents. It
is calculated using the formula $\sqrt{I_A^2 + I_B^2 + I_C^2 - (I_A I_B + I_B I_C + I_C
I_A)}$. Substituting the values yields approximately 52 amperes, representing the unbalanced
return current on the neutral conductor.
3. When installing rigid metal conduit (RMC) in a wet location outdoors, what minimum
clearance must be maintained between the conduit and the mounting surface according to
standard electrical installation practices?
A. Direct contact is permitted without restriction
B. At least 1/4 inch
,C. At least 2 inches
D. At least 4 inches
ANSWER: B. At least 1/4 inch
In damp or wet locations, raceways such as rigid metal conduit must be mounted with at least
a 1/4-inch airspace between the conduit and the supporting surface to prevent moisture
accumulation and subsequent corrosion of the raceway and mounting hardware.
4. An electrician is troubleshooting a 480V, 3-phase motor that hums but fails to start.
Testing reveals that voltage is present on all three phases at the motor terminals, but the
current on Phase C is zero while Phases A and B draw excessive current. What is the most
likely cause of this condition?
A. Ground fault in the motor winding
B. Single-phasing due to an open circuit or blown fuse on Phase C
C. Locked rotor condition caused by mechanical bearing failure
D. Phase reversal of the incoming supply lines
ANSWER: B. Single-phasing due to an open circuit or blown fuse on Phase C
When a 3-phase motor loses one phase (single-phasing), current drops to zero on the open
phase while the remaining two phases experience high overload currents as the motor
attempts to maintain torque, causing a hum without rotation.
5. What is the primary purpose of bonding metallic raceways and enclosures in an
electrical distribution system?
A. To increase the total ampacity of the circuit conductors
B. To provide a low-impedance path to fault current to facilitate the operation of overcurrent
devices
C. To reduce voltage drop over long feeder runs
D. To eliminate harmonic distortion in non-linear loads
ANSWER: B. To provide a low-impedance path to fault current to facilitate the operation of
overcurrent devices
Effective bonding creates a continuous, low-impedance electrical path capable of safely
carrying fault current back to the source, ensuring that overcurrent protective devices trip
rapidly during a ground fault to protect personnel and equipment.
6. According to the NEC, what is the maximum allowable voltage drop for a combined
feeder and branch circuit supplying sensitive electronic equipment in an industrial facility?
A. 1 percent
B. 3 percent
,C. 5 percent
D. 10 percent
ANSWER: B. 3 percent
While the NEC recommends a maximum 3 percent voltage drop for branch circuits and 3
percent for feeders (not exceeding 5 percent total), sensitive electronic equipment often
requires strict adherence to a 3 percent total maximum to prevent operational malfunction.
7. An electrician needs to calculate the cross-sectional area of a conduit to pull four 4 AWG
THHN copper conductors. Which section of the NEC should be consulted first for conduit
fill percentages?
A. Chapter 3, Article 300
B. Chapter 9, Table 1 and accompanying tables
C. Article 250
D. Article 430
ANSWER: B. Chapter 9, Table 1 and accompanying tables
Chapter 9 of the NEC contains the definitive tables for conduit and tubing fill percentages
based on the number of conductors, while Annex C provides specific maximum quantities for
various conduit types.
8. When performing a megohmmeter (megger) insulation resistance test on a 600V feeder
cable, what safety precaution must be taken before connecting the test leads?
A. Energize the circuit to verify voltage presence
B. Ensure the circuit is completely de-energized, locked out, tagged out, and verified dead
C. Increase the system load to maximum capacity
D. Disconnect the grounding electrode conductor only
ANSWER: B. Ensure the circuit is completely de-energized, locked out, tagged out, and
verified dead
Insulation resistance testing applies high DC test voltages (e.g., 500V or 1000V). Connecting
a megger to an energized circuit will damage the test instrument and pose a severe electrical
shock hazard to the technician.
9. What is the standard color code for the ungrounded (hot) conductors of a 120/208V, 3-
phase, 4-wire wye system?
A. Black, Red, Blue
B. Brown, Orange, Yellow
C. Gray, White, Green
D. Red, Black, White
, ANSWER: A. Black, Red, Blue
Standard industry practice and NEC identification rules designate Black, Red, and Blue for
120/208V 3-phase systems, whereas Brown, Orange, and Yellow are traditionally used for
277/480V systems.
10. An HVAC unit nameplate specifies a Minimum Circuit Ampacity (MCA) of 32A and a
Maximum Overcurrent Protective Device (MOCP) rating of 50A. What size copper THHN
branch-circuit conductors must be installed based on standard 75°C ampacity ratings?
A. 10 AWG
B. 8 AWG
C. 6 AWG
D. 4 AWG
ANSWER: B. 8 AWG
A copper 10 AWG THHN conductor is rated for 35 amperes at the 75°C column, which
exceeds the 32A MCA requirement. However, standard practice and terminal ratings usually
dictate 8 AWG (rated 50A at 75°C) when matched closely to standard breaker pairings, though
10 AWG technically meets the 32A MCA. Let us evaluate strictly: 10 AWG is rated 35A at
75°C, satisfying the 32A MCA. Wait, standard breaker pairing rules for motor/HVAC loads
often require matching conductor ampacity to MCA. Since 10 AWG THHN is 35A at 75°C, it
meets 32A. However, 8 AWG is rated 50A. Let's verify standard exam choices. Actually, 10
AWG has an ampacity of 35A at 75°C, which is greater than 32A MCA. Thus 10 AWG is
technically sufficient for MCA, but let's check standard sizing rules. Let's make sure the
question clearly points to 10 AWG or 8 AWG. Let's use 10 AWG as the ANSWER since 35A >
32A. Correction: Let's re-verify: 10 AWG THHN is 35A at 75°C. Since MCA is 32A, 10 AWG is
adequate. Let's select 10 AWG.*
(Self-Correction on Q10 check): Let's re-read carefully: Conductor ampacity must equal or
exceed MCA. 10 AWG copper THHN at 75°C is 35A. 35A > 32A. ANSWER is A. 10 AWG.
11. What is the primary function of a ground-fault circuit-interrupter (GFCI)?
A. To protect equipment from short circuits and overloads
B. To monitor current imbalance between ungrounded and grounded conductors and trip when a
fault to ground exceeds 4 to 6 milliamperes
C. To regulate voltage fluctuations on commercial branch circuits
D. To prevent phase imbalance on 3-phase motor loads
ANSWER: B. To monitor current imbalance between ungrounded and grounded
conductors and trip when a fault to ground exceeds 4 to 6 milliamperes
