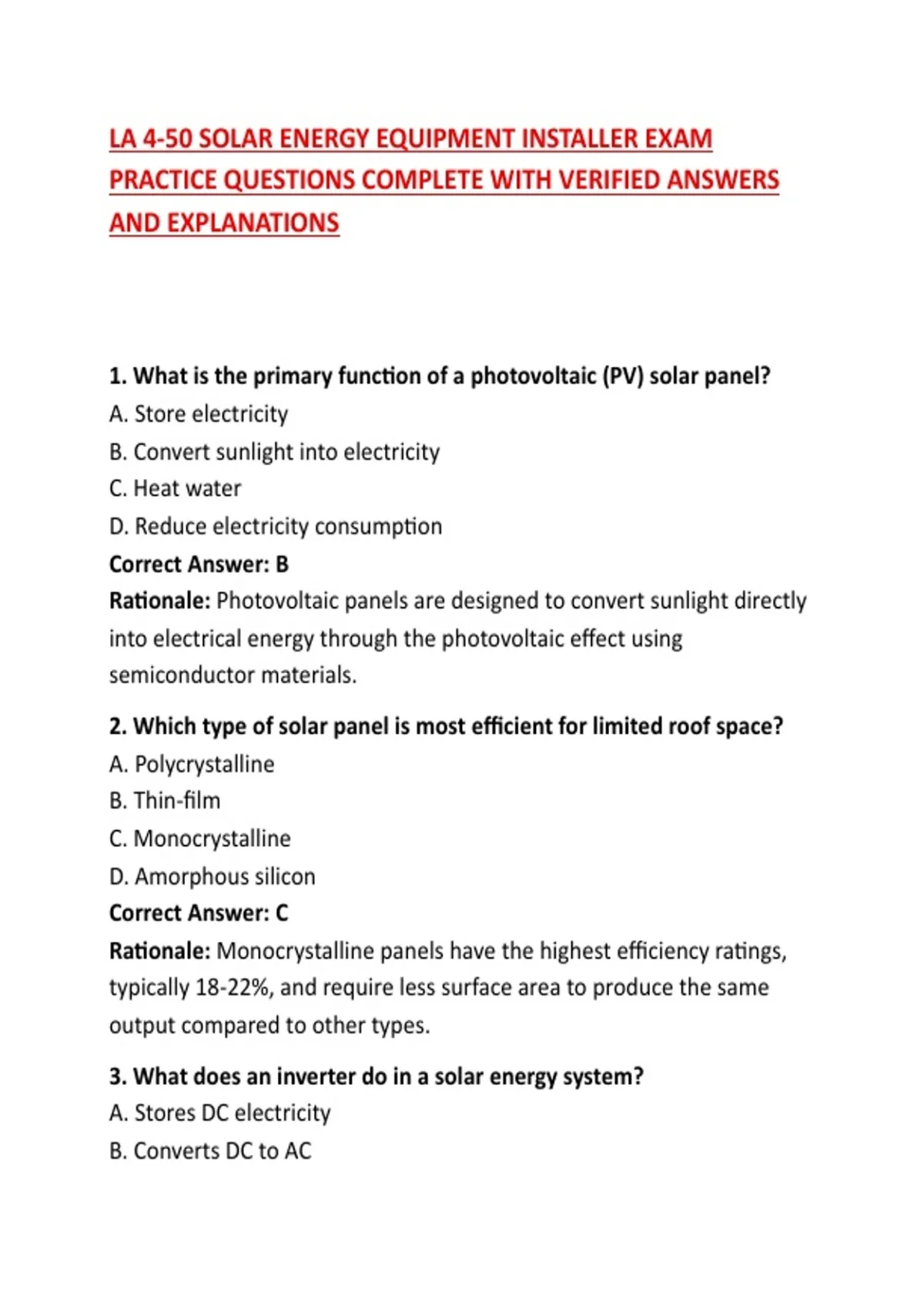

LA 4-50 SOLAR ENERGY EQUIPMENT INSTALLER EXAM
PRACTICE QUESTIONS COMPLETE WITH VERIFIED ANSWERS
AND EXPLANATIONS
1. What is the primary function of a photovoltaic (PV) solar panel?
A. Store electricity
B. Convert sunlight into electricity
C. Heat water
D. Reduce electricity consumption
Correct Answer: B
Rationale: Photovoltaic panels are designed to convert sunlight directly
into electrical energy through the photovoltaic effect using
semiconductor materials.
2. Which type of solar panel is most efficient for limited roof space?
A. Polycrystalline
B. Thin-film
C. Monocrystalline
D. Amorphous silicon
Correct Answer: C
Rationale: Monocrystalline panels have the highest efficiency ratings,
typically 18-22%, and require less surface area to produce the same
output compared to other types.
3. What does an inverter do in a solar energy system?
A. Stores DC electricity
B. Converts DC to AC
,C. Tracks sunlight movement
D. Generates DC electricity
Correct Answer: B
Rationale: Solar panels produce DC electricity, and the inverter converts
it to AC for use by household appliances and the electrical grid.
4. What are the standard test conditions (STC) for rating solar panels?
A. 800 W/m² irradiance, 20°C cell temperature, AM 1.5 spectrum
B. 1000 W/m² irradiance, 25°C cell temperature, AM 1.5 spectrum
C. 1200 W/m² irradiance, 30°C cell temperature, AM 1.0 spectrum
D. 1000 W/m² irradiance, 25°C cell temperature, AM 1.0 spectrum
Correct Answer: B
Rationale: STC is defined as 1000 W/m² irradiance, 25°C cell
temperature, and AM 1.5 spectrum, providing standardized conditions
for comparing solar panel performance.
5. Which component prevents reverse current flow in a PV system?
A. Circuit breaker
B. Fuse
C. Diode
D. Inverter
Correct Answer: C
Rationale: A diode allows current to flow in one direction only and
prevents backflow, protecting the panels from reverse current damage.
6. What is the main advantage of solar tracking systems?
A. Lower installation cost
B. Increased energy efficiency
C. Simpler system design
D. Reduced maintenance requirements
,Correct Answer: B
Rationale: Solar trackers orient panels toward the sun throughout the
day, increasing energy capture by up to 25-35% compared to fixed
systems.
7. Which type of solar water heating system stores water in a tank
exposed to sunlight?
A. Direct circulation system
B. Flat-plate collector system
C. Integral collector-storage system
D. Indirect circulation system
Correct Answer: C
Rationale: The integral collector-storage system (ICS) combines the
collector and storage tank into one unit that is directly heated by
sunlight.
8. What is the recommended tilt angle for fixed solar panels in most
latitudes?
A. 0 degrees
B. Equal to the latitude of the location
C. 90 degrees
D. 45 degrees
Correct Answer: B
Rationale: Tilting panels at an angle equal to the latitude optimizes
annual energy production by maximizing exposure to the sun's path.
9. Which solar panel material is known for low cost but lower
efficiency?
A. Monocrystalline silicon
B. Polycrystalline silicon
, C. Thin-film
D. Gallium arsenide
Correct Answer: C
Rationale: Thin-film panels are cheaper to produce but generally have
lower efficiency (10-13%) compared to crystalline silicon panels (15-
22%).
10. What is the primary purpose of grounding a solar PV system?
A. Reduce electricity generation
B. Protect against electrical shock and lightning strikes
C. Increase panel efficiency
D. Reduce inverter losses
Correct Answer: B
Rationale: Grounding ensures safety by providing a path for stray
currents and lightning strikes, protecting both equipment and
personnel.
11. Which factor has the greatest impact on solar panel efficiency?
A. Panel color
B. Ambient temperature
C. Mounting method
D. Brand of the inverter
Correct Answer: B
Rationale: High temperatures can significantly reduce photovoltaic cell
efficiency, with most panels experiencing a 0.3-0.5% efficiency loss per
degree Celsius above 25°C.
12. What does a charge controller do in a solar system with batteries?
A. Converts DC to AC
B. Prevents battery overcharge and over-discharge
