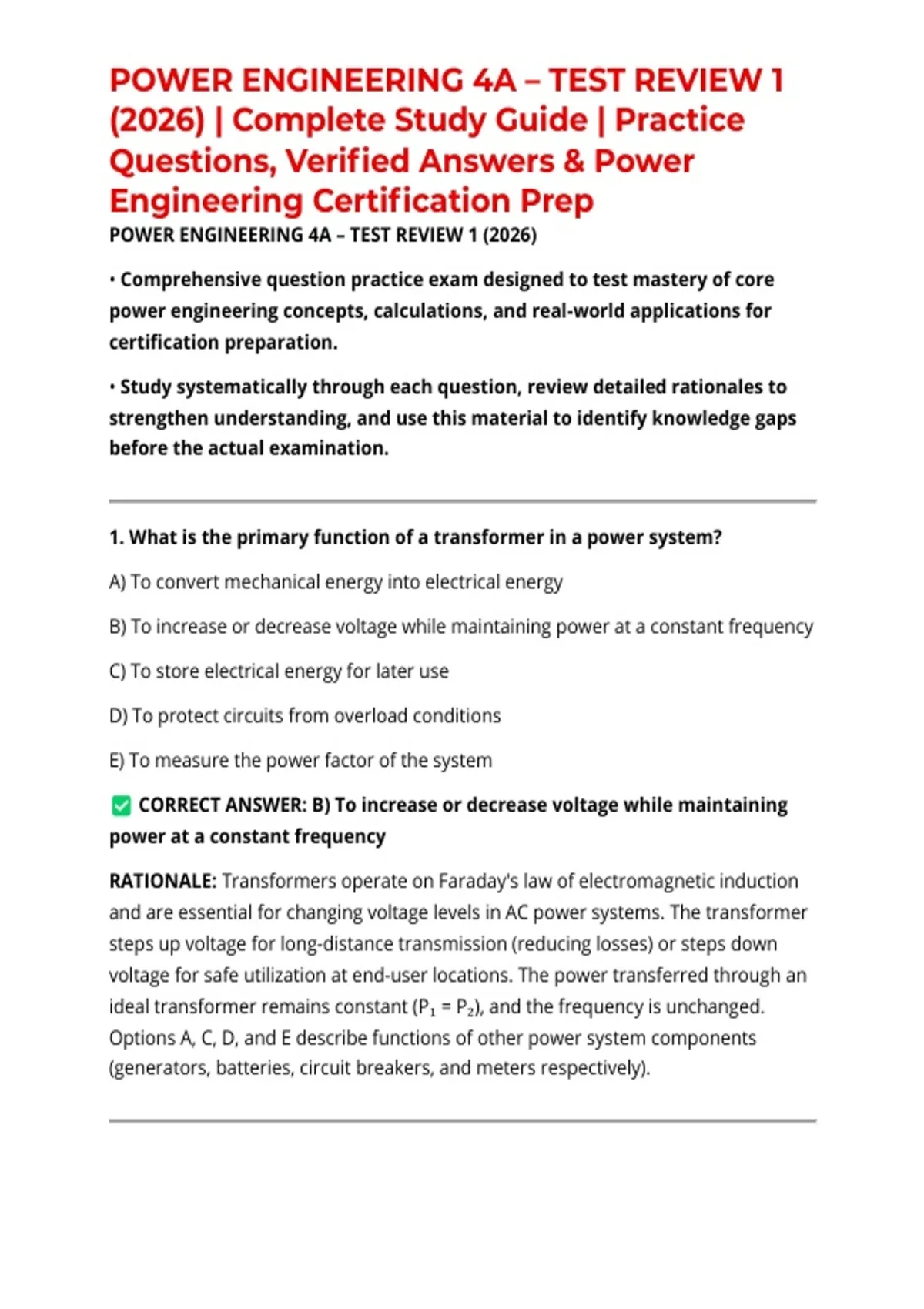

POWER ENGINEERING 4A – TEST REVIEW 1
(2026) | Complete Study Guide | Practice
Questions, Verified Answers & Power
Engineering Certification Prep
POWER ENGINEERING 4A – TEST REVIEW 1 (2026)
• Comprehensive question practice exam designed to test mastery of core
power engineering concepts, calculations, and real-world applications for
certification preparation.
• Study systematically through each question, review detailed rationales to
strengthen understanding, and use this material to identify knowledge gaps
before the actual examination.
1. What is the primary function of a transformer in a power system?
A) To convert mechanical energy into electrical energy
B) To increase or decrease voltage while maintaining power at a constant frequency
C) To store electrical energy for later use
D) To protect circuits from overload conditions
E) To measure the power factor of the system
CORRECT ANSWER: B) To increase or decrease voltage while maintaining
power at a constant frequency
RATIONALE: Transformers operate on Faraday's law of electromagnetic induction
and are essential for changing voltage levels in AC power systems. The transformer
steps up voltage for long-distance transmission (reducing losses) or steps down
voltage for safe utilization at end-user locations. The power transferred through an
ideal transformer remains constant (P₁ = P₂), and the frequency is unchanged.
Options A, C, D, and E describe functions of other power system components
(generators, batteries, circuit breakers, and meters respectively).
,2. In a three-phase power system, what is the phase angle between each
phase?
A) 60 degrees
B) 90 degrees
C) 120 degrees
D) 180 degrees
E) 360 degrees
CORRECT ANSWER: C) 120 degrees
RATIONALE: A three-phase system consists of three sinusoidal voltage waveforms
that are equally spaced in time. Each phase is separated by 120 degrees (or 2π/3
radians) from the other two phases. This equal spacing is fundamental to three-
phase power generation and distribution, providing more efficient power
transmission and smoother operation compared to single-phase systems. The 120-
degree separation ensures balanced loading and reduced ripple in rectified power
applications.
3. What does the term "reactive power" refer to in AC circuits?
A) The instantaneous product of voltage and current
B) Power that oscillates between the source and reactive elements without being
dissipated as heat
C) The maximum power that can be delivered to a load
D) Power consumed only by resistive loads
E) The power factor multiplied by apparent power
CORRECT ANSWER: B) Power that oscillates between the source and
reactive elements without being dissipated as heat
RATIONALE: Reactive power (measured in VAR or Volt-Ampere Reactive) is
associated with inductors and capacitors in AC circuits. It represents energy that
,flows back and forth between the source and the reactive elements without being
converted to heat or work. Reactive power creates voltage drop but does not
contribute to useful work. It is calculated as Q = V × I × sin(φ), where φ is the phase
angle between voltage and current. Understanding reactive power is essential for
power factor correction and system stability.
4. Which of the following best describes a synchronous generator?
A) A generator whose rotor speed is asynchronous to the AC frequency
B) A generator whose rotor rotates at a speed synchronized with the AC frequency
generated
C) A generator that uses permanent magnets instead of electromagnets
D) A generator that produces only DC output
E) A generator with variable frequency output
CORRECT ANSWER: B) A generator whose rotor rotates at a speed
synchronized with the AC frequency generated
RATIONALE: A synchronous generator operates with its rotor speed locked to the
AC frequency of the generated voltage. The relationship is: Ns = 120f/P, where Ns is
synchronous speed in RPM, f is frequency in Hz, and P is the number of poles. This
synchronism is maintained by the electromagnetic coupling between the rotor
magnetic field and the stator. Synchronous generators are used in power stations
and provide advantages in voltage regulation and stability. Asynchronous
(induction) generators operate at speeds slightly different from the synchronous
speed.
5. What is the power factor in a purely resistive AC circuit?
A) 0
B) 0.5
C) 0.707
, D) 1.0
E) Greater than 1
CORRECT ANSWER: D) 1.0
RATIONALE: Power factor is defined as the cosine of the phase angle between
voltage and current (pf = cos φ). In a purely resistive circuit, voltage and current are
in phase, meaning φ = 0 degrees. Therefore, cos(0°) = 1.0, giving a power factor of
unity. This represents the condition where all power is real (active) power with no
reactive component. A power factor of 1.0 is ideal and means maximum power is
being utilized effectively. In circuits with inductance or capacitance, the power
factor becomes lagging or leading respectively, ranging between 0 and 1.
6. In power systems, what does the term "voltage regulation" refer to?
A) The ability of a system to maintain constant voltage at all times
B) The voltage drop across a transmission line
C) The change in voltage at the receiving end when load changes from full load to
no load
D) The ratio of voltage to current in the system
E) The maximum voltage that a component can withstand
CORRECT ANSWER: C) The change in voltage at the receiving end when load
changes from full load to no load
RATIONALE: Voltage regulation is expressed as a percentage and represents the
extent to which voltage changes when load is removed from a system operating at
constant sending-end voltage. It is calculated as: VR = (VNL - VFL) / VFL × 100%,
where VNL is no-load voltage and VFL is full-load voltage at the receiving end. Better
voltage regulation (lower percentage) is preferred as it indicates more stable
voltage conditions. Transformers, transmission lines, and other components
contribute to voltage drop, affecting overall system voltage regulation. This is a
critical parameter in power system design and operation.
