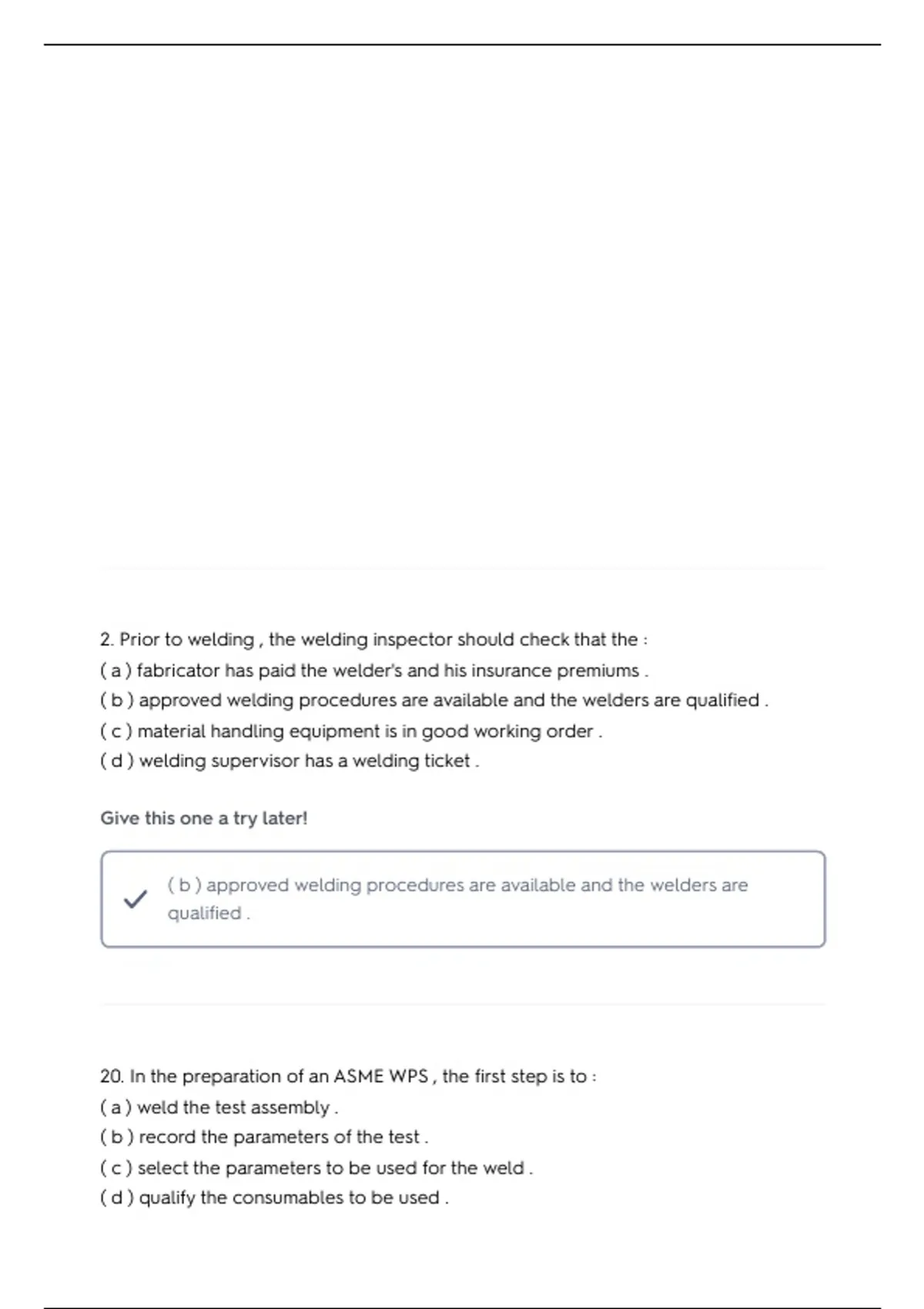

2. Prior to welding , the welding inspector should check that the :
( a ) fabricator has paid the welder's and his insurance premiums .
( b ) approved welding procedures are available and the welders are qualified .
( c ) material handling equipment is in good working order .
( d ) welding supervisor has a welding ticket .
Give this one a try later!
( b ) approved welding procedures are available and the welders are
qualified .
20. In the preparation of an ASME WPS , the first step is to :
( a ) weld the test assembly .
( b ) record the parameters of the test .
( c ) select the parameters to be used for the weld .
( d ) qualify the consumables to be used .
,Give this one a try later!
( c ) select the parameters to be used for the weld .
16. The extent to which a steel forms martensite at a given cooling rate is called :
( a ) carburizing .
( b ) sensitivity .
( c ) hardenability .
( d ) temperability .
Give this one a try later!
( c ) hardenability .
17. Cold cracking occurs below what temperature ?
Give this one a try later!
100 degrees celcius
13. What type of power source output is used for shielded metal arc welding ?
( a ) Constant voltage
( b ) Constant current
( c ) Variable voltage
( d ) Pulsed current
Give this one a try later!
, ( b ) Constant current
13. Which of the following standards / codes covers the Certification of Welding
Inspectors ?
( a ) CSA W178.1
( b ) CSA W47.1
( c ) CSA W178.2
( d ) CSA W47.2
Give this one a try later!
( c ) CSA W178.2
11. Which of the following is a fusion discontinuity in a complete joint penetration
groove weld ?
( a ) Incomplete sidewall fusion
( b ) Incomplete root reinforcement
( c ) Underbead non - fusion
( d ) Incomplete joint penetration
Give this one a try later!
( a ) Incomplete sidewall fusion
( c ) Underbead non - fusion
6. The material test report ( MTR ) :
( a ) provides mechanical test results that confirm that the product covered meets the
specification .
( b ) provides detailed results of weld inspections .
, ( c ) includes data on a broad range of materials .
( d ) ceases to have value once the shipment is unloaded .
Give this one a try later!
( a ) provides mechanical test results that confirm that the product covered
meets the specification .
21. To provide a maximum indication on the display screen , the ultrasonic beam
should strike the major face of the defect at an angle of :
( a ) 40 °
( b ) 60 °
( c ) 90 °
( d ) 75 °
Give this one a try later!
( c ) 90 °
16. For fillet welds with unequal leg sizes , where an equal leg fillet was specified ,
always measure the :
( a ) longer leg length .
( b ) shorter leg length .
( c ) throat .
( d ) face width .
Give this one a try later!
( b ) shorter leg length .
( a ) fabricator has paid the welder's and his insurance premiums .
( b ) approved welding procedures are available and the welders are qualified .
( c ) material handling equipment is in good working order .
( d ) welding supervisor has a welding ticket .
Give this one a try later!
( b ) approved welding procedures are available and the welders are
qualified .
20. In the preparation of an ASME WPS , the first step is to :
( a ) weld the test assembly .
( b ) record the parameters of the test .
( c ) select the parameters to be used for the weld .
( d ) qualify the consumables to be used .
,Give this one a try later!
( c ) select the parameters to be used for the weld .
16. The extent to which a steel forms martensite at a given cooling rate is called :
( a ) carburizing .
( b ) sensitivity .
( c ) hardenability .
( d ) temperability .
Give this one a try later!
( c ) hardenability .
17. Cold cracking occurs below what temperature ?
Give this one a try later!
100 degrees celcius
13. What type of power source output is used for shielded metal arc welding ?
( a ) Constant voltage
( b ) Constant current
( c ) Variable voltage
( d ) Pulsed current
Give this one a try later!
, ( b ) Constant current
13. Which of the following standards / codes covers the Certification of Welding
Inspectors ?
( a ) CSA W178.1
( b ) CSA W47.1
( c ) CSA W178.2
( d ) CSA W47.2
Give this one a try later!
( c ) CSA W178.2
11. Which of the following is a fusion discontinuity in a complete joint penetration
groove weld ?
( a ) Incomplete sidewall fusion
( b ) Incomplete root reinforcement
( c ) Underbead non - fusion
( d ) Incomplete joint penetration
Give this one a try later!
( a ) Incomplete sidewall fusion
( c ) Underbead non - fusion
6. The material test report ( MTR ) :
( a ) provides mechanical test results that confirm that the product covered meets the
specification .
( b ) provides detailed results of weld inspections .
, ( c ) includes data on a broad range of materials .
( d ) ceases to have value once the shipment is unloaded .
Give this one a try later!
( a ) provides mechanical test results that confirm that the product covered
meets the specification .
21. To provide a maximum indication on the display screen , the ultrasonic beam
should strike the major face of the defect at an angle of :
( a ) 40 °
( b ) 60 °
( c ) 90 °
( d ) 75 °
Give this one a try later!
( c ) 90 °
16. For fillet welds with unequal leg sizes , where an equal leg fillet was specified ,
always measure the :
( a ) longer leg length .
( b ) shorter leg length .
( c ) throat .
( d ) face width .
Give this one a try later!
( b ) shorter leg length .
