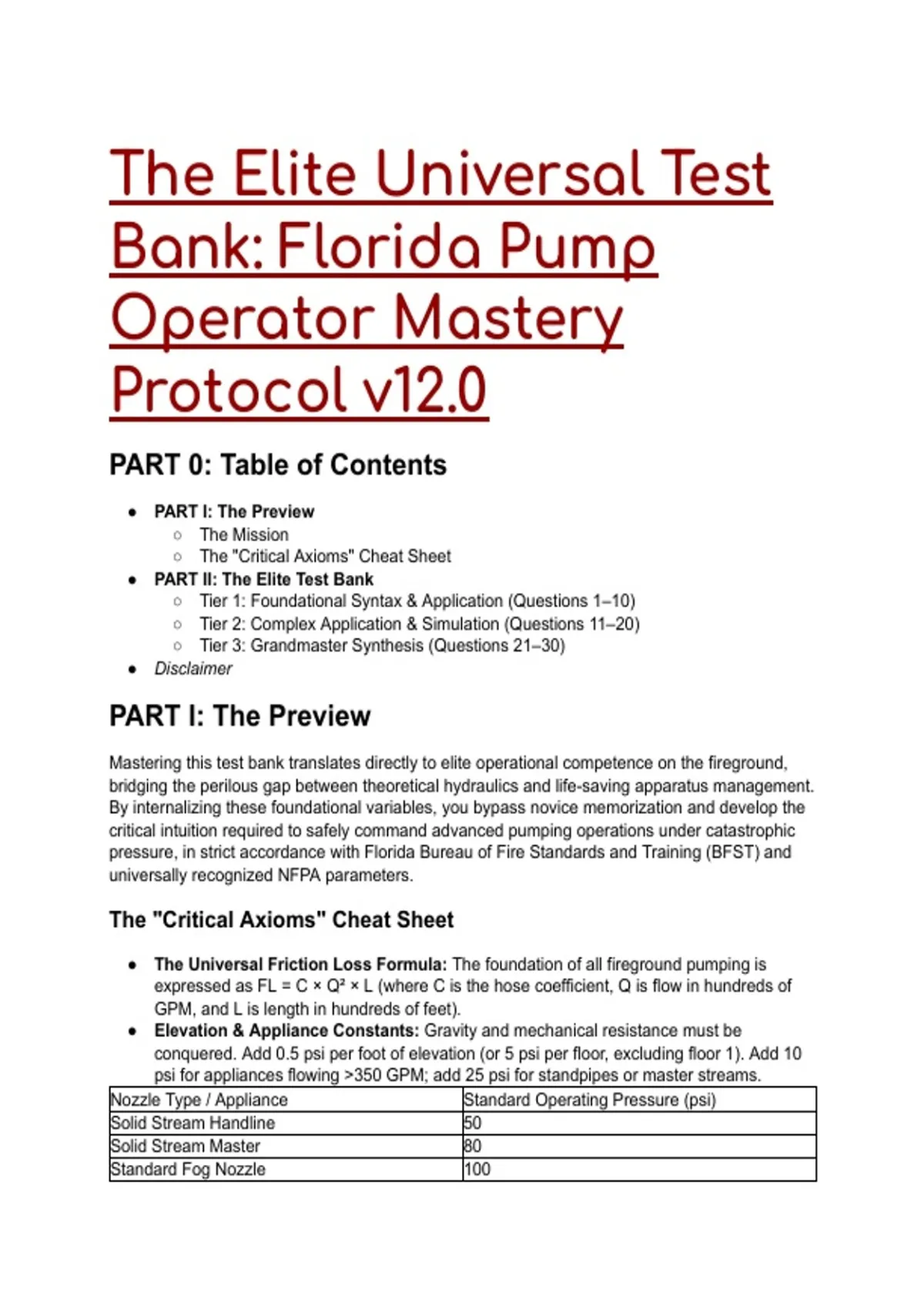

The Elite Universal Test
Bank: Florida Pump
Operator Mastery
Protocol v12.0
PART 0: Table of Contents
● PART I: The Preview
○ The Mission
○ The "Critical Axioms" Cheat Sheet
● PART II: The Elite Test Bank
○ Tier 1: Foundational Syntax & Application (Questions 1–10)
○ Tier 2: Complex Application & Simulation (Questions 11–20)
○ Tier 3: Grandmaster Synthesis (Questions 21–30)
● Disclaimer
PART I: The Preview
Mastering this test bank translates directly to elite operational competence on the fireground,
bridging the perilous gap between theoretical hydraulics and life-saving apparatus management.
By internalizing these foundational variables, you bypass novice memorization and develop the
critical intuition required to safely command advanced pumping operations under catastrophic
pressure, in strict accordance with Florida Bureau of Fire Standards and Training (BFST) and
universally recognized NFPA parameters.
The "Critical Axioms" Cheat Sheet
● The Universal Friction Loss Formula: The foundation of all fireground pumping is
expressed as FL = C × Q² × L (where C is the hose coefficient, Q is flow in hundreds of
GPM, and L is length in hundreds of feet).
● Elevation & Appliance Constants: Gravity and mechanical resistance must be
conquered. Add 0.5 psi per foot of elevation (or 5 psi per floor, excluding floor 1). Add 10
psi for appliances flowing >350 GPM; add 25 psi for standpipes or master streams.
Nozzle Type / Appliance Standard Operating Pressure (psi)
Solid Stream Handline 50
Solid Stream Master 80
Standard Fog Nozzle 100
,Nozzle Type / Appliance Standard Operating Pressure (psi)
Low-Pressure Fog 75
Standpipe / Elevated Master 25
Heavy Appliance (>350 GPM) 10
Hose Diameter (Inches) Friction Loss Coefficient (C)
1¾ 15.5
2½ 2.0
3 (with 2 ½ couplings) 0.8
4 0.2
5 0.08
● The Vacuum Benchmark (NFPA 1911): A dry vacuum test requires pulling 22 inches of
mercury (-75kPa). A loss exceeding 10 inches within 5 minutes mandates taking the
apparatus out of service immediately.
● Dual vs. Tandem Pumping: Dual Pumping connects pumpers intake-to-intake to share
residual hydrant capacity. Tandem Pumping connects discharge-to-intake in series to
boost extreme pressure.
PART II: The Elite Test Bank
Tier 1: Foundational Syntax & Application
Q1: A pump operator is tasked with supplying a 1¾-inch crosslay stretched 200 feet, equipped
with a standard fog nozzle flowing 150 GPM. Based on the principles of fireground hydraulics,
what is the MOST ACCURATE Pump Discharge Pressure (PDP) required? A) 115 psi B) 170
psi C) 135 psi D) 205 psi
● Answer: B (170 psi)
● Distractor Analysis:
○ A is incorrect: This calculation uses a smooth bore nozzle pressure (50 psi) instead
of the mandatory 100 psi required for standard fog nozzles, which would result in a
dangerously flaccid stream.
○ B is correct: NP (100) + FL. FL = 15.5 × (1.5)² × 2 = 15.5 × 2.25 × 2 = 69.75 (round
to 70). 100 + 70 = 170 psi.
○ D is incorrect: This factors in an unnecessary 50% length increase, a common
novice error when miscalculating the L variable in hundreds of feet rather than
direct footage.
The Mentor's Analysis: The relationship between hose diameter and friction loss is
exponential, not linear. When facing small-diameter hose calculations, the immediate priority is
locking in the correct coefficient (C = 15.5 for 1¾-inch). By utilizing the Pump Discharge
Pressure formula (PDP = NP + FL), you bypass the common trap of under-pressurizing critical
attack lines, which can lead to thermal injuries for interior crews. Professional/Academic
Intuition: Always isolate the nozzle pressure requirement before calculating friction loss;
a flawless hose calculation is useless if the tip pressure is wrong.
Q2: During a pre-trip inspection, a driver/operator performs a dry vacuum test on the apparatus
in accordance with NFPA 1911 standards. The pump achieves 22 inches of mercury. After 5
minutes, the gauge reads 10 inches of mercury. Which action is the MOST APPROPRIATE? A)
, Place the apparatus out of service immediately due to excessive vacuum leakage. B) Proceed
with operations, as the drop is exactly at the allowable limit. C) Engage the positive
displacement primer for an additional 15 seconds to reseal the pump. D) Document the reading
and retest the apparatus at the end of the shift.
● Answer: A (Place the apparatus out of service immediately due to excessive vacuum
leakage.)
● Distractor Analysis:
○ A is correct: NFPA 1911 allows a maximum drop of 10 inches in 5 minutes.
Dropping from 22 to 10 is a 12-inch loss, constituting a definitive, critical failure.
○ B is incorrect: The drop is 12 inches, not 10. This is a highly plausible distractor
resulting from a dangerous misreading of the compound gauge's starting and
ending parameters.
○ D is incorrect: Documenting a failed critical safety test and delaying action is a
gross violation of maintenance protocols and NFPA standards.
The Mentor's Analysis: Integrity of the pump casing and valves is non-negotiable for drafting
operations, as the introduction of atmospheric air will instantly destroy a draft. When facing a
vacuum test, the immediate priority is verifying that the compound gauge holds negative
pressure within strict tolerances. By utilizing NFPA 1911 standards, you bypass the common
trap of normalizing mechanical deterioration. Professional/Academic Intuition: A pump that
cannot hold its vacuum cannot be trusted to lift water during a critical drafting operation.
Q3: An engine is responding to an emergency on a major highway. The driver/operator is
utilizing the electronic siren and air horns. According to recognized emergency vehicle driving
dynamics, at what speed does the apparatus begin to "outrun" the effective range of its audible
warning devices? A) 40 mph B) 60 mph C) 50 mph D) 65 mph
● Answer: C (50 mph)
● Distractor Analysis:
○ A is incorrect: While extreme caution is always advised, physics dictates the sound
wave threshold is breached at a slightly higher velocity.
○ B is incorrect: 60 mph severely exceeds the documented threshold, placing the
apparatus in a highly dangerous zone where civilian vehicles will not hear the
approach in time.
○ D is incorrect: 65 mph is an outdated legacy speed limit often mistakenly associated
with highway response protocols rather than acoustic physics.
The Mentor's Analysis: Emergency response driving requires an acute awareness of sensory
physics and acoustic limitations. When facing high-speed responses, the immediate priority is
recognizing that audible warning devices lose forward efficacy due to the Doppler effect and
wind resistance. By utilizing speed modulation, you bypass the common trap of over-driving
your sirens and causing preventable intersection collisions. Professional/Academic Intuition:
Speed negates sound; visual warning devices and defensive driving become your
primary tools above 50 mph.
Q4: Two pumpers are dispatched to a massive commercial structure fire. The Incident
Commander orders them to share a strong municipal hydrant to maximize water usage. The
pumpers connect their large diameter intakes together. Which terminology MOST ACCURATEly
describes this operation? A) Tandem Pumping B) Relay Pumping C) Dual Pumping D) Manifold
Pumping
● Answer: C (Dual Pumping)
● Distractor Analysis:
○ A is incorrect: Tandem Pumping involves connecting the discharge of one pumper
