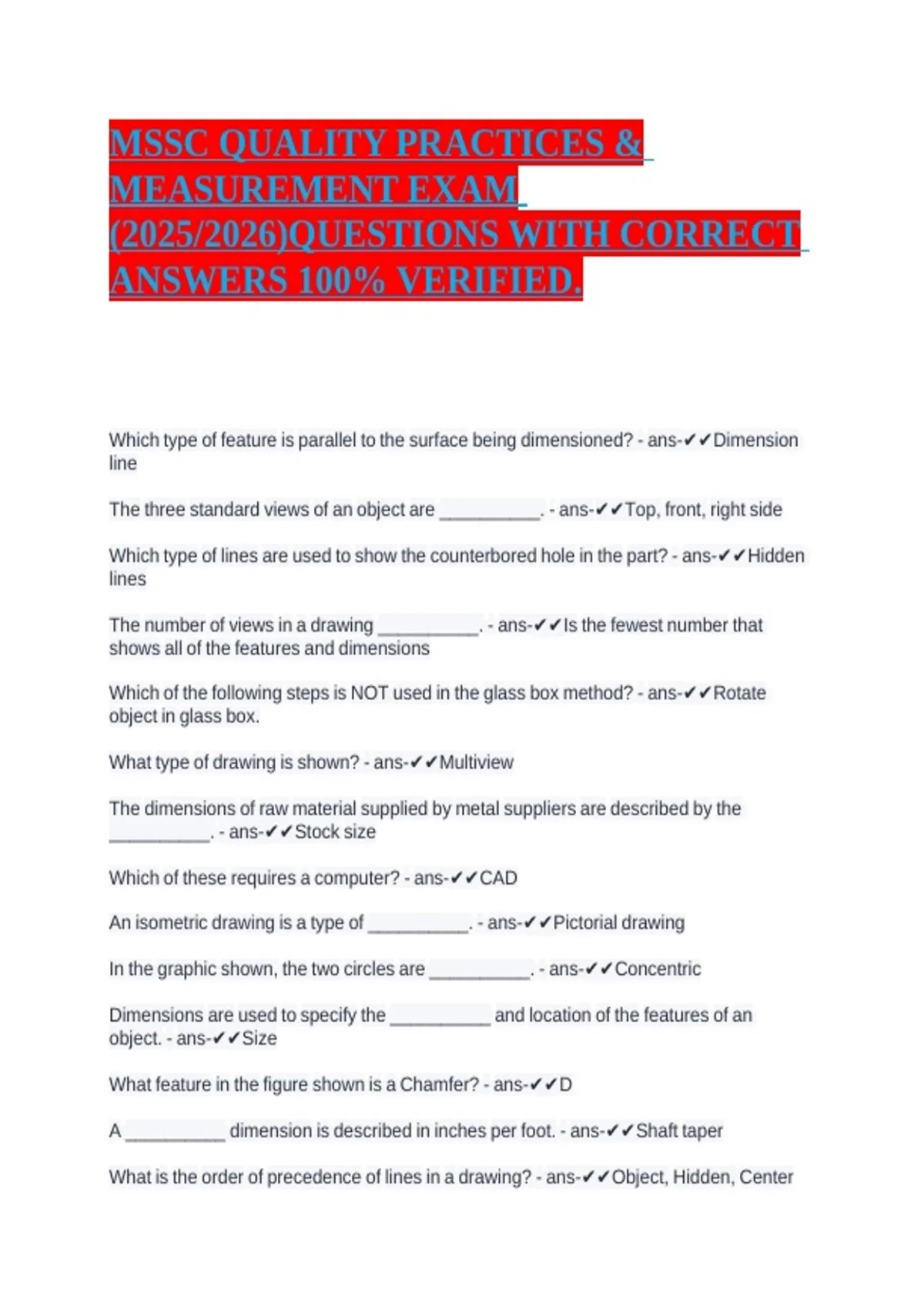

MSSC QUALITY PRACTICES &
MEASUREMENT EXAM
(2025/2026)QUESTIONS WITH CORRECT
ANSWERS 100% VERIFIED.
Which-type-of-feature-is-parallel-to-the-surface-being-dimensioned?---ans-✔✔Dimension-
line
The-three-standard-views-of-an-object-are-__________.---ans-✔✔Top,-front,-right-side
Which-type-of-lines-are-used-to-show-the-counterbored-hole-in-the-part?---ans-✔✔Hidden-
lines
The-number-of-views-in-a-drawing-__________.---ans-✔✔Is-the-fewest-number-that-
shows-all-of-the-features-and-dimensions
Which-of-the-following-steps-is-NOT-used-in-the-glass-box-method?---ans-✔✔Rotate-
object-in-glass-box.
What-type-of-drawing-is-shown?---ans-✔✔Multiview
The-dimensions-of-raw-material-supplied-by-metal-suppliers-are-described-by-the-
__________.---ans-✔✔Stock-size
Which-of-these-requires-a-computer?---ans-✔✔CAD
An-isometric-drawing-is-a-type-of-__________.---ans-✔✔Pictorial-drawing
In-the-graphic-shown,-the-two-circles-are-__________.---ans-✔✔Concentric
Dimensions-are-used-to-specify-the-__________-and-location-of-the-features-of-an-
object.---ans-✔✔Size
What-feature-in-the-figure-shown-is-a-Chamfer?---ans-✔✔D
A-__________-dimension-is-described-in-inches-per-foot.---ans-✔✔Shaft-taper
What-is-the-order-of-precedence-of-lines-in-a-drawing?---ans-✔✔Object,-Hidden,-Center
,Which-of-the-following-is-not-one-of-the-six-rules-for-dimensioning-an-object?---ans-
✔✔Dimension-hidden-lines
Engineers-sometimes-use-a-__________-to-measure-angles-on-a-drawing.---ans-
✔✔Protractor
What-dimension-is-indicated-in-this-graphic?---ans-✔✔Height
There-are-60-minutes-of-arc-in-one-__________.---ans-✔✔Degree
In-manufacturing,-a-blueprint-is-also-called-what?---ans-✔✔A-technical-drawing
The-distance-across-the-flats-of-the-hex-head-shown-in-the-part-drawing-is-__________-
inches.---ans-✔✔2-¼
The-length-of-the-part-shown-in-the-drawing-is-__________-inches.---ans-✔✔9-¾
Which-type-best-describes-the-line-indicated-in-the-graphic?---ans-✔✔Object-Line
Which-of-the-following-bolts-is-a-grade-2?---ans-✔✔A
The-hole-shown-in-the-graphic-is-a-__________-hole.---ans-✔✔Counterbore
What-are-the-two-types-of-assembly-drawings?---ans-✔✔Exploded-and-basic
A-sectional-view-__________.---ans-✔✔All-of-the-above
Which-of-the-following-is-not-used-to-specify-a-threaded-fastener?---ans-✔✔Minor-
diameter
Two-types-of-threads-are-__________.---ans-✔✔Internal-and-external
In-the-assembly-drawing-shown,-part-3-screws-into-part-__________.---ans-✔✔4
The-material-that-will-be-used-to-create-the-gear-is-indicated-in-the-part-drawing's-title-
block-to-be-__________.---ans-✔✔Cast-iron
In-a-threaded-fastener-assembly-what-is-designed-to-protect-the-threads?---ans-✔✔Shank
Manufacturing-workers-can-use-a-calibrated-torque-wrench-to-__________.---ans-
✔✔Measure-the-proper-amount-of-torque
The-part-of-a-drawing-that-indicates-that-the-drawing-has-the-most-up-to-date-information-
on-it-is-__________.---ans-✔✔Drawing-revision-level
, What-type-hole-is-shown-in-the-figure?---ans-✔✔Counterbored
The-minor-diameter-of-a-screw-thread-is-measured-at-the-__________.---ans-✔✔Root-of-
screw-thread
Section-lines-in-a-sectional-view-are-__________.---ans-✔✔All-of-the-above
To-establish-on-a-drawing-that-1/4-inch-equals-1-inch,-the-designer-would-write-
__________.---ans-✔✔1/4=1
Metals-treated-by-__________-processes-become-soft.---ans-✔✔Annealing
Where-would-you-look-in-a-title-block-to-see-if-there-has-been-changes?---ans-
✔✔Revision-number
Section-lines-on-a-blueprint-indicate-__________.---ans-✔✔A-surface-that-has-been-cut
A-screw-with-fine-thread-is-represented-on-a-drawing-with-what-designation?---ans-
✔✔UNF
What-is-the-depth-of-the-countersink-in-the-image?---ans-✔✔0.12-inches
What-is-placed-at-the-arrowheads-of-the-cutting-plane-line-to-identify-the-cutting-plane-with-
the-proper-sectional-view?---ans-✔✔Capital-letter
Assembly-drawings-rely-on-reference-letters-or-numbers-to-__________.---ans-
✔✔Identify-the-individual-parts
If-a-feature-on-a-drawing-is-drawn-3-inches-long-and-the-scale-is-1:4,-what-is-the-actual-
dimension-on-the-object?---ans-✔✔12"
The-specifications-for-the-length-of-produced-parts-is-5.146-inches-with-a-tolerance-of-±-
0.005.-Is-a-part-that-has-been-produced-at-5.140-inches-out-of-spec?---ans-✔✔Yes,-it-is-
out-of-spec
Which-dimension-on-a-production-drawing-has-the-most-accuracy?---ans-✔✔The-one-
with-the-most-"tolerance"-decimal-places
A-datum-feature-symbol-can-be-connected-to-__________.---ans-✔✔Any-of-the-above
The-graphic-shown-is-an-example-of-__________-dimensioning.---ans-✔✔Baseline
If-4-percent-of-1200-production-pieces-are-out-of-spec,-how-many-are-out-of-spec?---ans-
✔✔48
