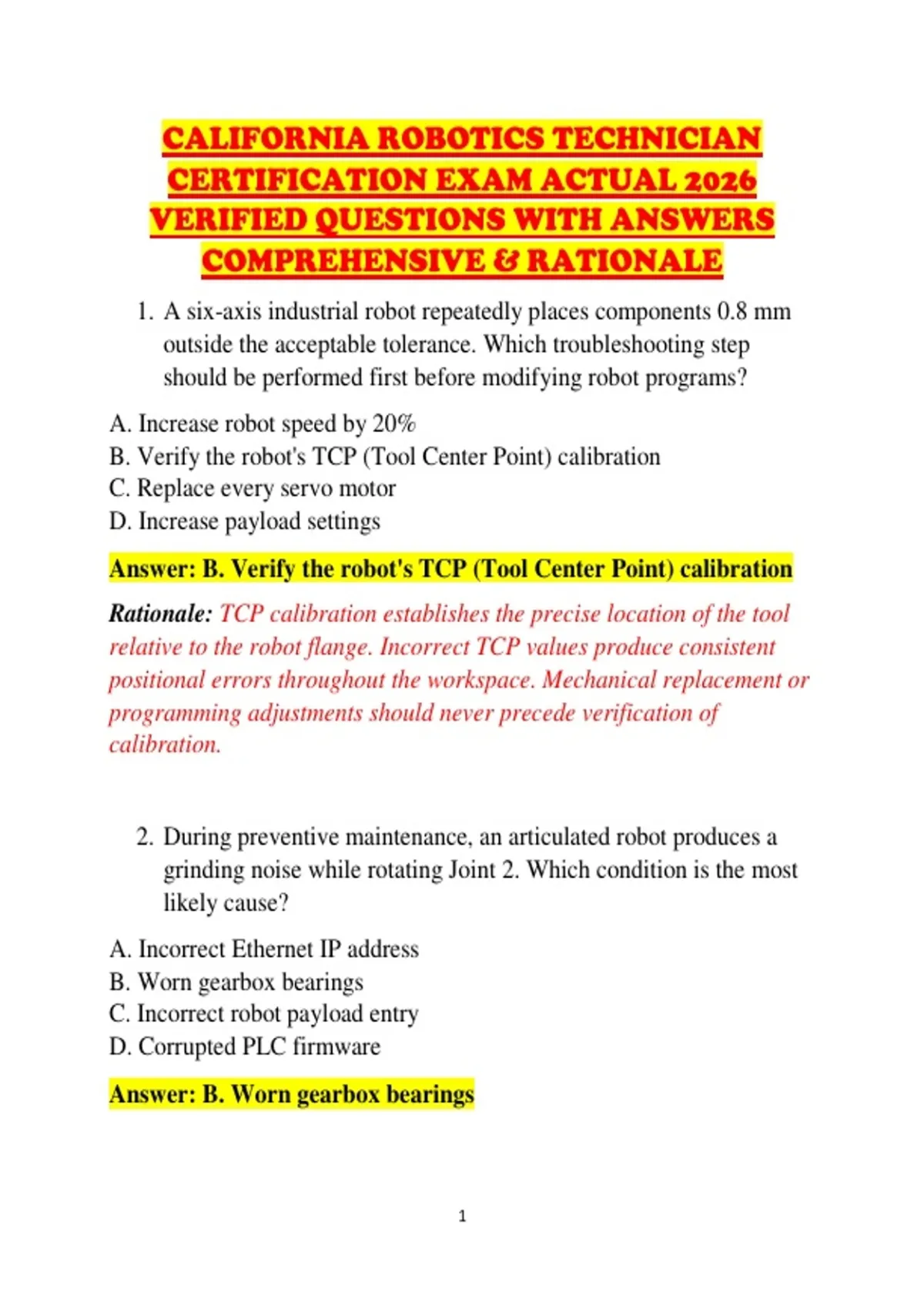

CALIFORNIA ROBOTICS TECHNICIAN
CERTIFICATION EXAM ACTUAL 2026
VERIFIED QUESTIONS WITH ANSWERS
COMPREHENSIVE & RATIONALE
1. A six-axis industrial robot repeatedly places components 0.8 mm
outside the acceptable tolerance. Which troubleshooting step
should be performed first before modifying robot programs?
A. Increase robot speed by 20%
B. Verify the robot's TCP (Tool Center Point) calibration
C. Replace every servo motor
D. Increase payload settings
Answer: B. Verify the robot's TCP (Tool Center Point) calibration
Rationale: TCP calibration establishes the precise location of the tool
relative to the robot flange. Incorrect TCP values produce consistent
positional errors throughout the workspace. Mechanical replacement or
programming adjustments should never precede verification of
calibration.
2. During preventive maintenance, an articulated robot produces a
grinding noise while rotating Joint 2. Which condition is the most
likely cause?
A. Incorrect Ethernet IP address
B. Worn gearbox bearings
C. Incorrect robot payload entry
D. Corrupted PLC firmware
Answer: B. Worn gearbox bearings
1
,Rationale: Grinding noises usually indicate mechanical wear inside
reducers, bearings, or gears. Communication settings and software
issues cannot generate mechanical grinding sounds.
3. What is the primary purpose of encoder feedback in industrial
robotic servo systems?
A. Increase hydraulic pressure
B. Measure motor temperature
C. Provide precise position information for closed-loop control
D. Reduce PLC scan time
Answer: C. Provide precise position information for closed-loop
control
Rationale: Servo encoders continuously report shaft position, allowing
the servo controller to compare commanded and actual position and
make precise corrections for accurate motion.
4. A robot repeatedly trips on "Following Error" alarms during
acceleration. What is the most probable cause?
A. Improper lubrication
B. Servo cannot maintain commanded trajectory
C. Incorrect IP subnet
D. Low pendant battery
Answer: B. Servo cannot maintain commanded trajectory
Rationale: Following error occurs when actual motor position deviates
beyond acceptable tolerance from commanded position due to excessive
load, tuning issues, mechanical binding, or servo malfunction.
2
, 5. Which sensor is most commonly used to verify the presence of
metallic parts in automated assembly?
A. Capacitive sensor
B. Photoelectric sensor
C. Inductive proximity sensor
D. Ultrasonic sensor
Answer: C. Inductive proximity sensor
Rationale: Inductive proximity sensors detect metallic objects through
electromagnetic fields and are highly reliable for industrial automation.
6. Why is payload configuration critical after installing a new end-of-
arm tool?
A. It changes Ethernet speed
B. It allows accurate dynamic motion calculations
C. It updates PLC firmware
D. It increases safety fence height
Answer: B. It allows accurate dynamic motion calculations
Rationale: Robot controllers use payload data to calculate inertia,
acceleration, braking, and torque requirements for accurate and safe
operation.
7. Which industrial communication protocol is specifically designed
for deterministic Ethernet communication?
A. HTTP
B. FTP
C. EtherCAT
D. SMTP
3
, Answer: C. EtherCAT
Rationale: EtherCAT provides high-speed deterministic communication
essential for synchronized servo motion and industrial automation.
8. A robot unexpectedly stops when entering Automatic mode despite
no faults. Which safety device should be inspected first?
A. Robot paint color
B. Safety gate interlock
C. Keyboard
D. Operator chair
Answer: B. Safety gate interlock
Rationale: Open or faulty safety gate interlocks interrupt safety circuits,
preventing robot motion in Automatic mode.
9. Which component converts AC input power into controlled three-
phase power for servo motors?
A. Contactor
B. Servo drive
C. Limit switch
D. Circuit breaker
Answer: B. Servo drive
Rationale: Servo drives rectify incoming AC power and precisely
regulate motor current, voltage, and frequency for controlled motion.
10. What does "repeatability" describe for an industrial robot?
A. Maximum reach
B. Ability to return to the same programmed position repeatedly
4
CERTIFICATION EXAM ACTUAL 2026
VERIFIED QUESTIONS WITH ANSWERS
COMPREHENSIVE & RATIONALE
1. A six-axis industrial robot repeatedly places components 0.8 mm
outside the acceptable tolerance. Which troubleshooting step
should be performed first before modifying robot programs?
A. Increase robot speed by 20%
B. Verify the robot's TCP (Tool Center Point) calibration
C. Replace every servo motor
D. Increase payload settings
Answer: B. Verify the robot's TCP (Tool Center Point) calibration
Rationale: TCP calibration establishes the precise location of the tool
relative to the robot flange. Incorrect TCP values produce consistent
positional errors throughout the workspace. Mechanical replacement or
programming adjustments should never precede verification of
calibration.
2. During preventive maintenance, an articulated robot produces a
grinding noise while rotating Joint 2. Which condition is the most
likely cause?
A. Incorrect Ethernet IP address
B. Worn gearbox bearings
C. Incorrect robot payload entry
D. Corrupted PLC firmware
Answer: B. Worn gearbox bearings
1
,Rationale: Grinding noises usually indicate mechanical wear inside
reducers, bearings, or gears. Communication settings and software
issues cannot generate mechanical grinding sounds.
3. What is the primary purpose of encoder feedback in industrial
robotic servo systems?
A. Increase hydraulic pressure
B. Measure motor temperature
C. Provide precise position information for closed-loop control
D. Reduce PLC scan time
Answer: C. Provide precise position information for closed-loop
control
Rationale: Servo encoders continuously report shaft position, allowing
the servo controller to compare commanded and actual position and
make precise corrections for accurate motion.
4. A robot repeatedly trips on "Following Error" alarms during
acceleration. What is the most probable cause?
A. Improper lubrication
B. Servo cannot maintain commanded trajectory
C. Incorrect IP subnet
D. Low pendant battery
Answer: B. Servo cannot maintain commanded trajectory
Rationale: Following error occurs when actual motor position deviates
beyond acceptable tolerance from commanded position due to excessive
load, tuning issues, mechanical binding, or servo malfunction.
2
, 5. Which sensor is most commonly used to verify the presence of
metallic parts in automated assembly?
A. Capacitive sensor
B. Photoelectric sensor
C. Inductive proximity sensor
D. Ultrasonic sensor
Answer: C. Inductive proximity sensor
Rationale: Inductive proximity sensors detect metallic objects through
electromagnetic fields and are highly reliable for industrial automation.
6. Why is payload configuration critical after installing a new end-of-
arm tool?
A. It changes Ethernet speed
B. It allows accurate dynamic motion calculations
C. It updates PLC firmware
D. It increases safety fence height
Answer: B. It allows accurate dynamic motion calculations
Rationale: Robot controllers use payload data to calculate inertia,
acceleration, braking, and torque requirements for accurate and safe
operation.
7. Which industrial communication protocol is specifically designed
for deterministic Ethernet communication?
A. HTTP
B. FTP
C. EtherCAT
D. SMTP
3
, Answer: C. EtherCAT
Rationale: EtherCAT provides high-speed deterministic communication
essential for synchronized servo motion and industrial automation.
8. A robot unexpectedly stops when entering Automatic mode despite
no faults. Which safety device should be inspected first?
A. Robot paint color
B. Safety gate interlock
C. Keyboard
D. Operator chair
Answer: B. Safety gate interlock
Rationale: Open or faulty safety gate interlocks interrupt safety circuits,
preventing robot motion in Automatic mode.
9. Which component converts AC input power into controlled three-
phase power for servo motors?
A. Contactor
B. Servo drive
C. Limit switch
D. Circuit breaker
Answer: B. Servo drive
Rationale: Servo drives rectify incoming AC power and precisely
regulate motor current, voltage, and frequency for controlled motion.
10. What does "repeatability" describe for an industrial robot?
A. Maximum reach
B. Ability to return to the same programmed position repeatedly
4
