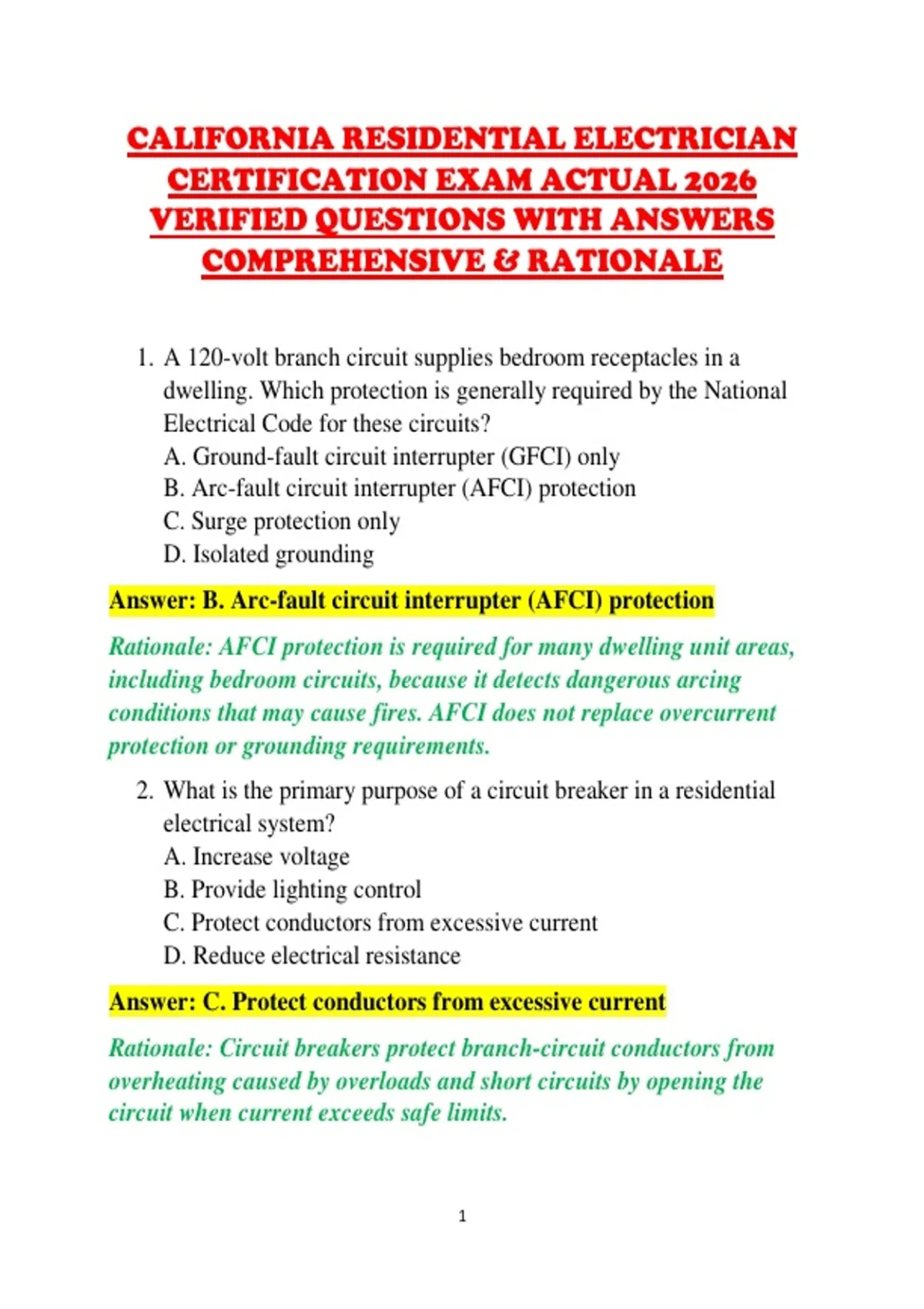

CALIFORNIA RESIDENTIAL ELECTRICIAN
CERTIFICATION EXAM ACTUAL 2026
VERIFIED QUESTIONS WITH ANSWERS
COMPREHENSIVE & RATIONALE
1. A 120-volt branch circuit supplies bedroom receptacles in a
dwelling. Which protection is generally required by the National
Electrical Code for these circuits?
A. Ground-fault circuit interrupter (GFCI) only
B. Arc-fault circuit interrupter (AFCI) protection
C. Surge protection only
D. Isolated grounding
Answer: B. Arc-fault circuit interrupter (AFCI) protection
Rationale: AFCI protection is required for many dwelling unit areas,
including bedroom circuits, because it detects dangerous arcing
conditions that may cause fires. AFCI does not replace overcurrent
protection or grounding requirements.
2. What is the primary purpose of a circuit breaker in a residential
electrical system?
A. Increase voltage
B. Provide lighting control
C. Protect conductors from excessive current
D. Reduce electrical resistance
Answer: C. Protect conductors from excessive current
Rationale: Circuit breakers protect branch-circuit conductors from
overheating caused by overloads and short circuits by opening the
circuit when current exceeds safe limits.
1
, 3. A conductor carrying current back to the source in a normal circuit
is called the:
A. Equipment grounding conductor
B. Neutral conductor
C. Bonding jumper
D. Grounding electrode conductor
Answer: B. Neutral conductor
Rationale: The neutral conductor is the grounded conductor that
normally carries current back to the source in a 120-volt or multiwire
circuit.
4. What is the minimum copper conductor size commonly used for a
20-ampere residential branch circuit?
A. 14 AWG
B. 12 AWG
C. 10 AWG
D. 8 AWG
Answer: B. 12 AWG
Rationale: A 20-ampere branch circuit generally requires 12 AWG
copper conductors unless special conditions permit another method.
5. The grounding electrode system of a dwelling is intended to:
A. Increase circuit voltage
B. Provide a path to earth for lightning and fault energy
C. Replace circuit breakers
D. Eliminate neutral conductors
Answer: B. Provide a path to earth for lightning and fault energy
Rationale: Grounding electrodes connect the electrical system to earth
and assist with stabilizing voltage and safely dissipating certain fault
and surge currents.
2
, 6. What is the purpose of bonding metal electrical enclosures?
A. Make them decorative
B. Increase resistance
C. Create a low-impedance fault path
D. Reduce voltage to zero
Answer: C. Create a low-impedance fault path
Rationale: Bonding connects conductive metal parts so fault current
can return quickly to the source and trip protective devices.
7. A GFCI device primarily protects people from:
A. Overvoltage
B. Electric shock caused by current leakage
C. Low battery voltage
D. Mechanical damage
Answer: B. Electric shock caused by current leakage
Rationale: GFCIs monitor current leaving and returning through
conductors. A difference indicates leakage, and the device disconnects
power rapidly.
8. Which conductor is normally identified by white or gray
insulation?
A. Ungrounded conductor
B. Equipment grounding conductor
C. Grounded conductor
D. Switch leg conductor
Answer: C. Grounded conductor
Rationale: The grounded conductor, commonly called the neutral, is
identified using white or gray insulation markings.
9. What is the purpose of an electrical service disconnect?
A. Provide a means to shut off power to the building
B. Increase service capacity
3
