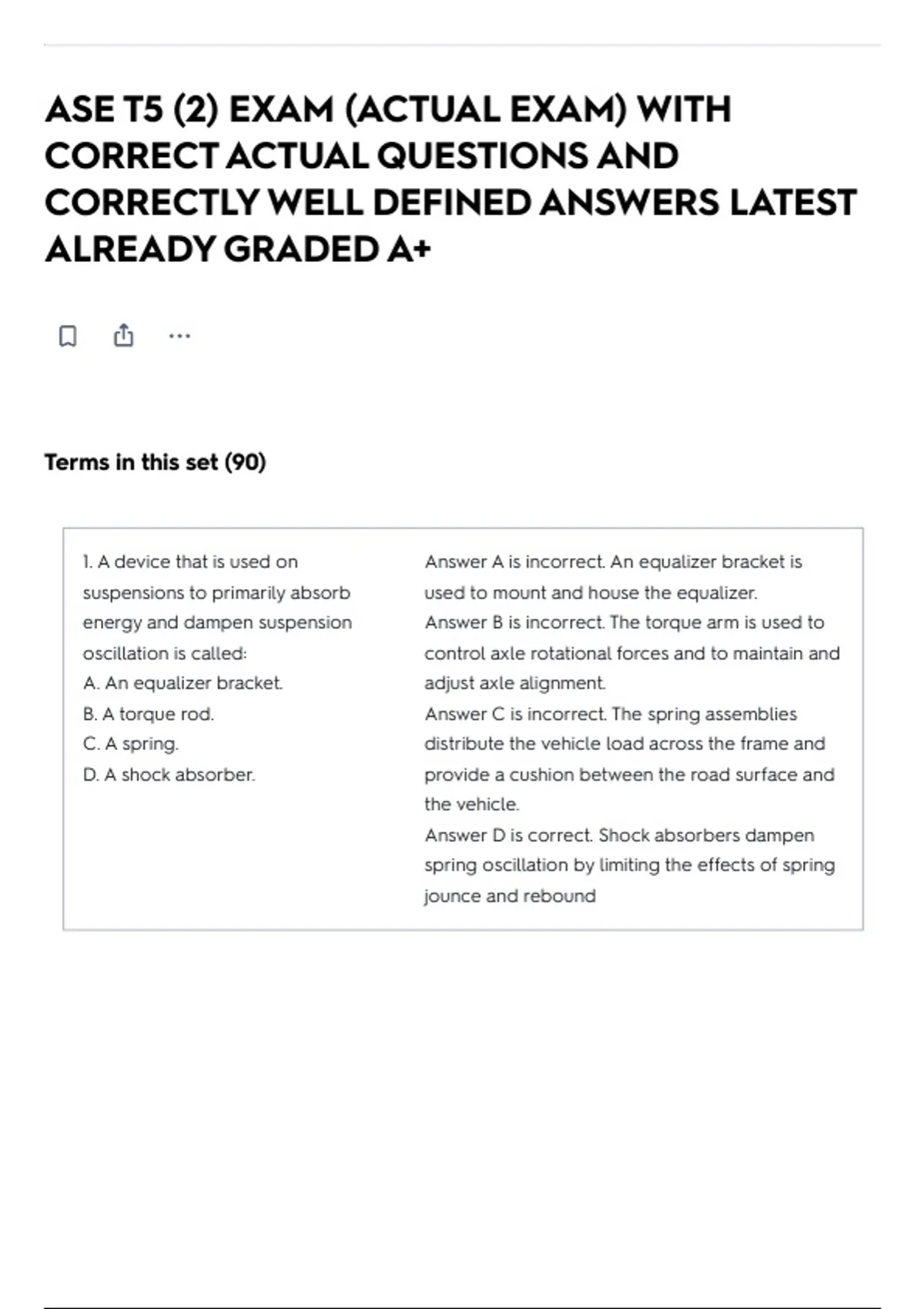

ASE T5 (2) EXAM (ACTUAL EXAM) WITH
CORRECT ACTUAL QUESTIONS AND
CORRECTLY WELL DEFINED ANSWERS LATEST
ALREADY GRADED A+
Terms in this set (90)
1. A device that is used on Answer A is incorrect. An equalizer bracket is
suspensions to primarily absorb used to mount and house the equalizer.
energy and dampen suspension Answer B is incorrect. The torque arm is used to
oscillation is called: control axle rotational forces and to maintain and
A. An equalizer bracket. adjust axle alignment.
B. A torque rod. Answer C is incorrect. The spring assemblies
C. A spring. distribute the vehicle load across the frame and
D. A shock absorber. provide a cushion between the road surface and
the vehicle.
Answer D is correct. Shock absorbers dampen
spring oscillation by limiting the effects of spring
jounce and rebound
,2. Upon inspection, excessive play Answer A is incorrect. Tilt mechanisms are
in the steering column assembly on designed to allow for the column to be adjusted
a truck equipped with a tilt steering and then held securely in that position by the
column is noted. Which of the lock shoe mechanism. If the lock shoe pin and
following would be the LEAST wedge lock components are worn, excessive
LIKELY cause? movement in the steering column would be the
A. Loose lock shoe in the support result.
B. Faulty anti-lash spring in the Answer B is correct. A faulty anti-lash spring
centering sphere might cause the housing to be loose, but it would
C. Loose tilt head pivot pins not cause excessive play in the steering column
D. Column mounting bracket bolts assembly.
loose Answer C is incorrect. The main housing pivots on
the pivot screws located on each side of the
main housing support bracket. If the pins become
worn, the steering column would have excessive
movement because the pivot pins are not
holding the column securely in place.
Answer D is incorrect. The column mounting bolt
bracket secures the column. If the bracket bolts
become loose, the column would shift and have
movement in the steering column assembly.
4. While discussing steering system Answer A is incorrect. There are two Ackerman
components, Technician A states arms in the steering system.
that a typical single-axle truck Answer B is correct. Only Technician B is correct.
system has one Ackerman arm. Ackerman arms control the turning radius and
Technician B says that the Ackerman allow for each front wheel to rotate on different
arm controls turning radius. Who is arcs while turning.
correct? Answer C is incorrect. Only Technician B is
A only correct.
B only Answer D is incorrect. Technician B is correct.
Both A and B
Neither A nor B
,5. A driver complains that after Answer A is incorrect. A loose idler arm will cause
hitting a bump his vehicle suddenly fluctuation in the steering when striking a bump.
veers to the right or left. Which of Answer B is incorrect. A damaged relay rod can
these is the LEAST LIKELY cause? cause veering when striking a bump because of
A. A loose idler arm looseness in the ball joint end of the relay rod.
B. A damaged relay rod Answer C is incorrect. A worn tie rod end can
C. A worn tie rod end cause veering when striking a bump because of
D. A wheel out of balance looseness in the ball joint end of the tie rod.
Answer D is correct. Wheel balance will not
cause veering, only a shaking in the steering
wheel.
6. The alignment angle that is LEAST Answer A is correct. Castor is a non tire wearing
LIKBLY to cause the greatest tire angle. Excessive Castor will be present with
wear is. steerability complaints and wheel shimmy at low
A. Castor. speeds.
B. Turning radius. Answer B is incorrect. Turning radius usually does
C. Toe-in. not cause tire wear unless the Ackerman arms are
D. Camber. damaged or the wrong Ackerman arm is
installed.
Answer C is incorrect. Toe in causes the greatest
tire wear. Improper toe adjustment causes rapid
tire wear, which may result in tire failure, collision
damage, and personal injury. Excessive toe Out
causes wear on the inside of the tire tread ribs
and a sharp feathered edge on the outside of the
tread ribs. If excessive toe-in is present, the tire
tread wear is reverses
Answer D is incorrect. Camber can cause tire
wear but not as great a tire wearing angle as
toein
, Technician A states that in order for Answer A is incorrect. The front wheels need to
a steerable suspension to steer or be in a toe-in condition.
track correctly, it is necessary for Answer B is correct. Only Technician B is correct.
the front wheels to be in a toe-out The toe setting should be between 1/16 inch and
condition. Technician B says that the 1/8 inch.
toe setting should be between 1/16 Answer C is incorrect. Only Technician B is
inch and 1/8 inch. Who is correct? correct.
A only Answer D is incorrect. Technician B is correct.
B only
Both A and B
Neither A nor B
Alignment procedures are being Answer A is correct. Only Technician A is correct.
discussed. Technician A says that You make caster more positive by installing a
installing the caster shim between shim between the axle and spring with the high
the axle and spring with the thick side at the rear.
part to the rear will make the caster Answer B is incorrect. You make the caster more
angle positive Technician B says negative by installing a shim between the axle
installing the caster shim between and spring with the low side at the rear.
the axle and spring with the low Answer C is incorrect. Only Technician A is
side at the front will make the caster correct.
angle more negative. Who is Answer D is incorrect. Technician A is correct.
correct?
A only
B only
Both A and B
Neither A nor B
