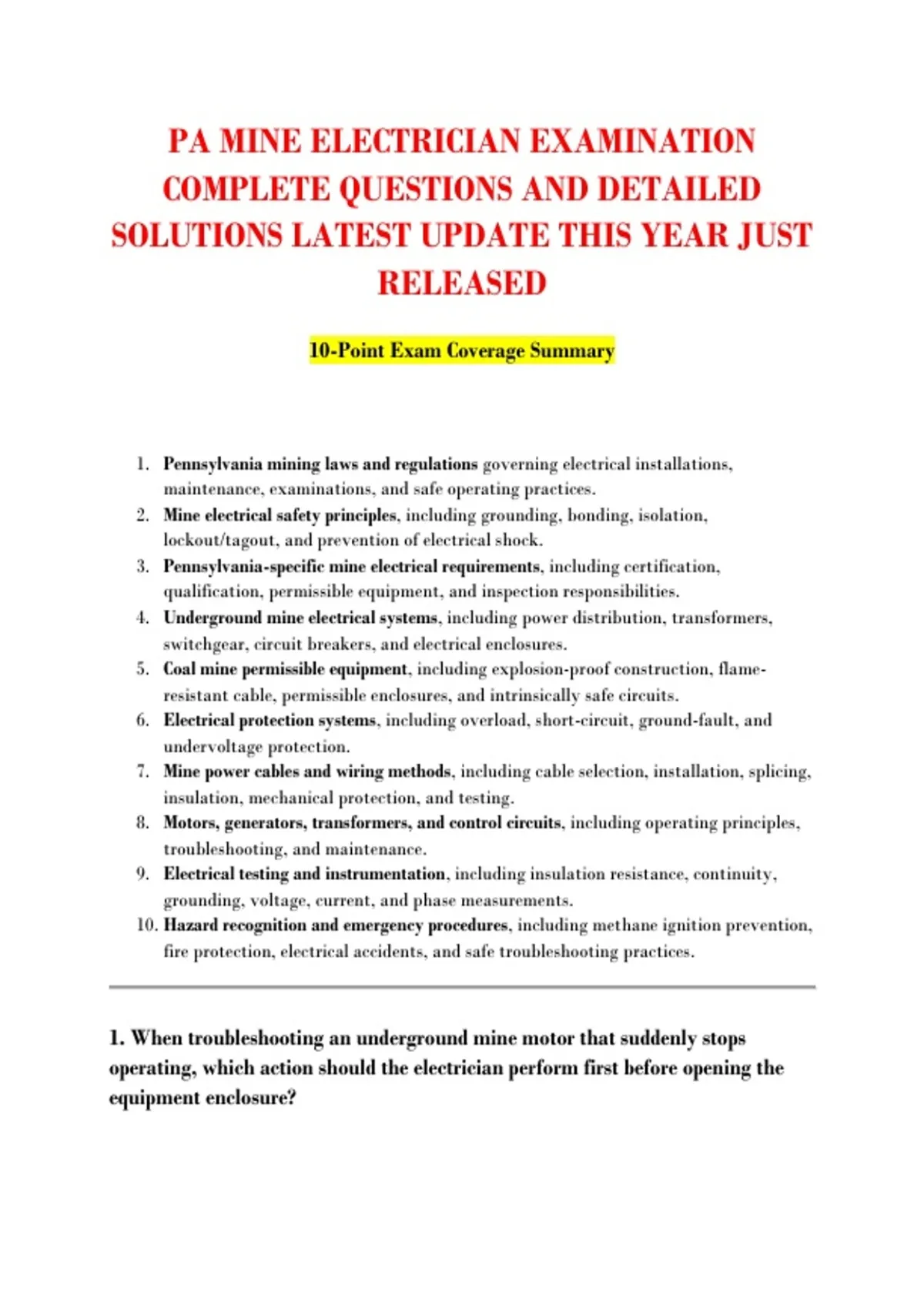

PA MINE ELECTRICIAN EXAMINATION
COMPLETE QUESTIONS AND DETAILED
SOLUTIONS LATEST UPDATE THIS YEAR JUST
RELEASED
10-Point Exam Coverage Summary
1. Pennsylvania mining laws and regulations governing electrical installations,
maintenance, examinations, and safe operating practices.
2. Mine electrical safety principles, including grounding, bonding, isolation,
lockout/tagout, and prevention of electrical shock.
3. Pennsylvania-specific mine electrical requirements, including certification,
qualification, permissible equipment, and inspection responsibilities.
4. Underground mine electrical systems, including power distribution, transformers,
switchgear, circuit breakers, and electrical enclosures.
5. Coal mine permissible equipment, including explosion-proof construction, flame-
resistant cable, permissible enclosures, and intrinsically safe circuits.
6. Electrical protection systems, including overload, short-circuit, ground-fault, and
undervoltage protection.
7. Mine power cables and wiring methods, including cable selection, installation, splicing,
insulation, mechanical protection, and testing.
8. Motors, generators, transformers, and control circuits, including operating principles,
troubleshooting, and maintenance.
9. Electrical testing and instrumentation, including insulation resistance, continuity,
grounding, voltage, current, and phase measurements.
10. Hazard recognition and emergency procedures, including methane ignition prevention,
fire protection, electrical accidents, and safe troubleshooting practices.
1. When troubleshooting an underground mine motor that suddenly stops
operating, which action should the electrician perform first before opening the
equipment enclosure?
,A. Replace the motor immediately with a spare unit
B. De-energize, isolate, lock out, and verify absence of voltage
C. Increase the circuit-breaker trip setting temporarily
D. Remove the motor's grounding conductor
Answer: B
Rationale: Electrical troubleshooting begins with establishing a safe condition.
The circuit should be de-energized, isolated, locked out, and tested to verify
that hazardous voltage is absent before the enclosure is opened.
2. Why is proper grounding particularly important in underground mining
operations where electrical equipment may operate in damp and conductive
environments?
A. It increases motor speed during heavy loading conditions
B. It eliminates the need for circuit breakers and fuses
C. It provides a low-impedance path for fault current and helps operate
protective devices
D. It prevents all electrical equipment from becoming overloaded
Answer: C
Rationale: Proper grounding helps fault current return through a controlled,
low-impedance path, allowing protective devices to operate promptly and
reducing shock hazards.
3. Before an underground mine electrician begins repairing a circuit that has
been reported as de-energized, what verification is necessary to establish that the
circuit is actually safe?
,A. Visually inspect only the circuit breaker handle
B. Test for absence of voltage using an appropriately rated instrument
C. Ask another employee whether the circuit was switched off
D. Assume the circuit is dead because the motor is not running
Answer: B
Rationale: A circuit must be tested with a properly rated instrument to verify
the absence of hazardous voltage. A switch position or verbal assurance alone is
insufficient.
4. What is the primary purpose of a circuit breaker protecting a mine electrical
circuit against excessive current caused by a short circuit?
A. To increase available fault current
B. To interrupt the circuit before excessive current causes dangerous damage
C. To maintain continuous operation regardless of faults
D. To prevent all voltage fluctuations
Answer: B
Rationale: Circuit breakers are designed to interrupt excessive current, limiting
thermal and mechanical damage and reducing the possibility of electrical fires
or equipment destruction.
5. When an electrician encounters damaged insulation on a trailing cable
supplying underground mining equipment, what should be the most appropriate
response?
A. Continue operation if the conductor is not visibly exposed
B. Cover the damaged area with ordinary adhesive tape while operating
, C. Remove the cable from service and repair it using an approved method
D. Increase the operating voltage to compensate for insulation damage
Answer: C
Rationale: Damaged insulation can expose workers to shock and create fault or
ignition hazards. The cable should be removed from service and repaired
according to applicable requirements.
6. Why are explosion-proof or permissible electrical enclosures used on certain
underground mining equipment operating in potentially hazardous atmospheres?
A. They make electrical equipment completely maintenance-free
B. They are designed to prevent internal ignition sources from igniting
surrounding hazardous atmospheres
C. They eliminate the need for methane monitoring
D. They increase electrical voltage efficiency
Answer: B
Rationale: Permissible or explosion-proof construction is intended to contain or
control ignition sources and prevent an internal electrical ignition from igniting
the surrounding atmosphere.
7. What condition should an electrician suspect when a motor repeatedly trips its
overload protection even though the motor appears mechanically free?
A. Possible electrical overload, phase imbalance, low voltage, or motor fault
B. Guaranteed correct motor operation
C. A properly functioning overload that requires no investigation
D. A disconnected grounding conductor only
