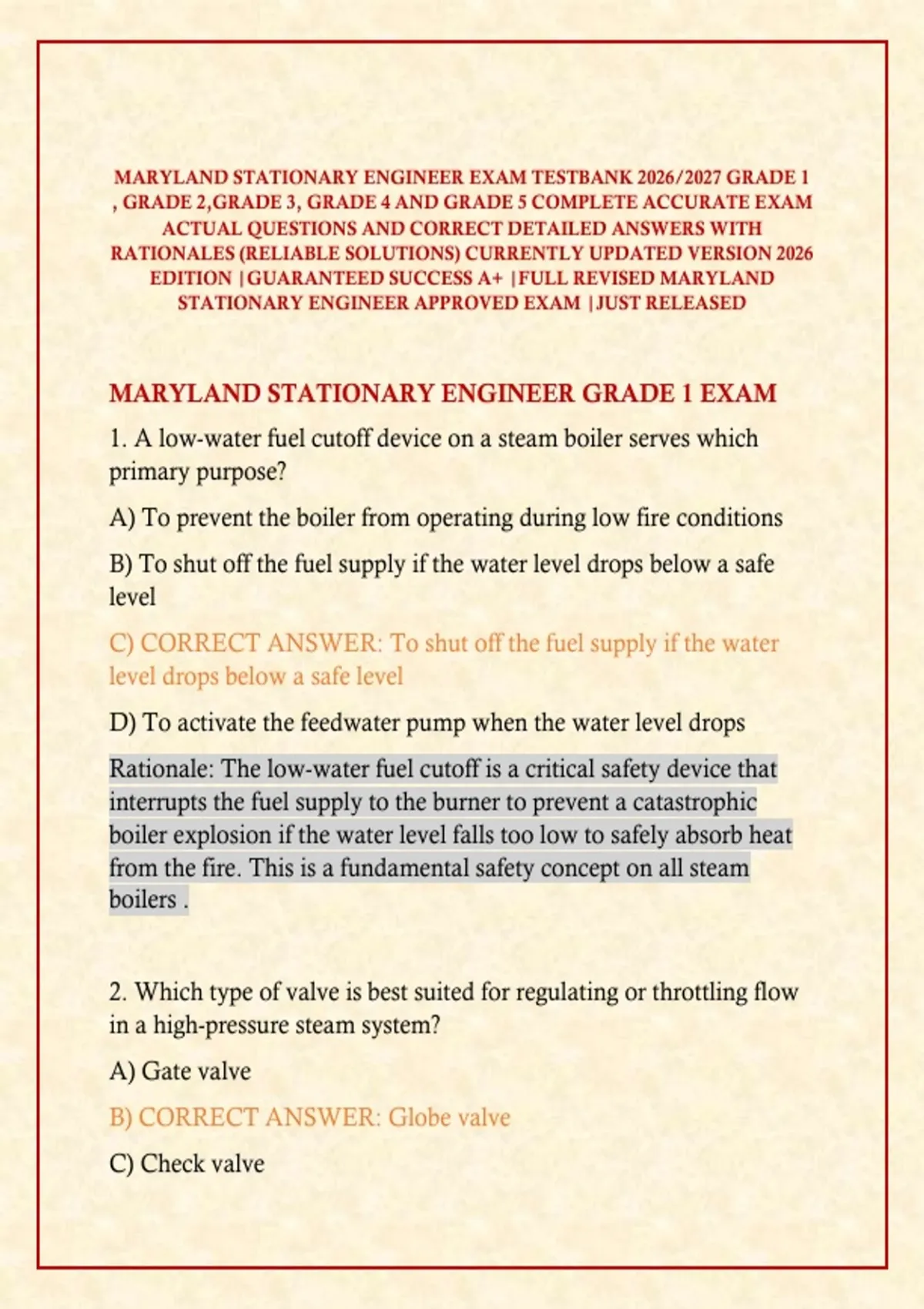

MARYLAND STATIONARY ENGINEER GRADE 1 EXAM
1. A low-water fuel cutoff device on a steam boiler serves which
primary purpose?
A) To prevent the boiler from operating during low fire conditions
B) To shut off the fuel supply if the water level drops below a safe
level
C) CORRECT ANSWER: To shut off the fuel supply if the water
level drops below a safe level
D) To activate the feedwater pump when the water level drops
Rationale: The low-water fuel cutoff is a critical safety device that
interrupts the fuel supply to the burner to prevent a catastrophic
boiler explosion if the water level falls too low to safely absorb heat
from the fire. This is a fundamental safety concept on all steam
boilers .
2. Which type of valve is best suited for regulating or throttling flow
in a high-pressure steam system?
A) Gate valve
B) CORRECT ANSWER: Globe valve
C) Check valve
,D) Plug valve
Rationale: Globe valves are designed with a baffle and seat that
allows for precise control of flow, making them ideal for throttling
applications. Gate valves, in contrast, are designed for fully open or
fully closed service and can be damaged by throttling .
3. When a boiler is operating at 125 psig, the absolute pressure is
approximately:
A) 110.3 psia
B) 125 psia
C) CORRECT ANSWER: 139.7 psia
D) 140.7 psia
Rationale: Absolute pressure is gauge pressure plus atmospheric
pressure (14.7 psi). Therefore, 125 psig + 14.7 psi = 139.7 psia .
4. The primary function of a steam trap is to:
A) Reduce steam pressure
B) Increase steam temperature
C) CORRECT ANSWER: Discharge condensate and air while
preventing the loss of live steam
D) Measure the flow of steam
Rationale: A steam trap is an automatic valve that allows
condensate, air, and non-condensable gases to be discharged from
the steam system while preventing the loss of live steam. This is
essential for efficient heat transfer and preventing water hammer .
,5. On a cooling tower, the "approach" is defined as the:
A) Difference between the hot water inlet temperature and the cold
water outlet temperature
B) CORRECT ANSWER: Difference between the cold water outlet
temperature and the ambient wet-bulb temperature
C) Difference between the ambient dry-bulb and wet-bulb
temperatures
D) Rate of water evaporation in the tower
Rationale: The approach is a key indicator of cooling tower
performance. A smaller approach indicates a more efficient cooling
tower. It measures how closely the leaving water temperature
matches the theoretical lowest possible temperature (the wet-bulb
temperature) .
6. Which of the following materials is most commonly used for the
tubes in a fire-tube boiler due to its high heat transfer capabilities and
cost-effectiveness?
A) Stainless steel
B) CORRECT ANSWER: Carbon steel
C) Copper
D) Cast iron
Rationale: Carbon steel is the standard material for fire-tube boiler
tubes because of its excellent thermal conductivity, strength at high
temperatures, and relatively low cost compared to alloys like
stainless steel. It is the most common material used in boiler
construction .
, 7. A centrifugal pump is experiencing cavitation. The most probable
cause is:
A) The discharge valve is fully closed
B) CORRECT ANSWER: The Net Positive Suction Head (NPSH)
available is less than the NPSH required
C) The pump speed is too high
D) The impeller is damaged
Rationale: Cavitation occurs when the pressure at the suction of the
pump drops below the vapor pressure of the liquid, causing bubbles
to form and then collapse violently. This condition exists when the
available NPSH is insufficient to meet the pump's required NPSH .
8. The purpose of a siphon or pigtail on a pressure gauge connection
to a steam boiler is to:
A) Amplify the pressure reading
B) CORRECT ANSWER: Protect the pressure gauge from high
steam temperatures
C) Isolate the gauge for maintenance
D) Provide a pulsation dampener
Rationale: The siphon or pigtail is filled with condensate, which acts
as a water seal. This water barrier protects the sensitive internal
components of the pressure gauge from the direct, high temperature
of the steam, ensuring accurate readings and preventing damage .
9. What is the primary function of a "purge" cycle in a boiler burner
control system before ignition?
