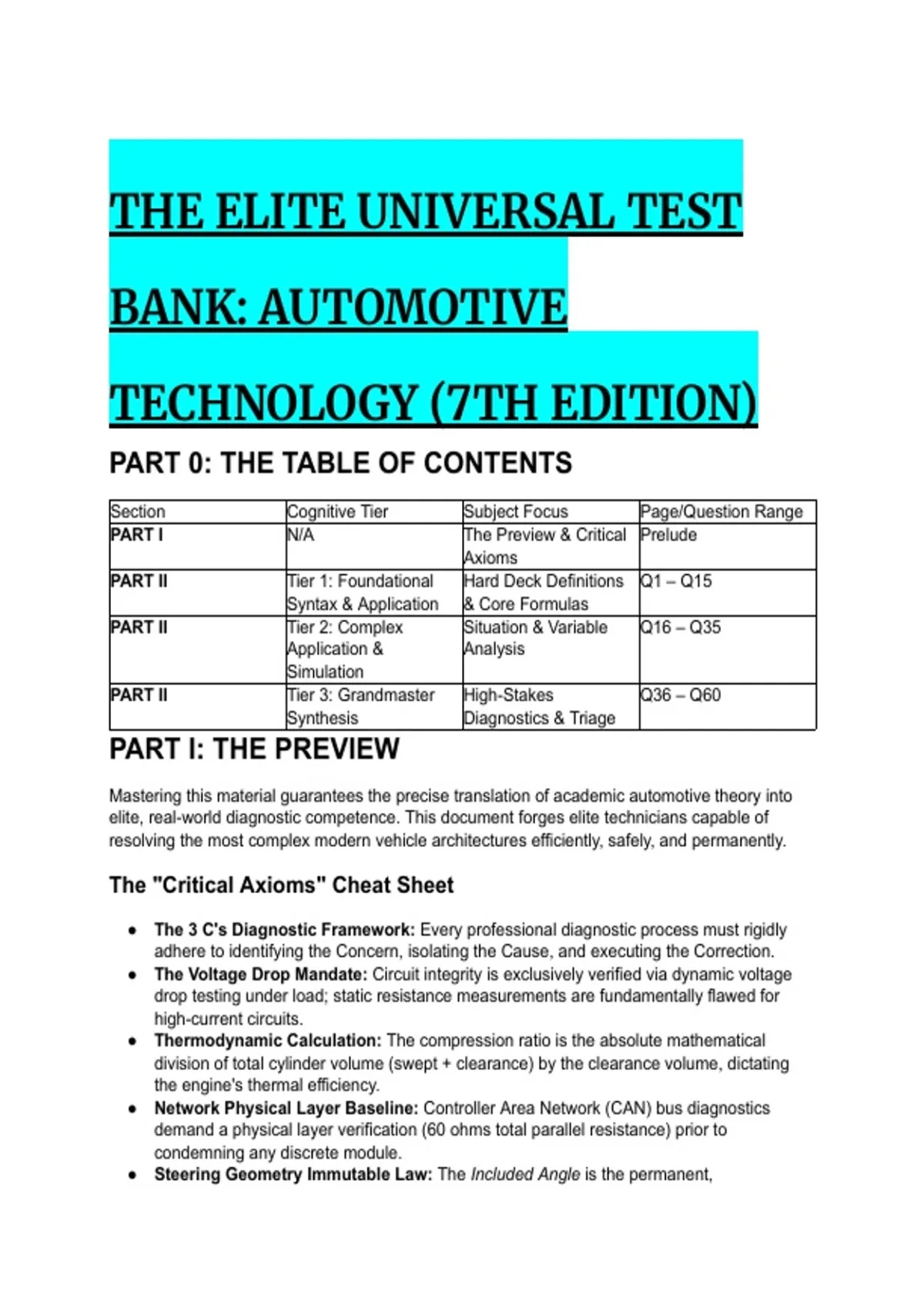

THE ELITE UNIVERSAL TEST
BANK: AUTOMOTIVE
TECHNOLOGY (7TH EDITION)
PART 0: THE TABLE OF CONTENTS
Section Cognitive Tier Subject Focus Page/Question Range
PART I N/A The Preview & Critical Prelude
Axioms
PART II Tier 1: Foundational Hard Deck Definitions Q1 – Q15
Syntax & Application & Core Formulas
PART II Tier 2: Complex Situation & Variable Q16 – Q35
Application & Analysis
Simulation
PART II Tier 3: Grandmaster High-Stakes Q36 – Q60
Synthesis Diagnostics & Triage
PART I: THE PREVIEW
Mastering this material guarantees the precise translation of academic automotive theory into
elite, real-world diagnostic competence. This document forges elite technicians capable of
resolving the most complex modern vehicle architectures efficiently, safely, and permanently.
The "Critical Axioms" Cheat Sheet
● The 3 C's Diagnostic Framework: Every professional diagnostic process must rigidly
adhere to identifying the Concern, isolating the Cause, and executing the Correction.
● The Voltage Drop Mandate: Circuit integrity is exclusively verified via dynamic voltage
drop testing under load; static resistance measurements are fundamentally flawed for
high-current circuits.
● Thermodynamic Calculation: The compression ratio is the absolute mathematical
division of total cylinder volume (swept + clearance) by the clearance volume, dictating
the engine's thermal efficiency.
● Network Physical Layer Baseline: Controller Area Network (CAN) bus diagnostics
demand a physical layer verification (60 ohms total parallel resistance) prior to
condemning any discrete module.
● Steering Geometry Immutable Law: The Included Angle is the permanent,
, non-adjustable sum of Camber and Steering Axis Inclination (SAI), serving as the primary
indicator for bent structural components.
PART II: THE ELITE TEST BANK
Tier 1 - Foundational Syntax & Application
Q1: An internal combustion engine possesses a swept cylinder volume of 600 cc and a
combustion chamber clearance volume of 60 cc. Based on the principles of engine
thermodynamics, which calculation for the static compression ratio is the MOST ACCURATE?
A) 9:1 B) 10:1 C) 11:1 D) 12:1
● The Answer: C (11:1)
● Distractor Analysis:
○ A is incorrect: Represents a random estimation rather than applying the actual
thermodynamic formula.
○ B is incorrect: Results from the common novice error of dividing swept volume by
clearance volume without adding the clearance volume to the numerator first.
○ D is incorrect: Represents a calculation error incorrectly applying a fixed percentage
increase.
The Mentor's Analysis: The absolute calculation for compression ratio requires dividing the
total maximum cylinder volume (swept plus clearance) by the minimum volume (clearance). By
utilizing the Static Compression Ratio formula correctly, you bypass the common trap of ignoring
clearance volume in the dividend. Professional/Academic Intuition: Always add clearance
volume to swept volume prior to division.
Q2: A technician assesses a high-current starter circuit. Based on the principles of Ohm's Law
and automotive electrical diagnosis, which method is the MOST ACCURATE for determining
circuit integrity? A) Measuring static resistance across the starter cable with the circuit
unpowered. B) Measuring available battery voltage at the starter terminal with the ignition off. C)
Performing a dynamic voltage drop test across the circuit while cranking. D) Checking for
continuity between the battery positive terminal and the starter solenoid.
● The Answer: C (Performing a dynamic voltage drop test across the circuit while
cranking.)
● Distractor Analysis:
○ A is incorrect: Static resistance cannot account for current flow restrictions that only
appear under load.
○ B is incorrect: Available voltage without load does not test the capacity of the wiring.
○ D is incorrect: Continuity only proves a path exists; a single strand of wire will show
continuity but fail under a 150-amp load.
The Mentor's Analysis: Circuits must be tested under their operational load. By utilizing
Dynamic Voltage Drop testing, you bypass the common trap of trusting static continuity
measurements on degraded cables. Professional/Academic Intuition: A circuit is only
proven healthy when it successfully carries its designed current without excessive
voltage loss.
Q3: When addressing a client's automotive issue, the technician must document the process.
Based on the principles of the ASE standard diagnostic framework, which sequence is the
MOST APPROPRIATE? A) Correction, Cause, Concern B) Cause, Concern, Correction C)
Concern, Cause, Correction D) Correction, Concern, Cause
, ● The Answer: C (Concern, Cause, Correction)
● Distractor Analysis:
○ A is incorrect: Actions cannot be taken before the issue is understood.
○ B is incorrect: The root cause cannot be isolated before the customer's symptom is
verified.
○ D is incorrect: Represents an illogical and random arrangement of the framework.
The Mentor's Analysis: The fundamental structure of all professional repair orders relies on
sequential logic. By utilizing the Concern, Cause, Correction sequence, the diagnostic narrative
remains anchored to the initial client complaint. Professional/Academic Intuition: Never
begin the correction phase without fully isolating the root cause of the initial concern.
Q4: A modern vehicle utilizes R-1234yf in its climate control system. Based on the principles of
modern refrigerant handling, which characteristic of R-1234yf is the MOST ACCURATE
compared to legacy R-134a? A) It operates at significantly higher pressures requiring unique
manifold gauges. B) It possesses a much lower Global Warming Potential (GWP) but is
classified as mildly flammable. C) It is heavily ozone-depleting and requires specialized vacuum
pumps. D) It can be seamlessly mixed with R-134a to enhance cooling efficiency.
● The Answer: B (It possesses a much lower Global Warming Potential (GWP) but is
classified as mildly flammable.)
● Distractor Analysis:
○ A is incorrect: Operating pressures are largely similar to R-134a, though fittings
differ.
○ C is incorrect: R-1234yf is not an ozone-depleting substance (ODS); this describes
R-12.
○ D is incorrect: Mixing refrigerants is a federal violation and degrades system
performance.
The Mentor's Analysis: Environmental regulations have forced the adoption of
hydrofluoroolefins (HFOs). By utilizing R-1234yf, the industry bypasses high GWP while
managing an A2L mild flammability rating. Professional/Academic Intuition: Mild
flammability requires dedicated R-1234yf recovery equipment designed to prevent
internal spark ignition.
Q5: An automotive battery requires testing. Based on the principles of chemical energy storage,
which specification dictates the battery's ability to sustain the vehicle's electrical load if the
alternator fails? A) Cold Cranking Amps (CCA) B) Ampere-Hour (Ah) C) Reserve Capacity (RC)
D) Cranking Amps (CA)
● The Answer: C (Reserve Capacity (RC))
● Distractor Analysis:
○ A is incorrect: CCA measures the maximum discharge for 30 seconds at 0°F, strictly
for starting.
○ B is incorrect: Ah is a general capacity metric often used for deep-cycle or EV
batteries, not specifically the emergency alternator-failure timeframe.
○ D is incorrect: CA measures output at 32°F, which is a starting metric, not a
sustained load metric.
The Mentor's Analysis: The electrical system relies on the battery as a stabilization and
emergency power source. By utilizing the Reserve Capacity rating (minutes at 25 amps), you
accurately evaluate emergency operational time. Professional/Academic Intuition: Reserve
Capacity is the definitive metric for sustained emergency power.
Q6: A vehicle enters the shop with a steering pull. Based on the principles of steering geometry,
which alignment angle is EXCEPTED from causing a directional pull when unequal
