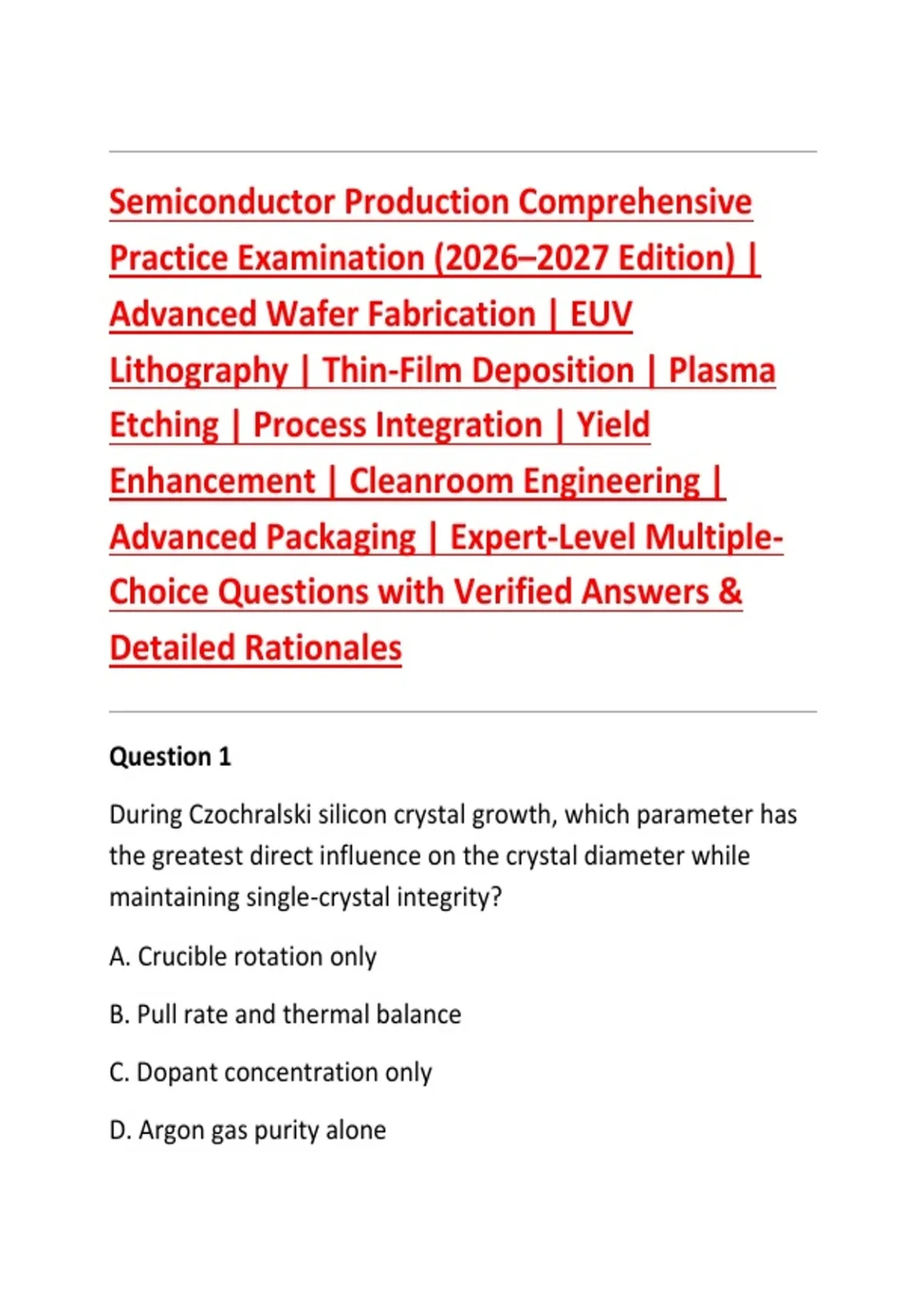

Semiconductor Production Comprehensive
Practice Examination (2026–2027 Edition) |
Advanced Wafer Fabrication | EUV
Lithography | Thin-Film Deposition | Plasma
Etching | Process Integration | Yield
Enhancement | Cleanroom Engineering |
Advanced Packaging | Expert-Level Multiple-
Choice Questions with Verified Answers &
Detailed Rationales
Question 1
During Czochralski silicon crystal growth, which parameter has
the greatest direct influence on the crystal diameter while
maintaining single-crystal integrity?
A. Crucible rotation only
B. Pull rate and thermal balance
C. Dopant concentration only
D. Argon gas purity alone
,Correct Answer: B. Pull rate and thermal balance
Rationale: The crystal diameter is primarily controlled by
balancing the pulling speed with the thermal gradient at the
solid-liquid interface. Faster pull rates tend to reduce crystal
diameter, while thermal equilibrium maintains stable crystal
growth. Rotation and inert gas contribute to uniformity but are
secondary.
Question 2
A semiconductor fabrication engineer observes increased
stacking faults in wafers immediately after crystal growth.
Which root cause is the most probable?
A. Excessive wafer polishing
B. Thermal stress during crystal solidification
C. Incorrect CMP slurry selection
D. Improper photoresist development
Correct Answer: B. Thermal stress during crystal solidification
Rationale: Stacking faults generally originate during crystal
growth because uneven cooling introduces internal stresses and
crystal lattice imperfections.
,Question 3
Which wafer cleaning sequence is specifically designed to
remove organic contaminants before oxidation?
A. HF dip only
B. RCA-1 clean
C. RCA-2 clean
D. Nitrogen purge
Correct Answer: B. RCA-1 clean
Rationale: RCA-1 uses ammonium hydroxide, hydrogen
peroxide, and water to remove organics and particles. RCA-2
targets metallic contamination, while HF removes native oxide.
Question 4
The principal advantage of Extreme Ultraviolet (EUV)
lithography compared with Deep Ultraviolet (DUV) lithography
is:
A. Reduced cleanroom classification requirements
B. Larger feature sizes
C. Higher pattern resolution with fewer multiple-patterning
steps
, D. Elimination of photoresist
Correct Answer: C. Higher pattern resolution with fewer
multiple-patterning steps
Rationale: The 13.5 nm wavelength of EUV enables finer critical
dimensions while reducing the need for complex multiple-
patterning processes used in advanced DUV fabrication.
Question 5
In Atomic Layer Deposition (ALD), film thickness is primarily
controlled by:
A. Chamber pressure
B. Number of deposition cycles
C. Plasma intensity only
D. Wafer rotation speed
Correct Answer: B. Number of deposition cycles
Rationale: ALD is a self-limiting process in which each cycle
deposits approximately one atomic layer, allowing exceptional
thickness control.
Question 6
