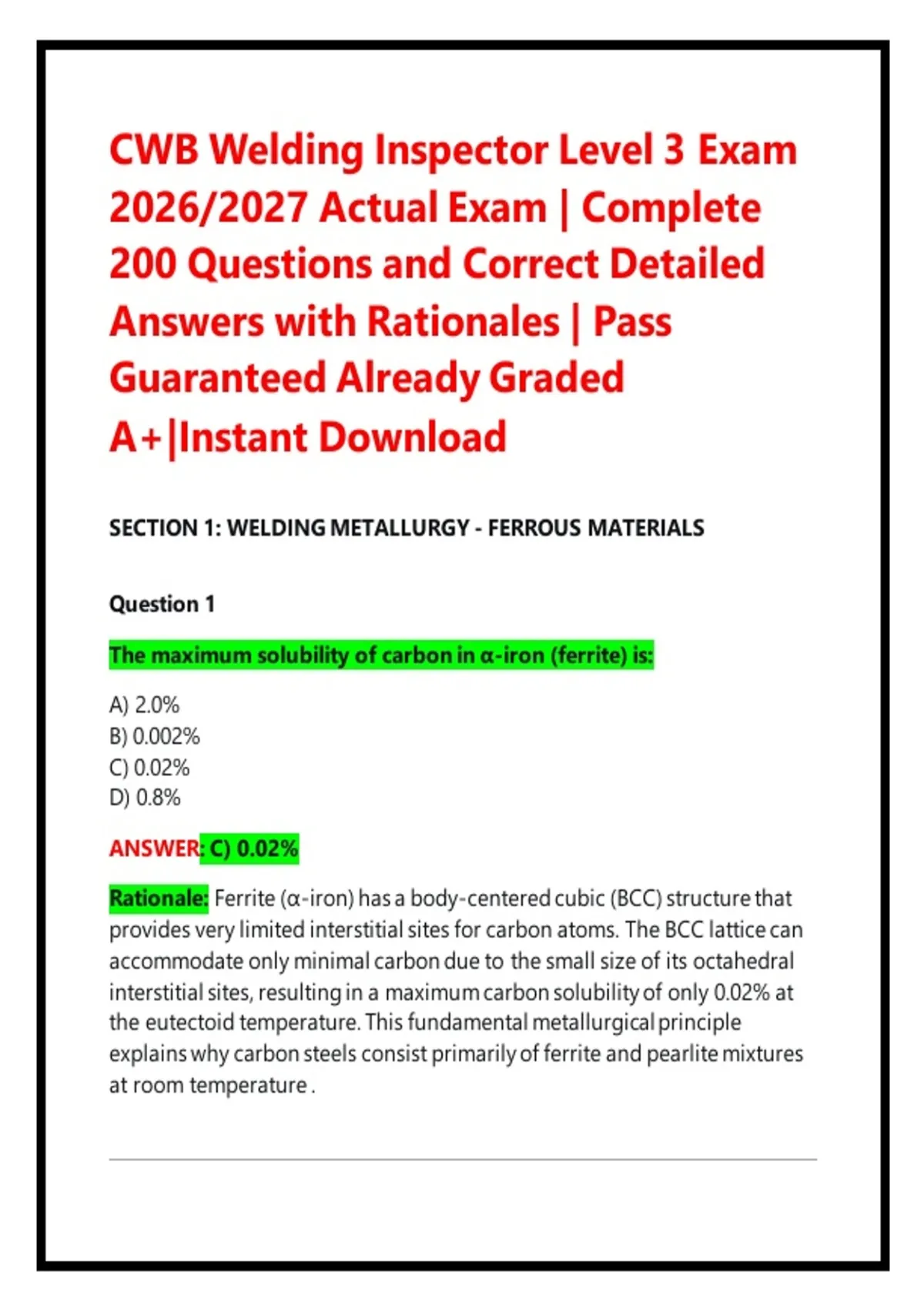

CWB Welding Inspector Level 3 Exam
2026/2027 Actual Exam | Complete
200 Questions and Correct Detailed
Answers with Rationales | Pass
Guaranteed Already Graded
A+|Instant Download
SECTION 1: WELDING METALLURGY - FERROUS MATERIALS
Question 1
The maximum solubility of carbon in α-iron (ferrite) is:
A) 2.0%
B) 0.002%
C) 0.02%
D) 0.8%
ANSWER: C) 0.02%
Rationale: Ferrite (α-iron) has a body-centered cubic (BCC) structure that
provides very limited interstitial sites for carbon atoms. The BCC lattice can
accommodate only minimal carbon due to the small size of its octahedral
interstitial sites, resulting in a maximum carbon solubility of only 0.02% at
the eutectoid temperature. This fundamental metallurgical principle
explains why carbon steels consist primarily of ferrite and pearlite mixtures
at room temperature .
,Question 2
Multiplication and subsequent congestion of moving dislocations
causes:
A) Elastic extension
B) Work or strain hardening
C) A drop in the yield stress
D) Grain boundary sliding
Correct Answer: B) Work or strain hardening
Rationale: During plastic deformation, dislocations multiply and become
congested within the crystal lattice. As dislocation density increases, they
impede each other's movement through the lattice, requiring progressively
higher stress for continued deformation. This fundamental mechanism,
known as work hardening or strain hardening, increases both yield strength
and hardness of the material .
Question 3
The hardness of martensite depends mainly on the:
A) Alloy content
B) Rate of cooling
C) Carbon content
D) Size of the part
Correct Answer: C) Carbon content
Rationale: The hardness of martensite is primarily determined by its carbon
content. Higher carbon content creates greater tetragonal distortion of the
body-centered tetragonal (BCT) lattice structure, resulting in increased
hardness through solid solution strengthening and lattice strain. While
,alloying elements contribute to hardenability, they have a secondary effect
on maximum attainable hardness compared to carbon content .
Question 4
The iron-carbon equilibrium diagram shows that the maximum
solubility of carbon in austenite (γ-iron) is approximately:
A) 0.02%
B) 0.77%
C) 2.1%
D) 4.3%
Correct Answer: C) 2.1%
Rationale: Austenite (γ-iron) has a face-centered cubic (FCC) structure with
larger interstitial sites, allowing a maximum carbon solubility of
approximately 2.1% at the eutectic temperature. This contrasts sharply with
ferrite's BCC structure, which permits only 0.02% carbon solubility. The FCC
structure's larger octahedral sites accommodate carbon atoms more
readily .
Question 5
What is pearlite composed of?
A) Ferrite and cementite in alternating lamellae
B) Ferrite and austenite
C) Cementite and martensite
D) Bainite and ferrite
, Correct Answer: A) Ferrite and cementite in alternating lamellae
Rationale: Pearlite is a lamellar microstructure consisting of alternating
plates of ferrite (α-iron) and cementite (Fe₃C) that forms during the
eutectoid transformation at approximately 727°C. This layered structure
provides a balance of strength and ductility .
Question 6
How does yield strength vary with grain size?
A) Directly proportional to grain size
B) Inversely as the square root of grain size
C) Independent of grain size
D) Exponentially with grain size
Correct Answer: B) Inversely as the square root of grain size
Rationale: According to the Hall-Petch relationship (σy = σ₀ + k/√d), yield
strength varies inversely as the square root of grain size. Finer grain size
results in higher strength because grain boundaries act as barriers to
dislocation movement. This relationship is fundamental to understanding
why grain refinement is an important strengthening mechanism .
Question 7
What is the primary cause of hydrogen-induced cracking (HIC) in steel
welds?
A) High carbon content
B) Presence of hydrogen in the weld metal
