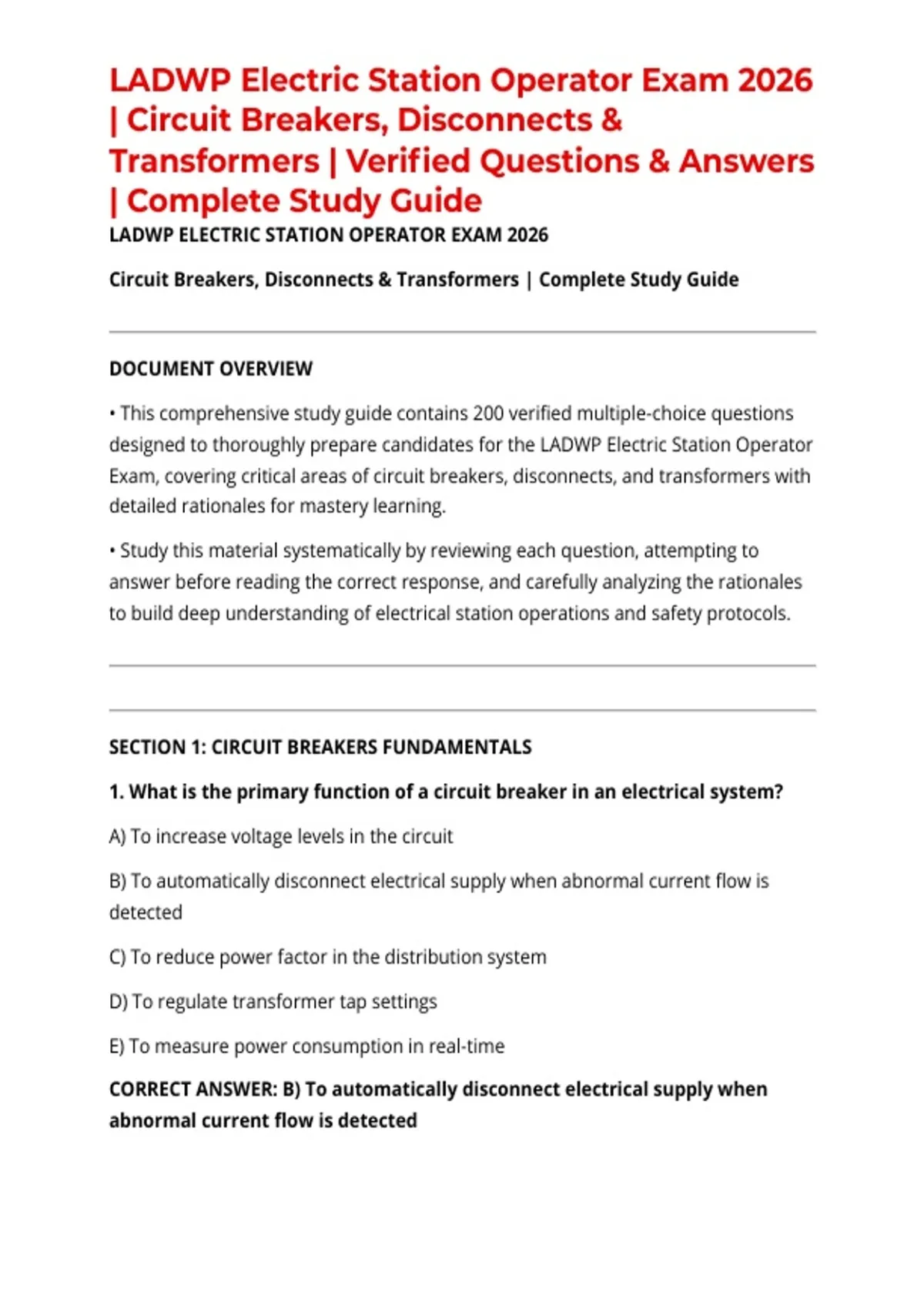

LADWP Electric Station Operator Exam 2026
| Circuit Breakers, Disconnects &
Transformers | Verified Questions & Answers
| Complete Study Guide
LADWP ELECTRIC STATION OPERATOR EXAM 2026
Circuit Breakers, Disconnects & Transformers | Complete Study Guide
DOCUMENT OVERVIEW
• This comprehensive study guide contains 200 verified multiple-choice questions
designed to thoroughly prepare candidates for the LADWP Electric Station Operator
Exam, covering critical areas of circuit breakers, disconnects, and transformers with
detailed rationales for mastery learning.
• Study this material systematically by reviewing each question, attempting to
answer before reading the correct response, and carefully analyzing the rationales
to build deep understanding of electrical station operations and safety protocols.
SECTION 1: CIRCUIT BREAKERS FUNDAMENTALS
1. What is the primary function of a circuit breaker in an electrical system?
A) To increase voltage levels in the circuit
B) To automatically disconnect electrical supply when abnormal current flow is
detected
C) To reduce power factor in the distribution system
D) To regulate transformer tap settings
E) To measure power consumption in real-time
CORRECT ANSWER: B) To automatically disconnect electrical supply when
abnormal current flow is detected
,Rationale: Circuit breakers serve as protective devices that automatically interrupt
electrical supply during fault conditions such as overloads or short circuits. This
prevents equipment damage, fire hazards, and personal injury. Unlike fuses which
must be replaced, circuit breakers can be reset and reused, making them more
practical for modern electrical stations.
2. Which type of circuit breaker uses an electromagnet and thermal element
for protection?
A) Solid-state circuit breaker
B) Electromechanical circuit breaker
C) Hydraulic circuit breaker
D) Pneumatic circuit breaker
E) Capacitive circuit breaker
CORRECT ANSWER: B) Electromechanical circuit breaker
Rationale: Electromechanical circuit breakers combine both electromagnetic and
thermal elements to provide comprehensive protection. The thermal element
responds to prolonged overloads through heat buildup, while the electromagnetic
element responds instantly to short circuits via magnetic force. This dual-response
mechanism ensures protection against both sustained overload conditions and
sudden fault currents.
3. What is the trip curve rating commonly referred to in circuit breaker
specifications?
A) Load Rating (LR)
B) Thermal Time Constant (TTC)
C) Magnetic Trip Curve (MTC)
D) Current Sensitivity Range (CSR)
,E) Voltage Dropout Index (VDI)
CORRECT ANSWER: C) Magnetic Trip Curve (MTC)
Rationale: The Magnetic Trip Curve defines the relationship between current
magnitude and the time required for the breaker to trip. Standard curves like Type
B, C, and D are used for different applications. Type B trips at 3-5 times nominal
current, Type C at 5-10 times, and Type D at 10-20 times, allowing technicians to
select appropriate protection for their specific load characteristics.
4. What does the amperage rating on a circuit breaker indicate?
A) The maximum fault current it can withstand
B) The maximum continuous current it is designed to carry without tripping
C) The minimum current required to activate the breaker
D) The voltage capacity of the breaker
E) The short circuit breaking capacity
CORRECT ANSWER: B) The maximum continuous current it is designed to carry
without tripping
Rationale: The amperage rating (e.g., 20A, 50A, 100A) indicates the normal full-load
current capacity. Operating at or below this rating should not cause the breaker to
trip. Exceeding this rating continuously will trigger the thermal element and cause a
trip, protecting the circuit from sustained overload conditions that could damage
wiring and equipment.
5. Which of the following best describes the breaking capacity of a circuit
breaker?
A) The maximum normal operating current
B) The highest fault current the breaker can safely interrupt without damage
C) The minimum trip current setting
, D) The thermal derating factor
E) The nominal system voltage
CORRECT ANSWER: B) The highest fault current the breaker can safely
interrupt without damage
Rationale: Breaking capacity (measured in kA - kiloamperes) is the maximum short
circuit current a breaker can safely interrupt and contain. For LADWP systems,
typical industrial breakers have breaking capacities ranging from 10 kA to 200 kA,
depending on application. Operating beyond this capacity can cause dangerous arc
flash and equipment destruction.
6. In LADWP Electric Station operations, what is the typical voltage
classification for low-voltage circuit breakers?
A) Below 120 volts
B) Between 120 and 240 volts
C) Between 480 volts and 1000 volts
D) Above 1000 volts
E) Between 100 and 600 volts
CORRECT ANSWER: E) Between 100 and 600 volts
Rationale: Low-voltage circuit breakers (LVCB) are rated for systems between 100V
and 600V AC. This range covers most distribution and service entrance applications
in electrical stations. Medium-voltage breakers handle 600V to 15kV, while high-
voltage breakers exceed 15kV. Proper voltage classification ensures adequate arc
suppression and insulation protection.
7. What is a key characteristic of molded case circuit breakers (MCCB) used in
substations?
A) They can only be used in residential applications
