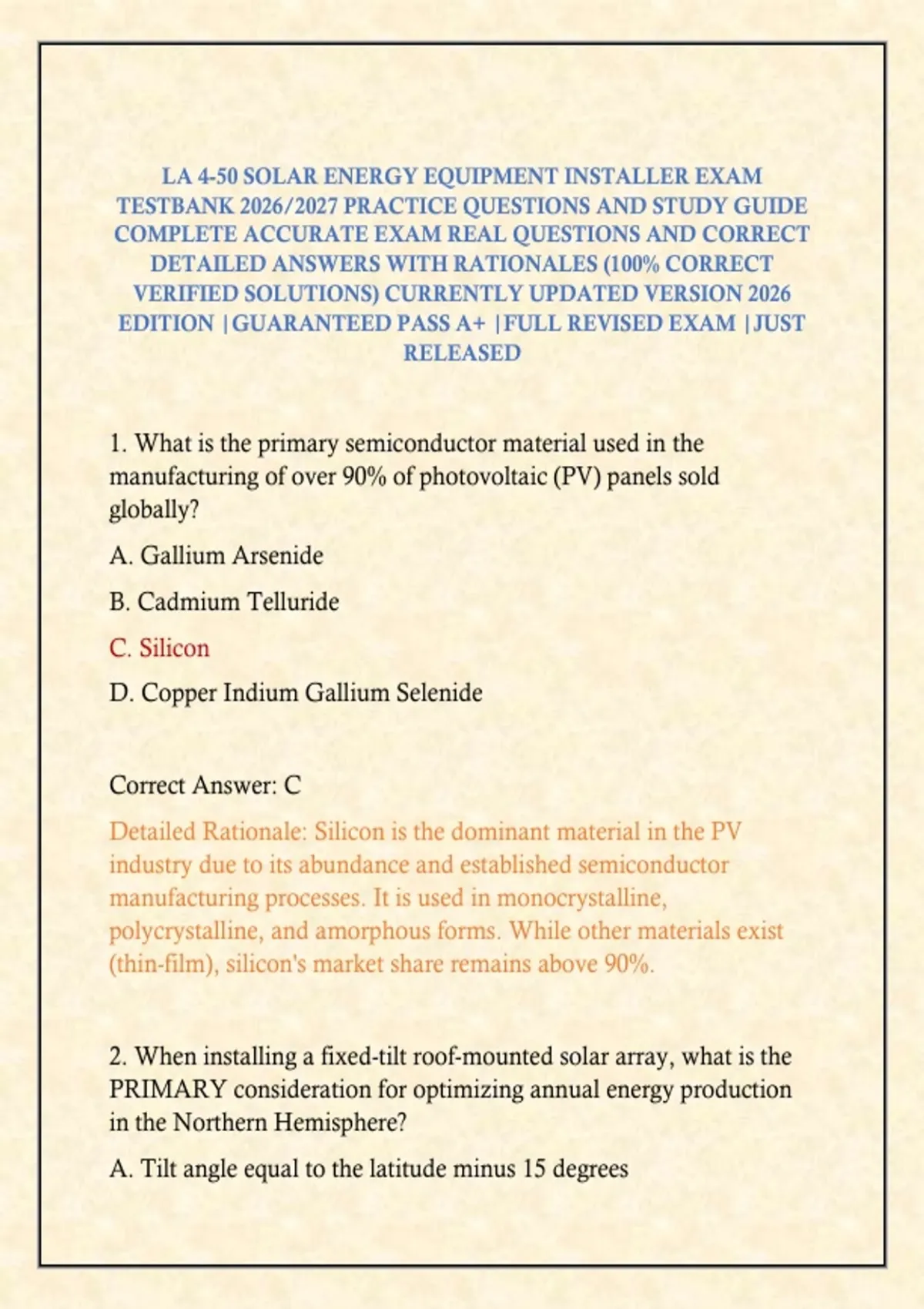

LA 4-50 SOLAR ENERGY EQUIPMENT INSTALLER EXAM
TESTBANK 2026/2027 PRACTICE QUESTIONS AND STUDY GUIDE
COMPLETE ACCURATE EXAM REAL QUESTIONS AND CORRECT
DETAILED ANSWERS WITH RATIONALES (100% CORRECT
VERIFIED SOLUTIONS) CURRENTLY UPDATED VERSION 2026
EDITION |GUARANTEED PASS A+ |FULL REVISED EXAM |JUST
RELEASED
1. What is the primary semiconductor material used in the
manufacturing of over 90% of photovoltaic (PV) panels sold
globally?
A. Gallium Arsenide
B. Cadmium Telluride
C. Silicon
D. Copper Indium Gallium Selenide
Correct Answer: C
Detailed Rationale: Silicon is the dominant material in the PV
industry due to its abundance and established semiconductor
manufacturing processes. It is used in monocrystalline,
polycrystalline, and amorphous forms. While other materials exist
(thin-film), silicon's market share remains above 90%.
2. When installing a fixed-tilt roof-mounted solar array, what is the
PRIMARY consideration for optimizing annual energy production
in the Northern Hemisphere?
A. Tilt angle equal to the latitude minus 15 degrees
,B. Orientation towards true south with an appropriate tilt angle
C. Maximum roof coverage to increase the system's nameplate
capacity
D. Orientation towards magnetic south for optimal solar irradiation
Correct Answer: B
Detailed Rationale: For maximum annual energy yield in the
Northern Hemisphere, the PV array should face true south (azimuth
of 180 degrees). The tilt angle is then optimized based on latitude,
but orientation is the primary directional factor. Magnetic south
must be adjusted for magnetic declination to find true south.
3. A PV module is rated at 400W under Standard Test Conditions
(STC). If the solar irradiance increases from 1000 W/m² to 1200
W/m² while cell temperature remains constant, what is the MOST
likely new power output?
A. 333W
B. 400W
C. 440W
D. 480W
Correct Answer: D
Detailed Rationale: Under constant temperature, PV module current
(and thus power) is directly proportional to irradiance. The power
will scale linearly with the change in irradiance: 400W * (1200/1000)
,= 480W. This assumes the module is operating at its maximum
power point.
4. According to the National Electrical Code (NEC), what is the
MINIMUM working clearance required in front of a PV combiner
box or inverter that operates at 150 volts to ground?
A. 24 inches
B. 30 inches
C. 36 inches
D. 42 inches
Correct Answer: C
Detailed Rationale: NEC Article 110.26 requires a working space of
at least 36 inches (914 mm) in front of electrical equipment operating
at 150 volts or less to ground. This clearance is required for safe
operation and maintenance.
5. What is the functional purpose of a bypass diode within a PV
module junction box?
A. To prevent reverse current flow from the battery bank at night
B. To protect the module from lightning strikes
C. To allow current to flow around shaded or damaged cells,
preventing hot spots
D. To convert DC power from the module to AC power
, Correct Answer: C
Detailed Rationale: Bypass diodes are wired in parallel with strings
of cells within a module. When a cell or string is shaded, it becomes
reverse-biased and can overheat. The bypass diode provides an
alternate path for current, limiting power loss and preventing the
"hot-spot" effect that can permanently damage the module.
6. A solar installer is working on a ground-mounted array. The site
has a high water table. Which type of mounting foundation is MOST
suitable to prevent corrosion and ensure long-term stability?
A. Concrete ballasts
B. Driven steel piles
C. Helical screw piles
D. Concrete piers
Correct Answer: C
Detailed Rationale: Helical screw piles are an excellent choice for
high water table sites. They are driven deep into the ground without
the need for excavation and large concrete pours, and their
galvanized steel construction provides good corrosion resistance.
Concrete piers require excavation which is problematic in wet
conditions.
7. When designing a series string of PV modules, what is the
MAXIMUM system voltage limit that must be considered for
residential installations under NEC 2020?
A. 600 Volts
